Laser & CNC — wood, plywood & MDF
Resinous, sticky dust from board materials
Applications
- CNC routing
- Laser cutting
- Laser engraving
- Sticky dust
- Wood & MDF
About this range

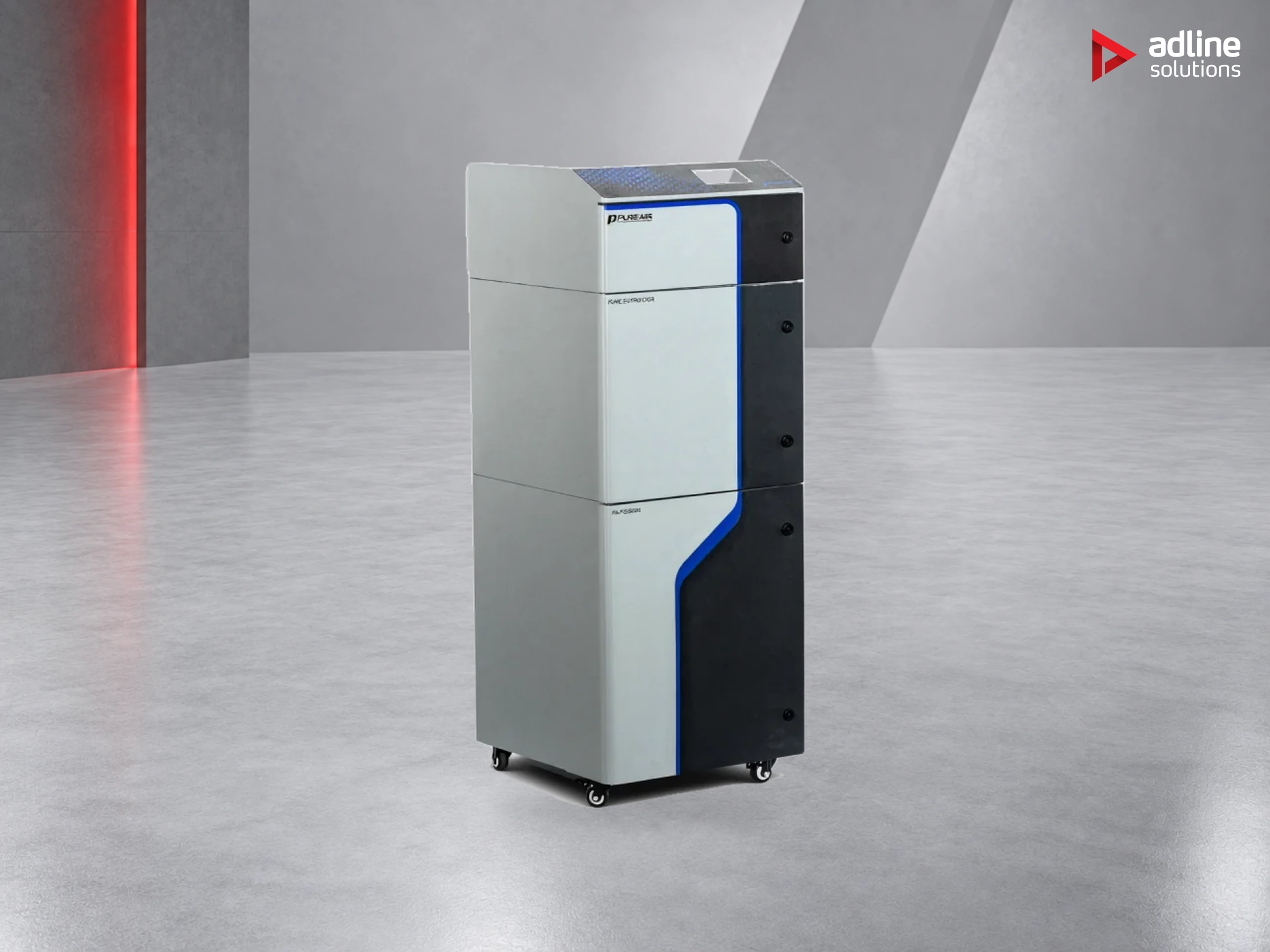

Wood, plywood and MDF produce resinous, sticky dust that cakes onto a standard pleated pre-filter and blinds it within weeks. The FGS series uses a PTFE cartridge loaded with natural mineral powder, so the dust releases instead of bonding. This is the range PURE-AIR itself recommends for CO₂ laser cutting of board materials, and it suits CNC routers working the same materials.
- Your machinelaser · CNC · printer extraction port, connected by a duct
- One cabinet · air never leaves the building
- Stage 1 · PTFE cartridgesticky resinous dust releases · anti-stick mineral coating
- Stage 2 · HEPA H14holds the fume you cannot see · 99.99% @ 0.3 µm
- Stage 3 · Activated carbonholds VOC and odour
- Fan after the filters: it pulls through every stage, so suction at the nozzle stays the number that matters.
- Clean airback into the room, no outside duct
- Clean air out · brushless fanpulls through every stage
- Stage 3 · activated carbonholds VOC and odour
- Stage 2 · HEPA H1499.99% @ 0.3 µm
- Stage 1 · PTFE cartridgesticky resinous dust releases
- Contaminated air inducted from the machine; dust drawer emptied from the front
PPS — standard control
models without the “i” suffix
- Start / stop, speed steps
- Filter replacement warning
- Colour LCD screen (from 15.09.2026)
PIPS — intelligent control
the “i” models · everything on the left, plus:
1 240 m³/h
−8 600 Pa at the inlet
filter life 65%
- Airflow held steady as the filter loads
- Air-quality sensors with alarm thresholds
- I/O and RS-485 — starts with the machine
Both are current models. PIPS earns its place where the unit runs unattended, feeds a line, or has to prove it is working.
| What you process | Series | Why that one |
|---|---|---|
| Acrylic, paper, leather, textiles, resin 3D | Series: FS | F9 pleated pre-filter |
| Wood, plywood, MDF | Series: FGS | PTFE cartridge — sticky dust releases |
| Carbon fibre, composites, laser cleaning | Series: DFS | Flame retardant cartridge, antistatic duct |
| Laser marking and coding | Series: F · DS | Sub-micron fume, carbon for odour |
| Metal — one station (weld, drill, AM) | Series: D compact | Up to 10 000 Pa at the nozzle |
| Metal — a full cutting bed | Series: D industrial | Volume plus self-cleaning cartridges |
Then size it: the machine bed decides the airflow — 30×40 cm needs 300 m³/h, 130×250 cm needs 2400 m³/h.
Frequently asked questions
Why does my filter blind so quickly?
Three usual causes: sparks not caught upstream burning through the element, dust concentration above what the pre-filter was sized for, or humidity caking the dust onto the media. On board materials it is almost always the media itself — pleated media holds resinous dust, PTFE releases it.
Where does the filtered air go?
Back into the room. The mobile units are recirculating, so there is no duct to the outside and no heated air thrown away in winter. The central industrial units are ducted to the machine enclosure and need a compressed-air line for their self-cleaning cartridges.
What maintenance does it need day to day?
Check the element is seated and sealed before running. When the blockage alarm shows, replace it then — running on past it pushes fume into the fan and the control board, which turns a filter change into a repair.
