PURE-AIR PA-FGS1600 Fume & Dust Extractor
On request
- 1600 m³/h airflow
- Up to 10000 Pa negative pressure
- HEPA H14 filtration, 99.99% @ 0.3 µm
- Activated carbon stage for VOC and odour
- PPS standard control
Industrial fume extraction unit, 1600 m³/h at up to 10000 Pa. Wood, plywood, MDF, chipboard. PPS standard control.
Request a quoteWhich model fits your machine? Read the guide- Laser cutting
- Laser engraving
- CNC routing
- Wood & MDF
- Sticky dust
About this machine
The PA-FGS1600 is the model PURE-AIR builds specifically for the sticky dust produced when a CO2 laser cuts wood, plywood and MDF. Resin and binder in the board turn the smoke tacky, and it cakes onto an ordinary pleated pre-filter within weeks. Here the first stage is a PTFE cartridge loaded with natural mineral powder: the dust sits on the powder rather than bonding to the media, and it releases when the cartridge is cleaned. Behind it, a HEPA H14 stage and an activated carbon bed deal with the sub-micron smoke and the burnt-wood smell. 1600 m³/h at up to 10000 Pa.
Filtration

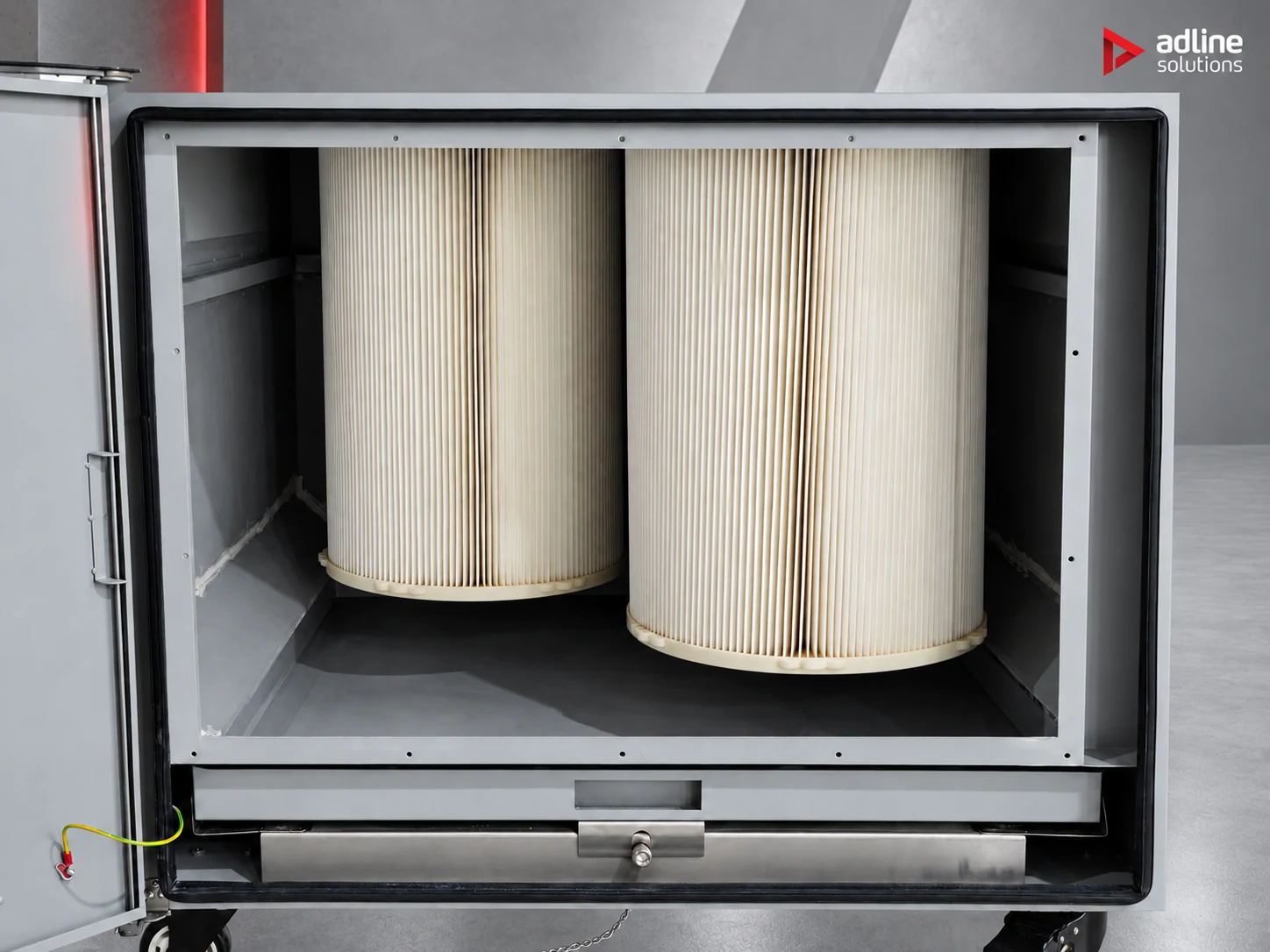

- PTFE cartridge pre-filter loaded with natural mineral powder - releases sticky, resinous dust instead of blinding

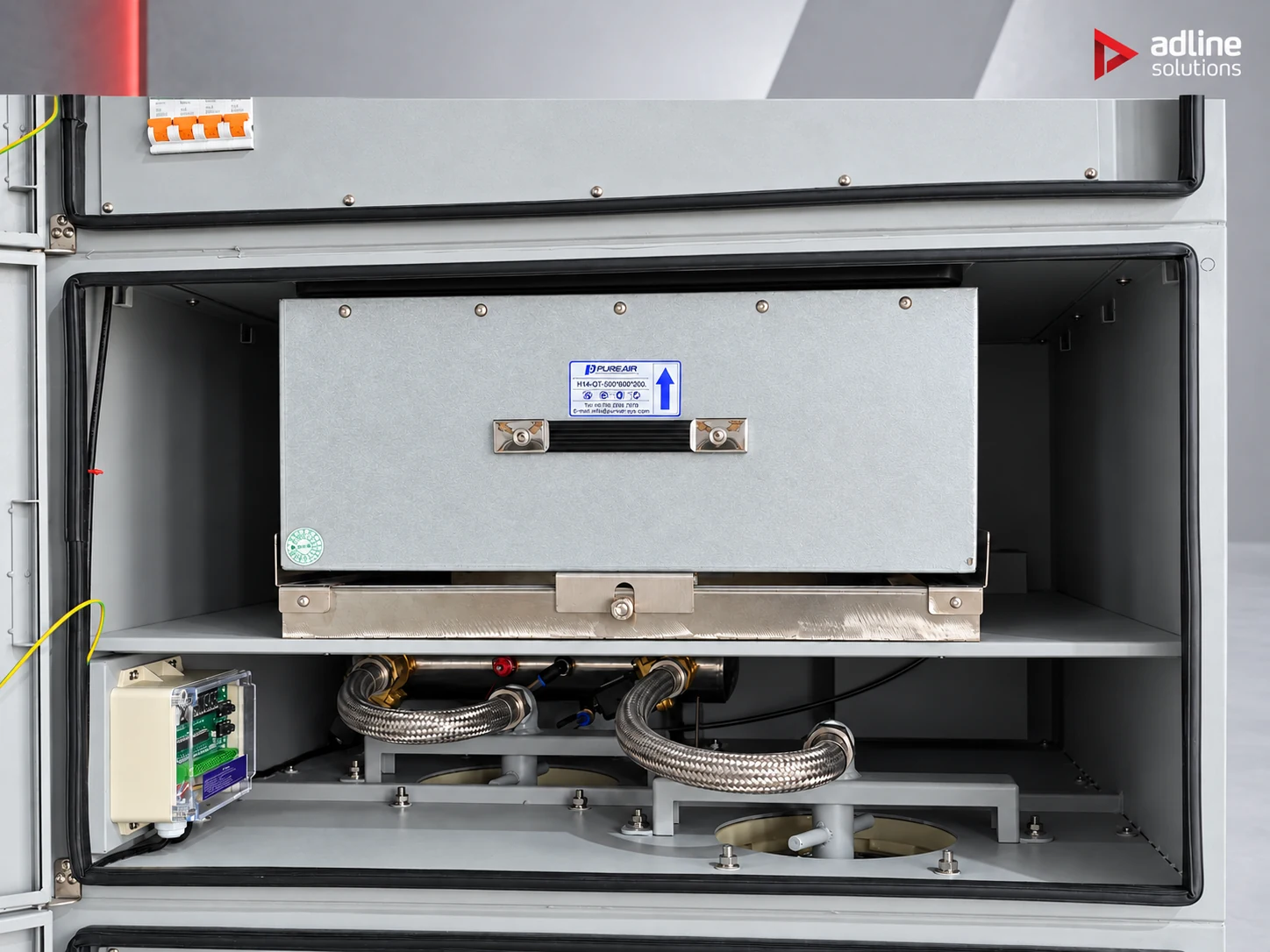

- H14 deeppleat filter, 99.99% @ 0.3 um
- Treated activated carbon, approx. 12-30 kg, for burnt-wood odour and VOC
Key specifications
- Airflow: 1600 m³/h
- Maximum negative pressure: 10000 Pa
- Rated power: 2.3 kW
- Power supply: 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Noise level: below 65 dBA at 1 m
- Dimensions (W x D x H): 670 x 834 x 1705 mm
- Net weight: 210 kg
- Inlet: 150 mm
- Cabinet: Powder coated mild steel / brushed stainless steel
Recommended for
- CO2 laser cutters and engravers with a bed of 90x130 cm / 100x160 cm
- CNC routers and nesting machines working wood and MDF
- Sign-making and furniture workshops
Standard version (PPS)
This is the standard version, without the intelligent control package. The current PA-FGS1600 is operated entirely from a colour LCD display: fan speed, filter cleaning and status are set on screen, and there are no rotary knobs. If the intelligent functions matter - real airflow readout, filter warnings, automatic compensation, RS-485 linkage - choose the i version of the same model.
Why not the FS series
An FS unit will extract the same volume of air, but its F9 pre-filter is not designed for resinous dust and will need replacing far more often. On wood and MDF the FGS pays for itself in consumables.
Installation

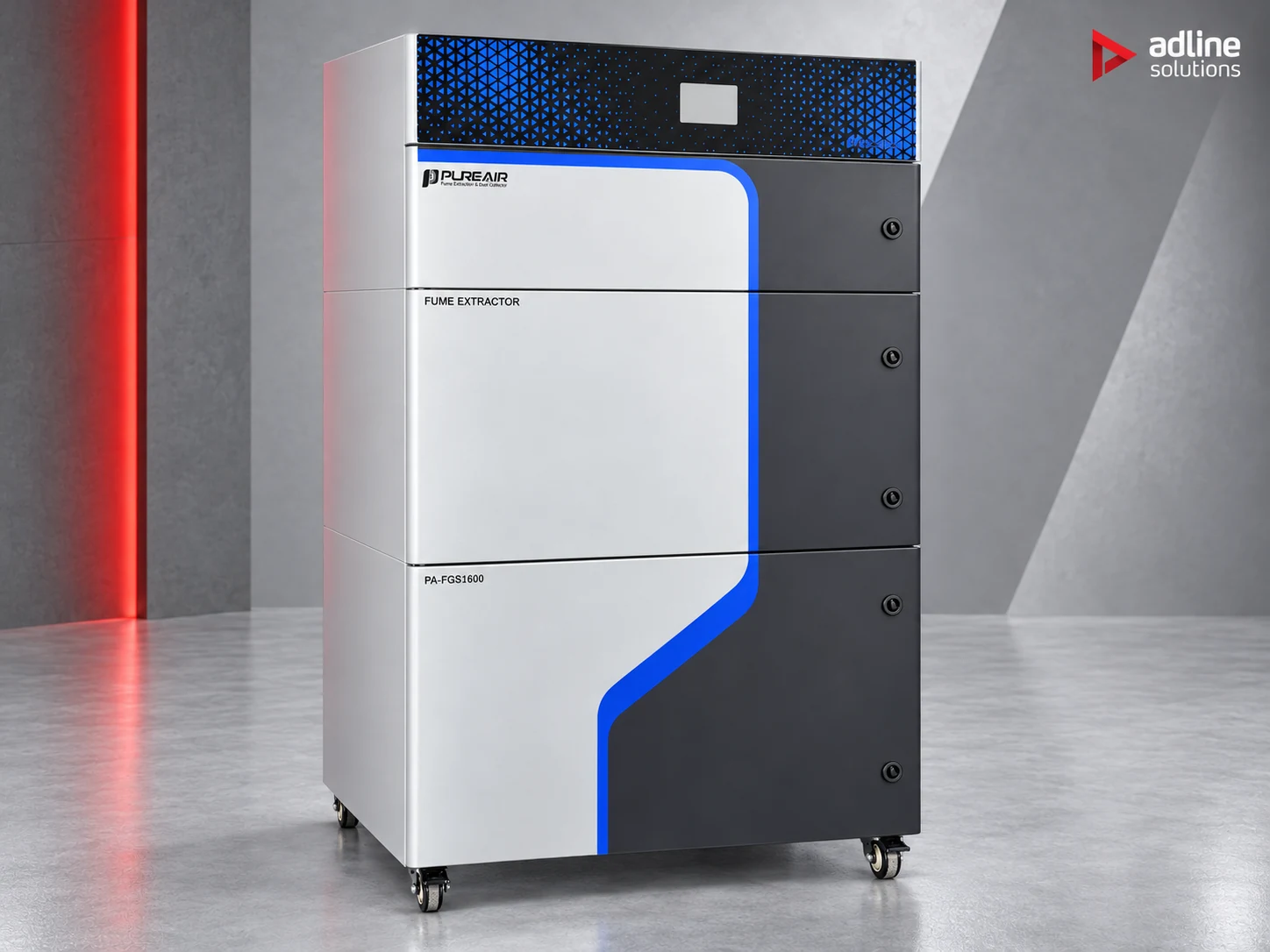

Free-standing on castors. Short, straight flexible duct from the machine exhaust to the inlet. Leave the front clear for cartridge changes and allow 150 mm at the outlet. Filtered air returns to the room - no external duct required.

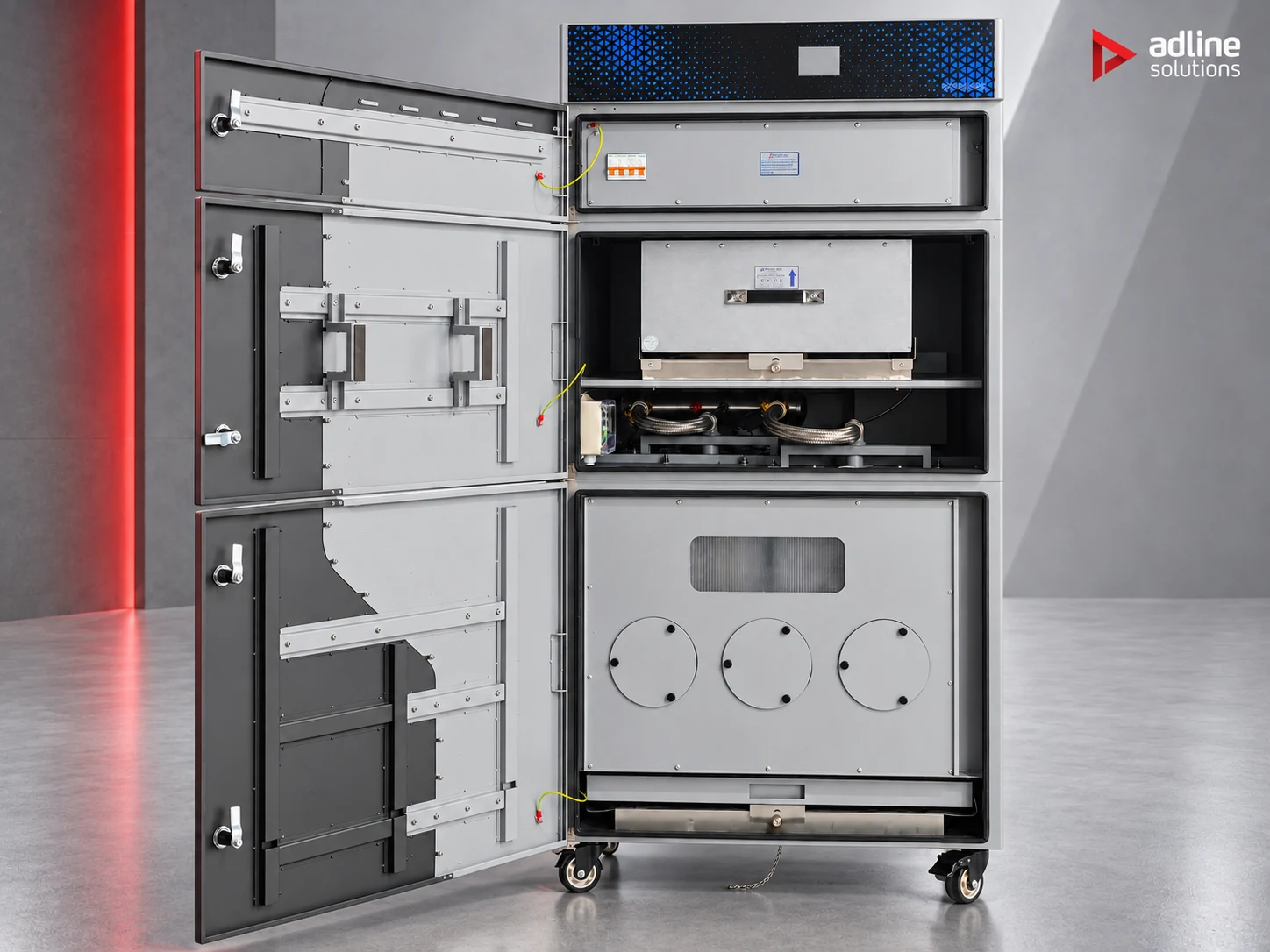

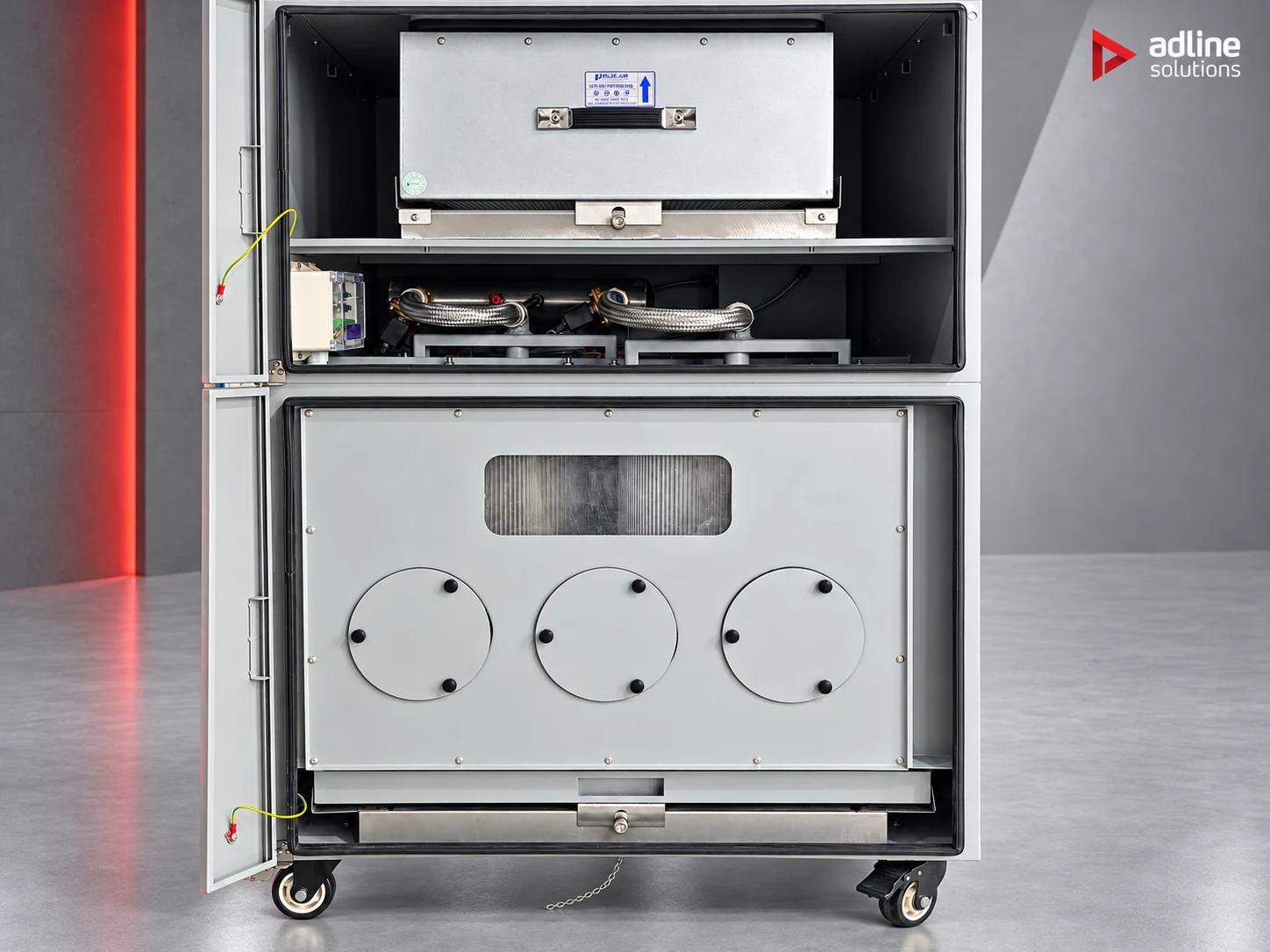

- Clean air out · brushless fanpulls through every stage
- Stage 3 · activated carbonholds VOC and odour
- Stage 2 · HEPA H1499.99% @ 0.3 µm
- Stage 1 · PTFE cartridgesticky resinous dust releases
- Contaminated air inducted from the machine; dust drawer emptied from the front
Technical specifications
- Phase
- Single-phase
- Airflow
- 1600 m³/h
- Inlet size
- 150 mm
- Net weight
- 210 kg
- Pre-filter
- PTFE cartridge pre-filter loaded with natural mineral powder - releases sticky, resinous dust instead of blinding
- Main filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Noise level
- 65 dB(A) max.
- Rated power
- 2.3 kW
- Power supply
- 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Control system
- PPS standard control
- Explosion-proof
- No
- Activated carbon
- Yes - treated activated carbon, approx. 12-30 kg
- Cabinet construction
- Powder coated mild steel / brushed stainless steel
- Dimensions (W×D×H)
- 670 x 834 x 1705 mm
- Max. negative pressure
- 10000 Pa
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
CO₂ laser cutters and engravers with a bed of 90x130 cm / 100x160 cm; CNC routers and nesting machines working wood and MDF; Sign-making and furniture workshops
Materials
Wood, plywood, MDF, chipboard; also engraved hardwood
Typical working format
90x130 cm / 100x160 cm
Control system

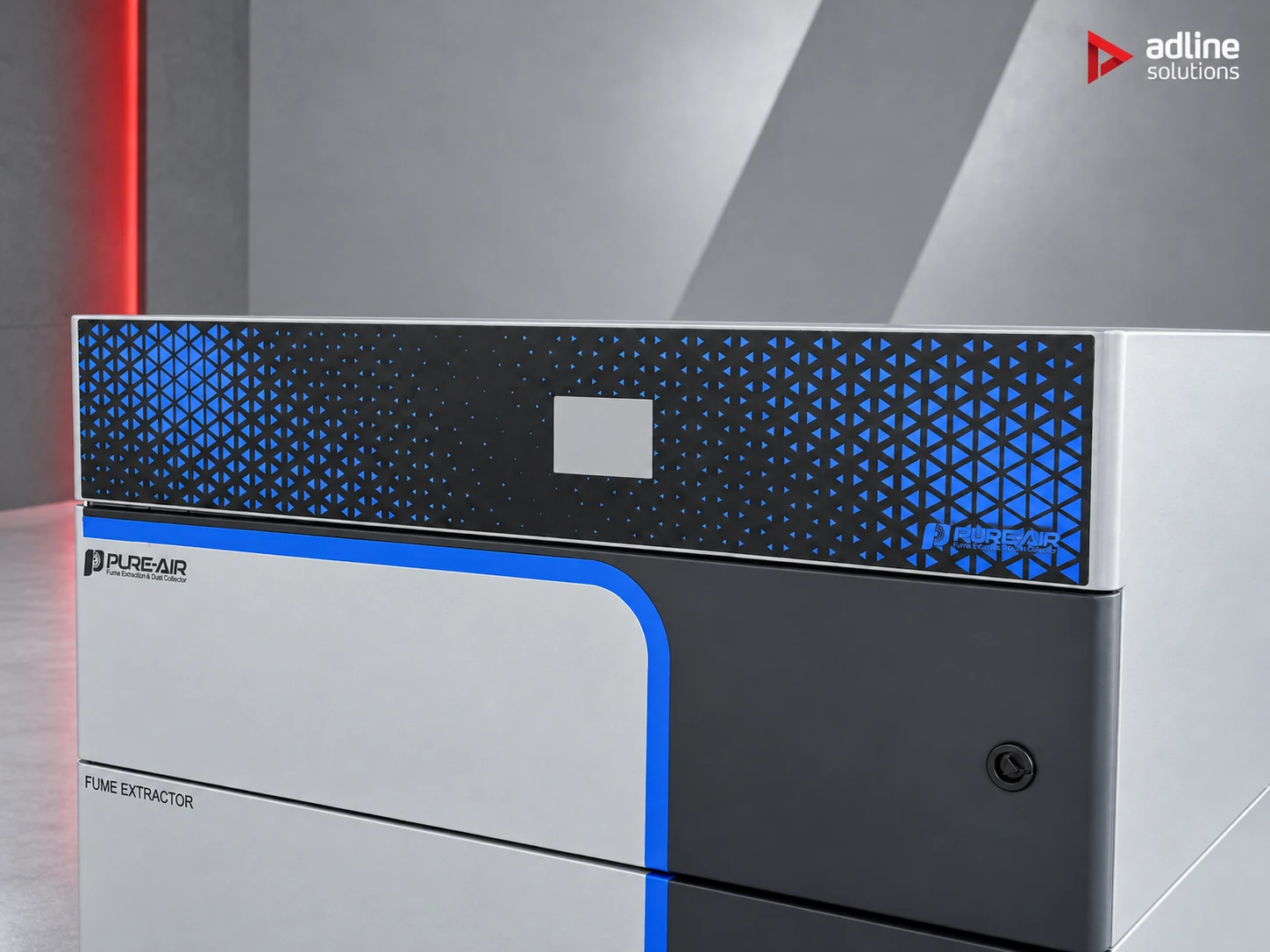

PPS - Pure-Air Purification System (standard control), operated from a colour LCD display: fan speed, filter cleaning and status are set on screen, no rotary knobs.
Installation
Free-standing on castors. Short, straight flexible duct from the machine exhaust to the inlet. Leave the front clear for cartridge changes and allow 150 mm at the outlet. Filtered air returns to the room - no external duct required.
Series
FGS
Frequently asked questions
What is it for?
The PA-FGS1600 is built for the sticky dust produced when a CO2 laser cuts wood, plywood, MDF and chipboard. It also suits CNC routers and nesting machines working wood and MDF, and sign-making and furniture workshops. It moves 1600 m³/h at up to 10,000 Pa.
Which laser size does it suit?
PURE-AIR recommends the PA-FGS1600 for CO2 laser cutters and engravers with a bed of 90 × 130 cm or 100 × 160 cm. It connects through a 150 mm inlet. Send us your laser model and how many hours a day it cuts board, and we will confirm the size.
Why not use an FS unit on wood?
An FS unit moves the same volume of air, but its F9 pre-filter is not designed for resinous dust and will need replacing far more often. In the PA-FGS1600 the first stage is a PTFE cartridge loaded with natural mineral powder: the dust sits on the powder instead of bonding to the media, and releases when the cartridge is cleaned.
How does the filtration work?
Three stages. The PTFE mineral-powder cartridge takes the sticky, resinous dust, an H14 deeppleat filter (99.99% @ 0.3 µm) catches the sub-micron smoke, and approx. 12–30 kg of treated activated carbon removes the burnt-wood odour and VOC. Filtered air returns to the room, so no external duct is required.
What does it need on site?
A 90–110 V or 210–257 V single-phase, 50/60 Hz supply for a rated power of 2.3 kW, and floor space for a unit of 670 × 834 × 1705 mm (W × D × H) weighing 210 kg net. Noise is below 65 dB(A) at 1 m. It is free-standing on castors; run a short, straight flexible duct from the laser, leave the front clear for cartridge changes and allow 150 mm at the outlet. It is not explosion-proof.
What is the difference between the PA-FGS1600 and the PA-FGS1600i?
Extraction and filtration are the same; the difference is the control. The PA-FGS1600 has PPS standard control. It is operated from a colour LCD display: fan speed, filter cleaning and status are set on screen, with no rotary knobs. The PA-FGS1600i adds real airflow and pressure readout, filter warnings, automatic airflow compensation, and I/O and RS-485 linkage with your machine or line.
