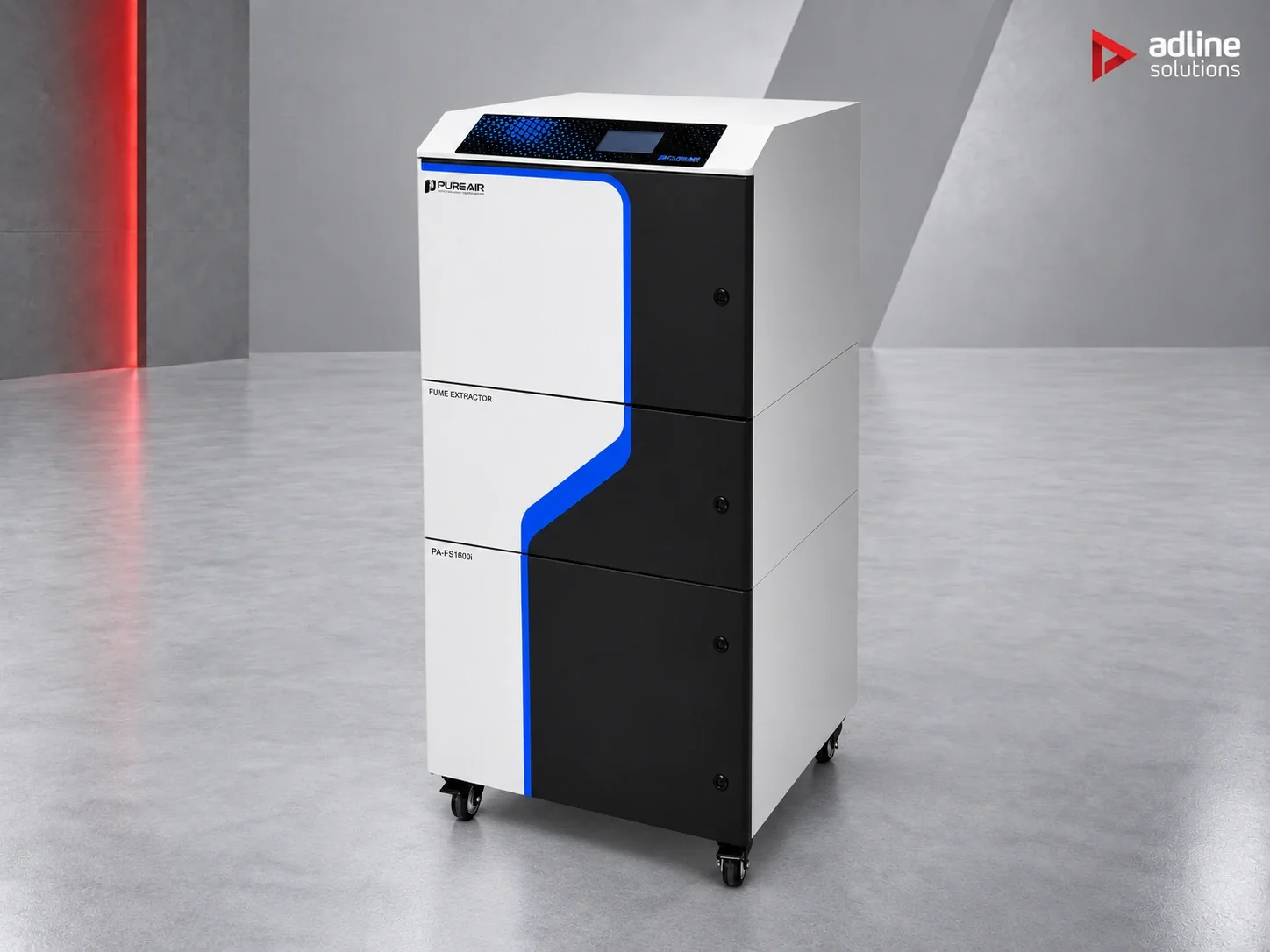

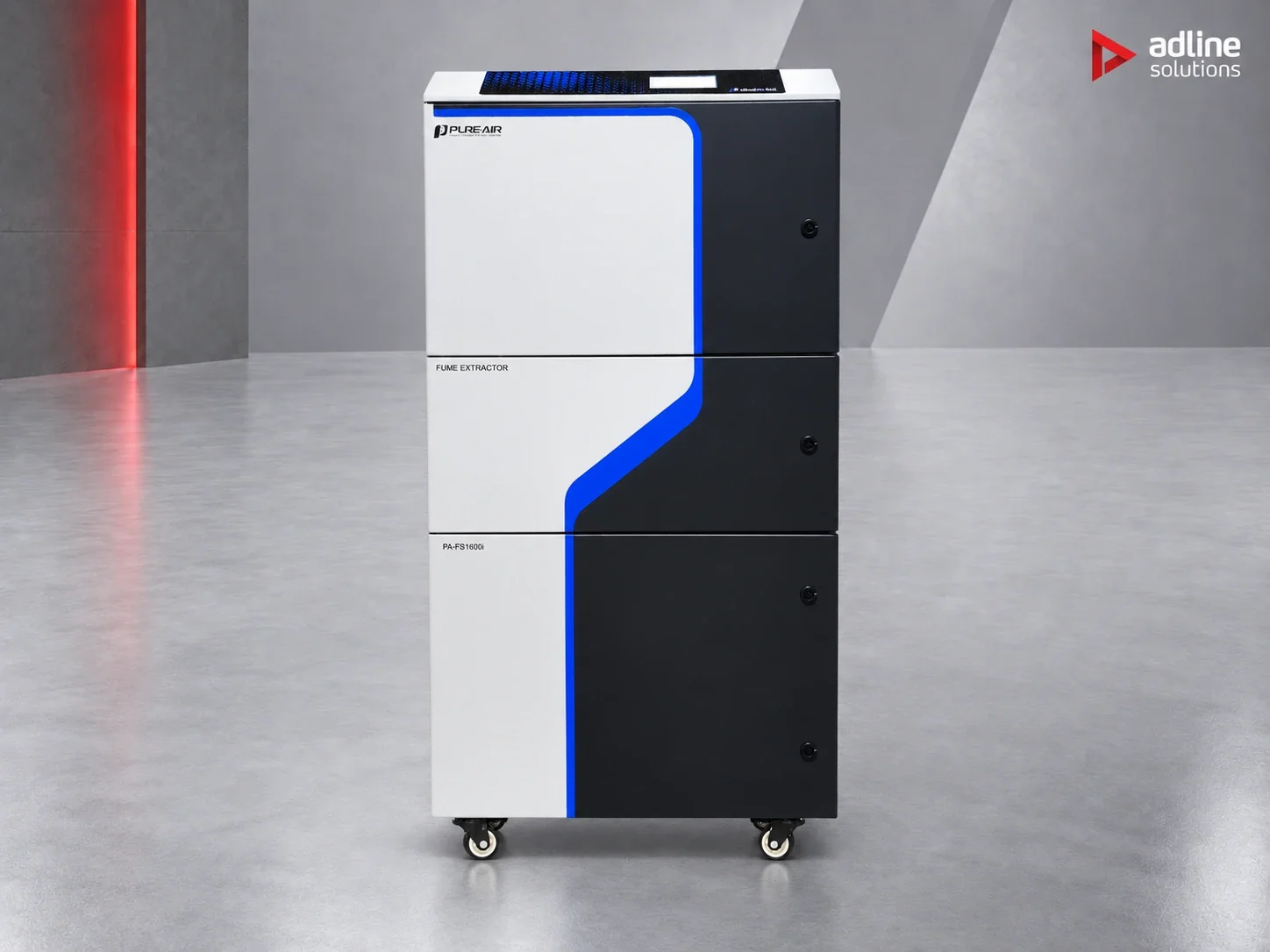

PURE-AIR PA-FGS1600i Fume & Dust Extractor
SKU PA-FGS1600i · On request
- 1600 m³/h airflow
- Up to 10000 Pa negative pressure
- HEPA H14 filtration, 99.99% @ 0.3 µm
- Activated carbon stage for VOC and odour
- PIPS intelligent control
Intelligent fume extraction unit, 1600 m³/h at up to 10000 Pa. Wood, plywood, MDF, chipboard. PIPS intelligent control.
Request a quote- Laser cutting
- Laser engraving
- CNC routing
- Wood & MDF
- Sticky dust
About this machine
The PA-FGS1600i is the model PURE-AIR builds specifically for the sticky dust produced when a CO2 laser cuts wood, plywood and MDF. Resin and binder in the board turn the smoke tacky, and it cakes onto an ordinary pleated pre-filter within weeks. Here the first stage is a PTFE cartridge loaded with natural mineral powder: the dust sits on the powder rather than bonding to the media, and it releases when the cartridge is cleaned. Behind it, a HEPA H14 stage and an activated carbon bed deal with the sub-micron smoke and the burnt-wood smell. 1600 m³/h at up to 10000 Pa.

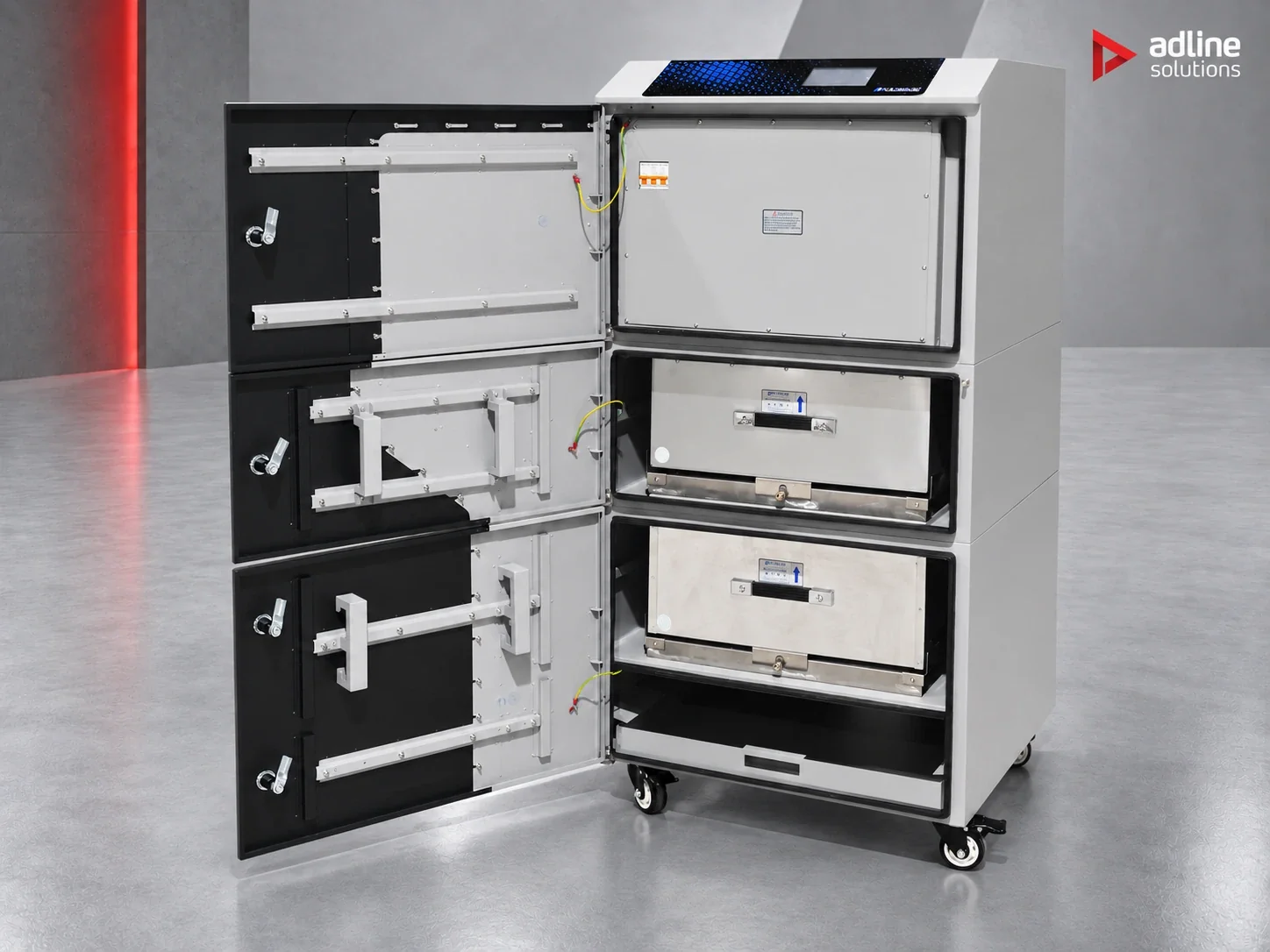

Filtration

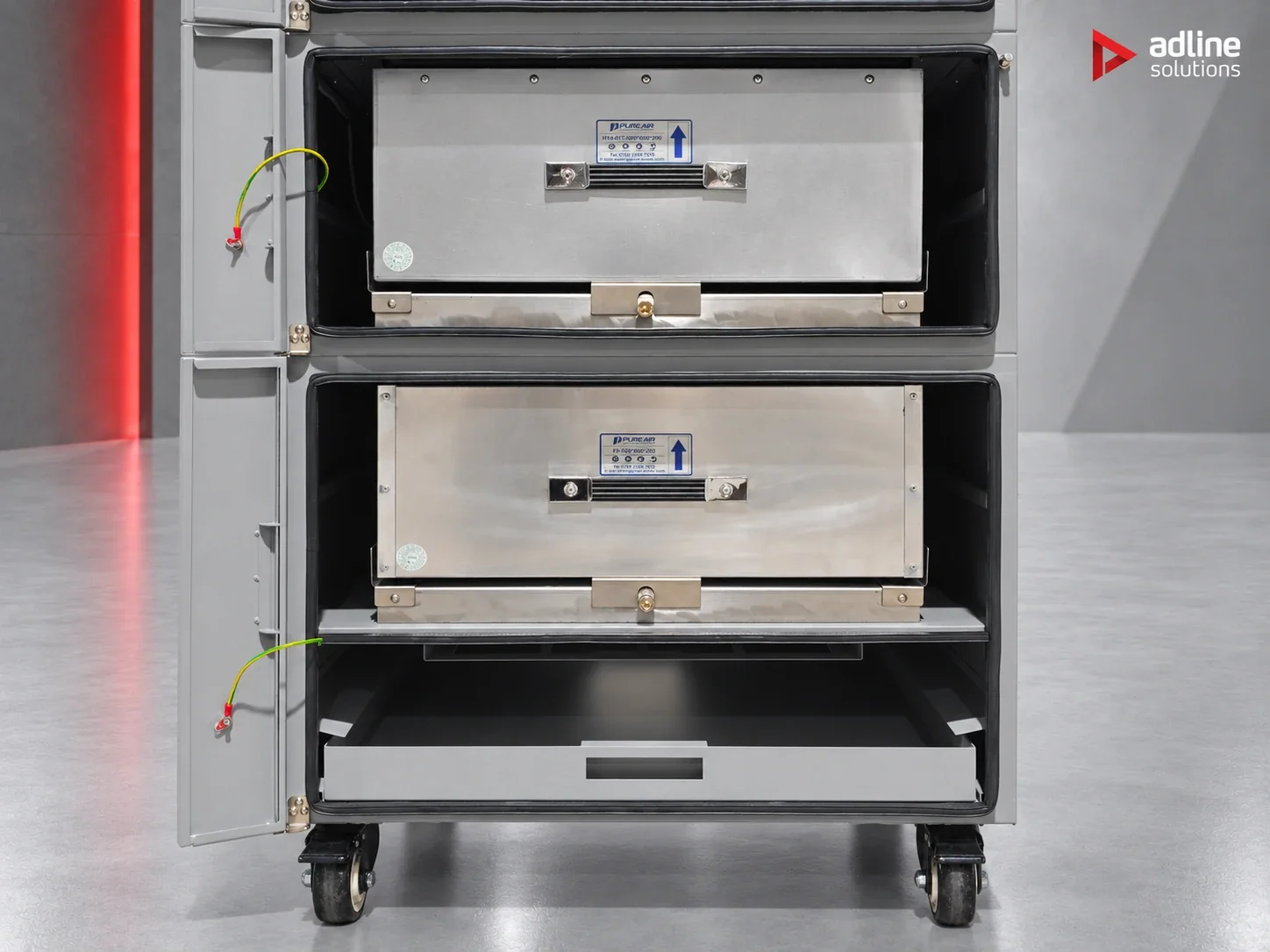

- PTFE cartridge pre-filter loaded with natural mineral powder - releases sticky, resinous dust instead of blinding
- H14 deeppleat filter, 99.99% @ 0.3 um
- Treated activated carbon, approx. 12-30 kg, for burnt-wood odour and VOC
Key specifications
- Airflow: 1600 m³/h
- Maximum negative pressure: 10000 Pa
- Rated power: 2.3 kW
- Power supply: 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Noise level: below 65 dBA at 1 m
- Dimensions (W x D x H): 670 x 834 x 1705 mm
- Net weight: 210 kg
- Inlet: 150 mm
- Cabinet: Powder coated mild steel / brushed stainless steel
Recommended for
- CO2 laser cutters and engravers with a bed of 90x130 cm / 100x160 cm
- CNC routers and nesting machines working wood and MDF
- Sign-making and furniture workshops
Intelligent version (PIPS)

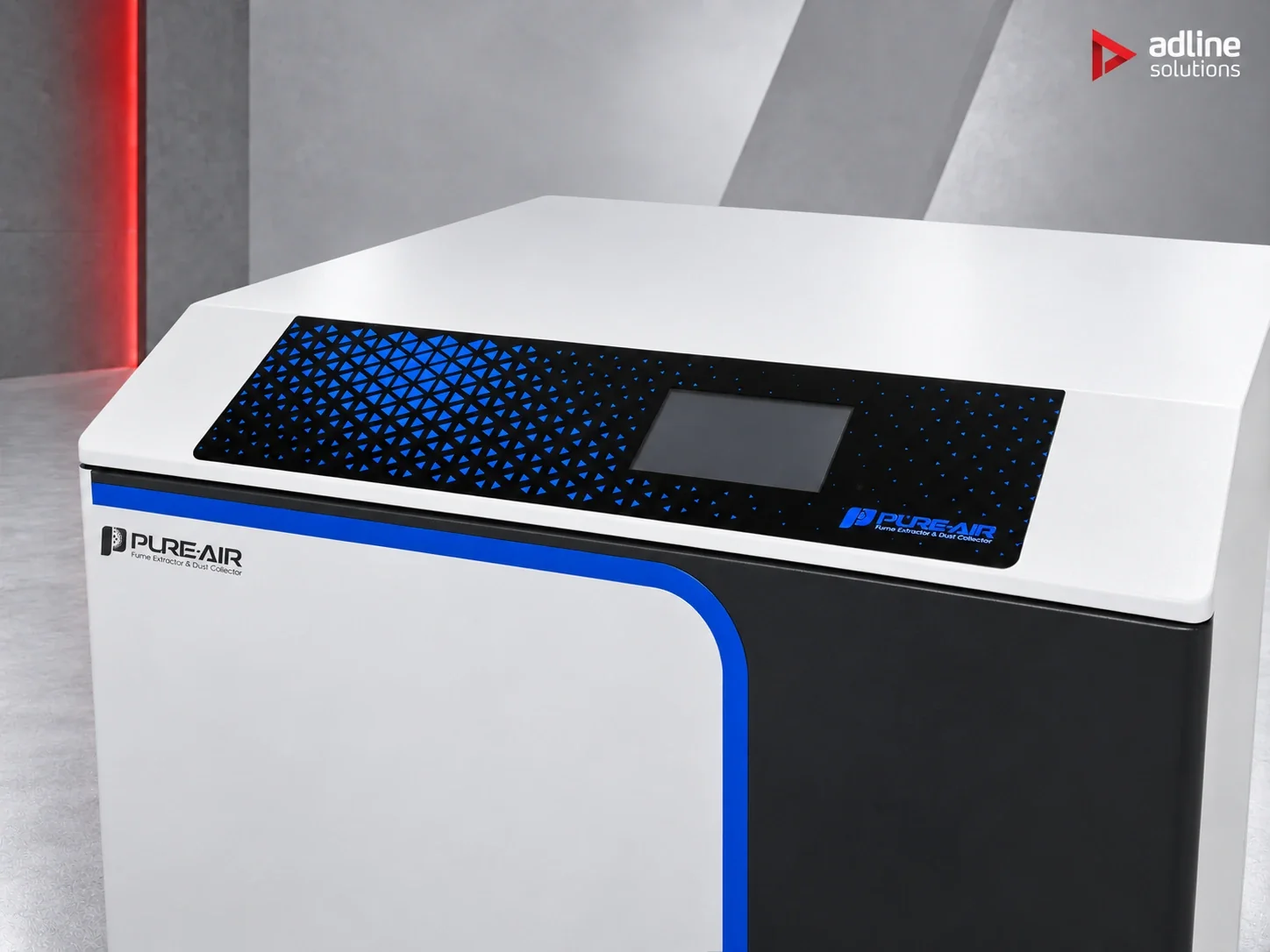

This is the i version of the model. It adds the Pure-Air Intelligent Purification System: an industrial touch screen that shows real airflow and negative pressure in real time, a filter health manager that warns before a stage blocks, and automatic airflow compensation so extraction does not fade as the filter loads. I/O and RS-485 allow remote start/stop, linkage with the host machine or robot and centralised control of several units. PM2.5, VOC and O3 sensors are available as an option, and firmware updates are loaded from a TF card.
Why not the FS series
An FS unit will extract the same volume of air, but its F9 pre-filter is not designed for resinous dust and will need replacing far more often. On wood and MDF the FGS pays for itself in consumables.
Installation

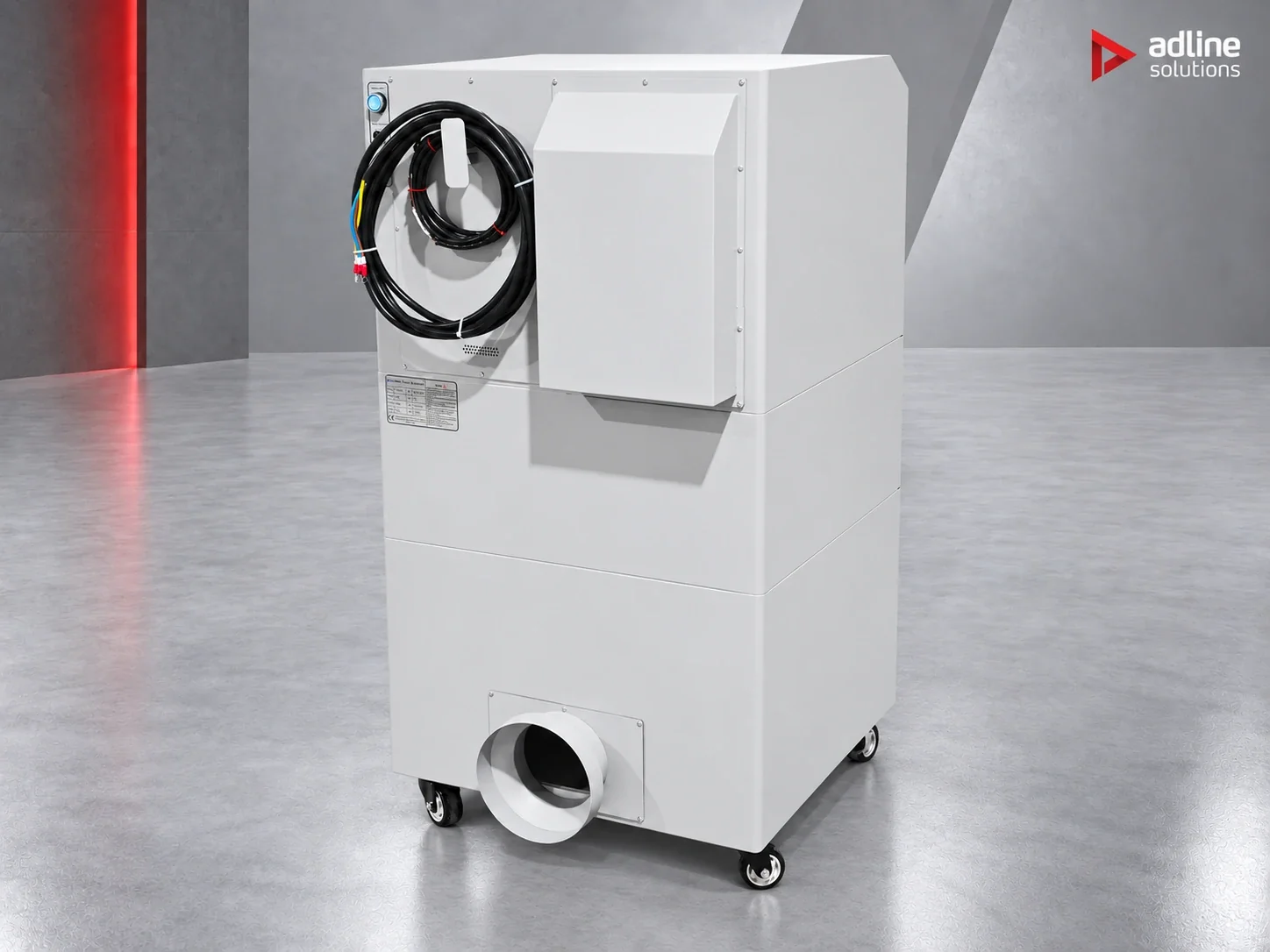

Free-standing on castors. Short, straight flexible duct from the machine exhaust to the inlet. Leave the front clear for cartridge changes and allow 150 mm at the outlet. Filtered air returns to the room - no external duct required.
Technical specifications
- Phase
- Single-phase
- Airflow
- 1600 m³/h
- Inlet size
- 150 mm
- Net weight
- 210 kg
- Pre-filter
- PTFE cartridge pre-filter loaded with natural mineral powder - releases sticky, resinous dust instead of blinding
- Main filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Noise level
- 65 dB(A) max.
- Rated power
- 2.3 kW
- Power supply
- 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Control system
- PIPS intelligent control
- Explosion-proof
- No
- Activated carbon
- Yes - treated activated carbon, approx. 12-30 kg
- Cabinet construction
- Powder coated mild steel / brushed stainless steel
- Dimensions (W×D×H)
- 670 x 834 x 1705 mm
- Max. negative pressure
- 10000 Pa
Application details
Recommended for
CO₂ laser cutters and engravers with a bed of 90x130 cm / 100x160 cm; CNC routers and nesting machines working wood and MDF; Sign-making and furniture workshops
Materials
Wood, plywood, MDF, chipboard; also engraved hardwood
Typical working format
90x130 cm / 100x160 cm
Control system
PIPS - Pure-Air Intelligent Purification System. Industrial touch screen, real-time airflow and negative-pressure readout, filter health manager with early replacement warning, automatic airflow compensation as the filter loads, I/O and RS-485 for MES / robot / multi-unit linkage, optional PM2.5 / VOC / O3 sensors, temperature and humidity safety shutdown, TF-card firmware upgrade.
Installation
Free-standing on castors. Short, straight flexible duct from the machine exhaust to the inlet. Leave the front clear for cartridge changes and allow 150 mm at the outlet. Filtered air returns to the room - no external duct required.
Series
FGS
