L4-1700 Wide-Format Roll Laminator
On request
- 24 m/min maximum speed
- 250 W motor, chain drive, 350 W power draw
- Dedicated control system, automatic stop at the end of lamination
- 4 self-expanding shafts — no air compressor needed
- 1630 mm laminating width, heating up to 80 °C, material up to 40 mm
- Vacuum feed table, synchronised front and rear pedals, anti-pinch protection
Compact 1630 mm wide-format roll laminator for smaller workshops, 24 m/min, 250 W motor, dedicated control system and self-expanding shafts.
Request a quote- Lamination
- Large format
- Signage & advertising
Models in this series
| Model | Main difference |
|---|---|
| L1-1700 Wide-Format Roll Laminator | 52 m/min — top model of the series |
| L1 Lite-1700 Wide-Format Roll Laminator | 45 m/min — L1 performance in a more compact frame |
| L2-1700 Wide-Format Roll Laminator | 45 m/min — high speed without an air compressor |
| L3-1700 Wide-Format Roll Laminator | 37 m/min — balance of speed and running cost |
| L4-1700 Wide-Format Roll LaminatorThis model | 24 m/min — compact model for smaller workshops |
About this machine
L4-1700 Wide-Format Roll Laminator

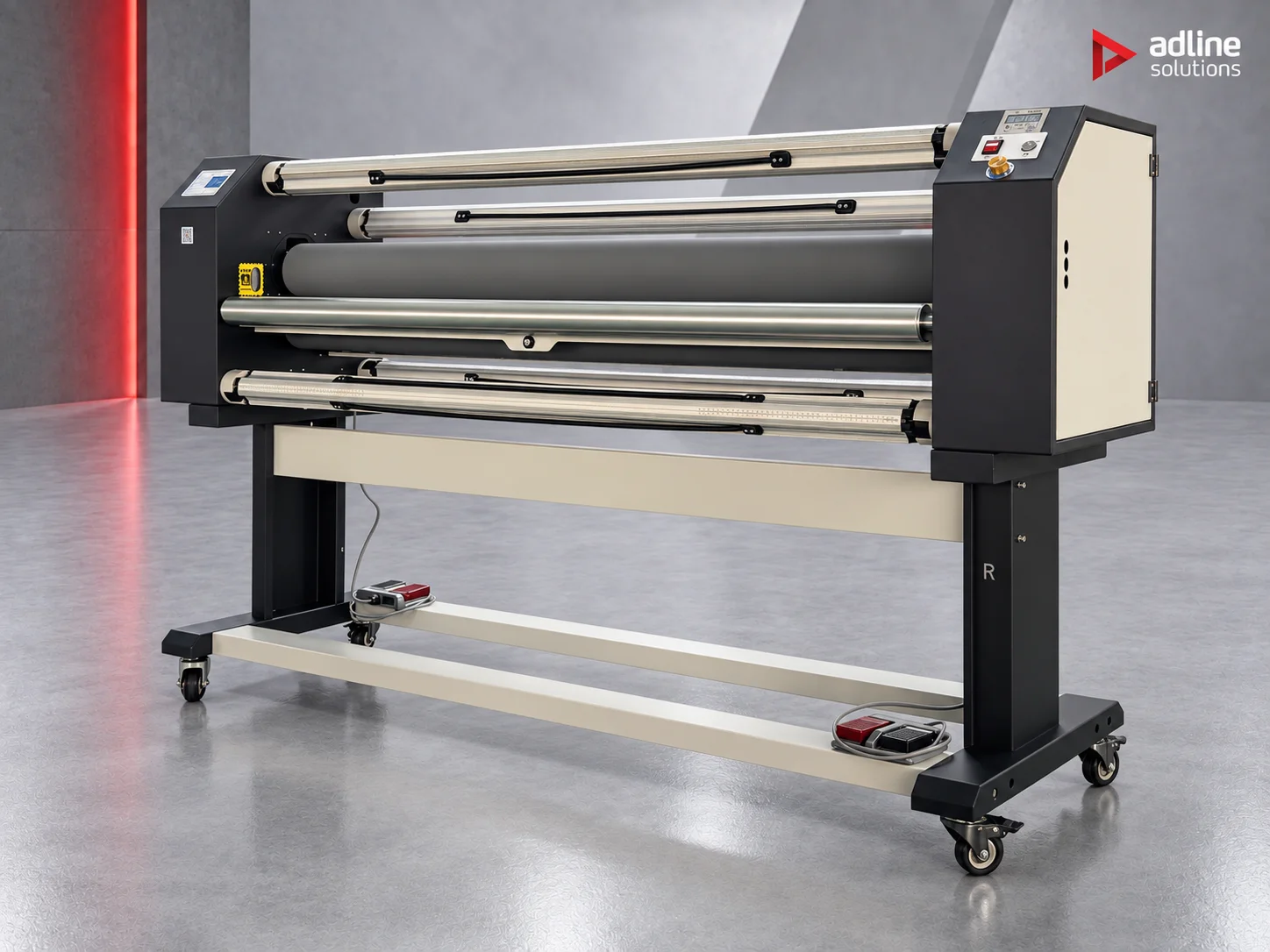

The L4-1700 is the compact entry to the L-1700 series, sized for smaller workshops. A 250 W motor with chain drive runs it at up to 24 m/min across the same 1630 mm laminating width as the rest of the range, with heating up to 80 °C and material up to 40 mm thick. It stands on its own frame, with an electric top roller lift and 120 mm silicone rollers, and draws 350 W.
Instead of a touchscreen, the L4 uses a dedicated control system. Film rolls sit on four self-expanding shafts that connect and start working without an air compressor, and four ceramic knives with manual adjustment trim the work during lamination.
The machine stops automatically at the end of the job. A vacuum feed table holds the material flat, two multifunction foot pedals at the front and rear are synchronised with the speed control knob, and anti-pinch protection keeps fingers away from the nip.
Applications
- Laminating wide-format prints with matt or gloss protective film, up to 1630 mm wide
- Protecting printed self-adhesive vinyl, posters and display graphics for signage
- Applying prints to substrates up to 40 mm thick
- Smaller workshops and sign makers with moderate volumes
Technical specifications
Performance
- Maximum speed
- 24 m/min
- Maximum temperature
- 80 °C
Working area
- Maximum laminating width
- 1630 mm
- Maximum material thickness
- 40 mm
- Unwind / rewind diameter
- 220 / 200 mm
- Film roll diameter (with liner)
- 150 mm
- Take-up roll diameter
- 200 mm
Materials
- Feed table
- Vacuum table
Tooling & heads
- Silicone roller diameter
- 120 mm
- Slitting knives
- 4 × ceramic, manual adjustment
Drive & mechanics
- Motor
- 250 W
- Transmission
- Chain
- Top roller lift
- Electric
- Shafts
- 4 self-expanding shafts, no air compressor
Software & control
- Control
- Dedicated control system (no touchscreen)
- Automatic stop
- At the end of lamination
- Foot pedals
- 2 multifunction pedals, front and rear, synchronised with the speed control knob
Power & environment
- Power
- 350 W
- Heating power
- ≤ 3000 W
Safety & certification
- Anti-pinch protection
- Yes
Dimensions & weight
- Dimensions (L × W × H)
- 2110 × 650 × 1180 mm
- Net weight
- 204 kg
- Gross weight
- 254 kg
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Compact 1630 mm wide-format roll laminator for smaller workshops, 24 m/min, 250 W motor, dedicated control system and self-expanding shafts.
Series
L-1700
Frequently asked questions
Who is the L4-1700 for?
Smaller workshops and sign makers with moderate volumes. It is the compact entry to the L-1700 series but keeps the same 1630 mm laminating width as the rest of the range, laminates prints with matt or gloss film and applies prints to substrates up to 40 mm thick.
How fast is it?
Up to 24 m/min, driven by a 250 W motor with chain drive on 120 mm silicone rollers. The top roller lift is electric and heating goes up to 80 °C.
How is it controlled without a touchscreen?
The L4 uses a dedicated control system instead of a touchscreen. The machine stops automatically at the end of lamination, and two multifunction foot pedals front and rear are synchronised with the speed control knob.
Does it need compressed air?
No. Film rolls sit on four self-expanding shafts that connect and start working without an air compressor. Unwind and rewind diameters are 220 / 200 mm, the film roll diameter with liner is 150 mm and the take-up roll diameter is 200 mm.
How does it trim the work?
Four ceramic knives with manual adjustment trim the work during lamination. A vacuum feed table holds the material flat, and anti-pinch protection keeps fingers away from the nip.
What does it need on site?
Floor space for a machine of 2110 × 650 × 1180 mm on its own frame, weighing 204 kg net (254 kg gross). It draws 350 W, with heating power of up to 3000 W. No air line is needed.
