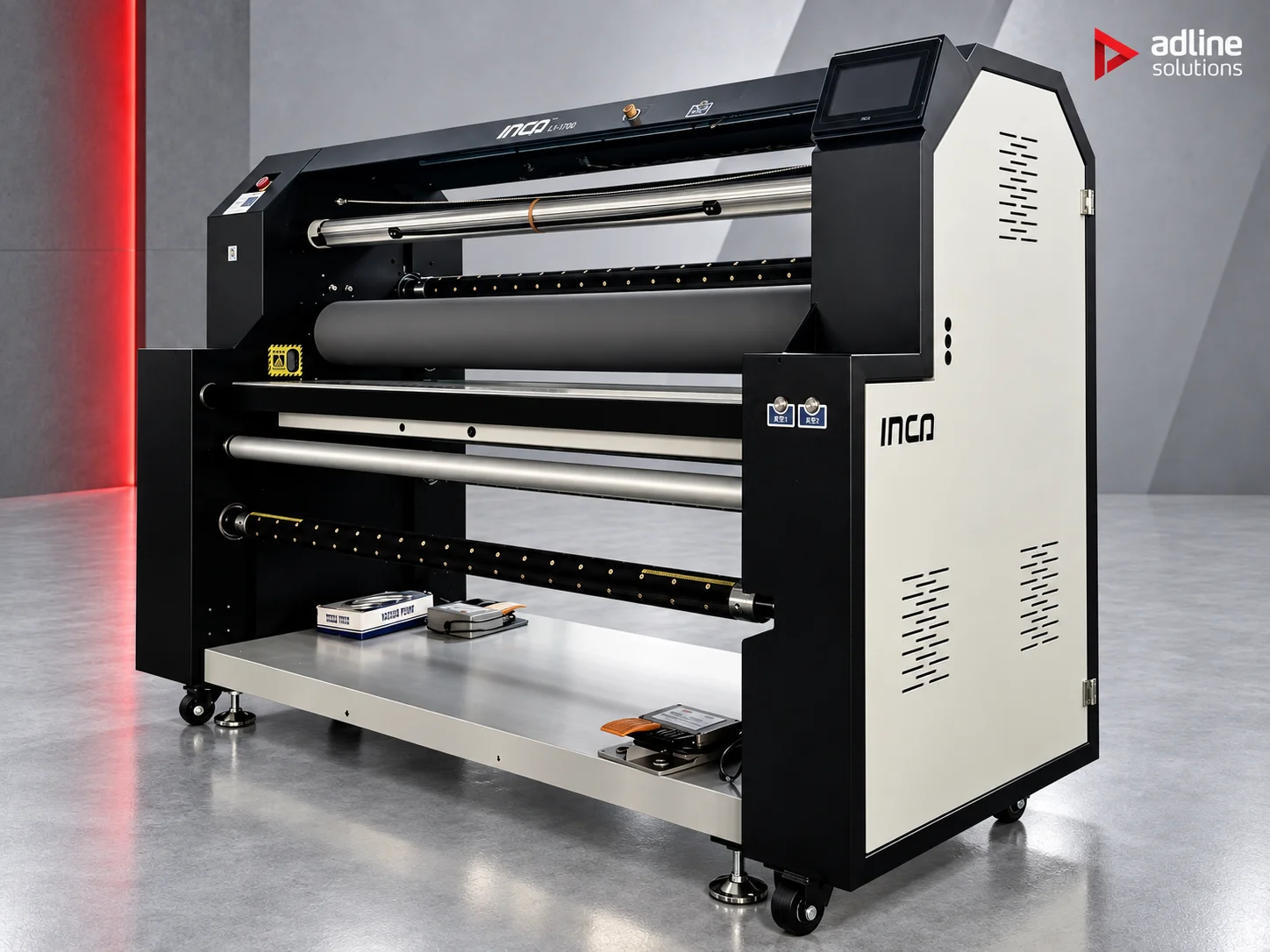

L1-1700 Wide-Format Roll Laminator
On request
- 52 m/min maximum speed — the fastest in the L-1700 series
- 1000 W industrial servo motor with gear transmission
- 1630 mm laminating width, heating up to 80 °C, material up to 45 mm
- 6 electric tungsten-steel knives with automatic slitting correction
- Smart touchscreen in 15 languages, laser positioning pointer, LED lighting
- Vacuum feed table, synchronised front and rear pedals, anti-pinch protection
Top model of the L-1700 series: 1630 mm wide-format roll laminator, 52 m/min, 1000 W servo motor, six electric slitting knives with automatic correction.
Request a quote- Lamination
- Large format
- Signage & advertising
Models in this series
| Model | Main difference |
|---|---|
| L1-1700 Wide-Format Roll LaminatorThis model | 52 m/min — top model of the series |
| L1 Lite-1700 Wide-Format Roll Laminator | 45 m/min — L1 performance in a more compact frame |
| L2-1700 Wide-Format Roll Laminator | 45 m/min — high speed without an air compressor |
| L3-1700 Wide-Format Roll Laminator | 37 m/min — balance of speed and running cost |
| L4-1700 Wide-Format Roll Laminator | 24 m/min — compact model for smaller workshops |
About this machine
L1-1700 Wide-Format Roll Laminator
The L1-1700 is the top model of the L-1700 series and the fastest of the five. A 1000 W industrial servo motor with gear transmission takes it to 52 m/min across a 1630 mm laminating width, with heating up to 80 °C. It accepts material up to 45 mm thick — the most in the series — and its top roller is lifted pneumatically, with 180 mm silicone rollers.
Slitting is built in: six electrically driven tungsten-steel knives trim the work during lamination, and automatic slitting correction keeps the cut where it should be. Film rolls sit on three pneumatic splined shafts with automatic locking, so the cores are not damaged when a roll is changed. A laser positioning pointer and adjustable LED work lighting help the operator line the job up.
The smart touchscreen runs in 15 languages, keeps customisable preference settings and can be updated remotely. Laminated length is set and counted precisely, and the machine stops automatically at the end of the job. A vacuum feed table holds the material flat before it reaches the rollers, two multifunction foot pedals at the front and rear are synchronised with the speed control knob, and anti-pinch protection keeps fingers away from the nip.
Applications
- High-volume lamination of wide-format prints with matt or gloss protective film, up to 1630 mm wide
- Protecting printed self-adhesive vinyl, posters and display graphics for signage
- Applying prints to substrates up to 45 mm thick
- Series production in print shops where speed and in-line trimming matter
Technical specifications
Performance
- Maximum speed
- 52 m/min
- Maximum temperature
- 80 °C
Working area
- Maximum laminating width
- 1630 mm
- Maximum material thickness
- 45 mm
- Unwind / rewind diameter
- 300 / 300 mm
- Film roll diameter (with liner)
- 210 mm
- Take-up roll diameter
- 300 mm
Materials
- Feed table
- Vacuum table
Tooling & heads
- Silicone roller diameter
- 180 mm
- Slitting knives
- 6 × tungsten steel, electric
- Automatic slitting correction
- Yes
Drive & mechanics
- Motor
- Industrial servo, 1000 W
- Transmission
- Gears
- Top roller lift
- Pneumatic
- Shafts
- 3 pneumatic splined shafts with automatic locking
Software & control
- Smart touchscreen
- Yes — 15 languages, remotely updatable
- Length setting and counting
- Yes
- Automatic stop
- At the end of lamination
- Foot pedals
- 2 multifunction pedals, front and rear, synchronised with the speed control knob
- Work lighting
- Adjustable LED lighting
- Positioning
- Laser pointer
Power & environment
- Power
- 1100 W
- Heating power
- ≤ 3000 W
Safety & certification
- Anti-pinch protection
- Yes
Dimensions & weight
- Dimensions (L × W × H)
- 2215 × 850 × 1475 mm
- Net weight
- 676 kg
- Gross weight
- 749 kg
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Top model of the L-1700 series: 1630 mm wide-format roll laminator, 52 m/min, 1000 W servo motor, six electric slitting knives with automatic correction.
Series
L-1700
Frequently asked questions
What is the L1-1700 for?
High-volume lamination of wide-format prints with matt or gloss protective film up to 1630 mm wide, and applying prints to substrates up to 45 mm thick. It is the top model and the fastest of the five machines in the L-1700 series, aimed at series production in print shops where speed and in-line trimming matter.
How fast is it and what drives it?
Up to 52 m/min, driven by a 1000 W industrial servo motor through a gear transmission. The top roller is lifted pneumatically and the silicone rollers are 180 mm in diameter. Heating goes up to 80 °C.
How does it trim the work?
Six electrically driven tungsten-steel knives slit the work during lamination, and automatic slitting correction keeps the cut in place. A laser positioning pointer helps the operator line the job up.
How do we choose between the L1-1700 and the other L-1700 models?
The L1-1700 is the top model of the L-1700 series and the fastest of the five, at 52 m/min. It takes material up to 45 mm thick, the most in the series, across a 1630 mm laminating width, and adds six electric knives and a laser positioning pointer. Tell us your daily volume and we will recommend the model.
How are film rolls loaded?
On three pneumatic splined shafts with automatic locking, so the cores are not damaged when a roll is changed. Unwind and rewind diameters are 300 / 300 mm, the film roll diameter with liner is 210 mm and the take-up roll diameter is 300 mm.
How is it operated?
From a smart touchscreen in 15 languages that stores preference settings and can be updated remotely. Laminated length is set and counted, and the machine stops automatically at the end of the job. A vacuum feed table holds the material flat, two foot pedals front and rear are synchronised with the speed knob, and anti-pinch protection guards the nip.
What does it need on site?
Floor space for 2215 × 850 × 1475 mm and a floor that carries 676 kg net (749 kg gross). Power is 1100 W, with heating power of up to 3000 W. We confirm the connections with your quote.
