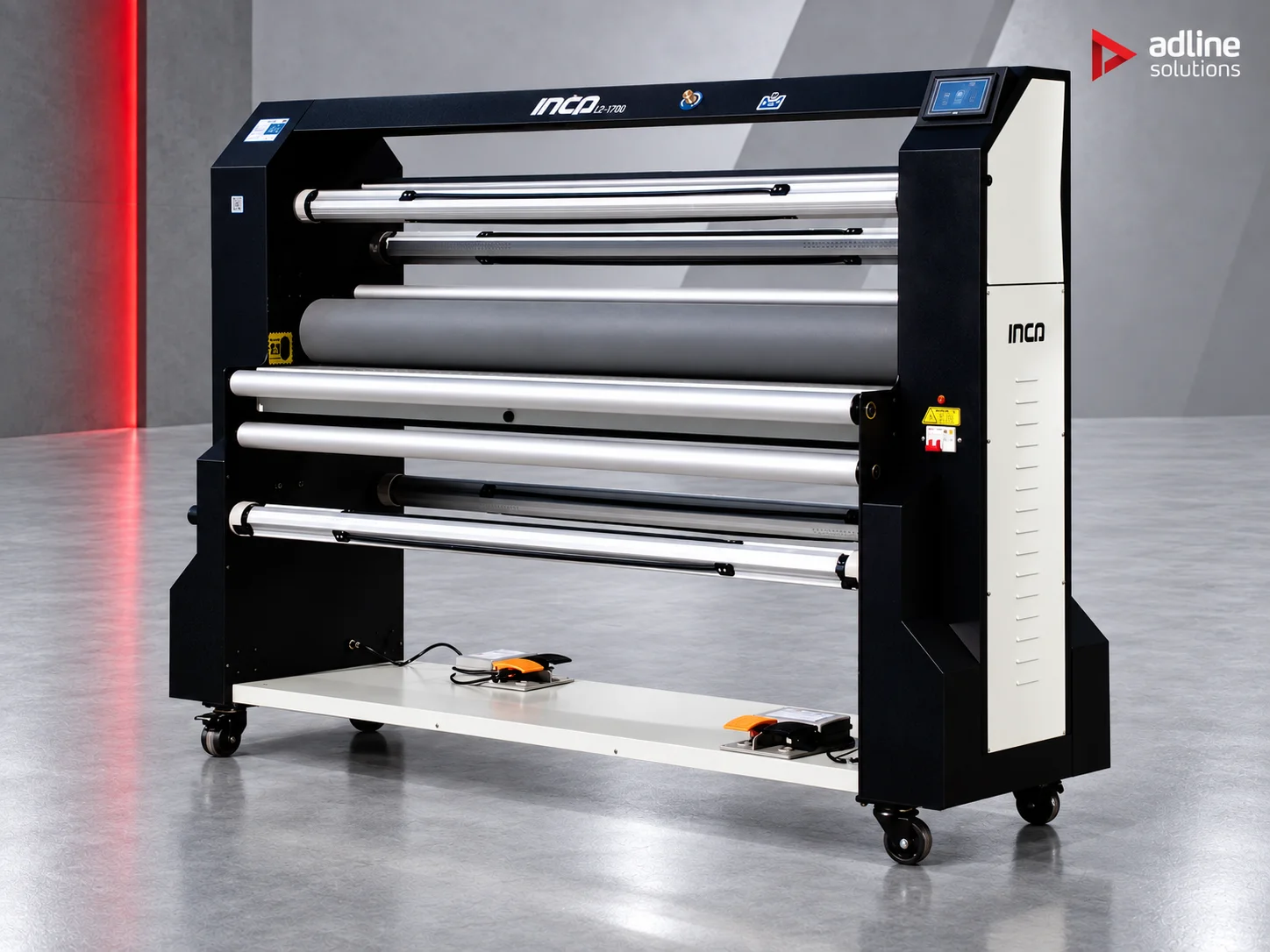

L2-1700 Wide-Format Roll Laminator
On request
- 45 m/min maximum speed
- 750 W industrial servo motor, chain drive
- 4 self-expanding shafts — no air compressor needed
- 1630 mm laminating width, heating up to 80 °C, material up to 40 mm
- 4 electric tungsten-steel slitting knives, smart touchscreen in 15 languages
- Vacuum feed table, synchronised front and rear pedals, anti-pinch protection
Fast 1630 mm wide-format roll laminator, 45 m/min, 750 W servo motor, with four self-expanding shafts that need no air compressor.
Request a quote- Lamination
- Large format
- Signage & advertising
Models in this series
| Model | Main difference |
|---|---|
| L1-1700 Wide-Format Roll Laminator | 52 m/min — top model of the series |
| L1 Lite-1700 Wide-Format Roll Laminator | 45 m/min — L1 performance in a more compact frame |
| L2-1700 Wide-Format Roll LaminatorThis model | 45 m/min — high speed without an air compressor |
| L3-1700 Wide-Format Roll Laminator | 37 m/min — balance of speed and running cost |
| L4-1700 Wide-Format Roll Laminator | 24 m/min — compact model for smaller workshops |
About this machine
L2-1700 Wide-Format Roll Laminator
The L2-1700 keeps the 45 m/min speed of the L1 Lite but needs no air supply. A 750 W industrial servo motor with chain drive runs it across a 1630 mm laminating width, with heating up to 80 °C and material up to 40 mm thick. The top roller is lifted electrically, on 150 mm silicone rollers.
Film rolls sit on four self-expanding shafts that connect and start working without an air compressor, and do not damage the cores. Four electrically driven tungsten-steel knives trim the work during lamination, and adjustable LED lighting lights the work area.
The smart touchscreen runs in 15 languages, keeps customisable preference settings and can be updated remotely. Laminated length is set and counted precisely, and the machine stops automatically at the end of the job. A vacuum feed table holds the material flat, two multifunction foot pedals at the front and rear are synchronised with the speed control knob, and anti-pinch protection keeps fingers away from the nip.
Applications
- Laminating wide-format prints with matt or gloss protective film, up to 1630 mm wide
- Protecting printed self-adhesive vinyl, posters and display graphics for signage
- Applying prints to substrates up to 40 mm thick
- Workshops that want high speed without installing compressed air
Technical specifications
Performance
- Maximum speed
- 45 m/min
- Maximum temperature
- 80 °C
Working area
- Maximum laminating width
- 1630 mm
- Maximum material thickness
- 40 mm
- Unwind / rewind diameter
- 300 / 300 mm
- Film roll diameter (with liner)
- 180 mm
- Take-up roll diameter
- 250 mm
Materials
- Feed table
- Vacuum table
Tooling & heads
- Silicone roller diameter
- 150 mm
- Slitting knives
- 4 × tungsten steel, electric
Drive & mechanics
- Motor
- Industrial servo, 750 W
- Transmission
- Chain
- Top roller lift
- Electric
- Shafts
- 4 self-expanding shafts, no air compressor
Software & control
- Smart touchscreen
- Yes — 15 languages, remotely updatable
- Length setting and counting
- Yes
- Automatic stop
- At the end of lamination
- Foot pedals
- 2 multifunction pedals, front and rear, synchronised with the speed control knob
- Work lighting
- Adjustable LED lighting
Power & environment
- Power
- 850 W
- Heating power
- ≤ 3000 W
Safety & certification
- Anti-pinch protection
- Yes
Dimensions & weight
- Dimensions (L × W × H)
- 2088 × 560 × 1443 mm
- Net weight
- 311 kg
- Gross weight
- 369 kg
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Fast 1630 mm wide-format roll laminator, 45 m/min, 750 W servo motor, with four self-expanding shafts that need no air compressor.
Series
L-1700
Frequently asked questions
What is the L2-1700 for?
Laminating wide-format prints with matt or gloss protective film up to 1630 mm wide, and applying prints to substrates up to 40 mm thick, such as self-adhesive vinyl, posters and display graphics for signage. It is aimed at workshops that want high speed without installing compressed air.
Does it need compressed air?
No. Film rolls sit on four self-expanding shafts that connect and start working without an air compressor, and they do not damage the cores. The top roller lift is electric, so the machine runs on its electrical supply alone.
How fast is it?
Up to 45 m/min, the same speed as the L1 Lite-1700, driven by a 750 W industrial servo motor with chain drive on 150 mm silicone rollers. Heating goes up to 80 °C. Tell us your daily laminating volume and we will confirm whether this speed covers it.
How does it compare with the L1 Lite-1700?
It keeps the 45 m/min speed of the L1 Lite-1700 but needs no air supply: its four self-expanding shafts start working without an air compressor. It runs on a 750 W servo motor with four electric tungsten-steel knives, takes material up to 40 mm and weighs 311 kg net.
How does it trim and how is it controlled?
Four electrically driven tungsten-steel knives trim the work during lamination. Control is by a smart touchscreen in 15 languages with remote updates and stored preferences; you set the laminated length, the machine counts it and stops at the end of the job. Two foot pedals front and rear are synchronised with the speed knob.
What does it need on site?
Floor space for 2088 × 560 × 1443 mm and a weight of 311 kg net (369 kg gross). Power is 850 W, with heating power of up to 3000 W. No air line is needed. Unwind and rewind diameters are 300 / 300 mm, film roll diameter with liner 180 mm and take-up roll 250 mm.
