L3-1700 Wide-Format Roll Laminator

L3-1700 Wide-Format Roll Laminator

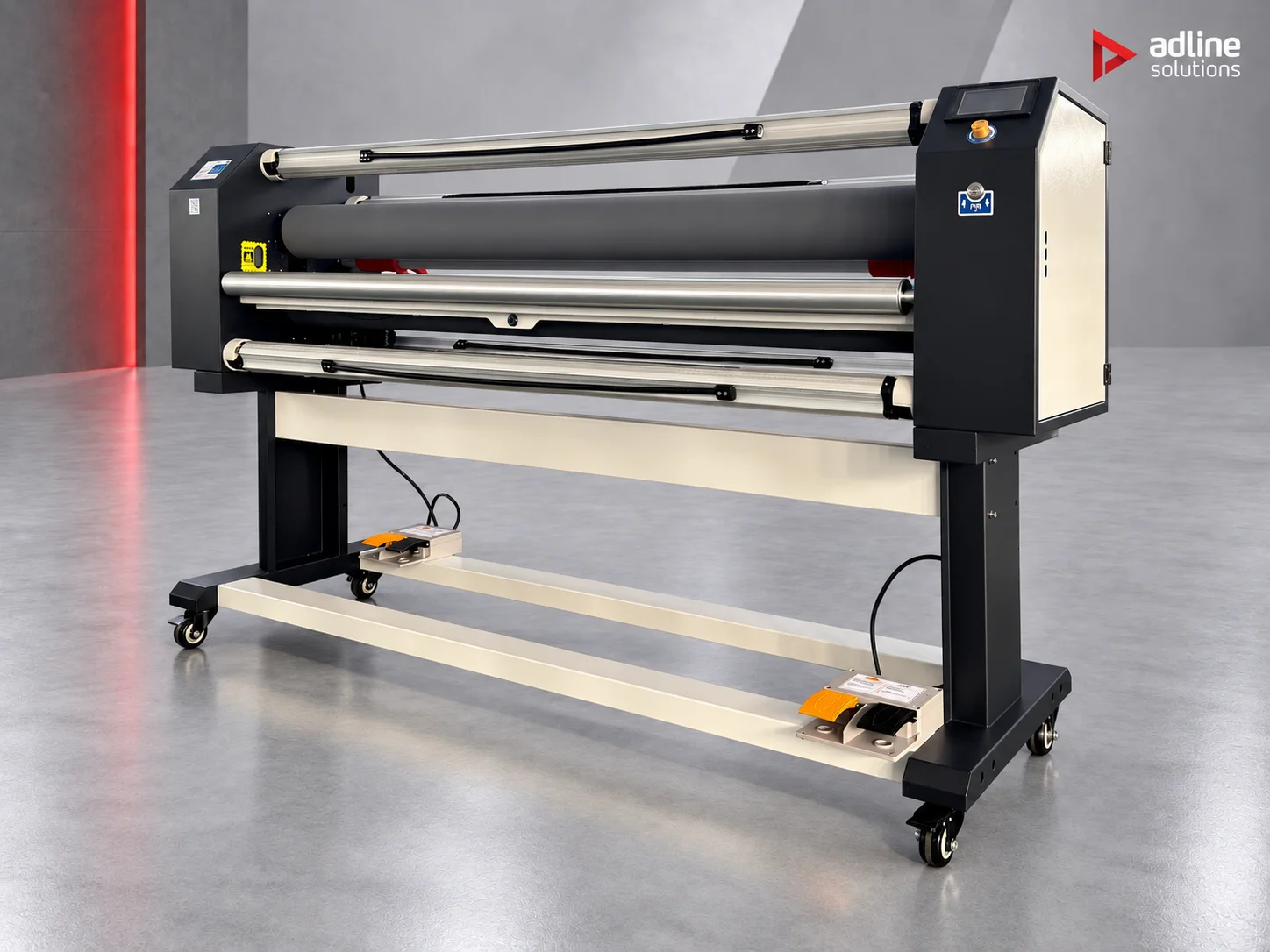

The L3-1700 balances speed and running cost. A 400 W industrial servo motor with chain drive runs it at up to 37 m/min across a 1630 mm laminating width, with heating up to 80 °C and material up to 40 mm thick. The machine stands on its own frame, with an electric top roller lift and 130 mm silicone rollers, and draws 500 W.

Film rolls sit on four self-expanding shafts that connect and start working without an air compressor, and do not damage the cores. Four ceramic knives with manual adjustment trim the work during lamination.

The smart touchscreen runs in 15 languages, keeps customisable preference settings and can be updated remotely. Laminated length is set and counted precisely, and the machine stops automatically at the end of the job. A vacuum feed table holds the material flat, two multifunction foot pedals at the front and rear are synchronised with the speed control knob, and anti-pinch protection keeps fingers away from the nip.

Applications

• Laminating wide-format prints with matt or gloss protective film, up to 1630 mm wide
• Protecting printed self-adhesive vinyl, posters and display graphics for signage
• Applying prints to substrates up to 40 mm thick
• Print shops with steady volumes that want a touchscreen machine at a lower running cost
