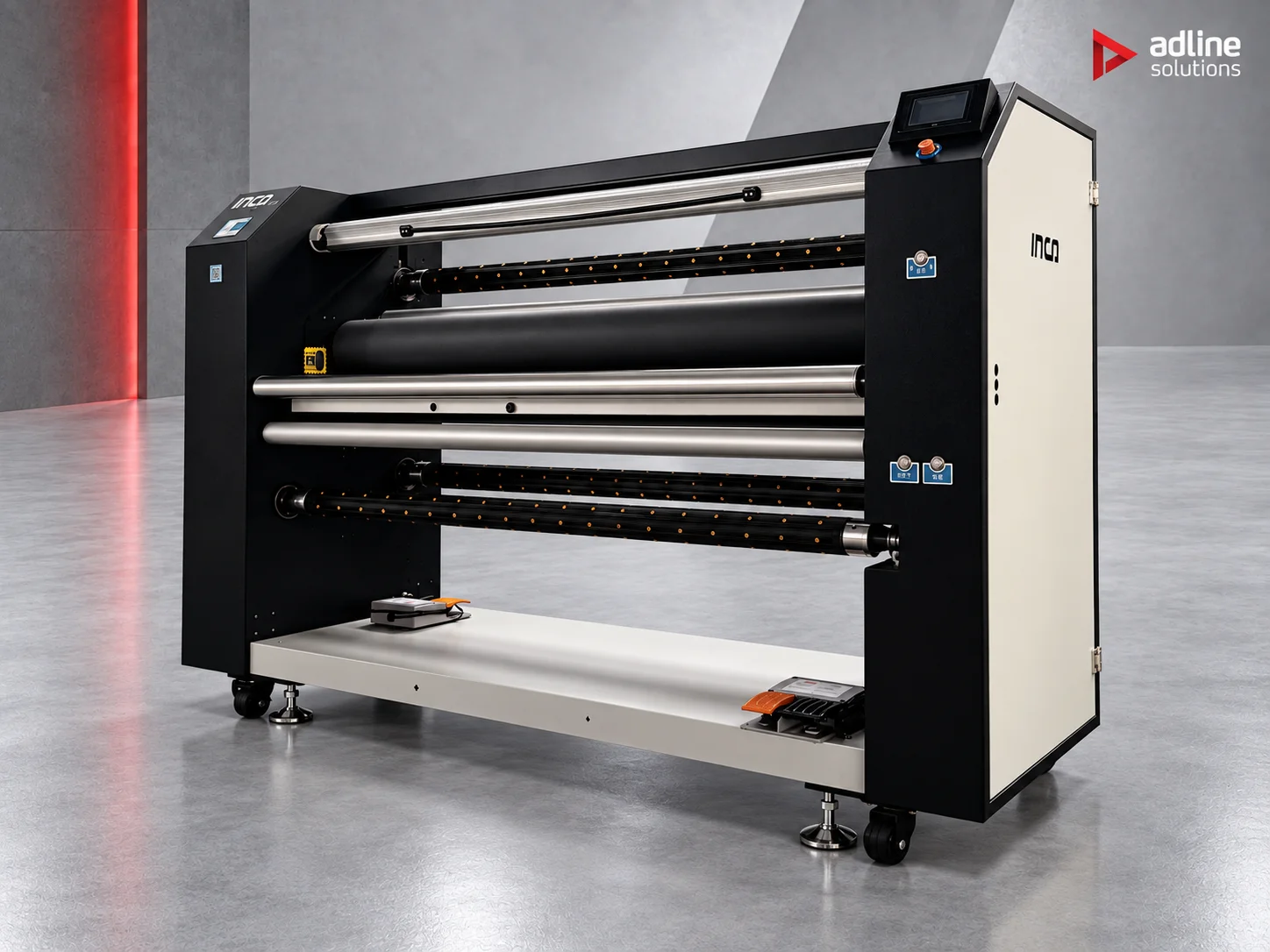

L1 Lite-1700 Wide-Format Roll Laminator
On request
- 45 m/min maximum speed
- 750 W industrial servo motor, gear and chain drive
- 1630 mm laminating width, heating up to 80 °C, material up to 40 mm
- 4 electric tungsten-steel knives with automatic slitting correction
- Smart touchscreen in 15 languages and LED lighting
- Vacuum feed table, synchronised front and rear pedals, anti-pinch protection
L1 performance in a more compact frame: 1630 mm wide-format roll laminator, 45 m/min, 750 W servo motor, four electric slitting knives with automatic correction.
Request a quote- Lamination
- Large format
- Signage & advertising
Models in this series
| Model | Main difference |
|---|---|
| L1-1700 Wide-Format Roll Laminator | 52 m/min — top model of the series |
| L1 Lite-1700 Wide-Format Roll LaminatorThis model | 45 m/min — L1 performance in a more compact frame |
| L2-1700 Wide-Format Roll Laminator | 45 m/min — high speed without an air compressor |
| L3-1700 Wide-Format Roll Laminator | 37 m/min — balance of speed and running cost |
| L4-1700 Wide-Format Roll Laminator | 24 m/min — compact model for smaller workshops |
About this machine
L1 Lite-1700 Wide-Format Roll Laminator
The L1 Lite-1700 brings the approach of the L1 into a more compact frame. A 750 W industrial servo motor with gear and chain drive runs it at up to 45 m/min across a 1630 mm laminating width, with heating up to 80 °C and material up to 40 mm thick. The top roller is lifted electrically, on 150 mm silicone rollers.
Four electrically driven tungsten-steel knives trim the work during lamination, with automatic slitting correction. Film rolls sit on three pneumatic splined shafts with automatic locking, so the cores are not damaged when a roll is changed, and adjustable LED lighting lights the work area.
The smart touchscreen runs in 15 languages, keeps customisable preference settings and can be updated remotely. Laminated length is set and counted precisely, and the machine stops automatically at the end of the job. A vacuum feed table holds the material flat, two multifunction foot pedals at the front and rear are synchronised with the speed control knob, and anti-pinch protection keeps fingers away from the nip.
Applications
- Laminating wide-format prints with matt or gloss protective film, up to 1630 mm wide
- Protecting printed self-adhesive vinyl, posters and display graphics for signage
- Applying prints to substrates up to 40 mm thick
- Print shops that want L1-class features in a smaller footprint
Technical specifications
Performance
- Maximum speed
- 45 m/min
- Maximum temperature
- 80 °C
Working area
- Maximum laminating width
- 1630 mm
- Maximum material thickness
- 40 mm
- Unwind / rewind diameter
- 300 / 300 mm
- Film roll diameter (with liner)
- 210 mm
- Take-up roll diameter
- 250 mm
Materials
- Feed table
- Vacuum table
Tooling & heads
- Silicone roller diameter
- 150 mm
- Slitting knives
- 4 × tungsten steel, electric
- Automatic slitting correction
- Yes
Drive & mechanics
- Motor
- Industrial servo, 750 W
- Transmission
- Gears + chain
- Top roller lift
- Electric
- Shafts
- 3 pneumatic splined shafts with automatic locking
Software & control
- Smart touchscreen
- Yes — 15 languages, remotely updatable
- Length setting and counting
- Yes
- Automatic stop
- At the end of lamination
- Foot pedals
- 2 multifunction pedals, front and rear, synchronised with the speed control knob
- Work lighting
- Adjustable LED lighting
Power & environment
- Power
- 850 W
- Heating power
- ≤ 3000 W
Safety & certification
- Anti-pinch protection
- Yes
Dimensions & weight
- Dimensions (L × W × H)
- 2205 × 660 × 1395 mm
- Net weight
- 477 kg
- Gross weight
- 542 kg
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
L1 performance in a more compact frame: 1630 mm wide-format roll laminator, 45 m/min, 750 W servo motor, four electric slitting knives with automatic correction.
Series
L-1700
Frequently asked questions
What can the L1 Lite-1700 laminate?
Wide-format prints with matt or gloss protective film up to 1630 mm wide, and prints applied to substrates up to 40 mm thick. Typical work is printed self-adhesive vinyl, posters and display graphics for signage. Heating goes up to 80 °C.
How is the L1 Lite different from the L1?
It brings the approach of the L1 into a more compact frame, 2205 × 660 × 1395 mm and 477 kg net. It runs at up to 45 m/min on a 750 W industrial servo motor with gear and chain drive, with four electric slitting knives, 150 mm silicone rollers and an electric top roller lift. Send us your volumes and we will advise which model suits you.
Does it trim the work while laminating?
Yes. Four electrically driven tungsten-steel knives slit the work during lamination, and automatic slitting correction keeps the cut where it should be.
How are film rolls loaded?
On three pneumatic splined shafts with automatic locking, which hold the cores without damaging them when a roll is changed. Unwind and rewind diameters are 300 / 300 mm, the film roll diameter with liner is 210 mm and the take-up roll diameter is 250 mm.
How is it controlled?
From a smart touchscreen in 15 languages that stores your preference settings and can be updated remotely. You set the laminated length, the machine counts it and stops automatically at the end of the job. Two multifunction foot pedals, front and rear, are synchronised with the speed control knob, and adjustable LED lighting lights the work area.
What does it need on site?
Floor space for a machine of 2205 × 660 × 1395 mm weighing 477 kg net (542 kg gross), with power of 850 W plus heating power of up to 3000 W. Send us your site details and we will confirm the connections.
What safety features does it have?
Anti-pinch protection keeps fingers away from the nip. The vacuum feed table holds the material flat, and two multifunction foot pedals, front and rear, are synchronised with the speed control knob.
