Adline 2500 × 50T Servo-Hydraulic CNC Press Brake
On request
- 50 t bending force over a 2500 mm bending length
- 4+1 axes: Y1, Y2, X and automatic crowning
- Delem DA-66T touchscreen control on a suspended pendant
- ±0.01 mm repositioning, bending angle error ≤ 0.5°
- Offline programming with automatic bend sequence and collision check
- Bosch Rexroth valves and ECKERLE pump with oil heating
2.5 m, 50-tonne servo-hydraulic press brake with 4+1 axes, automatic crowning and Delem DA-66T touchscreen control.
Request a quote- Sheet metal forming
- Metal fabrication
- Stainless steel
About this machine

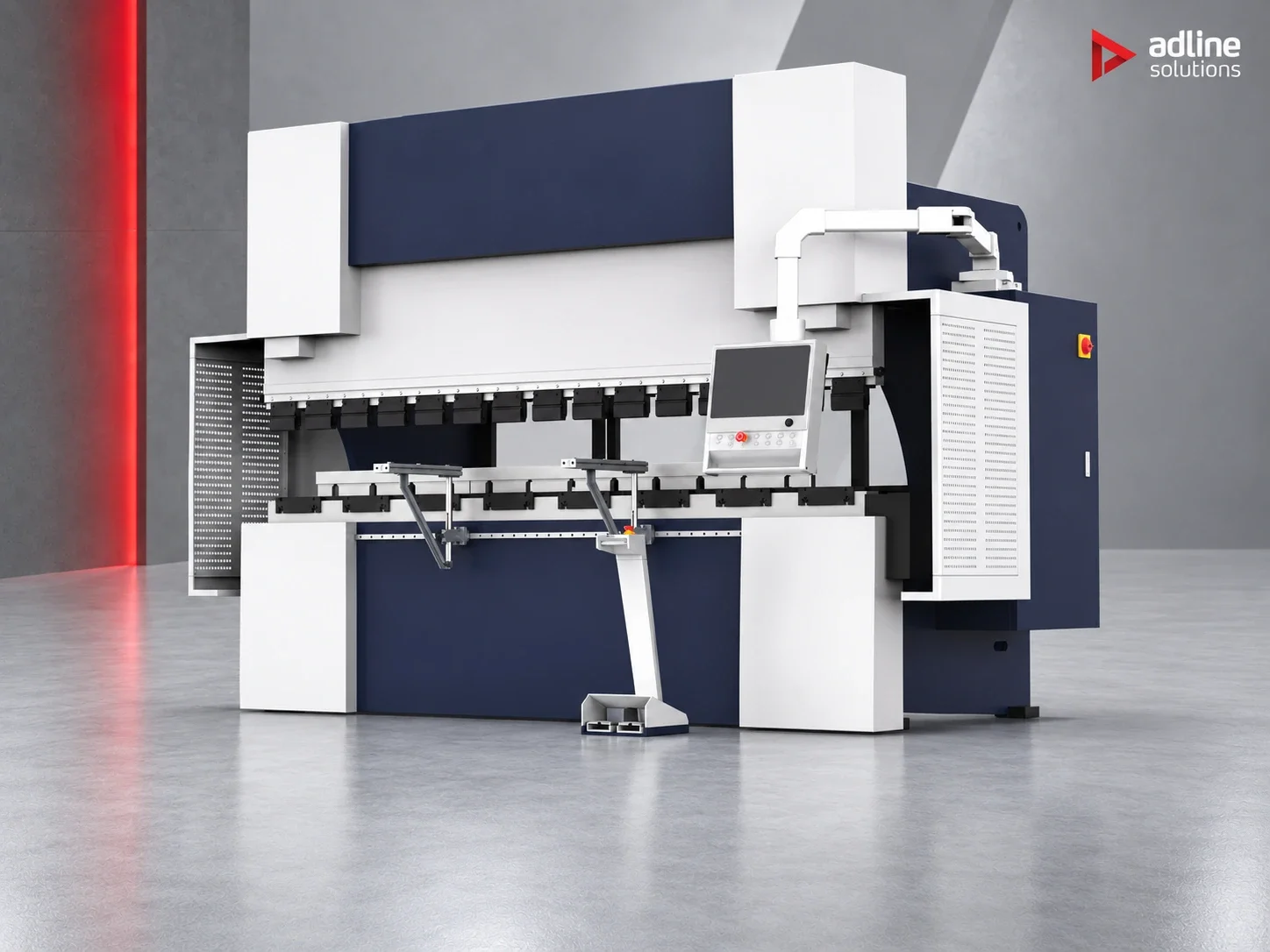

Adline 2500 × 50T Servo-Hydraulic CNC Press Brake

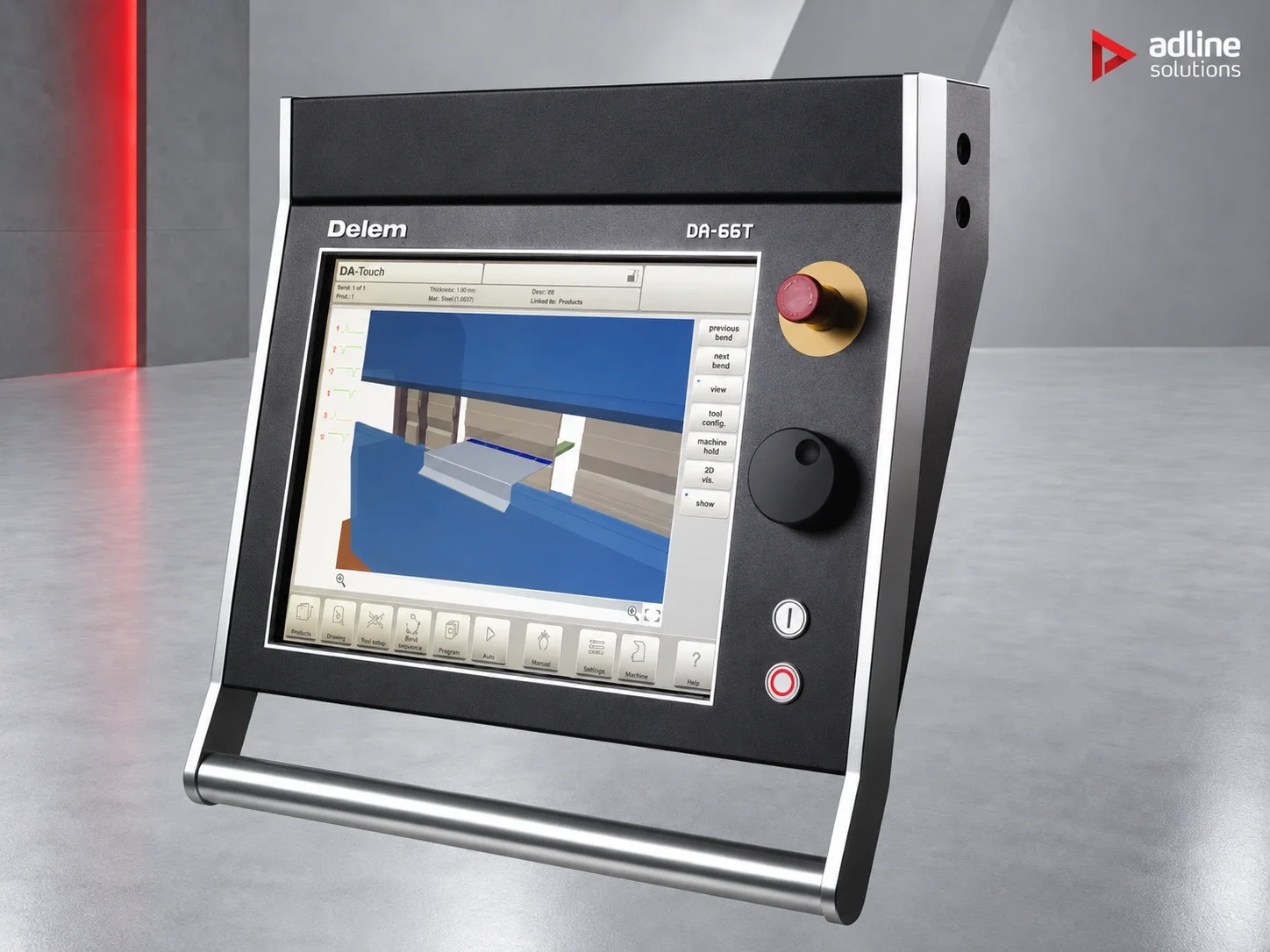

A 2.5-metre, 50-tonne press brake built around two independently driven hydraulic cylinders, a CNC backgauge and automatic crowning. It is controlled from a Delem DA-66T touchscreen on a suspended pendant, and the same programming software runs offline, so the next job can be prepared at a desk while the machine is bending.
Two cylinders, one level ram
The Y1 and Y2 cylinders are synchronised by a servo motor and read back through optical linear scales with 0.005 mm resolution. The control corrects each side independently, which is what holds the ram parallel to the bed: positioning accuracy is within ±0.02 mm, repositioning within ±0.01 mm, and the bending angle error is stated at 0.5° or less.
Crowning that follows the load
Under load the table and the ram both deflect, and the middle of a long part comes out more open than its ends. The automatic mechanical compensation system (the "+1" crowning axis) counters that deflection in the table, so the angle stays the same along the full bending length.
Program at the machine or in the office
The Delem DA-66T calculates the bend sequence automatically and checks each step for collisions between the part, the tools and the machine. The offline software works the same way as the control, so programs are built and checked away from the brake and loaded when needed.
Tooling and backgauge
- Quick-release upper tool clamping to the European Amada-Promecam standard
- Standard lower tooling: L seat, T block and double-V die
- X-axis backgauge with 500 mm travel and two stop fingers
- Axis indexing and calibration kept by two Inovance servo motors
- Two front support arms for long or heavy sheets
Components
Hydraulic valves are Bosch Rexroth and the oil pump is ECKERLE (Germany), with a built-in oil heater so the machine reaches working temperature before production. Electrical components are Schneider; linear guides and ball screws are Taiwanese-made.
Safety
An optical light curtain guards the front of the tools, and side panels close off the working area.
Installation
The machine needs a 380 V, 50 Hz three-phase four-wire supply (±10%), an ambient temperature of 0–45 °C and 20–75% relative humidity without condensation. It should stand away from strong vibration sources, electromagnetic interference, dust and corrosive gases. Sheets should be flat, uniform and clean before bending.
Technical specifications
Performance
- Bending force
- 50 t
- Bending angle error
- ≤ 0.5°
- Positioning accuracy
- ≤ ±0.02 mm
- Repositioning accuracy
- ≤ ±0.01 mm
- Y-axis approach speed
- 200 mm/s
- Y-axis working speed
- 4 – 15 mm/s (adjustable)
- Y-axis return speed
- 200 mm/s
Working area
- Bending length
- 2500 mm
- Table length
- 2500 mm
- Distance between columns
- 1250 mm
- Throat depth
- 300 mm
- Daylight (open height)
- 420 mm
- Ram stroke
- 150 mm
- X-axis backgauge travel
- 500 mm
Materials
- Sheet condition
- Flat and uniform, surface free of foreign matter
Tooling & heads
- Upper tool clamping
- Quick release, European Amada-Promecam standard
- Standard lower tooling
- L seat, T block and double-V die
- Backgauge fingers
- 2
- Front support arms
- 2
Drive & mechanics
- Drive
- Servo-hydraulic, cylinders synchronised by servo motor
- Controlled axes
- 4+1 — Y1, Y2, X and C (crowning)
- Crowning
- Automatic mechanical deflection compensation
- Position feedback
- Optical linear scales, 0.005 mm resolution
- Axis indexing
- Two Inovance servo motors
- Main motor
- 5.5 kW, servo drive
- Hydraulic valves
- Bosch Rexroth
- Hydraulic pump
- ECKERLE (Germany), with oil heating
- Guides and ball screws
- Linear guides and ball screws, Taiwanese-made
Software & control
- CNC control
- Delem DA-66T touchscreen
- Control panel
- Suspended pendant
- Offline programming
- Included — automatic bend sequence with collision detection
Power & environment
- Power supply
- 380 V, 50 Hz, three-phase four-wire, ±10%
- Electrical components
- Schneider
- Ambient temperature
- 0 – 45 °C
- Relative humidity
- 20 – 75% (non-condensing)
- Installation site
- Away from strong vibration sources, electromagnetic interference, dust and corrosive gases
Safety & certification
- Front guarding
- Optical light curtain (Italian-made)
- Side guarding
- Side safety panels
Dimensions & weight
- Weight (approx.)
- 3800 kg
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
2.5 m, 50-tonne servo-hydraulic press brake with 4+1 axes, automatic crowning and Delem DA-66T touchscreen control.
Frequently asked questions
What size of work can it bend?
It applies 50 t over a 2500 mm bending length. The distance between columns is 1250 mm, the throat depth 300 mm, the daylight 420 mm and the ram stroke 150 mm. The X-axis backgauge travels 500 mm with two stop fingers, and two front support arms carry long or heavy sheets. Send us your part drawings and material and we will check them against these limits.
How accurate is it?
Positioning accuracy is within ±0.02 mm, repositioning within ±0.01 mm, and the bending angle error is stated at 0.5° or less. The Y1 and Y2 cylinders are synchronised by a servo motor and read back through optical linear scales with 0.005 mm resolution, so the control corrects each side independently and keeps the ram parallel to the bed.
What does the crowning axis do?
Under load the table and ram deflect, so the middle of a long part comes out more open than its ends. The automatic mechanical compensation system, the "+1" crowning axis, counters that deflection in the table, so the angle stays the same along the full bending length. The controlled axes are Y1, Y2, X and C (crowning).
How is it programmed?
On a Delem DA-66T touchscreen mounted on a suspended pendant. The control calculates the bend sequence automatically and checks each step for collisions between the part, the tools and the machine. Offline programming software that works the same way is included, so you can build and check the next job at a desk while the brake is bending.
Which tooling does it take?
Upper tools clamp with quick release to the European Amada-Promecam standard. The standard lower tooling is an L seat, T block and double-V die. If you already hold tooling, send us the profiles and we will check compatibility.
What does it need on site?
A 380 V, 50 Hz three-phase four-wire supply (±10%), an ambient temperature of 0 – 45 °C and 20 – 75% relative humidity without condensation. The machine weighs about 3800 kg and should stand away from strong vibration, electromagnetic interference, dust and corrosive gases. A built-in oil heater brings the hydraulics to working temperature before production.
What safety features does it have?
An Italian-made optical light curtain guards the front of the tools, and side safety panels close off the working area. Hydraulic speeds are 200 mm/s on approach and return and an adjustable 4 – 15 mm/s while bending.
