Press brakes (Abkant)

Sheet metal press-brake bending.

Choose your process

Servo-hydraulic CNC press brakes — Delem control

Synchronised-cylinder press brakes with CNC backgauge.

Servo-hydraulic press brakes with two independently driven cylinders (Y1, Y2), a CNC backgauge on the X axis and automatic crowning. Position feedback comes from optical linear scales, and the Delem touchscreen control plans the bend sequence and checks for tool collisions before the first part is folded.

1 machine →

Applications

Metal fabrication
Sheet metal forming
Stainless steel

Also in: Servo-hydraulic CNC press brakes — Delem control

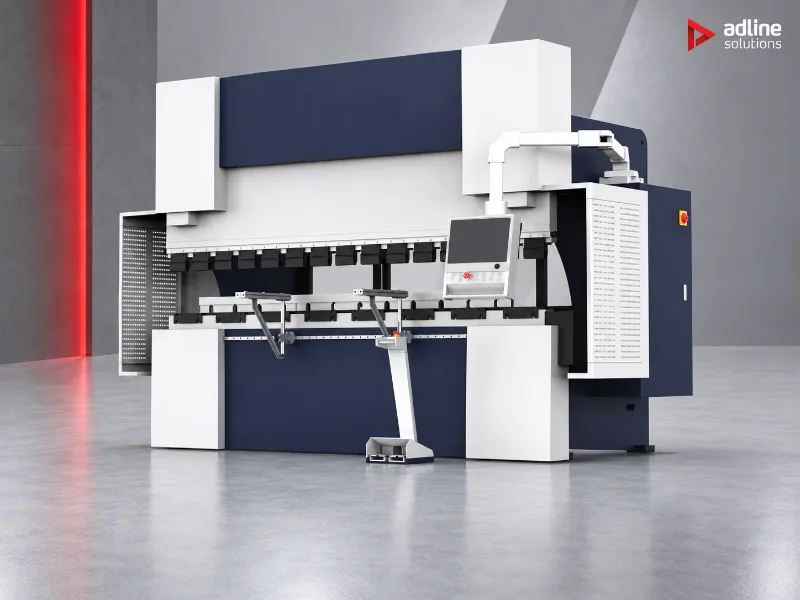

Adline 2500 × 50T Servo-Hydraulic CNC Press Brake

2.5 m, 50-tonne servo-hydraulic press brake with 4+1 axes, automatic crowning and Delem DA-66T touchscreen control.

View machine →

About this range

A press brake folds sheet metal between an upper punch and a lower die: the ram presses the sheet into the die opening, and the backgauge behind the tools sets where each bend falls. It turns flat laser- or waterjet-cut blanks into enclosures, brackets, trays, profiles and frames. On a servo-hydraulic machine the two cylinders are driven independently and kept level by closed-loop control on linear scales, so the bend angle stays consistent along the full length and the machine uses energy only while it is moving. The CNC control calculates the bend sequence, positions the backgauge between bends and compensates for the deflection of the bed.
