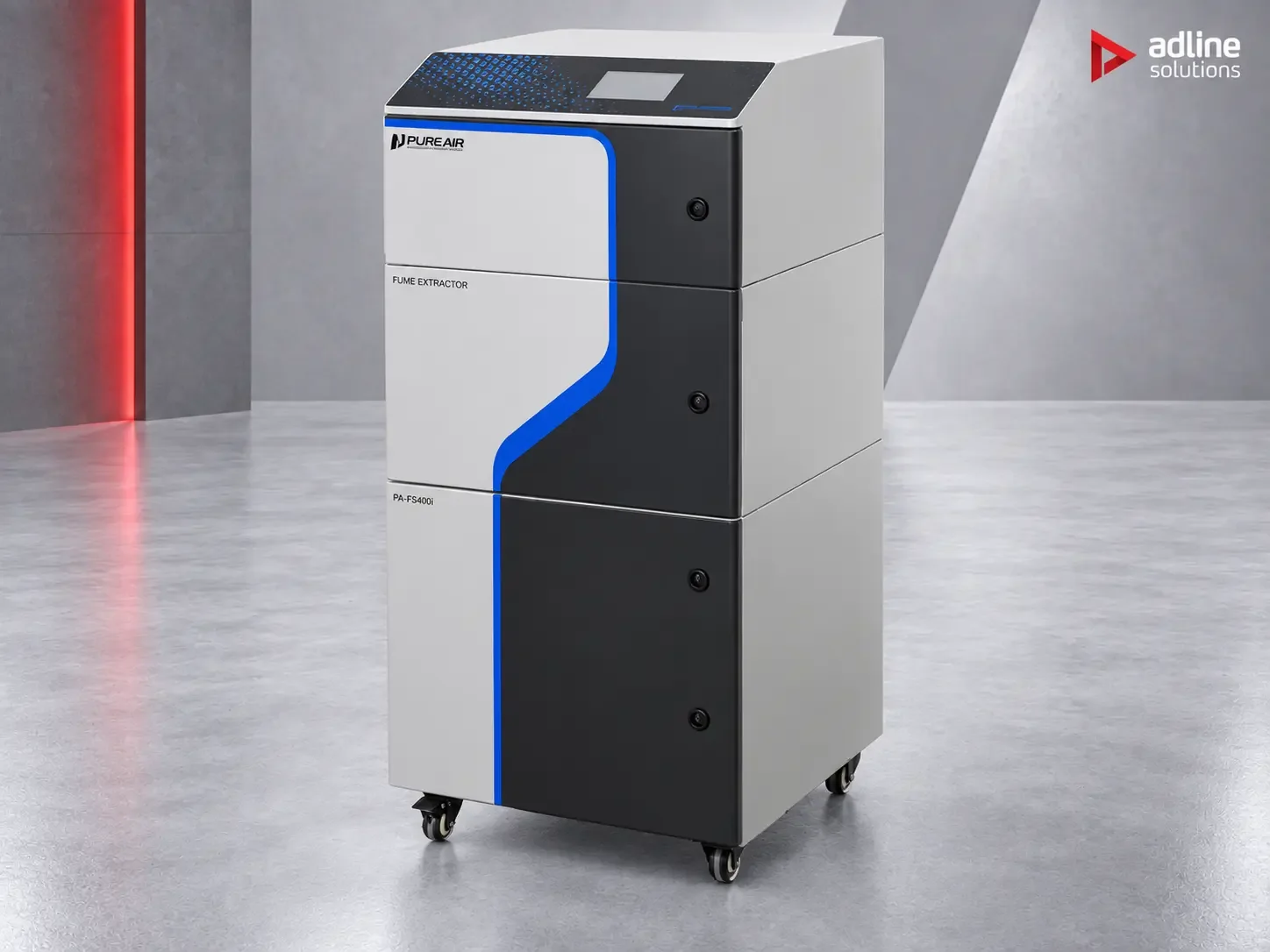

PURE-AIR PA-FS400i Fume & Dust Extractor
SKU PA-FS400i · On request
- 400 m³/h airflow
- Up to 8000 Pa negative pressure
- HEPA H14 filtration, 99.99% @ 0.3 µm
- Activated carbon stage for VOC and odour
- PIPS intelligent control
Intelligent fume extraction unit, 400 m³/h at up to 8000 Pa. Acrylic, paper and card, leather, textiles, technical plastics. PIPS intelligent control.
Request a quote- Laser cutting
- Laser engraving
- CNC routing
- 3D printing / AM
- Acrylic & plastics
- Textiles & leather
About this machine
The PA-FS400i is a self-contained fume extraction unit for CO2 laser cutting and engraving of non-metals, and for resin-based additive manufacturing. A brushless high-negative-pressure fan pulls 400 m³/h at up to 8000 Pa, which is what it takes to clear smoke from the kerf rather than merely from the cabinet. Three progressive stages take out coarse particles, sub-micron smoke and finally the odour and solvent vapours that make an engraving shop unpleasant to work in, so the air can be discharged straight back into the room.
Filtration
- F9 deeppleat pre-filter, 95% @ 1.0 um, 12-30 m² of media
- H14 deeppleat filter, 99.99% @ 0.3 um
- Treated activated carbon, approx. 12-30 kg, for odour and VOC
Key specifications
- Airflow: 400 m³/h
- Maximum negative pressure: 8000 Pa
- Rated power: 1.0 kW
- Power supply: 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Noise level: below 60 dBA at 1 m
- Dimensions (W x D x H): 400 x 482 x 1030 mm
- Net weight: 50 kg
- Inlet: 75 / 100 mm
- Cabinet: Powder coated mild steel / brushed stainless steel
Recommended for
- CO2 laser cutters and engravers with a bed of 40x60 cm
- CNC routers cutting acrylic, composites and plastics
- Resin, SLA, DLP and FFF 3D printers
Intelligent version (PIPS)
This is the i version of the model. It adds the Pure-Air Intelligent Purification System: an industrial touch screen that shows real airflow and negative pressure in real time, a filter health manager that warns before a stage blocks, and automatic airflow compensation so extraction does not fade as the filter loads. I/O and RS-485 allow remote start/stop, linkage with the host machine or robot and centralised control of several units. PM2.5, VOC and O3 sensors are available as an option, and firmware updates are loaded from a TF card.
Important
If the machine cuts wood, plywood or MDF, choose the FGS series instead. That dust is resinous and sticky and will blind an F9 pre-filter in a fraction of its normal life.
Installation
Free-standing on castors next to the machine. Connect the machine's exhaust port to the inlet with flexible ducting kept as short and straight as possible - every extra bend costs suction. Allow 150 mm clearance at the outlet and keep the front accessible: all filter stages are changed from the front. Filtered air is discharged back into the room, so no outside duct is needed.
Technical specifications
- Phase
- Single-phase
- Airflow
- 400 m³/h
- Inlet size
- 75 / 100 mm
- Net weight
- 50 kg
- Pre-filter
- F9 deeppleat pre-filter, 95% @ 1.0 um, 12-30 m² of media
- Main filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Noise level
- 60 dB(A) max.
- Rated power
- 1 kW
- Power supply
- 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Control system
- PIPS intelligent control
- Explosion-proof
- No
- Activated carbon
- Yes - treated activated carbon, approx. 12-30 kg
- Cabinet construction
- Powder coated mild steel / brushed stainless steel
- Dimensions (W×D×H)
- 400 x 482 x 1030 mm
- Max. negative pressure
- 8000 Pa
Application details
Recommended for
CO₂ laser cutters and engravers with a bed of 40x60 cm; CNC routers cutting acrylic, composites and plastics; Resin, SLA, DLP and FFF 3D printers
Materials
Acrylic, paper and card, leather, textiles, technical plastics; resin-based 3D printing
Typical working format
40x60 cm
Control system
PIPS - Pure-Air Intelligent Purification System. Industrial touch screen, real-time airflow and negative-pressure readout, filter health manager with early replacement warning, automatic airflow compensation as the filter loads, I/O and RS-485 for MES / robot / multi-unit linkage, optional PM2.5 / VOC / O3 sensors, temperature and humidity safety shutdown, TF-card firmware upgrade.
Installation
Free-standing on castors next to the machine. Connect the machine's exhaust port to the inlet with flexible ducting kept as short and straight as possible - every extra bend costs suction. Allow 150 mm clearance at the outlet and keep the front accessible: all filter stages are changed from the front. Filtered air is discharged back into the room, so no outside duct is needed.
Series
FS
