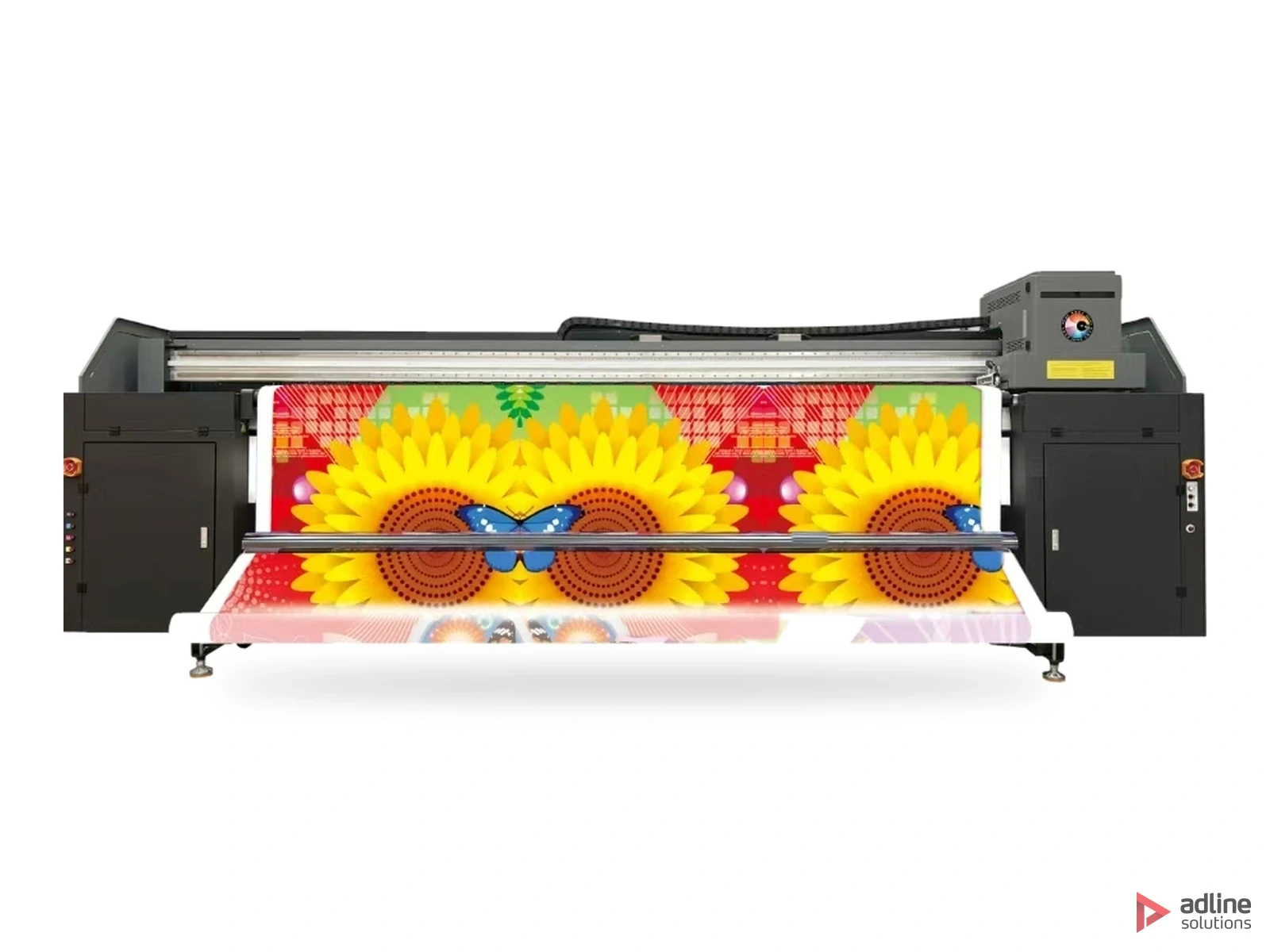

Galaxy UD-32L6BNW BN Series 3.2 m UV Roll-to-Roll Printer
On request
- 3200 mm print width, roll to roll
- 2 – 6 Ricoh Gen6 heads, configurations with or without white
- 33 / 71 / 101 m²/h in draft (4 pass) with 1 / 2 / 3 colour channels
- Front lightbox for checking backlit work while it prints
- Double linear rail carriage guidance
- Negative pressure ink system with temperature control
3.2 m roll-to-roll UV LED printer with a front lightbox, double linear rail and 2 – 6 Ricoh Gen6 heads, up to 101 m²/h in draft mode (4 pass).
Request a quoteFlatbed, hybrid or roll? Read the guide- UV printing
- Large format
- Signage & advertising
- Textiles
Configurations
| Configuration | Differences | Availability |
|---|---|---|
| Ricoh Gen6On request | Printheads: Ricoh Gen6 · Draft (4 pass): 33 – 101 m²/h | On request |
About this machine
Galaxy UD-32L6BNW BN Series 3.2 m UV Roll-to-Roll Printer

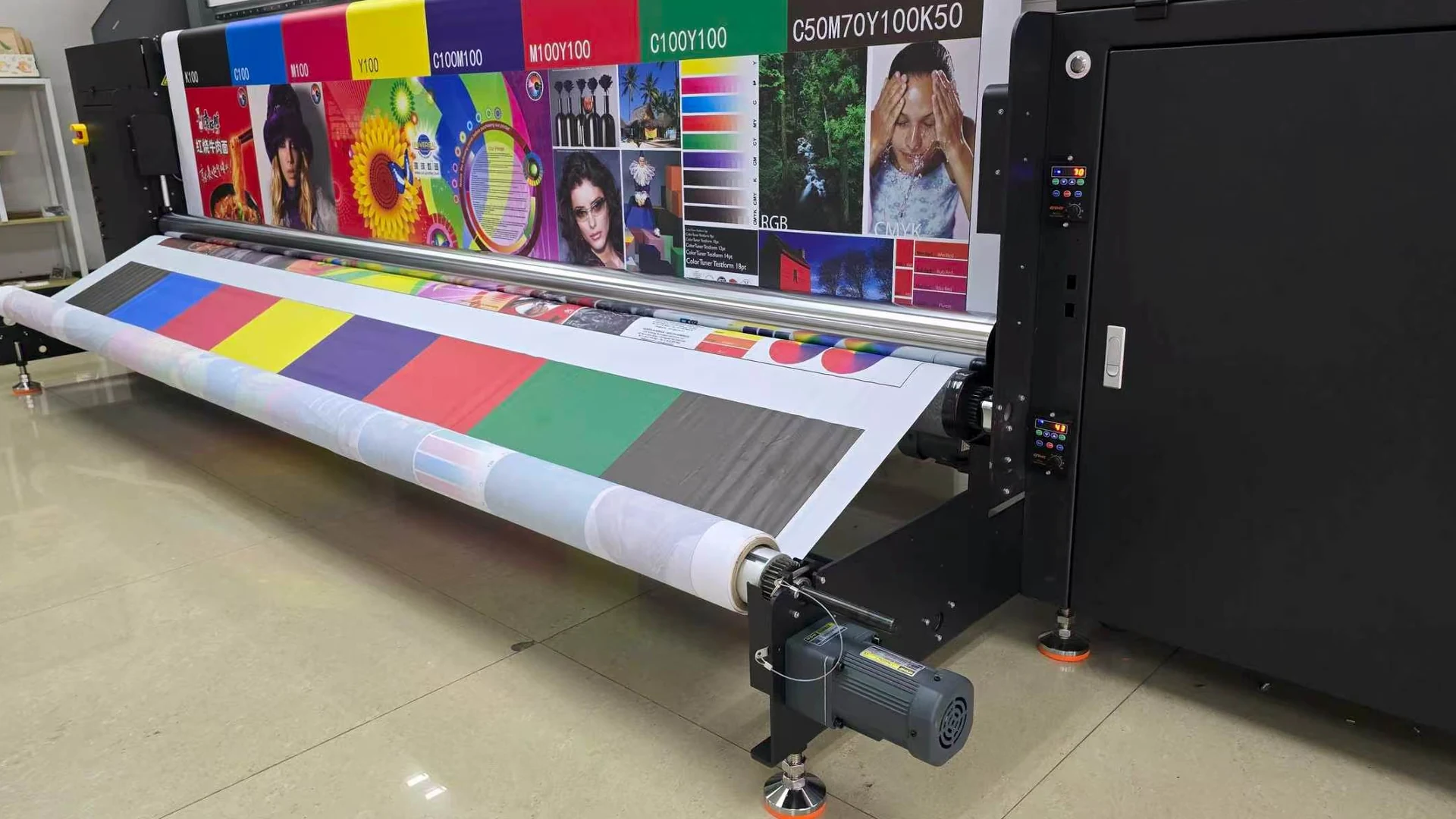

A 3.2 m roll-to-roll UV LED printer for banner, film and soft-signage production. Media runs from roll to roll across the full 3200 mm width, and a front lightbox lets the operator check backlit work while it is still printing, instead of waiting for the finished roll.

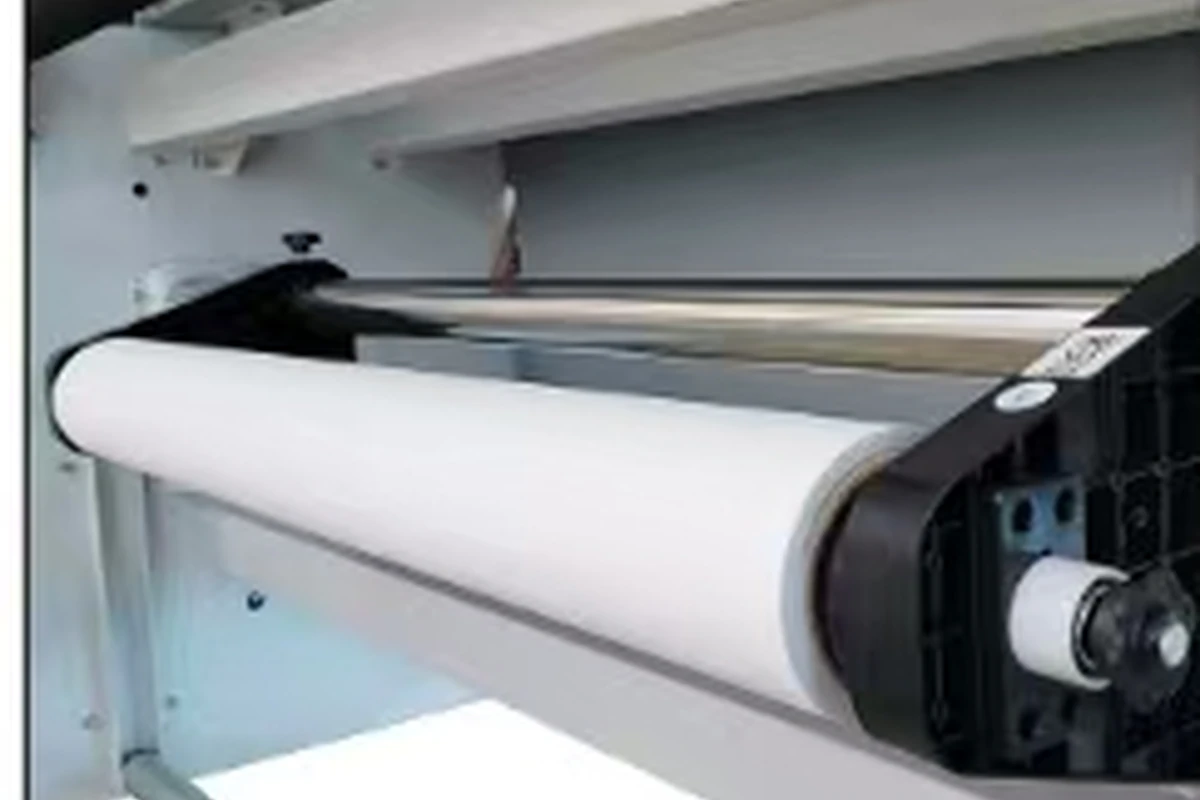

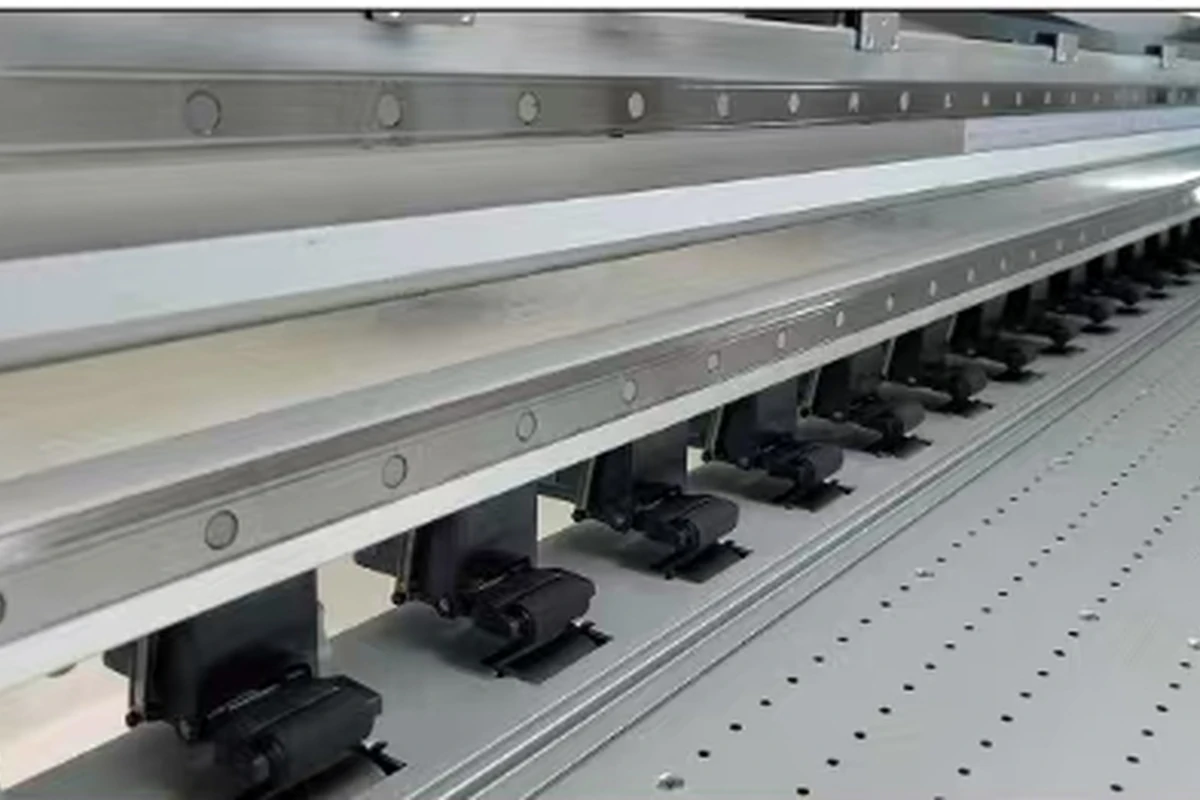

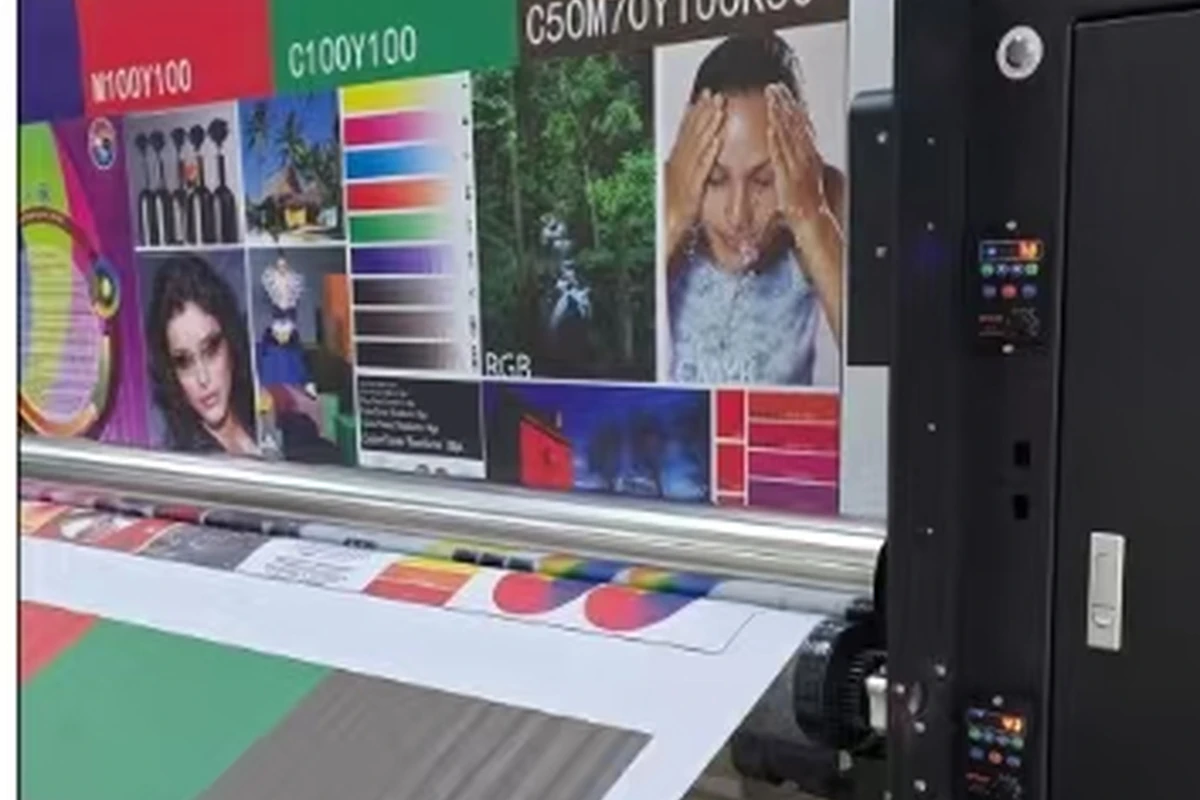

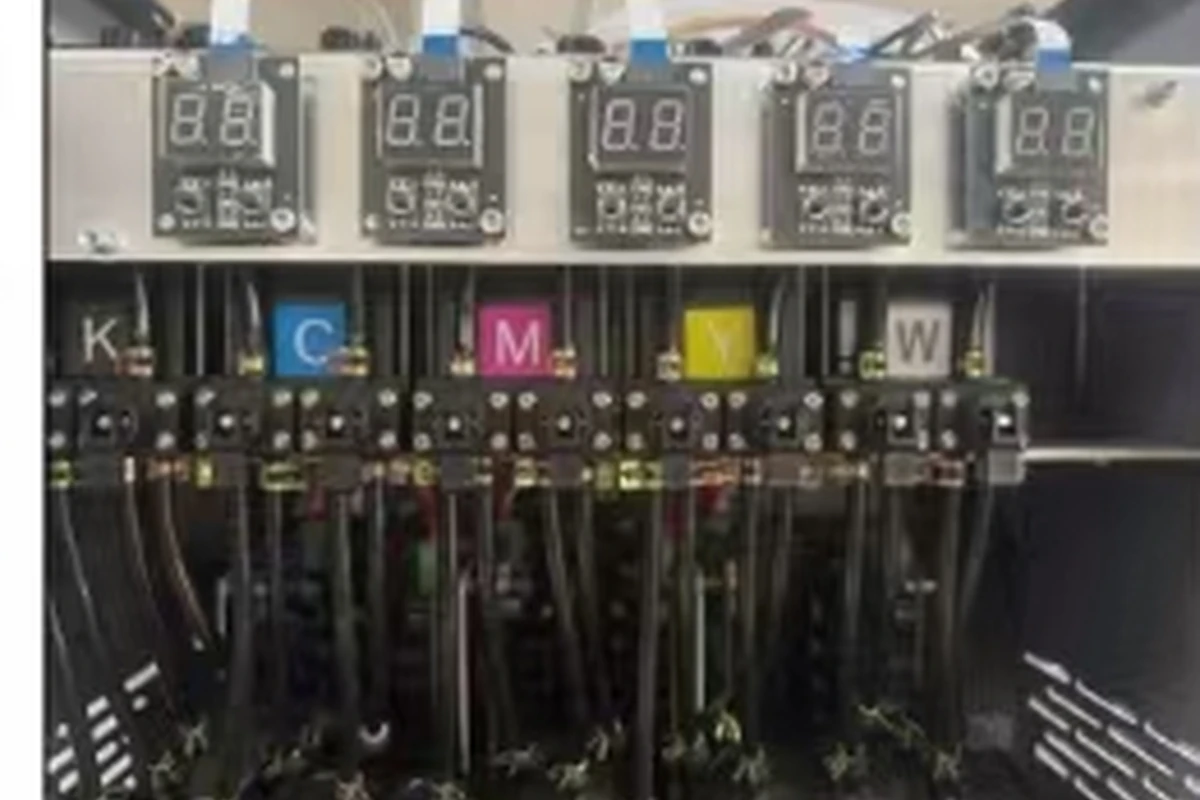

The carriage is guided by a double linear rail for steady movement over the full width, and the ink is delivered through a negative pressure system with temperature control. A two-bar, four-clamp vinyl bracket system and a soft film system are available as options for heavier rolls and thin films.
Printhead configurations
The machine is built with two to six Ricoh Gen6 heads, in the configurations W + CMYK / W + 2 × CMYK / CMYK / 2 × CMYK / 3 × CMYK. Throughput is 33 / 71 / 101 m²/h in draft mode (4 pass) with 1 / 2 / 3 colour channels.
Files are prepared in FlexiPrint.
Applications
Banners and mesh, backlit films and lightbox graphics, self-adhesive vinyl, soft signage and textile prints at 3.2 m.
Technical specifications
Printing
- Printheads
- Ricoh Gen6
- Number of printheads
- 2 – 6
- Colour configurations
- W + CMYK / W + 2 × CMYK / CMYK / 2 × CMYK / 3 × CMYK
- Ink Type
- UV LED
Performance
- Output — Ricoh Gen6
- Draft (4 pass) 33 / 71 / 101 with 1 / 2 / 3 colour channels m²/h
Media
- Printing Width
- 3200 mm
- Media Handling
- Roll to roll
- Lightbox
- Front lightbox
Software & connectivity
- RIP Software
- FlexiPrint
Dimensions & weight
- Machine Dimensions
- 4892 × 1215 × 1678 mm
- Packing Dimensions
- 5100 × 1100 × 1900 mm
- Net Weight
- 790 kg
- Gross Weight
- 1090 kg
Power & environment
- Power
- 4000 W
Features
- Guidance
- Double linear rail for steady carriage movement
- Ink System
- Negative pressure system with temperature control
- Options
- Two-bar four-clamp vinyl bracket system · soft film system
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Banner, film and soft-signage production at 3.2 m, with 2 – 6 Ricoh Gen6 heads and up to 101 m²/h in draft mode (4 pass).
Series
Galaxy
Frequently asked questions
What is it for?
Banner, film and soft-signage production on a 3200 mm roll-to-roll UV LED printer. Typical work is banners and mesh, backlit films and lightbox graphics, self-adhesive vinyl, soft signage and textile prints at 3.2 m. Send us your media list and we will confirm the set-up.
What is the front lightbox for?
It lets the operator check backlit work while it is still printing, instead of waiting for the finished roll. On backlit films and lightbox graphics you can judge the result before the whole job has run, and correct the file early if needed.
Which heads and colour configurations are available?
Two to six Ricoh Gen6 heads, in the configurations W + CMYK / W + 2 × CMYK / CMYK / 2 × CMYK / 3 × CMYK. Choose the configuration when you ask for a quote.
How fast is it?
33, 71 or 101 m²/h in draft mode (4 pass) with 1, 2 or 3 colour channels. Tell us your volume and we will recommend the configuration.
How is the carriage and ink system built?
The carriage is guided by a double linear rail for steady movement over the full 3200 mm width. Ink is delivered through a negative pressure system with temperature control. The machine weighs 790 kg net and measures 4892 × 1215 × 1678 mm.
Which options and software are available?
Two options: a two-bar, four-clamp vinyl bracket system for heavier rolls, and a soft film system for thin films. Files are prepared in FlexiPrint. Tell us the heaviest roll and the thinnest film you run and we will recommend the options.
What does it need on site?
Power for 4000 W and floor space for a machine of 4892 × 1215 × 1678 mm at 790 kg net. It ships packed at 5100 × 1100 × 1900 mm and 1090 kg gross, so plan for a forklift and a door high enough for the crate.
