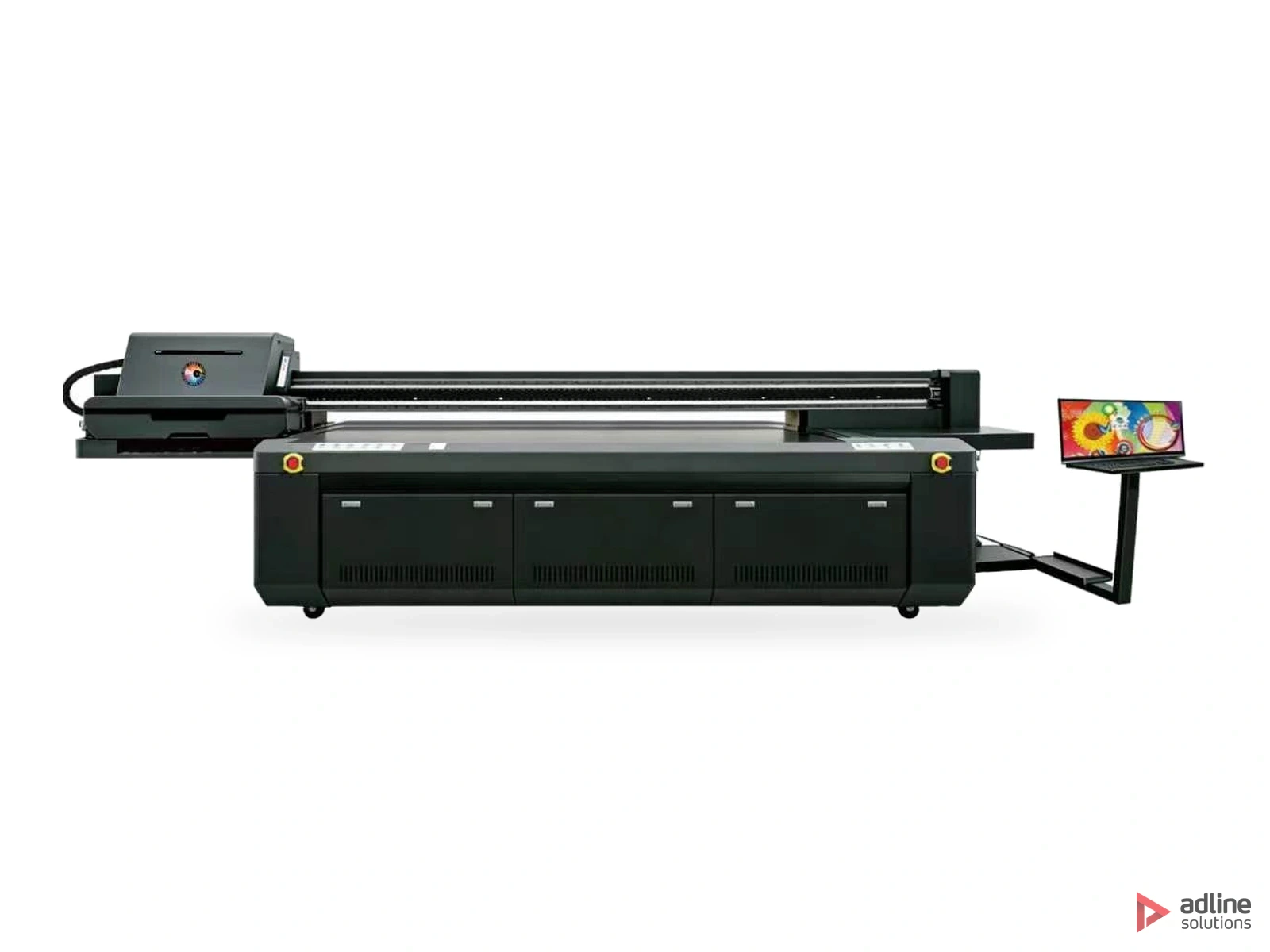

Galaxy UD-32L8BQW F32 UV Flatbed Printer — BQ Series

In stock: Ricoh Gen6 heads

  • 3200 × 2000 mm flatbed with five independently switched vacuum zones
  • 4 – 8 Ricoh Gen6 heads, CMYK and white configurations
  • 98 / 148 / 195 m²/h in draft (4 pass) with 2 – 4 CMYK sets
  • Magnetically levitated linear motor and ground ball screw

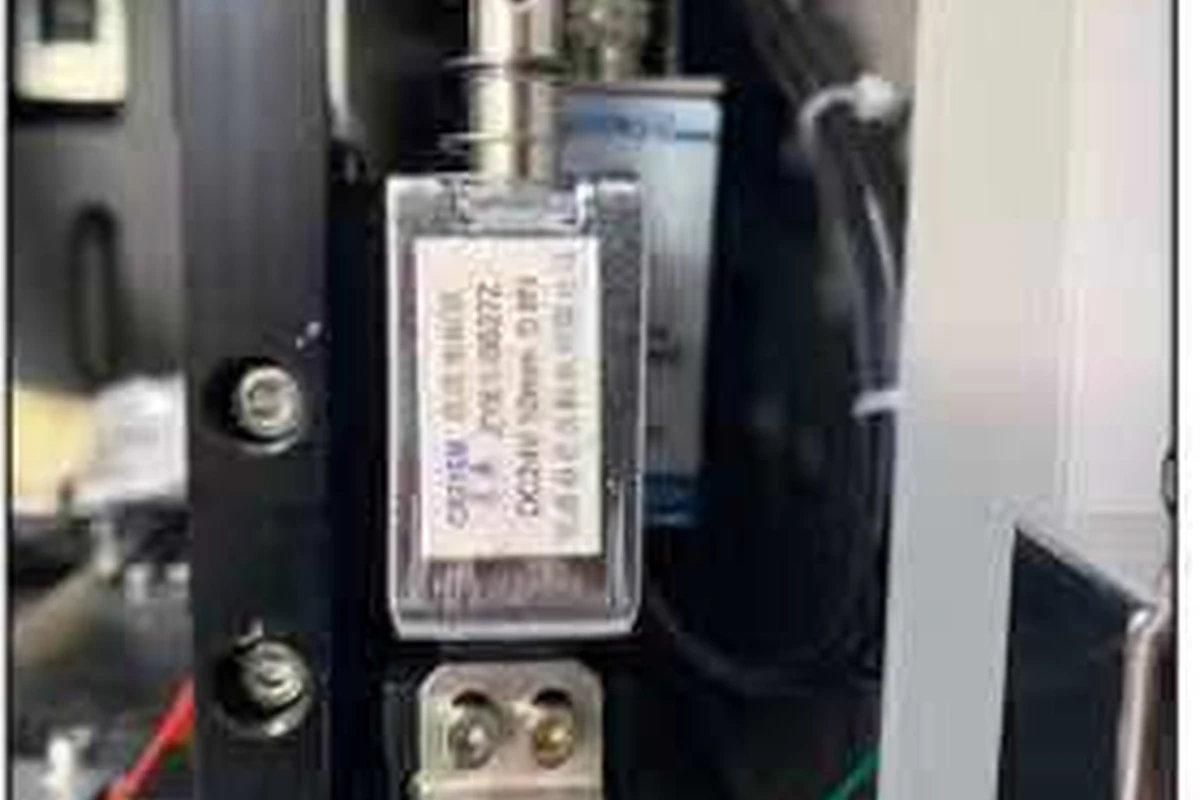

  • Automatic carriage height detection, 1 – 100 mm substrates
  • FlexiPrint RIP

Industrial 3.2 × 2.0 m UV flatbed with a magnetically levitated linear motor, five vacuum zones and 4 – 8 Ricoh Gen6 heads, CMYK and white, up to 195 m²/h in draft.

Request a quoteFlatbed, hybrid or roll? Read the guide
  • Acrylic
  • Large format
  • Plastics
  • Signage & advertising
  • UV printing

Configurations

ConfigurationDifferences
Ricoh Gen6 headsIn stockPrintheads: Ricoh Gen6 · Draft (4 pass): 50 – 195 m²/h

About this machine

Galaxy UD-32L8BQW F32 UV Flatbed Printer — BQ Series

A 3.2 × 2.0 m industrial UV flatbed for rigid board production. The bed takes standard sheet formats whole, and its five independently switched vacuum zones mean a small sheet holds down on one zone without the machine pulling air across the rest of an empty table.

The carriage runs on a magnetically levitated linear motor rather than a belt, and the Y axis on a ground ball screw. Substrate height is measured automatically, from a thin sheet up to 100 mm.

The machine runs 4 – 8 Ricoh Gen6 heads with UV LED ink. The carriage has 8 head slots, so it can start with 4 heads and take more later. Configurations: 2 × CMYK / 2 × CMYK + W / 2 × CMYK + 2 × W / 3 × CMYK / 4 × CMYK. Output in draft mode (4 pass) is 98, 148 or 195 m²/h with 2, 3 or 4 CMYK sets. Files are prepared in FlexiPrint.

Applications

Rigid signage and display boards, POS and exhibition graphics, panel and door decoration, packaging prototypes.

Technical specifications

Printing

Printheads
Ricoh Gen6
Number of Printheads
4 – 8 (8 slots, expandable later)
Ink Type
UV LED
Ink Colours
2 × CMYK / 2 × CMYK + W / 2 × CMYK + 2 × W / 3 × CMYK / 4 × CMYK

Performance

Output
98 / 148 / 195 in draft mode (4 pass) with 2 / 3 / 4 CMYK sets m²/h

Media

Printing Size
3200 × 2000 mm
Printhead Height
1 – 100 mm
Vacuum Table
5 independently switched zones, laid out for standard board formats on a 3250 × 2050 mm table

Software & connectivity

RIP Software
FlexiPrint

Dimensions & weight

Machine Dimensions
5320 × 2920 × 1450 mm
Packing Dimensions
5560 × 2280 × 1680 mm
Net Weight
1300 kg
Gross Weight
1925 kg

Power & environment

Power
8500 W

Features

Carriage Height Detection
Automatic
Motion System
Linear motor, magnetically levitated
Drive
High-precision ground ball screw
Options
Platform blowing air

Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.

Application details

Recommended for

Rigid board and display production at full sheet format, with CMYK and white.

Series

Galaxy

Frequently asked questions

What sizes does the bed take?

The print area is 3200 × 2000 mm on a 3250 × 2050 mm table, laid out for standard board formats, so sheets go on whole. The vacuum is split into five independently switched zones: a small sheet holds down on one zone without the machine pulling air across the rest of an empty table. Substrates run from a thin sheet up to 100 mm.

How many heads does it have, and can I add more later?

It uses Ricoh Gen6 heads. The carriage has 8 head slots, and we build the machine with 4 to 8 heads to suit your work: 4 heads for CMYK only, a fifth head for white, a second white head for denser white on dark, kraft or clear materials, or 8 heads for maximum CMYK speed. Each Ricoh Gen6 head carries two colour channels, so CMYK sets go in two heads at a time, while a white head can be added on its own. Heads can be added later too, so you can start with 4 and expand up to 8 as your volume grows. The price depends on the head count; tell us your volume and image type and we will recommend a configuration.

How fast is it?

In draft mode (4 pass) output is 98, 148 or 195 m²/h with 2, 3 or 4 CMYK sets.

Which colours does it print?

The colour configuration follows the head count: 4 heads print 2 × CMYK, 5 heads add one white (2 × CMYK + W), 6 heads add a second white (2 × CMYK + 2 × W) or a third CMYK set, and 8 heads print 4 × CMYK.

How is the motion system built?

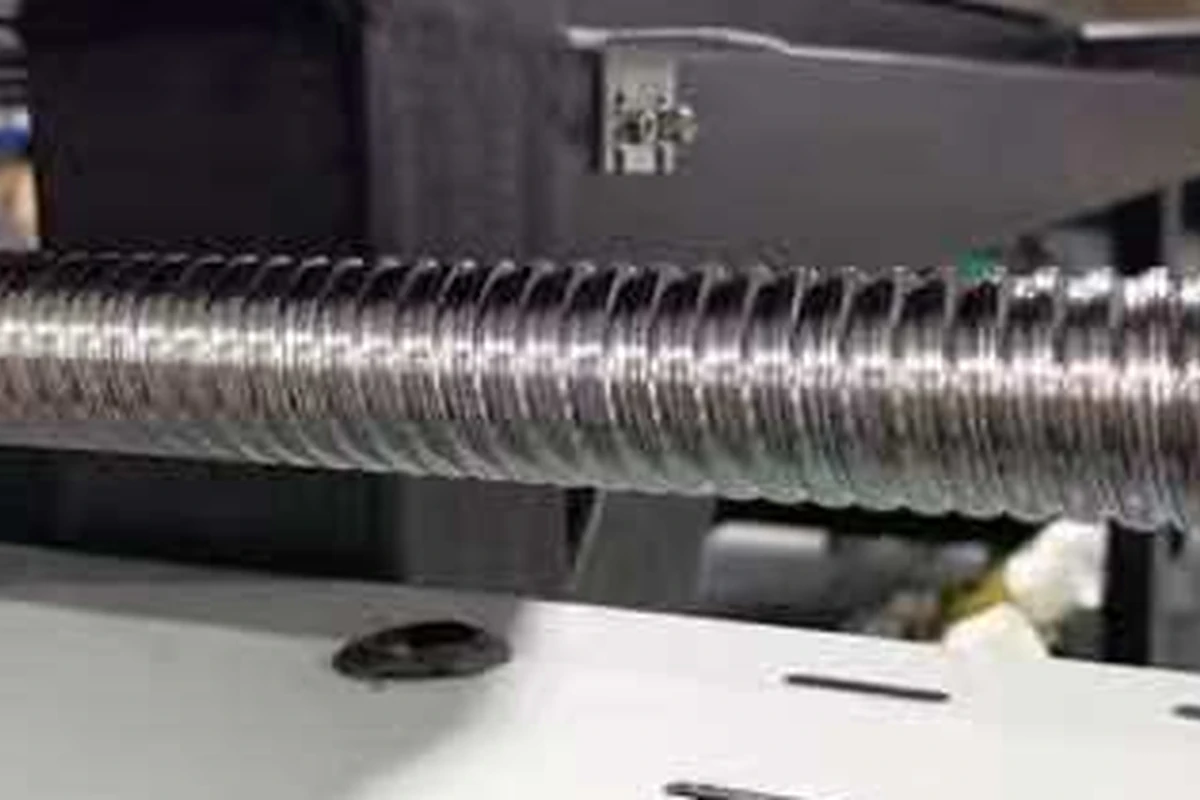

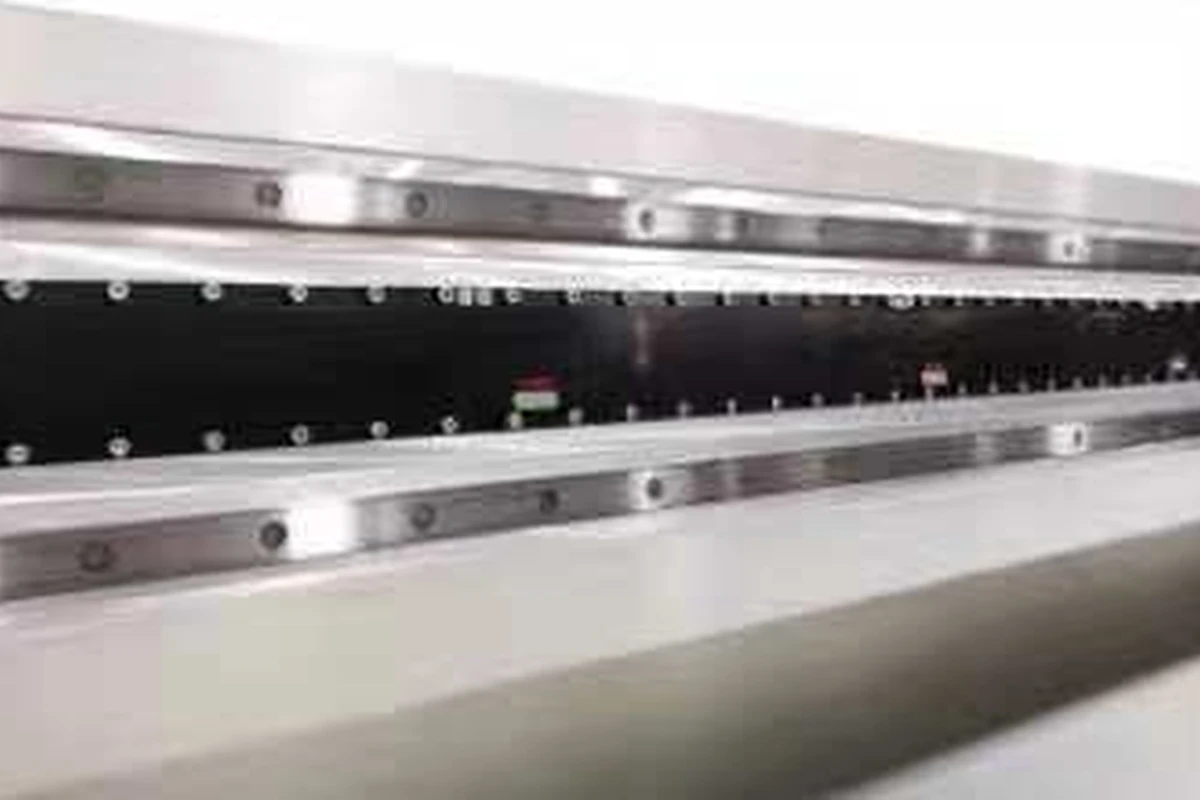

The carriage runs on a magnetically levitated linear motor rather than a belt. The Y axis runs on a high-precision ground ball screw, and carriage height is detected automatically.

Which software and options are available?

Files are prepared in FlexiPrint. Platform blowing air is available as an option. Tell us which jobs you run, and we will quote the configuration.

What does it need on site?

Power for 8500 W and floor space for a machine of 5320 × 2920 × 1450 mm at 1300 kg net. It ships packed at 5560 × 2280 × 1680 mm and 1925 kg gross, so plan for a forklift rated for that load and a clear route into the hall.
