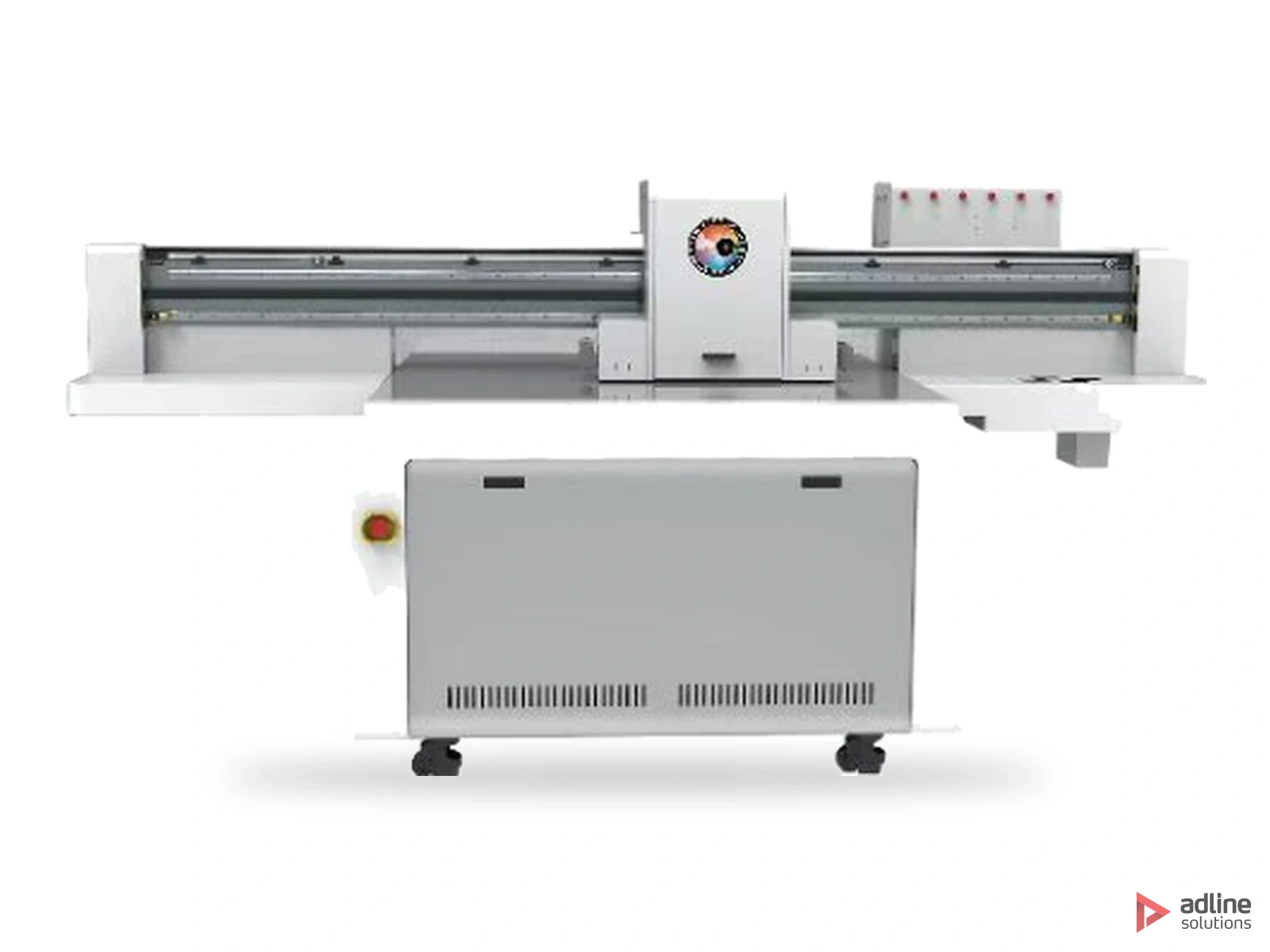

Galaxy UD-1300BXV F13 UV Flatbed Printer — BX Series
On request
- 1250 × 1240 mm print area

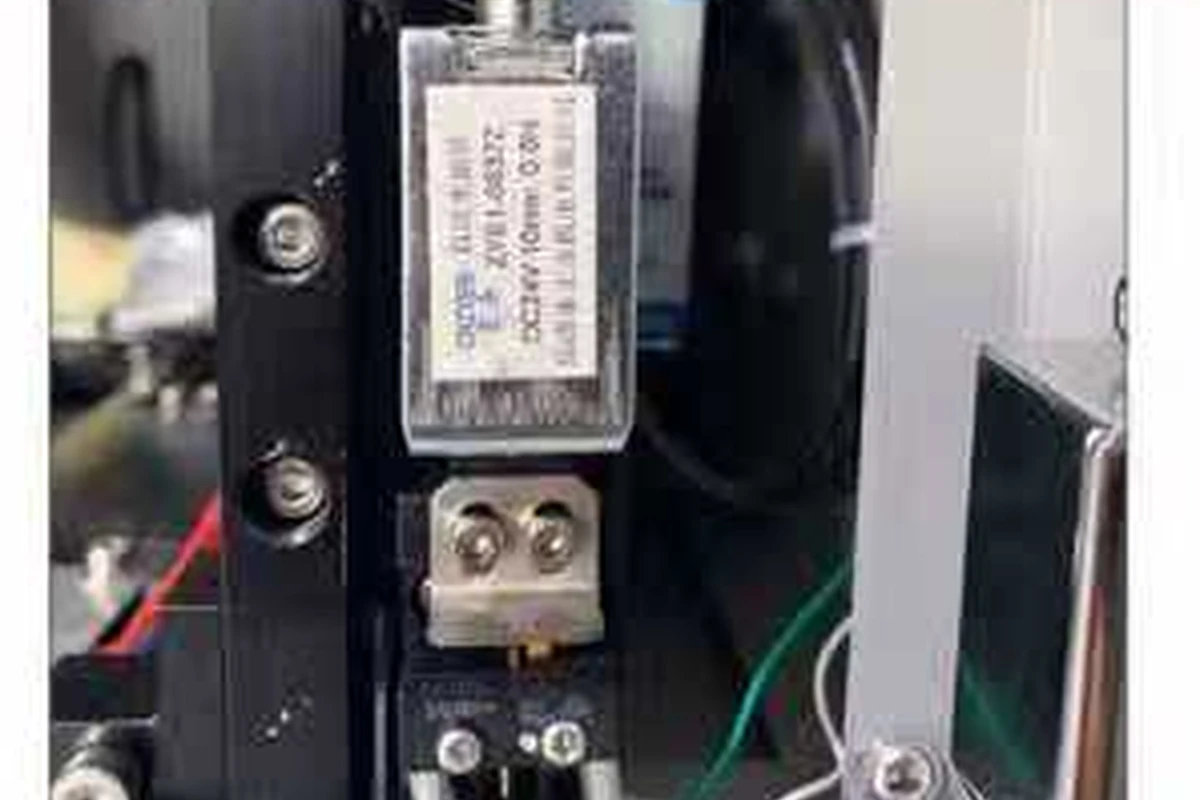

- Automatic height detection, substrates 1 – 100 mm
- 1 – 4 Epson i3200-U1 heads, from W + CMYK + V to 3 × CMYK
- 17 / 34 / 51 m²/h in draft mode (4 pass), depending on configuration
- Double THK linear rail guidance
- High-speed silent cable chain
1250 × 1240 mm UV flatbed for personalisation and object printing, with automatic height detection to 100 mm and 1 – 4 Epson i3200-U1 heads.
Request a quoteFlatbed, hybrid or roll? Read the guide- Acrylic
- Glass
- Metal
- Plastics
- Signage & advertising
- UV printing
Configurations
| Configuration | Differences | Availability |
|---|---|---|
| Epson I3200-U1 headsOn request | Printheads: Epson i3200-U1 · Draft (4 pass): 17 / 34 / 51 m²/h, depending on configuration | On request |
About this machine
Galaxy UD-1300BXV F13 UV Flatbed Printer — BX Series
A 1250 × 1240 mm UV flatbed for personalisation, promotional items and short-run object printing. The square bed takes a full batch of small parts or a single larger panel, and the carriage measures the substrate height automatically, from 1 mm up to 100 mm, so objects of different thickness can go through without manual adjustment.

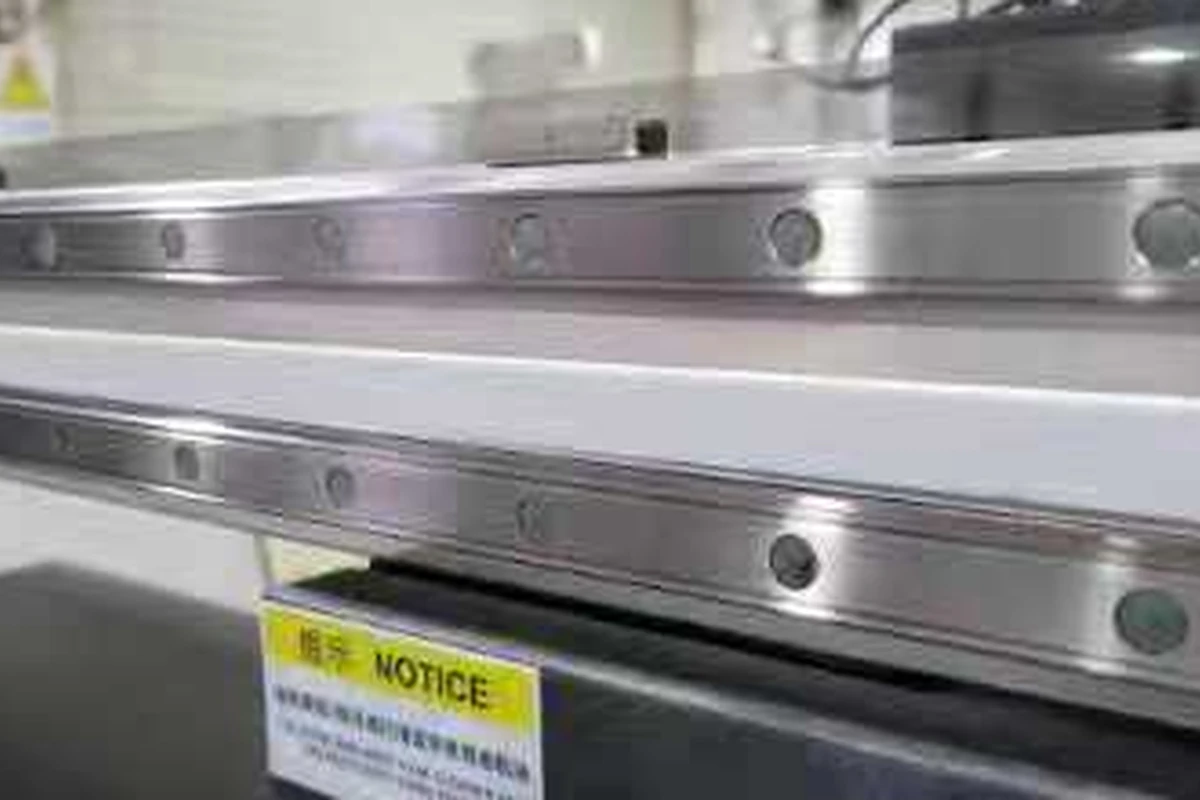

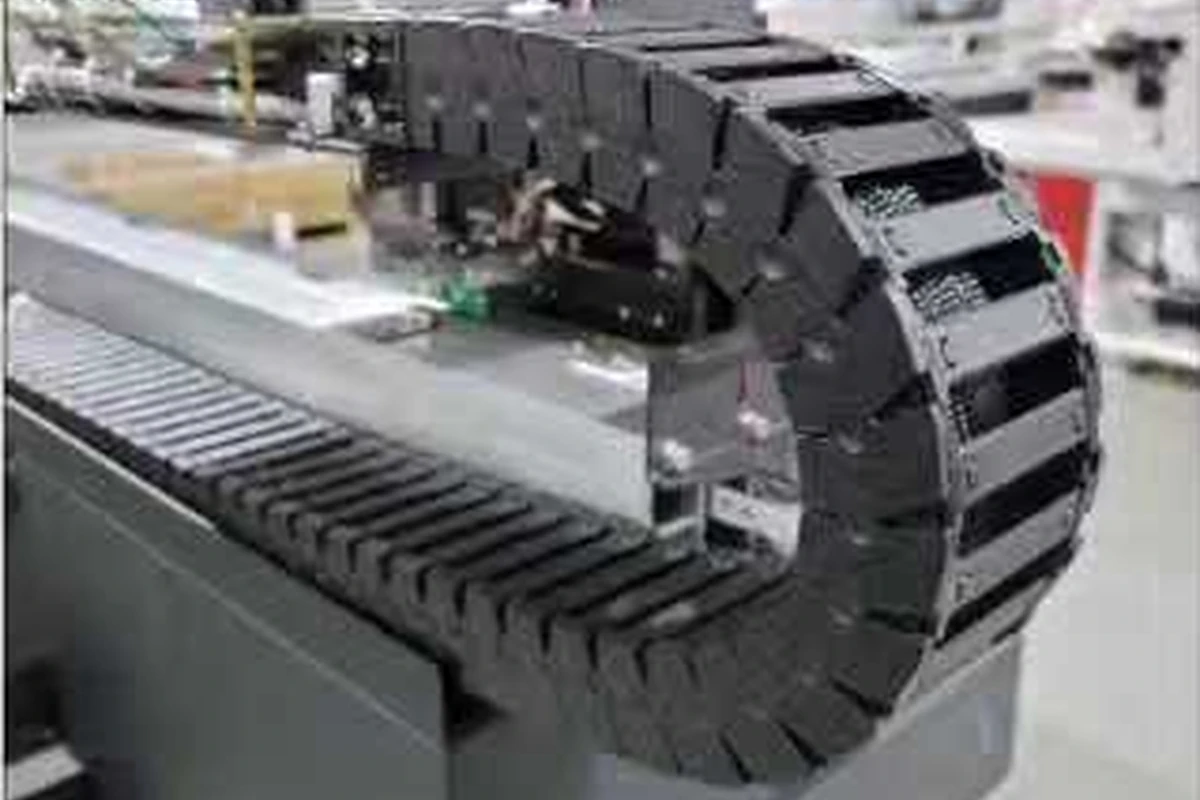

The carriage runs on a double THK linear rail, and the cables travel in a high-speed silent cable chain.
Printheads
The F13 carries one to four Epson i3200-U1 heads with UV LED ink, in five colour configurations: W + CMYK + V, W + 2 × CMYK + V, W + CMYK, W + 2 × CMYK and 3 × CMYK. In draft mode (4 pass) it prints at 17, 34 or 51 m²/h, depending on the configuration.
Files are prepared in FlexiPrint.
Applications
Promotional items and gifts, phone cases and accessories, acrylic, glass and metal panels, signs and nameplates, small-batch packaging.
Technical specifications
Printing
- Printheads
- Epson i3200-U1
- Number of Printheads
- 1 – 4, depending on configuration
- Ink Type
- UV LED
- Colour Configurations
- W + CMYK + V / W + 2 × CMYK + V / W + CMYK / W + 2 × CMYK / 3 × CMYK
Performance
- Output — Epson i3200-U1
- 17 / 34 / 51 in draft mode (4 pass), depending on configuration m²/h
Media
- Printing Size
- 1250 × 1240 mm
- Printing Height
- 1 – 100, with automatic detection mm
Software & connectivity
- RIP Software
- FlexiPrint
Dimensions & weight
- Machine Dimensions
- 2820 × 2010 × 1430 mm
- Packing Dimensions
- 3000 × 2200 × 1600 mm
- Net Weight
- 500 kg
- Gross Weight
- 780 kg
Power & environment
- Power
- 4800 W
Features
- Carriage Height Detection
- Automatic, 1 – 100 mm
- Guidance
- Double THK linear rail
- Cable Management
- High-speed silent cable chain
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Personalisation, promotional items and short-run object printing.
Series
Galaxy
Frequently asked questions
What is it for?
Personalisation, promotional items and short-run object printing on a 1250 × 1240 mm bed. The square bed takes a full batch of small parts or a single larger panel. Typical work is gifts, phone cases and accessories, acrylic, glass and metal panels, signs and nameplates, and small-batch packaging.
How thick can the substrates be?
From 1 mm up to 100 mm. The carriage measures the substrate height automatically, so objects of different thickness can go through without manual adjustment between jobs. If your parts are close to the 100 mm limit, send us a sample and we will confirm the fit.
Which colour configuration should we choose?
There are five, on one to four Epson i3200-U1 heads: W + CMYK + V, W + 2 × CMYK + V, W + CMYK, W + 2 × CMYK and 3 × CMYK. Choose a configuration with white for dark or transparent substrates, add varnish for gloss effects, and use 3 × CMYK for colour-only work.
How fast is it?
17, 34 or 51 m²/h in draft mode (4 pass), depending on the colour configuration. Tell us your daily volume and the mix of white, varnish and colour-only jobs and we will recommend the configuration.
How is the carriage built?
The carriage runs on a double THK linear rail, and the cables travel in a high-speed silent cable chain. Height detection over 1 – 100 mm is built into the carriage.
Which software does it use?
Files are prepared in FlexiPrint. Send us a typical job file so we can show you how it prints on the F13.
What does it need on site?
Power for 4800 W, and floor space for a machine of 2820 × 2010 × 1430 mm at 500 kg net. It ships packed at 3000 × 2200 × 1600 mm and 780 kg gross, so plan for a forklift and an access route wide enough for the crate.
