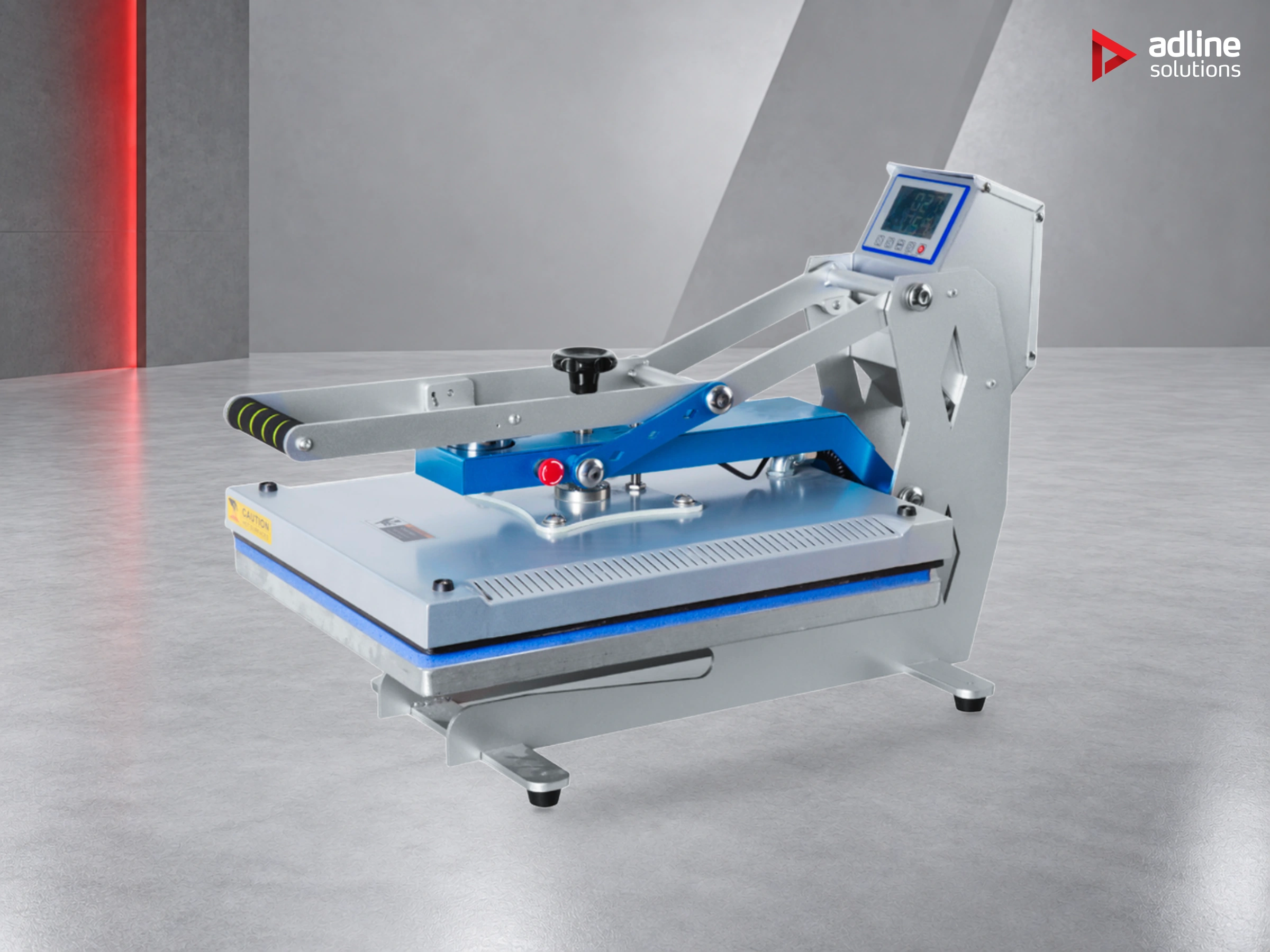

YXD-HA406 Magnetic Auto-Open Heat Press
In stock
- Magnetic automatic opening, no compressor and no air line
- 40 x 60 cm portrait platen, a full adult front print
- 0 to 280 C held to plus or minus 0.5 C
- Heating plate cast as one piece for uniform temperature across the platen
- LED touch-screen control with separate digital settings for time and temperature
- 2200 W, 110 V or 220 V
Magnetic auto-open heat press with a 40 x 60 cm platen, 0 to 280 C at plus or minus 0.5 C, and 2200 W.
Request a quote- Textiles
- Garment decoration
About this machine
YXD-HA406 Magnetic Auto-Open Heat Press
The YXD-HA406 presses at 40 x 60 cm in portrait format, which covers a full adult front print, and opens by itself when the timer runs out. The opening is magnetic rather than pneumatic, so there is no compressor to buy, no air line to run and nothing to service; the platen simply lifts to 75 degrees at the end of the cycle and the operator loads the next piece.
That auto-open behaviour is what changes the rhythm of a small shop. An operator who has to remember to lift the platen will eventually scorch a garment, and a press that has to be watched cannot be left while something else is done. Here the cycle ends by itself, with an audible signal, and a manual release button is available if the press has to be opened before time.
Temperature is set anywhere from 0 to 280 C and held to plus or minus 0.5 C with automatic monitoring. The heating plate is cast as one piece, wire and plate together, and the heat is distributed through ultra-precise ducting, which is what keeps the temperature the same at the corners of the platen as it is in the middle. A press that is uniform only under its sensor will show the difference on the first large transfer.
Time is set from 0 to 999 seconds. Both time and temperature have their own digital control on an intelligent microcomputer panel with an LED touch screen, so neither is changed by accident while adjusting the other. Pressure is high and evenly distributed, and the adjustment sits under the lower platen.
The press draws 2200 W and accepts 110 V or 220 V at 50/60 Hz. It ships in a 89.5 x 52 x 58 cm carton at 60 kg. The same series is built in 40 x 40, 40 x 50, 40 x 60 and 50 x 60 cm platens.
Applications
- T-shirts, hoodies and sportswear
- Heat transfer with flex film and transfer papers
- Sublimation onto coated substrates
- Screen-printed transfers
- Canvas, bags and other non-garment textile articles
- Non-textile materials compatible with heat transfer
Technical specifications
Performance
- Equipment type
- Magnetic auto-open high-pressure heat press
- Temperature range
- 0 - 280, uniform across the platen C
- Temperature accuracy
- +/- 0.5, automatically monitored C
- Time range
- 0 - 999, with end-of-cycle signal s
Working area
- Platen size
- 40 x 60 (16 x 24 in), portrait cm
- Opening angle
- 75 degrees
Tooling & heads
- Heating plate
- Integrated, cast as a single piece with the heating wire
- Heat distribution
- Ultra-precise ducting for uniform, stable temperature
Drive & mechanics
- Opening mechanism
- Automatic, magnetically actuated, with manual release before time expiry
- Pressure
- High, evenly distributed; adjustment located under the lower platen
Software & control
- Control panel
- Intelligent microcomputer with LED touch screen; separate digital control for time and temperature
Power & environment
- Supply voltage
- 110 V / 220 V, 50/60 Hz
- Power
- 2200 W
Dimensions & weight
- Packed dimensions / weight
- 89.5 x 52 x 58 cm / 60 kg
Materials
- Available platen sizes in the series
- 40 x 40, 40 x 50, 40 x 60, 50 x 60 cm
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Series
YXD-HA
Frequently asked questions
What size is the platen?
40 × 60 cm (16 × 24 in) in portrait format, which covers a full adult front print. The same series is also built with 40 × 40, 40 × 50 and 50 × 60 cm platens if your work calls for a different size.
How does the automatic opening work?
It is magnetic, not pneumatic, so you need no compressor and no air line. When the timer runs out the press signals audibly and the platen lifts to 75° by itself, ready for the next piece. A manual release button opens it early if needed. Because the cycle ends on its own, a garment is not scorched when the operator is busy elsewhere.
What temperature and time ranges can we set?
Temperature from 0 to 280 °C, held to ±0.5 °C with automatic monitoring, and time from 0 to 999 seconds. Each has its own digital control on a microcomputer panel with an LED touch screen, so changing one does not disturb the other.
Is the temperature even across the whole platen?
Yes. The heating plate is cast as one piece with the heating wire, and heat is distributed through precise ducting, so the corners stay at the same temperature as the middle. That matters on large transfers, where a press that is uniform only under its sensor shows the difference.
Which jobs and materials can it press?
T-shirts, hoodies and sportswear; heat transfer with flex film and transfer papers; sublimation onto coated substrates; screen-printed transfers; canvas, bags and other textile articles; and non-textile materials compatible with heat transfer. Pressure is high and evenly distributed, adjusted from under the lower platen.
What power supply does it need?
It draws 2200 W and accepts 110 V or 220 V at 50/60 Hz. It ships in a carton of 89.5 × 52 × 58 cm at 60 kg. Because the opening is magnetic, there is no compressed air to arrange.
