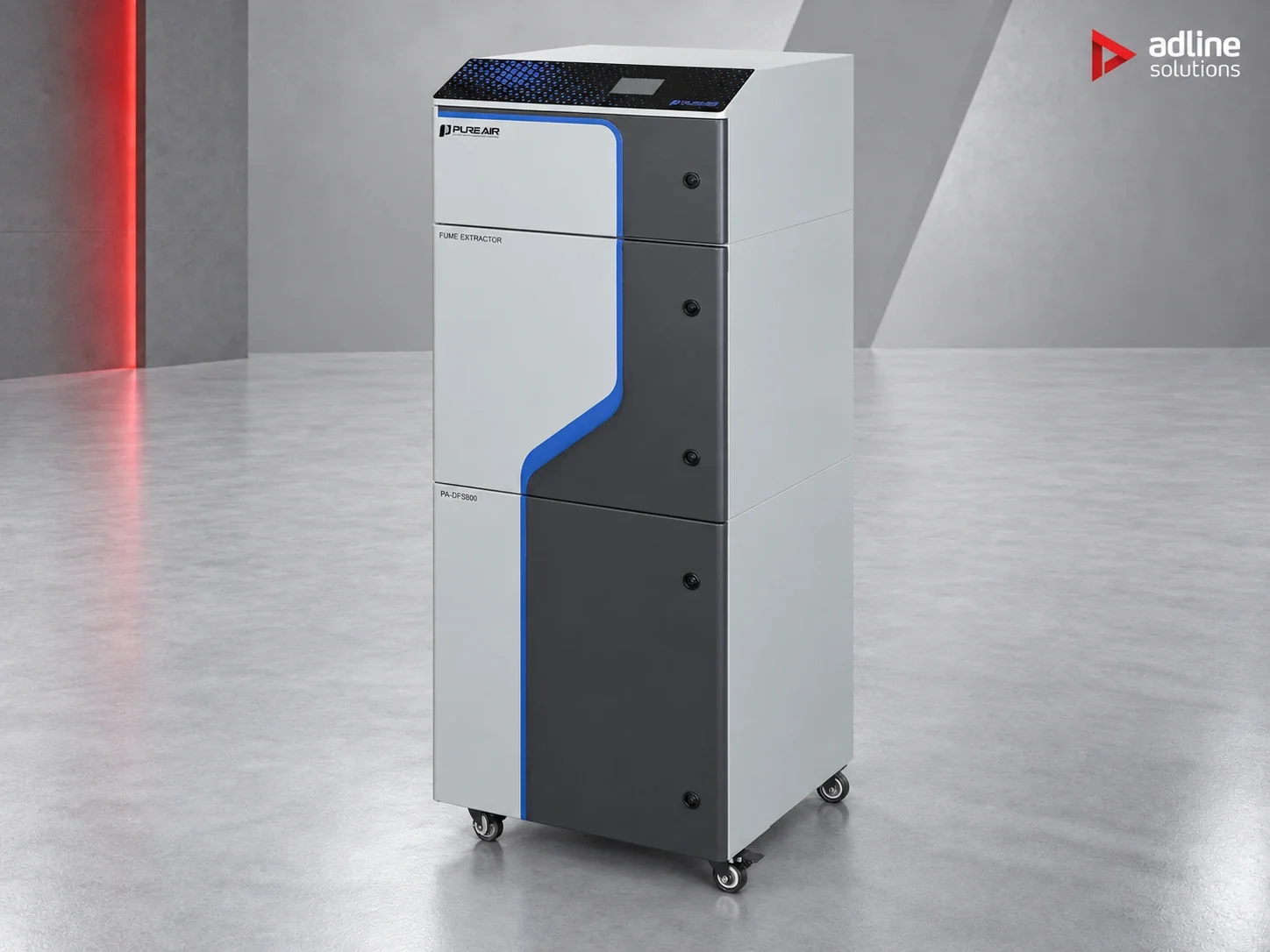

PURE-AIR PA-DFS800 Fume & Dust Extractor
On request
- 800 m³/h airflow
- Up to 10000 Pa negative pressure
- HEPA H14 filtration, 99.99% @ 0.3 µm
- Activated carbon stage for VOC and odour
- PPS standard control
Compact fume extraction unit, 800 m³/h at up to 10000 Pa. Carbon fibre, CFRP, CMC and composite laminates. PPS standard control.
Request a quoteWhich model fits your machine? Read the guide- Laser cutting
- Laser cleaning
- CNC machining
- Composites & CFRP
- Flame retardant
About this machine
The PA-DFS800 handles the two jobs that destroy ordinary filter media: cutting carbon fibre and composite laminates such as CFRP and CMC, and laser cleaning of painted or oxidised parts. Carbon fibre dust is abrasive and electrically conductive; paint removal produces hot, partly burning particles. The pre-filter is therefore a flame retardant PTFE cartridge, followed by HEPA H14 and activated carbon. 800 m³/h at up to 10000 Pa.
Filtration
- Flame retardant PTFE cartridge pre-filter - for abrasive, conductive and potentially smouldering dust
- H14 deeppleat filter, 99.99% @ 0.3 um
- Treated activated carbon, approx. 12-30 kg
Key specifications
- Airflow: 800 m³/h
- Maximum negative pressure: 10000 Pa
- Rated power: 1.3 kW
- Power supply: 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Noise level: below 62 dBA at 1 m
- Dimensions (W x D x H): 500 x 597 x 1439 mm
- Net weight: 121 kg
- Inlet: 100 / 125 mm
- Cabinet: Powder coated mild steel / brushed stainless steel
Recommended for
- Laser cutting of carbon fibre and composite panels
- CNC trimming and machining of composites
- Handheld and robotic laser cleaning stations
Standard version (PPS)
This is the standard version, without the intelligent control package. From 15 September 2026 PURE-AIR supplies these units with a colour LCD touch screen and an upgraded control system. If the intelligent functions matter - real airflow readout, filter warnings, automatic compensation, RS-485 linkage - choose the i version of the same model.
Installation
Free-standing on castors, or ducted to an enclosed cutting cell. Use earthed, antistatic ducting when cutting carbon fibre - the dust is electrically conductive. Leave the front clear for cartridge changes.

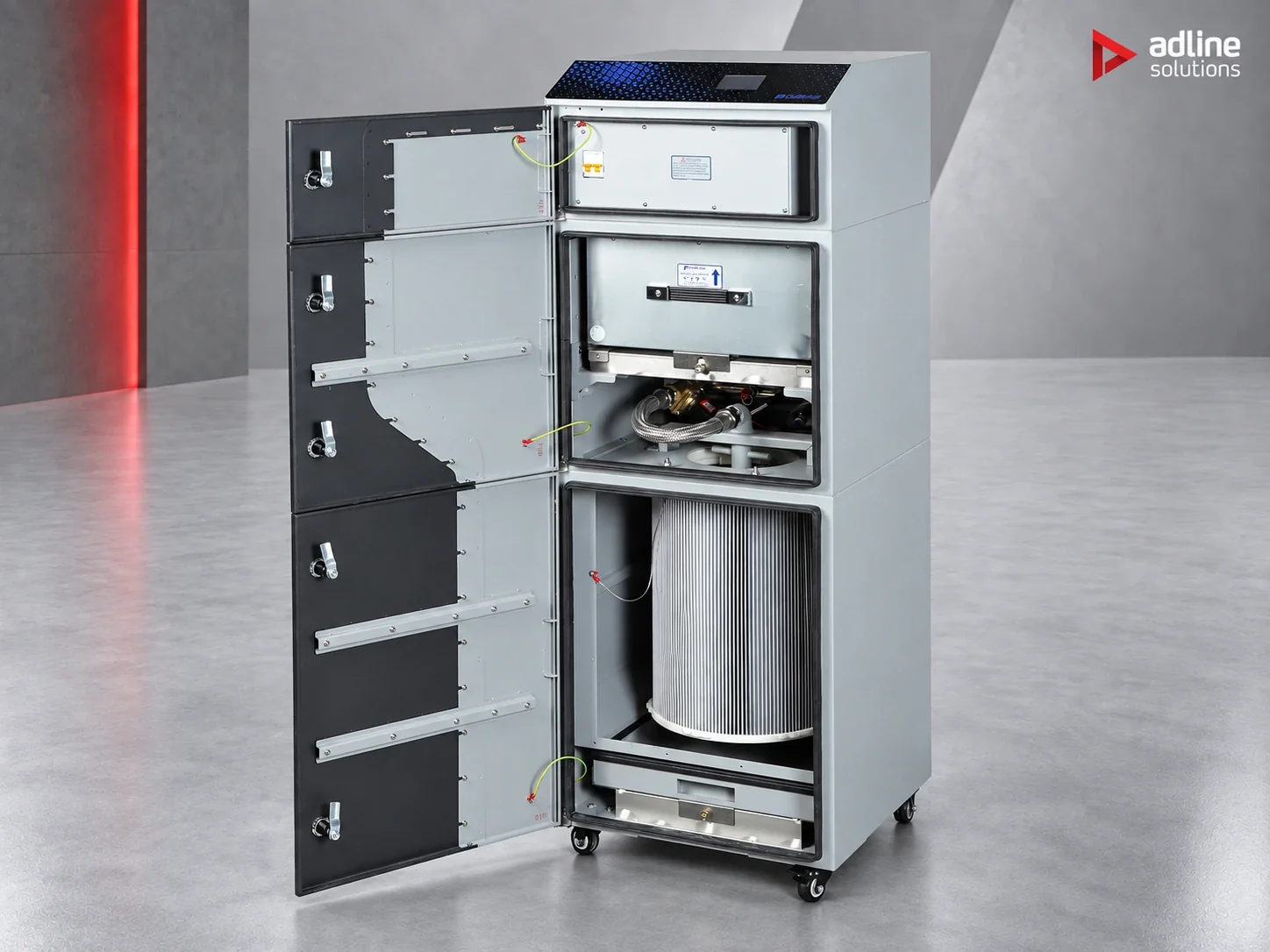

- Clean air out · brushless fanpulls through every stage
- Stage 3 · activated carbonholds VOC and odour
- Stage 2 · HEPA H1499.99% @ 0.3 µm
- Stage 1 · Flame retardant PTFEabrasive, conductive, smouldering dust
- Contaminated air inducted from the machine; dust drawer emptied from the front
Technical specifications
- Phase
- Single-phase
- Airflow
- 800 m³/h
- Inlet size
- 100 / 125 mm
- Net weight
- 121 kg
- Pre-filter
- Flame retardant PTFE cartridge pre-filter - for abrasive, conductive and potentially smouldering dust
- Main filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Noise level
- 62 dB(A) max.
- Rated power
- 1.3 kW
- Power supply
- 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Control system
- PPS standard control
- Explosion-proof
- No
- Activated carbon
- Yes - treated activated carbon, approx. 12-30 kg
- Cabinet construction
- Powder coated mild steel / brushed stainless steel
- Dimensions (W×D×H)
- 500 x 597 x 1439 mm
- Max. negative pressure
- 10000 Pa
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Laser cutting of carbon fibre and composite panels; CNC trimming and machining of composites; Handheld and robotic laser cleaning stations
Materials
Carbon fibre, CFRP, CMC and composite laminates; paint, coatings and oxide layers removed by laser cleaning
Typical working format
80x100 cm
Control system
PPS - Pure-Air Purification System (standard control). From 15.09.2026 supplied with a colour LCD touch screen and an upgraded control system.
Installation
Free-standing on castors, or ducted to an enclosed cutting cell. Use earthed, antistatic ducting when cutting carbon fibre - the dust is electrically conductive. Leave the front clear for cartridge changes.
Series
DFS
Frequently asked questions
What is it for?
The PA-DFS800 is for two jobs that destroy ordinary filter media: cutting carbon fibre and composite laminates such as CFRP and CMC, and laser cleaning of painted or oxidised parts. It suits laser cutting of composite panels, CNC trimming and machining of composites, and handheld or robotic laser cleaning stations. It moves 800 m³/h at up to 10,000 Pa.
Why a flame retardant PTFE pre-filter?
Carbon fibre dust is abrasive and electrically conductive, and paint removal produces hot, partly burning particles. So the first stage is a flame retardant PTFE cartridge, followed by an H14 deeppleat filter (99.99% @ 0.3 µm) and approx. 12–30 kg of treated activated carbon.
How should we duct it?

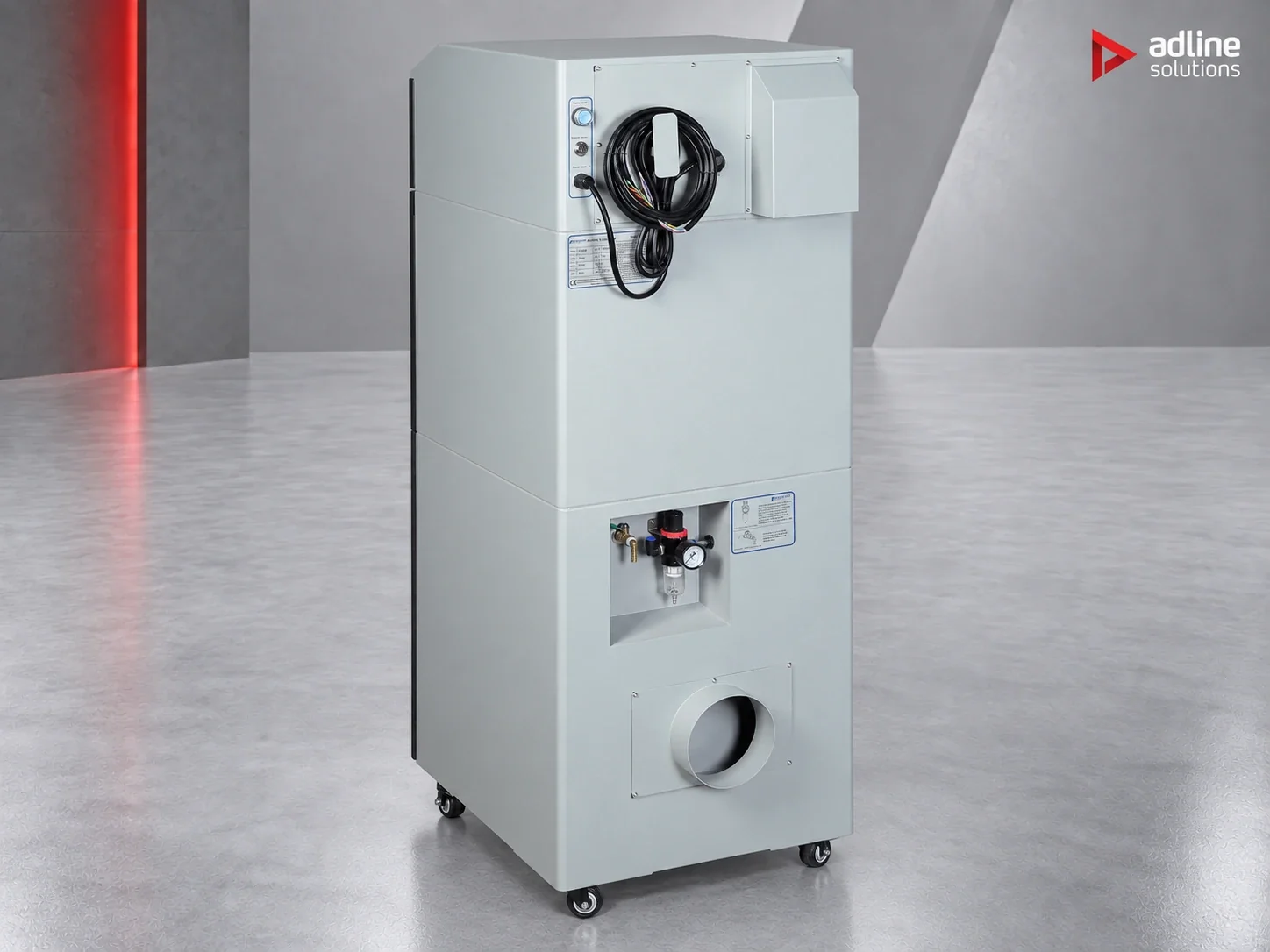

Free-standing on castors next to the machine, or ducted to an enclosed cutting cell, through a 100 mm / 125 mm inlet. When cutting carbon fibre use earthed, antistatic ducting, because the dust is electrically conductive. Leave the front clear for cartridge changes.
What does it need on site?
A 90–110 V or 210–257 V single-phase, 50/60 Hz supply for a rated power of 1.3 kW, and floor space for a unit of 500 × 597 × 1439 mm (W × D × H) weighing 121 kg net. Noise is below 62 dB(A) at 1 m. It is not explosion-proof.
What is the difference between the PA-DFS800 and the PA-DFS800i?
Extraction and filtration are the same; the difference is the control. The PA-DFS800 has PPS standard control. From 15 September 2026 PURE-AIR supplies these units with a colour LCD touch screen and an upgraded control system. The PA-DFS800i adds real airflow and pressure readout, filter warnings, automatic airflow compensation, and I/O and RS-485 linkage with your machine or line.
