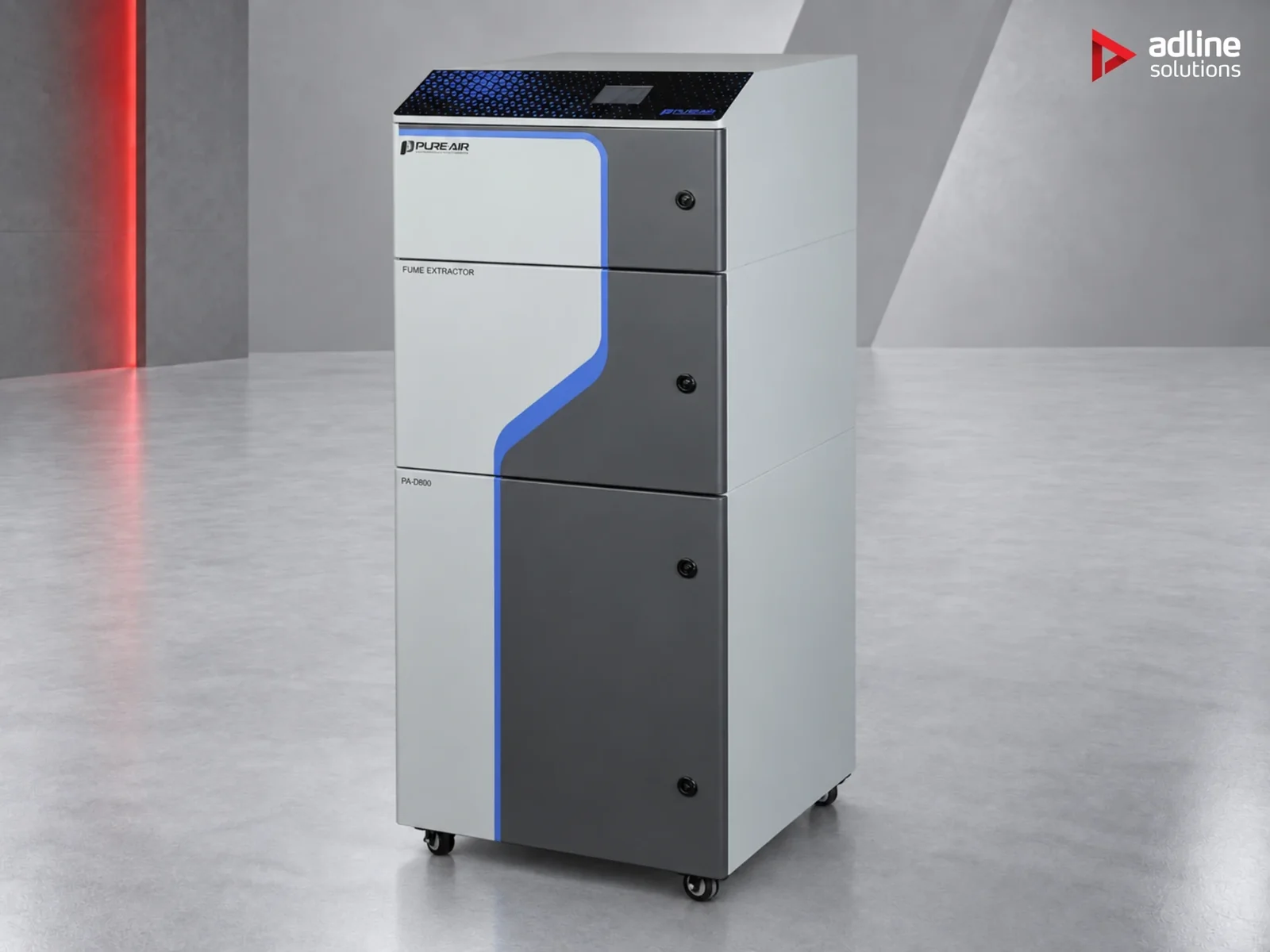

PURE-AIR PA-D800 Fume & Dust Extractor
On request
- 800 m³/h airflow
- Up to 10000 Pa negative pressure
- HEPA H14 filtration, 99.99% @ 0.3 µm
- PPS standard control
Compact fume extraction unit, 800 m³/h at up to 10000 Pa. Carbon and stainless steel, copper, solar cells, PCB, glass and ceramics. PPS standard control.
Request a quoteWhich model fits your machine? Read the guide- Laser welding
- Laser drilling
- 3D printing / AM
- Metal
- CNC machining
About this machine
The PA-D800 is a high-vacuum dust and fume collector for metal work at a single station: laser scribing and drilling, laser and TIG welding, deburring and metal additive manufacturing. The point of the D series is negative pressure - up to 10000 Pa - so the dust is caught at the nozzle before it has a chance to disperse. 800 m³/h.
Filtration
- Flame retardant PTFE cartridge pre-filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Treated activated carbon available as an option
Key specifications
- Airflow: 800 m³/h
- Maximum negative pressure: 10000 Pa
- Rated power: 1.3 kW
- Power supply: 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Noise level: below 62 dBA at 1 m
- Dimensions (W x D x H): 500 x 597 x 1296 mm
- Net weight: 86 kg

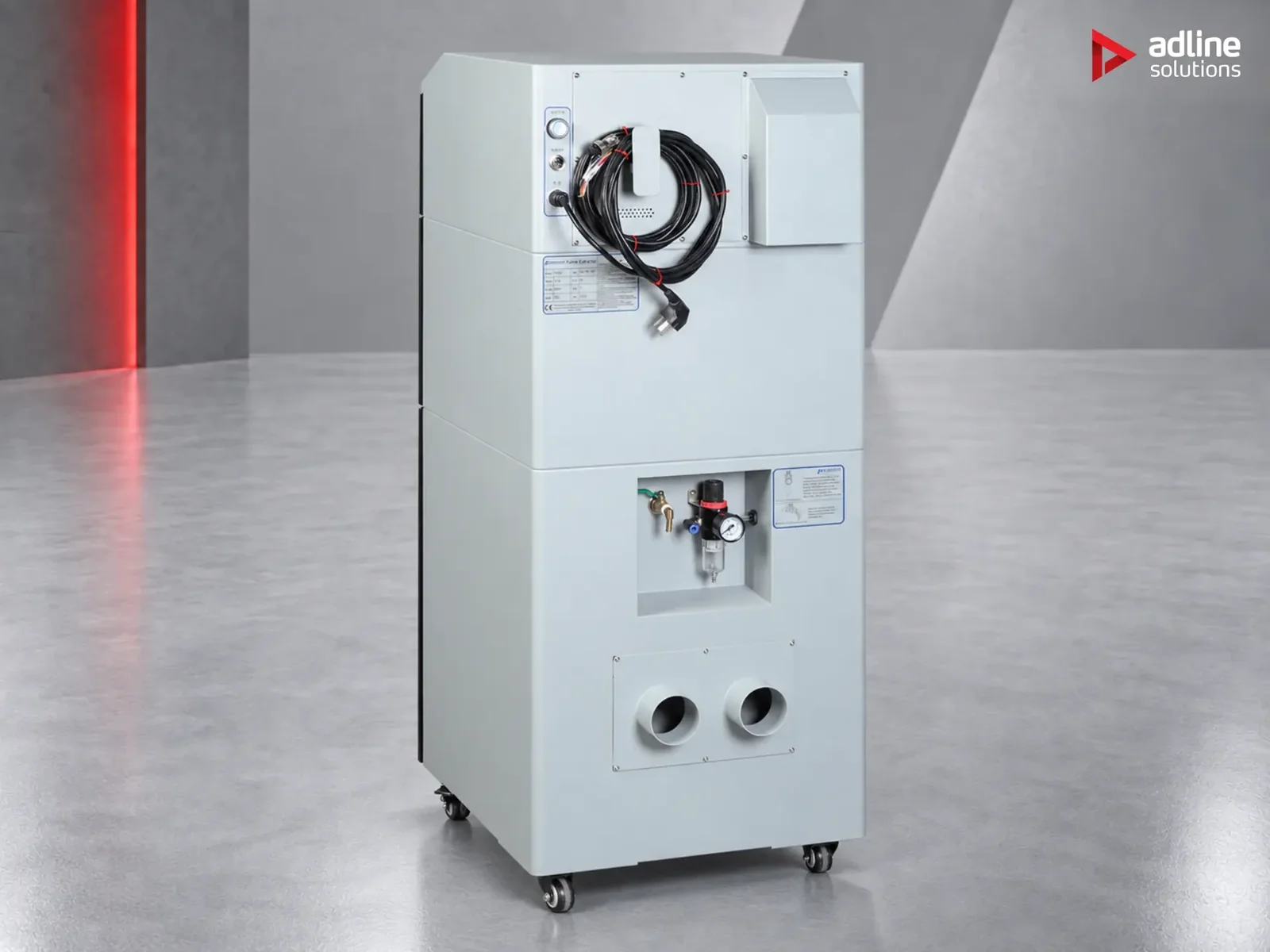

- Inlet: 100 / 125 mm
- Cabinet: Powder coated mild steel / brushed stainless steel
Recommended for
- Laser scribing and drilling stations
- Laser and manual welding benches
- Metal AM / powder-bed printers and depowdering stations
- CNC deburring and dry machining cells
Standard version (PPS)
This is the standard version, without the intelligent control package. From 15 September 2026 PURE-AIR supplies these units with a colour LCD touch screen and an upgraded control system. If the intelligent functions matter - real airflow readout, filter warnings, automatic compensation, RS-485 linkage - choose the i version of the same model.
Installation
Positioned at the process, not at the wall: these are high-vacuum units and their value is capture at source through a nozzle, hood or the machine's own port. Keep the duct short. On metal powder work, earth the ducting and the unit. Leave the front clear for cartridge and dust-drawer access.

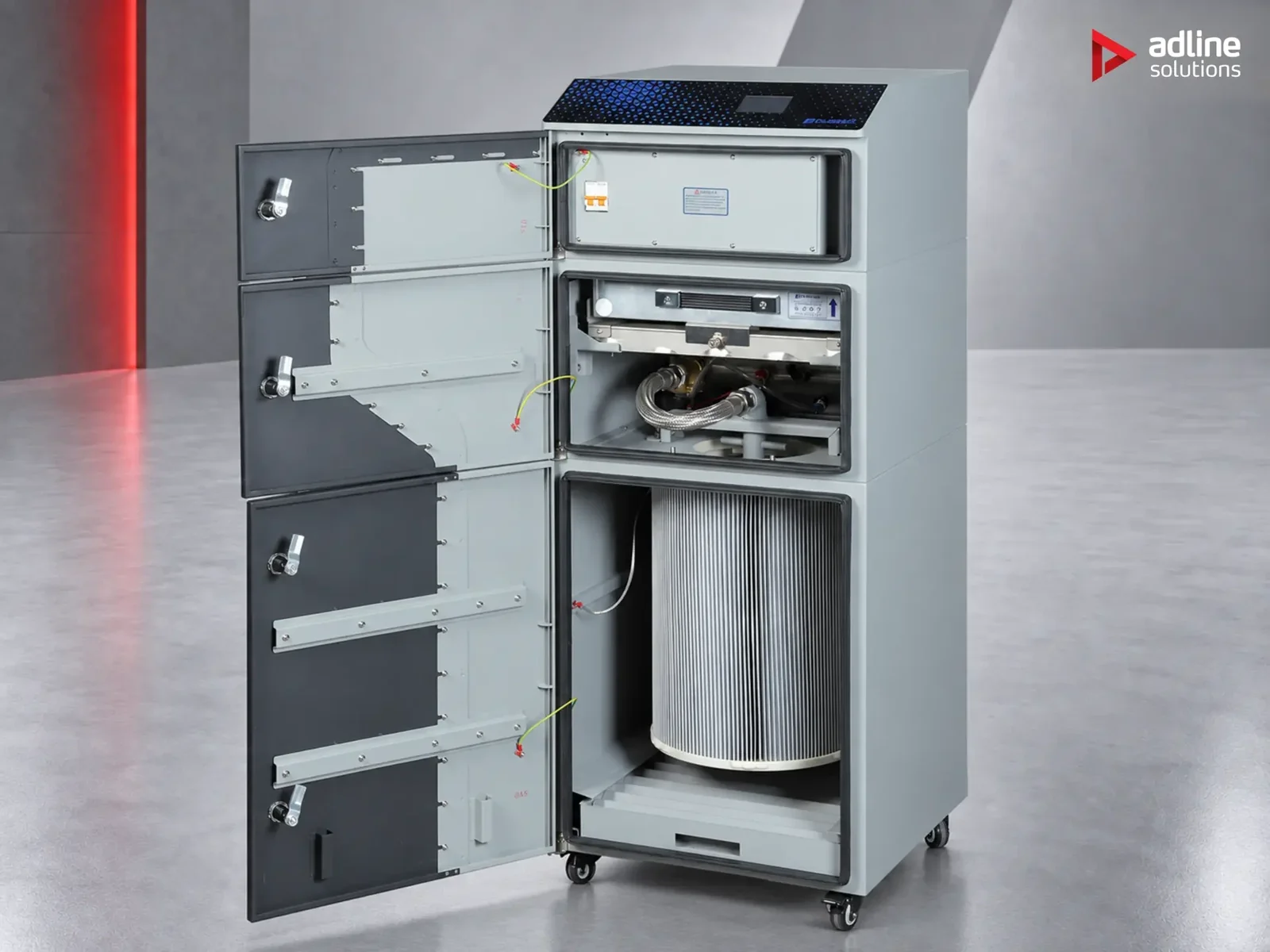

- Clean air out · brushless fanpulls through every stage
- Stage 3 · activated carbonholds VOC and odour
- Stage 2 · HEPA H1499.99% @ 0.3 µm
- Stage 1 · Cartridge bankself-cleaning, pulse-jet
- Contaminated air inducted from the machine; dust drawer emptied from the front
Technical specifications
- Phase
- Single-phase
- Airflow
- 800 m³/h
- Inlet size
- 100 / 125 mm
- Net weight
- 86 kg
- Pre-filter
- Flame retardant PTFE cartridge pre-filter
- Main filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Noise level
- 62 dB(A) max.
- Rated power
- 1.3 kW
- Power supply
- 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Control system
- PPS standard control
- Explosion-proof
- No
- Activated carbon
- Optional - treated activated carbon
- Cabinet construction
- Powder coated mild steel / brushed stainless steel
- Dimensions (W×D×H)
- 500 x 597 x 1296 mm
- Max. negative pressure
- 10000 Pa
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Laser scribing and drilling stations; Laser and manual welding benches; Metal AM / powder-bed printers and depowdering stations; CNC deburring and dry machining cells
Materials
Carbon and stainless steel, copper, solar cells, PCB, glass and ceramics; metal powders in additive manufacturing
Typical working format
Production line
Control system
PPS - Pure-Air Purification System (standard control). From 15.09.2026 supplied with a colour LCD touch screen and an upgraded control system.
Installation
Positioned at the process, not at the wall: these are high-vacuum units and their value is capture at source through a nozzle, hood or the machine's own port. Keep the duct short. On metal powder work, earth the ducting and the unit. Leave the front clear for cartridge and dust-drawer access.
Series
D
Frequently asked questions
What is it for?
The PA-D800 is a high-vacuum dust and fume collector for metal work at a single station: laser scribing and drilling, laser and TIG welding, deburring and metal additive manufacturing, including depowdering stations and dry machining cells. Listed materials are carbon and stainless steel, copper, solar cells, PCB, glass and ceramics.
Why does negative pressure matter here?
Because the job is capture at source. The PA-D800 pulls 800 m³/h at up to 10,000 Pa, so dust is caught at the nozzle before it disperses. Place the unit at the process, not at the wall, and connect through a nozzle, hood or the machine's own port to a 100 mm / 125 mm inlet, with the duct kept short.
How does the filtration work?
A flame retardant PTFE cartridge pre-filter takes the bulk of the dust, then an H14 deeppleat filter (99.99% @ 0.3 µm) catches the fine fraction. Treated activated carbon is available as an option. Tell us the process and the materials you work, and we will say whether you need the carbon stage.
Can it be used on metal powder?
It is recommended for metal AM, powder-bed printers and depowdering stations. On metal powder work, earth both the ducting and the unit. Note that the PA-D800 is not explosion-proof, so send us the powder type and quantities you handle and we will review the application with you.
What does it need on site?
A 90–110 V or 210–257 V single-phase, 50/60 Hz supply for a rated power of 1.3 kW, and floor space for a unit of 500 × 597 × 1296 mm (W × D × H) weighing 86 kg net. Noise is below 62 dB(A) at 1 m. Leave the front clear for access to the filter and the dust drawer.
What is the difference between the PA-D800 and the PA-D800i?
Extraction and filtration are the same; the difference is the control. The PA-D800 has PPS standard control. From 15 September 2026 PURE-AIR supplies these units with a colour LCD touch screen and an upgraded control system. The PA-D800i adds real airflow and pressure readout, filter warnings, automatic airflow compensation, and I/O and RS-485 linkage with your machine or line.
