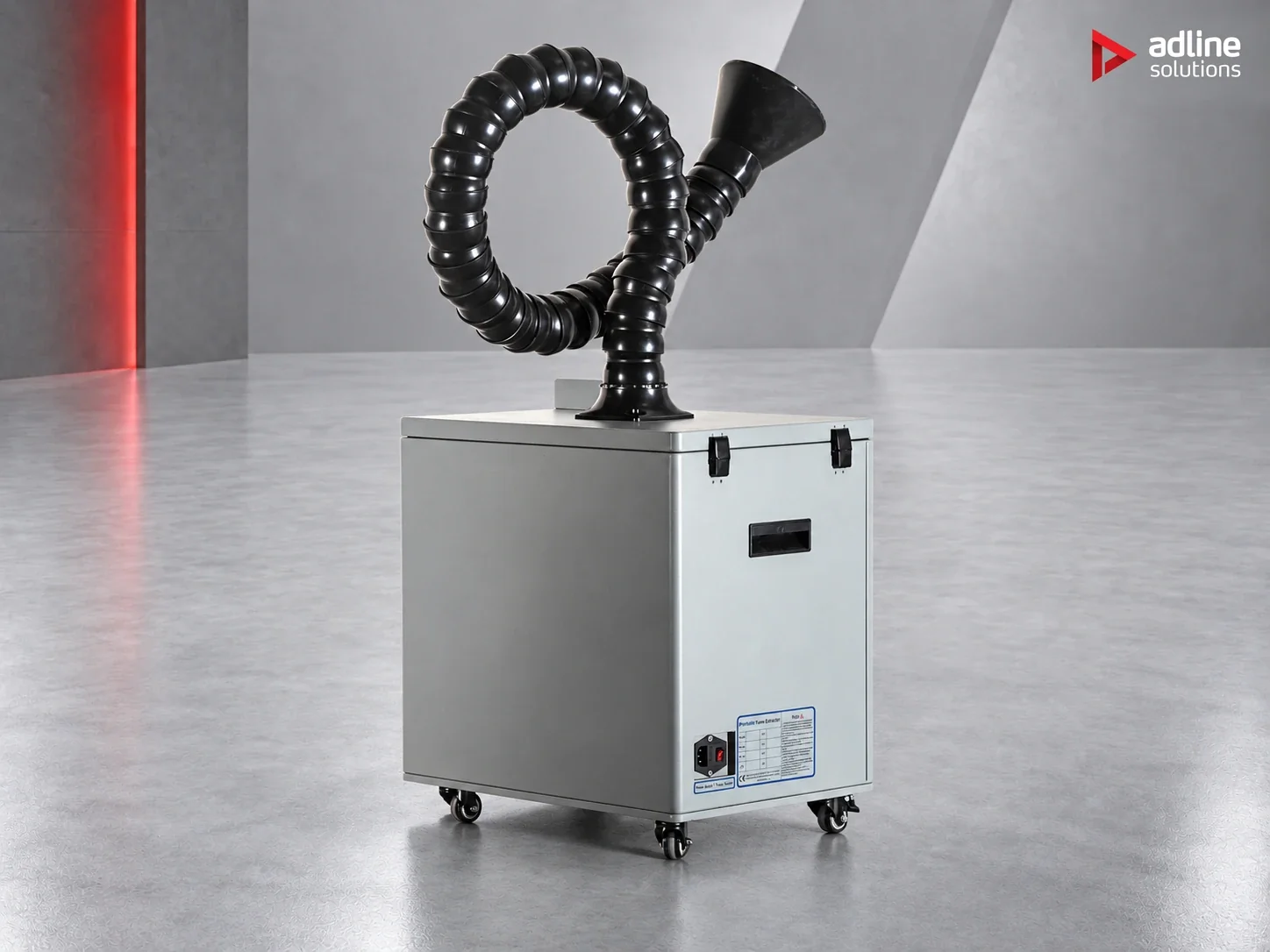

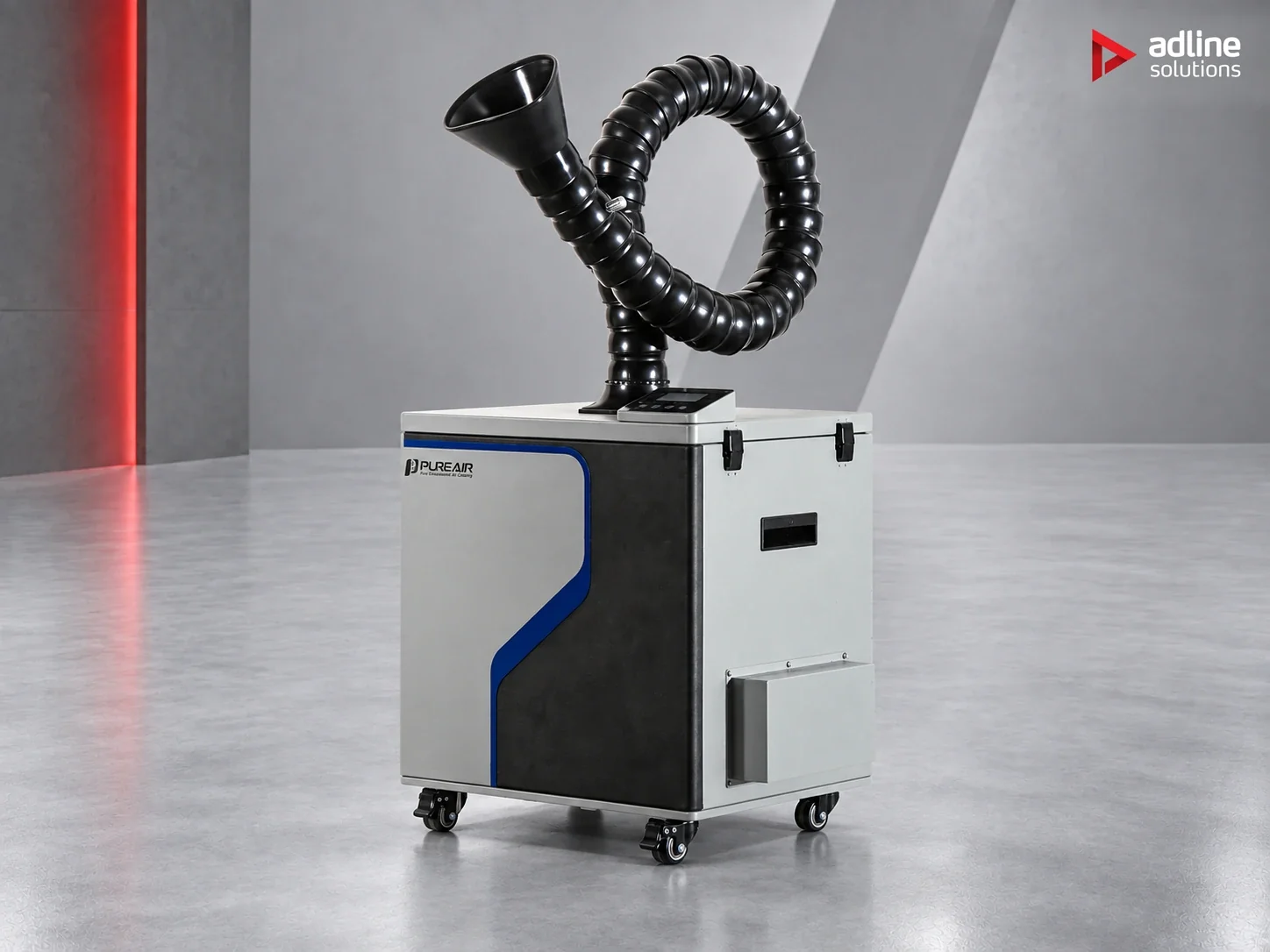

PURE-AIR PA-D250 Fume & Dust Extractor
SKU PA-D250 · On request
- 250 m³/h airflow
- Up to 2700 Pa negative pressure
- PPS standard control
Compact fume extraction unit, 250 m³/h at up to 2700 Pa. Carbon and stainless steel, copper, solar cells, PCB, glass and ceramics. PPS standard control.
Request a quote- Laser welding
- Laser drilling
- 3D printing / AM
- Metal
- CNC machining
About this machine
The PA-D250 is a high-vacuum dust and fume collector for metal work at a single station: laser scribing and drilling, laser and TIG welding, deburring and metal additive manufacturing. The point of the D series is negative pressure - up to 2700 Pa - so the dust is caught at the nozzle before it has a chance to disperse. 250 m³/h.

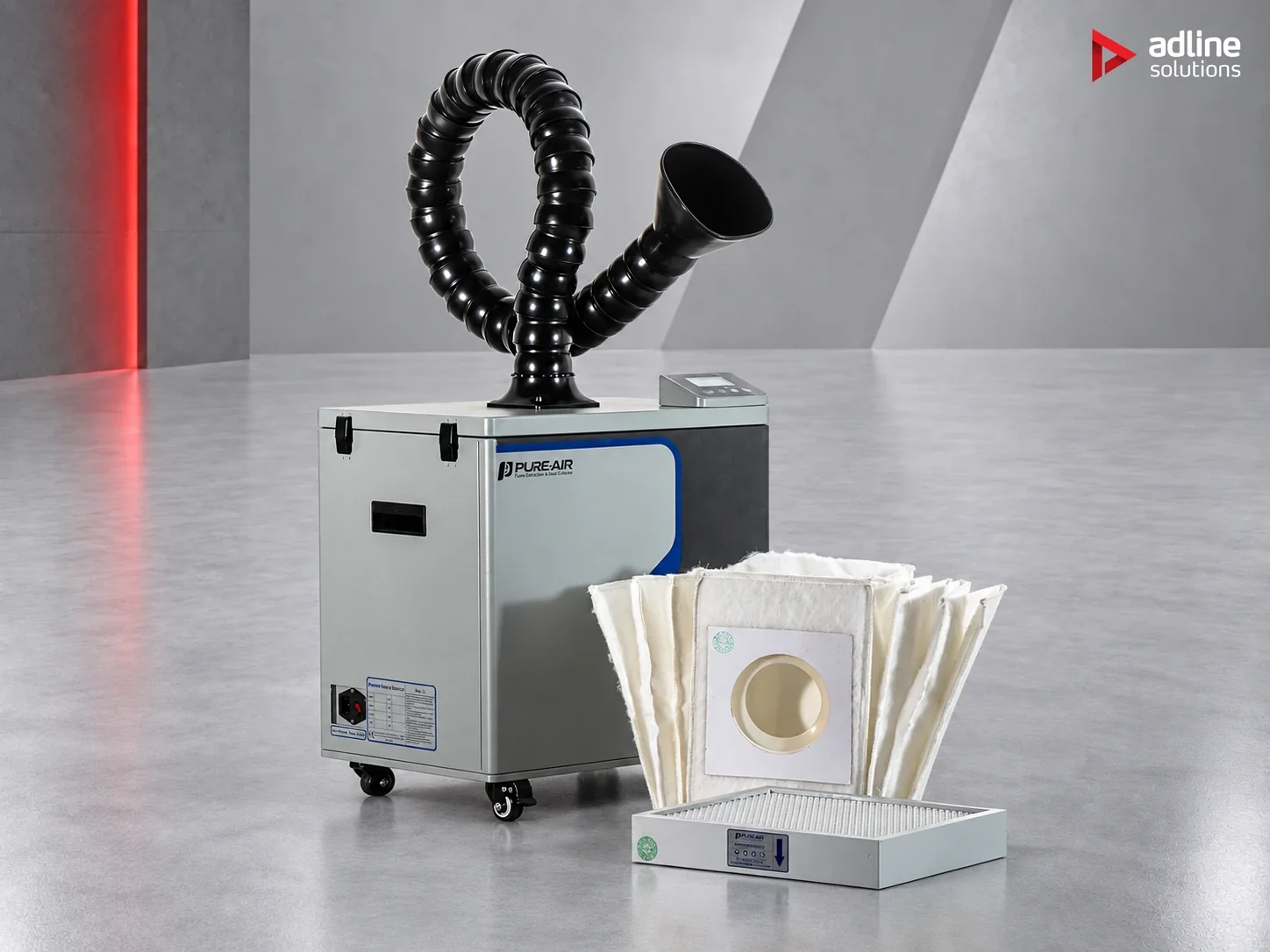

Filtration
- F9 accordion bag pre-filter, 95% @ 1.0 um
- No HEPA stage - this is a source-capture dust unit, not a room-air purifier
Key specifications
- Airflow: 250 m³/h
- Maximum negative pressure: 2700 Pa
- Rated power: 0.2 kW
- Power supply: 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Noise level: below 55 dBA at 1 m
- Dimensions (W x D x H): 360 x 520 x 555 mm
- Net weight: 22 kg
- Inlet: 75 / 100 mm
- Cabinet: Powder coated mild steel / brushed stainless steel
Recommended for
- Laser scribing and drilling stations
- Laser and manual welding benches
- Metal AM / powder-bed printers and depowdering stations
- CNC deburring and dry machining cells
Standard version (PPS)
This is the standard version, without the intelligent control package. From 15 September 2026 PURE-AIR supplies these units with a colour LCD touch screen and an upgraded control system. If the intelligent functions matter - real airflow readout, filter warnings, automatic compensation, RS-485 linkage - choose the i version of the same model.
Installation
Positioned at the process, not at the wall: these are high-vacuum units and their value is capture at source through a nozzle, hood or the machine's own port. Keep the duct short. On metal powder work, earth the ducting and the unit. Leave the front clear for cartridge and dust-drawer access.
Technical specifications
- Phase
- Single-phase
- Airflow
- 250 m³/h
- Inlet size
- 75 / 100 mm
- Net weight
- 22 kg
- Pre-filter
- F9 accordion bag pre-filter, 95% @ 1.0 um
- Main filter
- Not fitted - pre-filtration only
- Noise level
- 55 dB(A) max.
- Rated power
- 0.2 kW
- Power supply
- 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Control system
- PPS standard control
- Explosion-proof
- No
- Activated carbon
- No
- Cabinet construction
- Powder coated mild steel / brushed stainless steel
- Dimensions (W×D×H)
- 360 x 520 x 555 mm
- Max. negative pressure
- 2700 Pa
Application details
Recommended for
Laser scribing and drilling stations; Laser and manual welding benches; Metal AM / powder-bed printers and depowdering stations; CNC deburring and dry machining cells
Materials
Carbon and stainless steel, copper, solar cells, PCB, glass and ceramics; metal powders in additive manufacturing
Typical working format
Single station, small batch
Control system
PPS - Pure-Air Purification System (standard control). From 15.09.2026 supplied with a colour LCD touch screen and an upgraded control system.
Installation
Positioned at the process, not at the wall: these are high-vacuum units and their value is capture at source through a nozzle, hood or the machine's own port. Keep the duct short. On metal powder work, earth the ducting and the unit. Leave the front clear for cartridge and dust-drawer access.
Series
D
