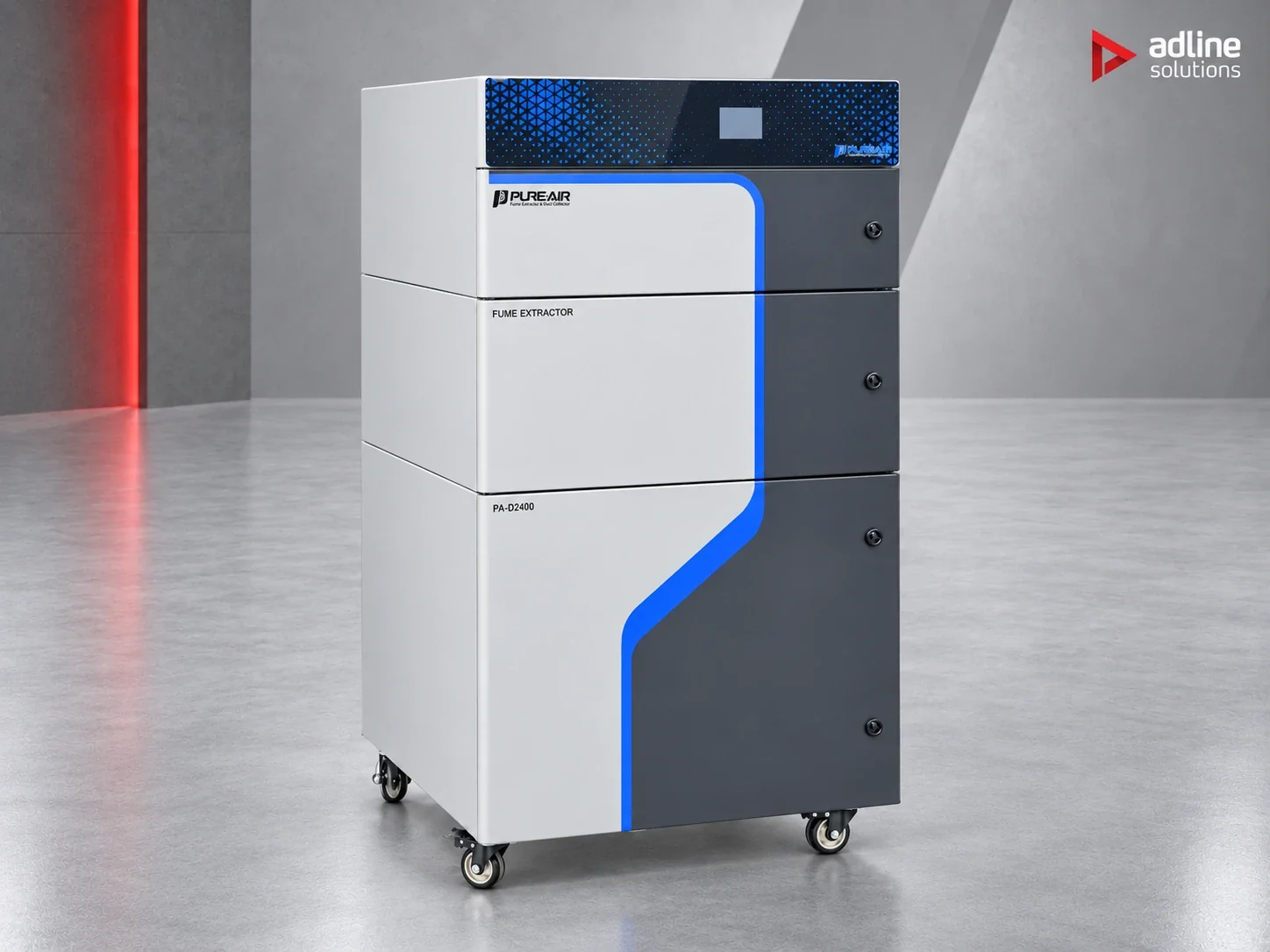

PURE-AIR PA-D2400i Fume & Dust Extractor
On request
- 2400 m³/h airflow
- Up to 10000 Pa negative pressure
- HEPA H14 filtration, 99.99% @ 0.3 µm
- PIPS intelligent control
Intelligent fume extraction unit, 2400 m³/h at up to 10000 Pa. Carbon and stainless steel, copper, solar cells, PCB, glass and ceramics. PIPS intelligent control.
Request a quoteWhich model fits your machine? Read the guide- Laser welding
- Laser drilling
- 3D printing / AM
- Metal
- CNC machining
About this machine
The PA-D2400i is a high-vacuum dust and fume collector for metal work at a single station: laser scribing and drilling, laser and TIG welding, deburring and metal additive manufacturing. The point of the D series is negative pressure - up to 10000 Pa - so the dust is caught at the nozzle before it has a chance to disperse. 2400 m³/h.
Filtration
- Flame retardant PTFE cartridge pre-filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Treated activated carbon available as an option
Key specifications
- Airflow: 2400 m³/h
- Maximum negative pressure: 10000 Pa
- Rated power: 3.5 kW
- Power supply: 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Noise level: below 68 dBA at 1 m
- Dimensions (W x D x H): 750 x 907 x 1564 mm
- Net weight: 200 kg
- Inlet: 200 mm
- Cabinet: Powder coated mild steel / brushed stainless steel
Recommended for
- Laser scribing and drilling stations
- Laser and manual welding benches
- Metal AM / powder-bed printers and depowdering stations
- CNC deburring and dry machining cells
Intelligent version (PIPS)
This is the i version of the model. It adds the Pure-Air Intelligent Purification System: an industrial touch screen that shows real airflow and negative pressure in real time, a filter health manager that warns before a stage blocks, and automatic airflow compensation so extraction does not fade as the filter loads. I/O and RS-485 allow remote start/stop, linkage with the host machine or robot and centralised control of several units. PM2.5, VOC and O3 sensors are available as an option, and firmware updates are loaded from a TF card.
Installation
Positioned at the process, not at the wall: these are high-vacuum units and their value is capture at source through a nozzle, hood or the machine's own port. Keep the duct short. On metal powder work, earth the ducting and the unit. Leave the front clear for cartridge and dust-drawer access.

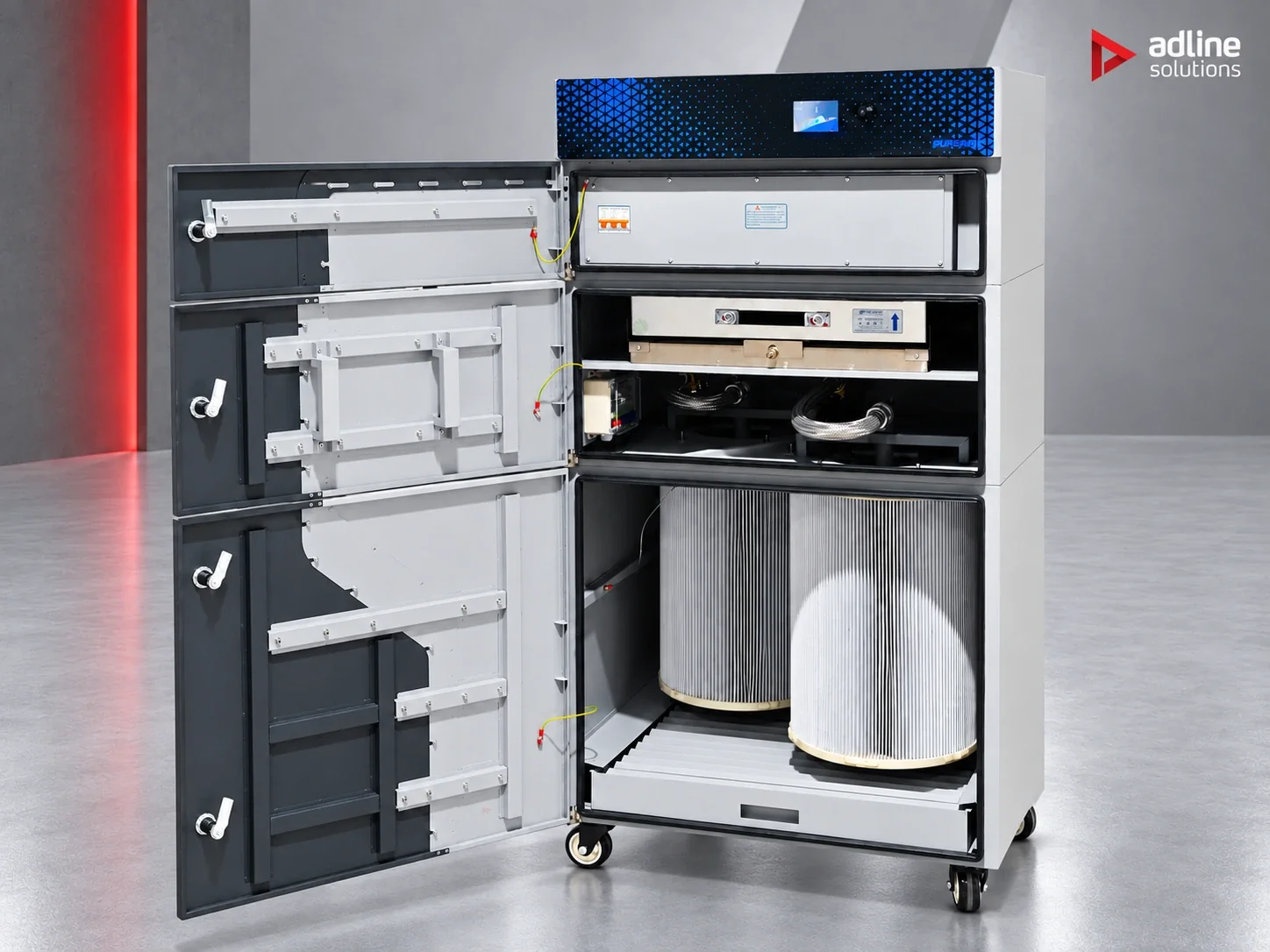

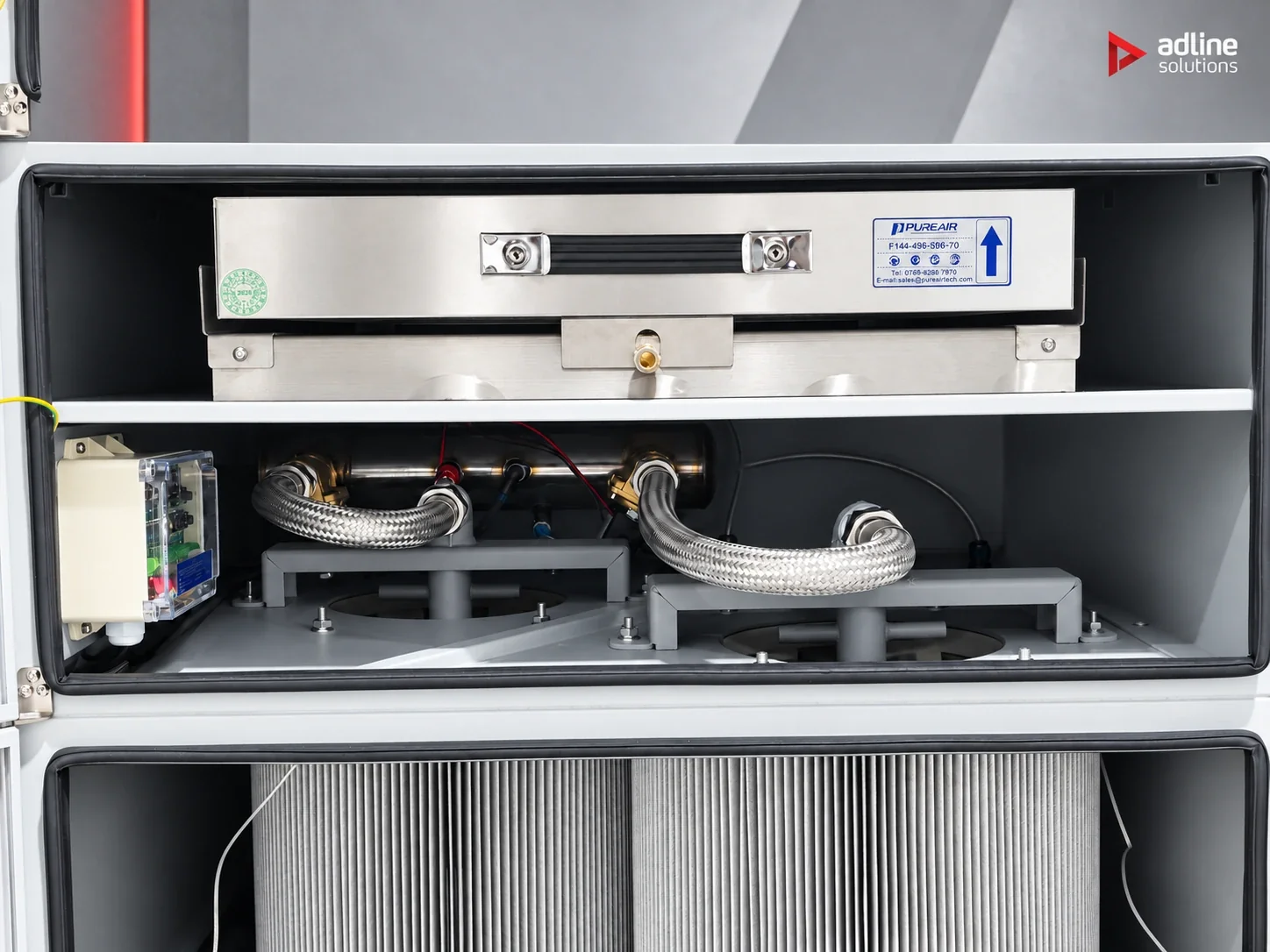

- Clean air out · brushless fanpulls through every stage
- Stage 3 · activated carbonholds VOC and odour
- Stage 2 · HEPA H1499.99% @ 0.3 µm

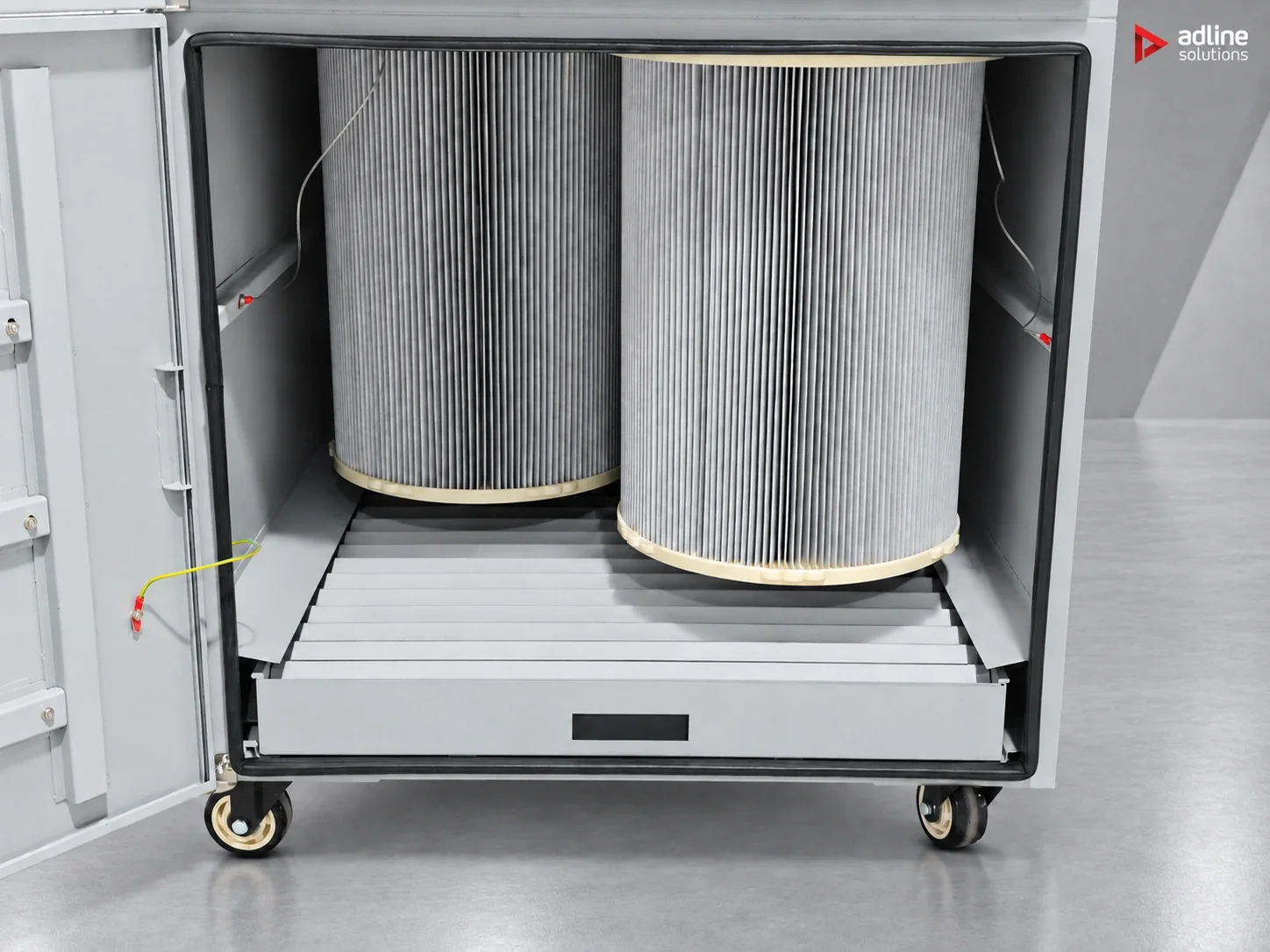

- Stage 1 · Cartridge bankself-cleaning, pulse-jet
- Contaminated air inducted from the machine; dust drawer emptied from the front
Technical specifications
- Phase
- Single-phase
- Airflow
- 2400 m³/h
- Inlet size
- 200 mm
- Net weight
- 200 kg
- Pre-filter
- Flame retardant PTFE cartridge pre-filter
- Main filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Noise level
- 68 dB(A) max.
- Rated power
- 3.5 kW
- Power supply
- 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Control system
- PIPS intelligent control
- Explosion-proof
- No
- Activated carbon
- Optional - treated activated carbon
- Cabinet construction
- Powder coated mild steel / brushed stainless steel
- Dimensions (W×D×H)
- 750 x 907 x 1564 mm
- Max. negative pressure
- 10000 Pa
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Laser scribing and drilling stations; Laser and manual welding benches; Metal AM / powder-bed printers and depowdering stations; CNC deburring and dry machining cells
Materials
Carbon and stainless steel, copper, solar cells, PCB, glass and ceramics; metal powders in additive manufacturing
Typical working format
Production line
Control system
PIPS - Pure-Air Intelligent Purification System. Industrial touch screen, real-time airflow and negative-pressure readout, filter health manager with early replacement warning, automatic airflow compensation as the filter loads, I/O and RS-485 for MES / robot / multi-unit linkage, optional PM2.5 / VOC / O3 sensors, temperature and humidity safety shutdown, TF-card firmware upgrade.
Installation
Positioned at the process, not at the wall: these are high-vacuum units and their value is capture at source through a nozzle, hood or the machine's own port. Keep the duct short. On metal powder work, earth the ducting and the unit. Leave the front clear for cartridge and dust-drawer access.
Series
D
Frequently asked questions
What is it for?
The PA-D2400i is a high-vacuum dust and fume collector for metal work at a single station: laser scribing and drilling, laser and TIG welding, deburring and metal additive manufacturing, including depowdering stations and dry machining cells. Listed materials are carbon and stainless steel, copper, solar cells, PCB, glass and ceramics.
Why does negative pressure matter here?
Because the job is capture at source. The PA-D2400i pulls 2400 m³/h at up to 10,000 Pa, so dust is caught at the nozzle before it disperses. Place the unit at the process, not at the wall, and connect through a nozzle, hood or the machine's own port to a 200 mm inlet, with the duct kept short.
How does the filtration work?
A flame retardant PTFE cartridge pre-filter takes the bulk of the dust, then an H14 deeppleat filter (99.99% @ 0.3 µm) catches the fine fraction. Treated activated carbon is available as an option. Tell us the process and the materials you work, and we will say whether you need the carbon stage.
Can it be used on metal powder?
It is recommended for metal AM, powder-bed printers and depowdering stations. On metal powder work, earth both the ducting and the unit. Note that the PA-D2400i is not explosion-proof, so send us the powder type and quantities you handle and we will review the application with you.
What does it need on site?
A 90–110 V or 210–257 V single-phase, 50/60 Hz supply for a rated power of 3.5 kW, and floor space for a unit of 750 × 907 × 1564 mm (W × D × H) weighing 200 kg net. Noise is below 68 dB(A) at 1 m. Leave the front clear for access to the filter and the dust drawer.
What does the intelligent control add?
The PA-D2400i has PIPS intelligent control compared with the standard PA-D2400: an industrial touch screen showing real airflow and negative pressure in real time, a filter health manager that warns before a stage blocks, and automatic airflow compensation so extraction does not fade as the filter loads. I/O and RS-485 allow remote start/stop, linkage with the host machine or robot and centralised control of several units. PM2.5, VOC and O3 sensors are optional, and firmware updates load from a TF card.
