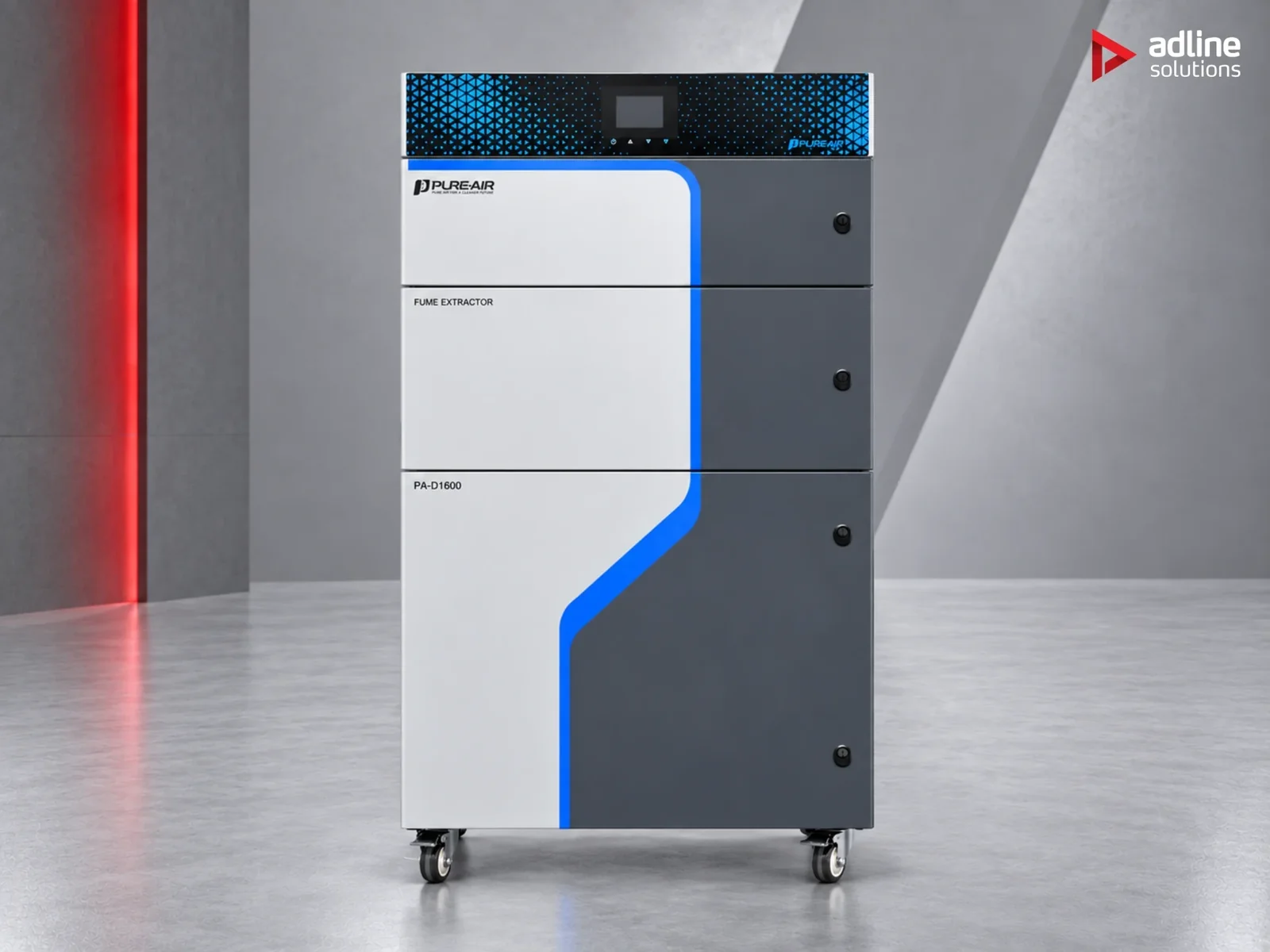

PURE-AIR PA-D1600 Fume & Dust Extractor
SKU PA-D1600 · On request
- 1600 m³/h airflow
- Up to 10000 Pa negative pressure
- HEPA H14 filtration, 99.99% @ 0.3 µm
- PPS standard control
Industrial fume extraction unit, 1600 m³/h at up to 10000 Pa. Carbon and stainless steel, copper, solar cells, PCB, glass and ceramics. PPS standard control.
Request a quote- Laser welding
- Laser drilling
- 3D printing / AM
- Metal
- CNC machining
About this machine
The PA-D1600 is a high-vacuum dust and fume collector for metal work at a single station: laser scribing and drilling, laser and TIG welding, deburring and metal additive manufacturing. The point of the D series is negative pressure - up to 10000 Pa - so the dust is caught at the nozzle before it has a chance to disperse. 1600 m³/h.

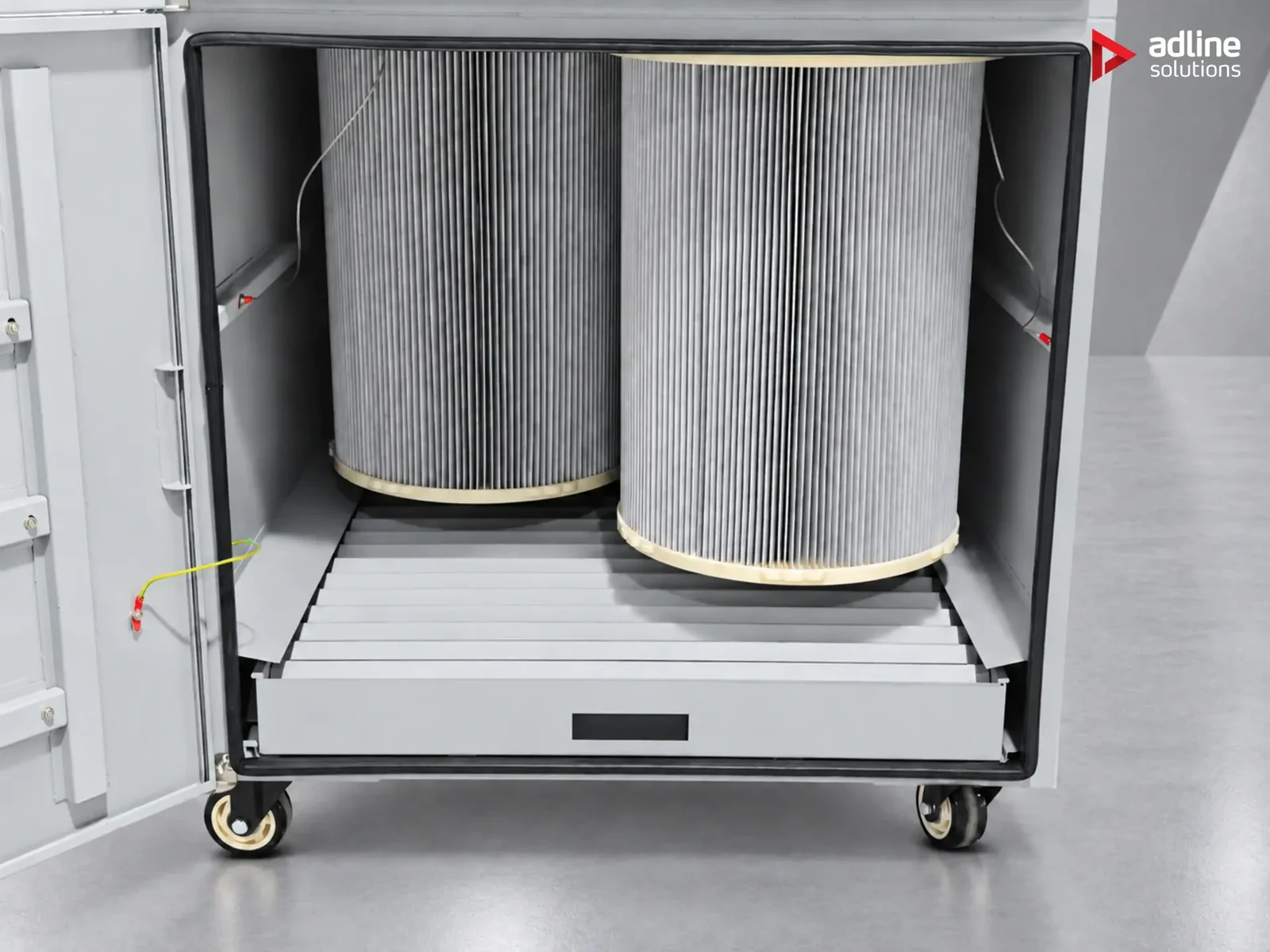

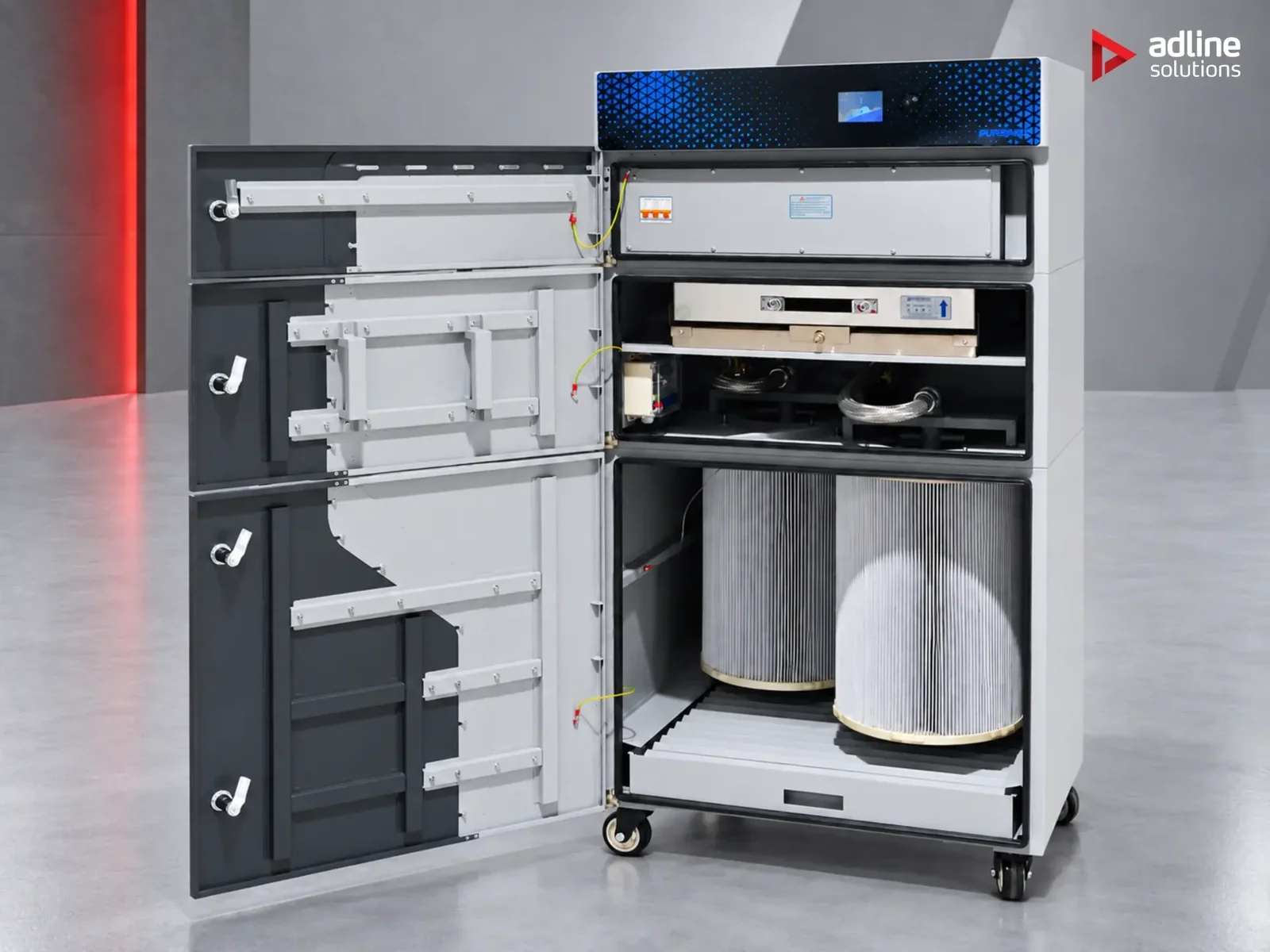

Filtration
- Flame retardant PTFE cartridge pre-filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Treated activated carbon available as an option
Key specifications
- Airflow: 1600 m³/h
- Maximum negative pressure: 10000 Pa
- Rated power: 2.3 kW
- Power supply: 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Noise level: below 65 dBA at 1 m
- Dimensions (W x D x H): 670 x 794 x 1570 mm
- Net weight: 180 kg
- Inlet: 150 mm
- Cabinet: Powder coated mild steel / brushed stainless steel
Recommended for
- Laser scribing and drilling stations
- Laser and manual welding benches
- Metal AM / powder-bed printers and depowdering stations
- CNC deburring and dry machining cells
Standard version (PPS)
This is the standard version, without the intelligent control package. From 15 September 2026 PURE-AIR supplies these units with a colour LCD touch screen and an upgraded control system. If the intelligent functions matter - real airflow readout, filter warnings, automatic compensation, RS-485 linkage - choose the i version of the same model.
Installation
Positioned at the process, not at the wall: these are high-vacuum units and their value is capture at source through a nozzle, hood or the machine's own port. Keep the duct short. On metal powder work, earth the ducting and the unit. Leave the front clear for cartridge and dust-drawer access.
Technical specifications
- Phase
- Single-phase
- Airflow
- 1600 m³/h
- Inlet size
- 150 mm
- Net weight
- 180 kg
- Pre-filter
- Flame retardant PTFE cartridge pre-filter
- Main filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Noise level
- 65 dB(A) max.
- Rated power
- 2.3 kW
- Power supply
- 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Control system
- PPS standard control
- Explosion-proof
- No
- Activated carbon
- Optional - treated activated carbon
- Cabinet construction
- Powder coated mild steel / brushed stainless steel
- Dimensions (W×D×H)
- 670 x 794 x 1570 mm
- Max. negative pressure
- 10000 Pa
Application details
Recommended for
Laser scribing and drilling stations; Laser and manual welding benches; Metal AM / powder-bed printers and depowdering stations; CNC deburring and dry machining cells
Materials
Carbon and stainless steel, copper, solar cells, PCB, glass and ceramics; metal powders in additive manufacturing
Typical working format
Production line
Control system
PPS - Pure-Air Purification System (standard control). From 15.09.2026 supplied with a colour LCD touch screen and an upgraded control system.
Installation
Positioned at the process, not at the wall: these are high-vacuum units and their value is capture at source through a nozzle, hood or the machine's own port. Keep the duct short. On metal powder work, earth the ducting and the unit. Leave the front clear for cartridge and dust-drawer access.
Series
D
