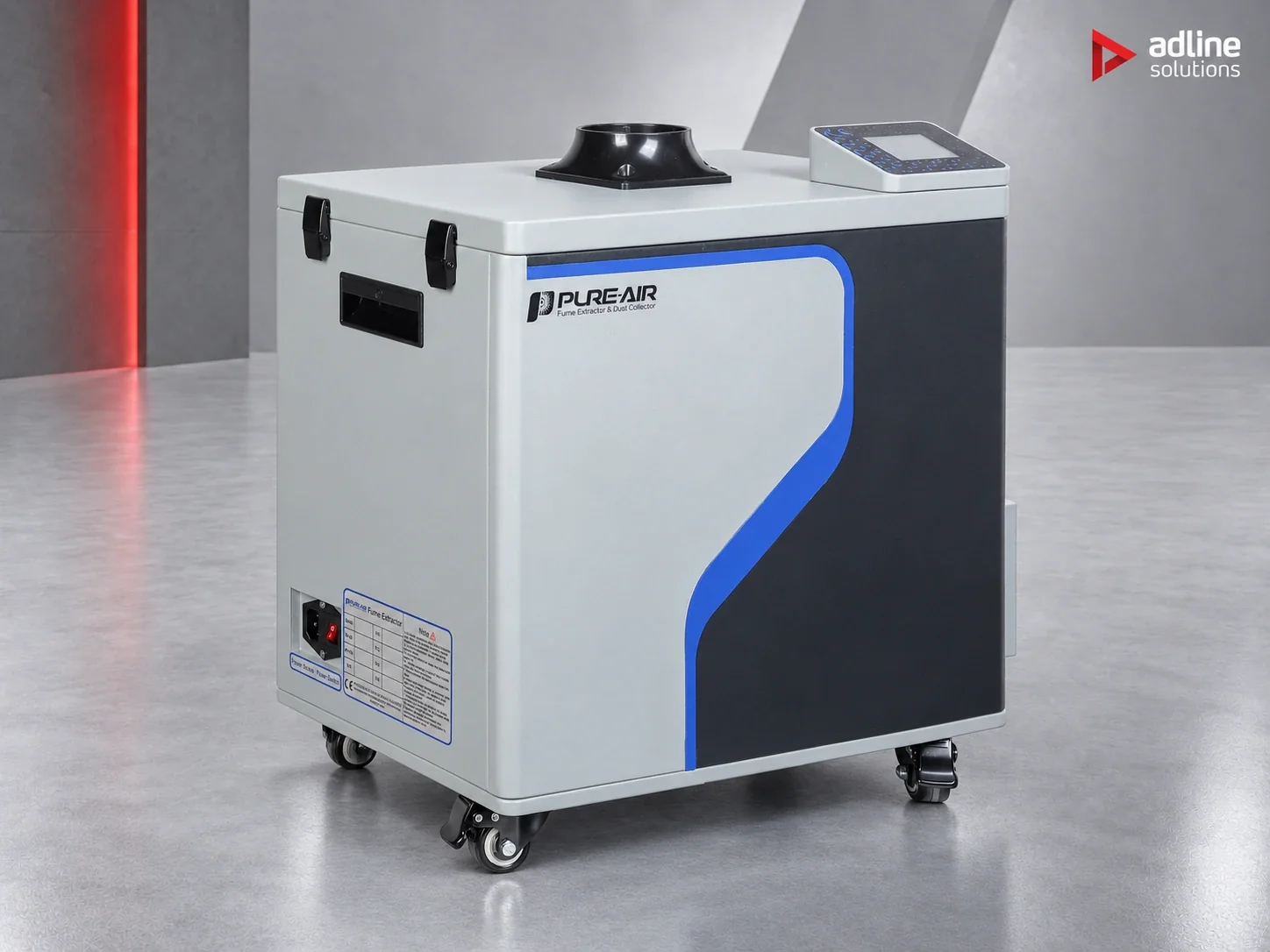

PURE-AIR PA-F350s Fume & Dust Extractor
On request
- 350 m³/h airflow
- Up to 3700 Pa negative pressure
- HEPA H14 filtration, 99.99% @ 0.3 µm
- PPS standard control
Compact fume extraction unit, 350 m³/h at up to 3700 Pa. Stainless steel and other metals, engineering plastics, cartons, PET, PC, PCB and chips. PPS standard control.
Request a quoteWhich model fits your machine? Read the guide- Laser marking
- Laser coding
- Metal
- Plastics
- Electronics
About this machine
The PA-F350s extracts the fine metal oxide fume and plastic vapour produced by fibre and CO2 laser marking. A compact bench unit for a single marking station. Marking fume is almost entirely sub-micron, so it is invisible and it does not settle - it stays in the air the operator breathes until something removes it. 350 m³/h at up to 3700 Pa.
Filtration

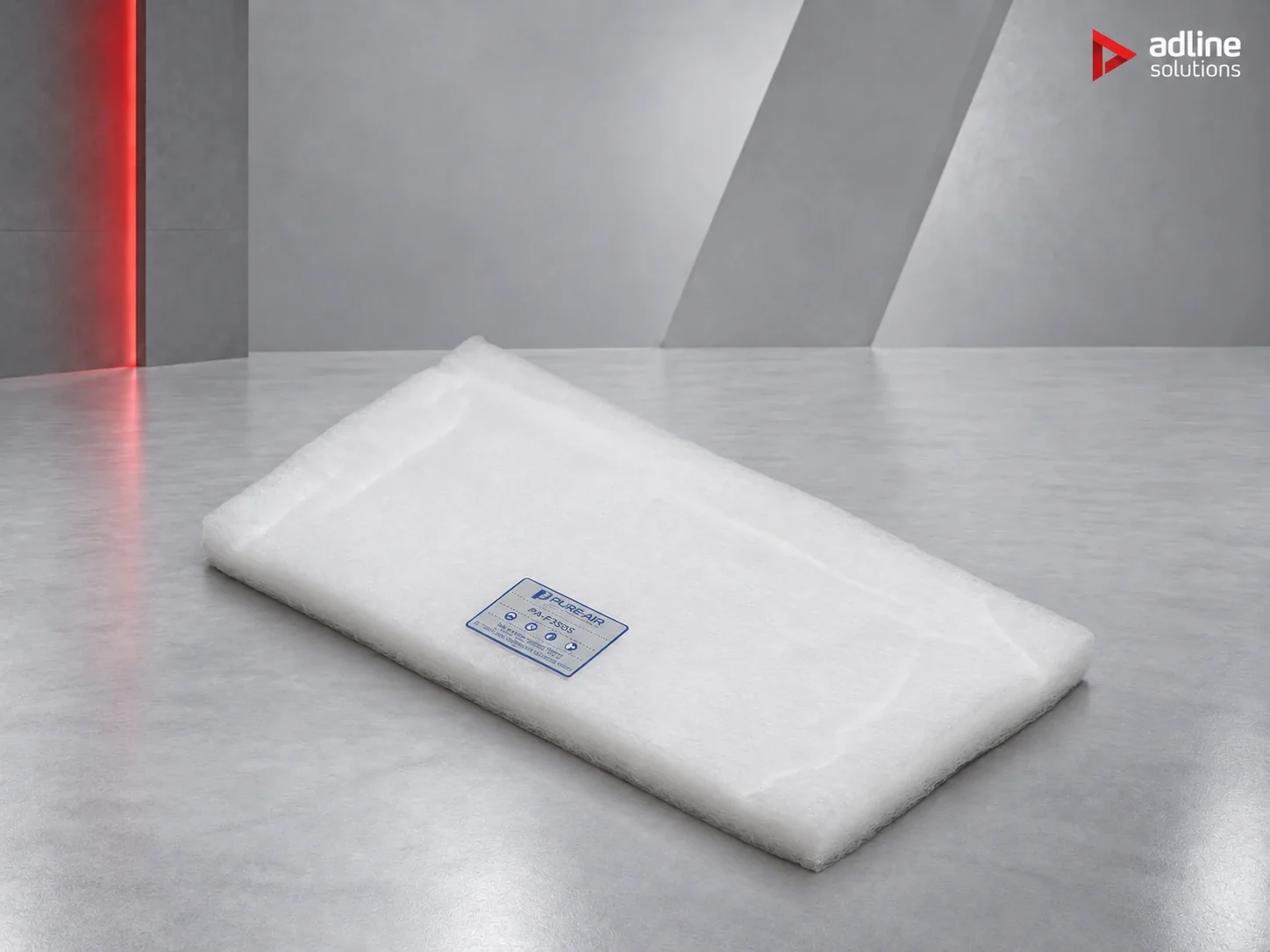

- F5 pad pre-filter, 80% @ 1.0 um
- H14 deeppleat filter, 99.99% @ 0.3 um
Key specifications
- Airflow: 350 m³/h
- Maximum negative pressure: 3700 Pa
- Rated power: 0.35 kW
- Power supply: 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Noise level: below 63 dBA at 1 m
- Dimensions (W x D x H): 310 x 520 x 515 mm
- Net weight: 20.5 kg
- Inlet: 50 / 75 mm
- Cabinet: Powder coated mild steel / brushed stainless steel
Recommended for
- Fibre laser markers and engravers
- UV and CO2 laser coders
- Inline marking stations on assembly lines
Standard version (PPS)
This is the standard version, without the intelligent control package. From 15 September 2026 PURE-AIR supplies these units with a colour LCD touch screen and an upgraded control system. If you need intelligent functions - real airflow readout, filter warnings, automatic compensation, RS-485 linkage - ask us about intelligent control for this model before you order.
Installation

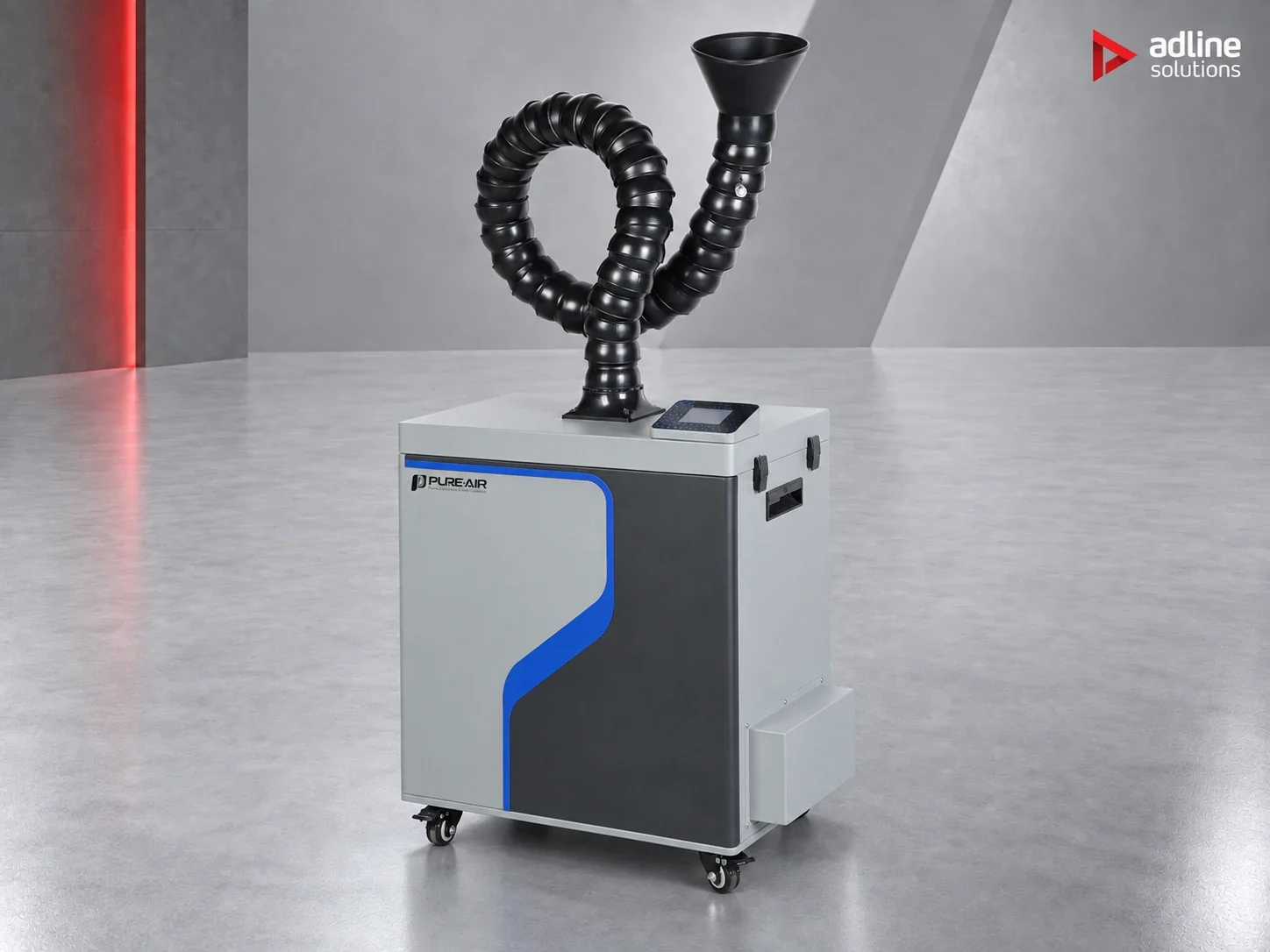

Bench-top or on castors beside the marking station. Connect the extraction hood or the machine port to the inlet with a short flexible hose; on an enclosed marker, take the air from the enclosure's own port. Keep the hose run short - marking fume is fine and light, but capture velocity at the nozzle is what decides whether it reaches the unit at all.

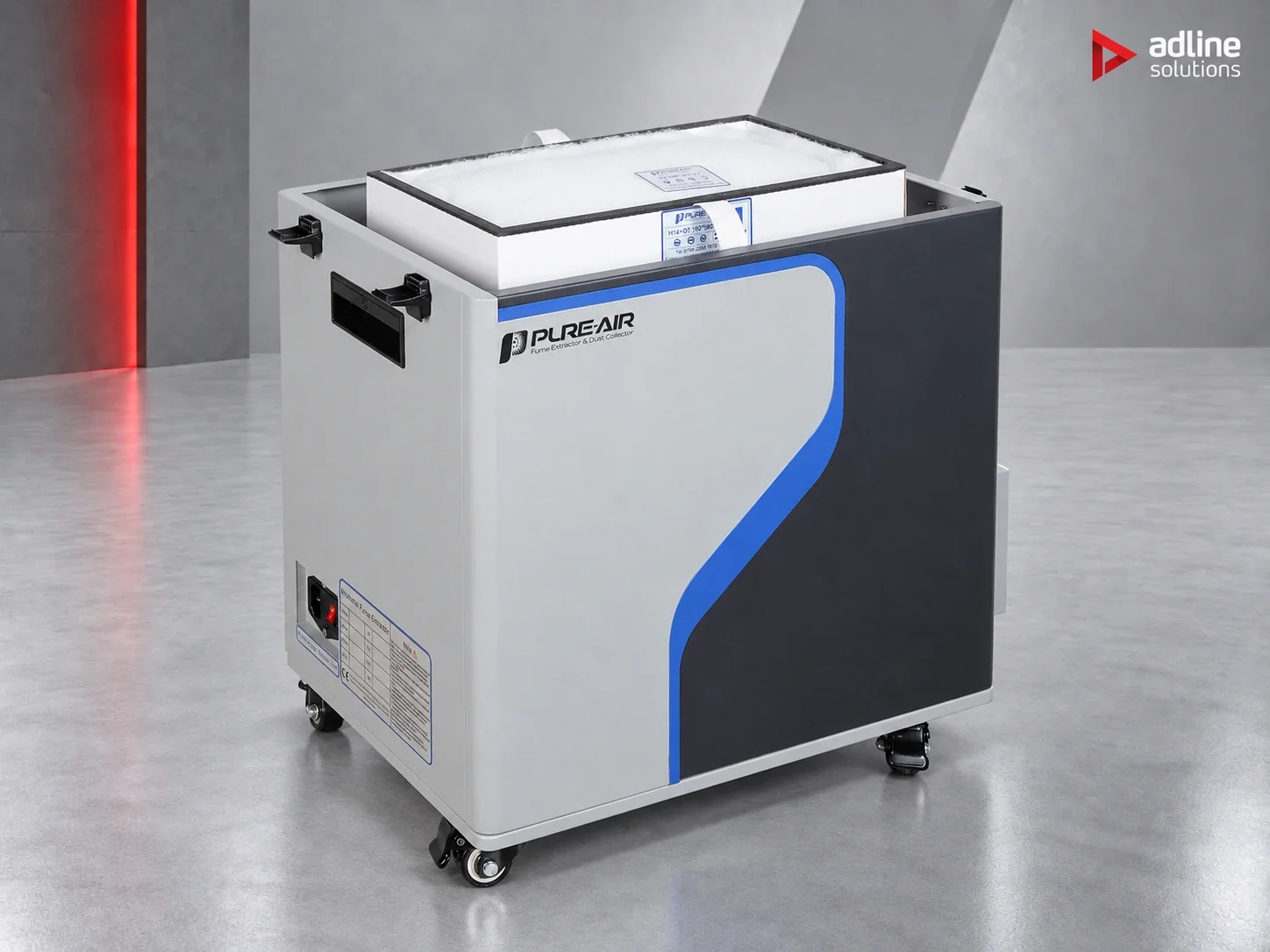

- Clean air out · brushless fanpulls through every stage
- Stage 2 · HEPA H1499.99% @ 0.3 µm
- Stage 1 · F5 / F9 pre-filterholds coarse particles
- Contaminated air inducted from the machine; dust drawer emptied from the front
Technical specifications
- Phase
- Single-phase
- Airflow
- 350 m³/h
- Inlet size
- 50 / 75 mm
- Net weight
- 20.5 kg
- Pre-filter
- F5 pad pre-filter, 80% @ 1.0 um
- Main filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Noise level
- 63 dB(A) max.
- Rated power
- 0.35 kW
- Power supply
- 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Control system
- PPS standard control
- Explosion-proof
- No
- Activated carbon
- No
- Cabinet construction
- Powder coated mild steel / brushed stainless steel
- Dimensions (W×D×H)
- 310 x 520 x 515 mm
- Max. negative pressure
- 3700 Pa
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Fibre laser markers and engravers; UV and CO₂ laser coders; Inline marking stations on assembly lines
Materials
Stainless steel and other metals, engineering plastics, cartons, PET, PC, PCB and chips
Typical working format
Single station
Control system
PPS - Pure-Air Purification System (standard control). From 15.09.2026 supplied with a colour LCD touch screen and an upgraded control system.
Installation
Bench-top or on castors beside the marking station. Connect the extraction hood or the machine port to the inlet with a short flexible hose; on an enclosed marker, take the air from the enclosure's own port. Keep the hose run short - marking fume is fine and light, but capture velocity at the nozzle is what decides whether it reaches the unit at all.
Series
F
Frequently asked questions
What is it for?
The PA-F350s extracts the fine metal oxide fume and plastic vapour from fibre and CO2 laser marking of stainless steel and other metals, engineering plastics, cartons, PET, PC, PCB and chips. It is a compact bench unit for a single marking station. It moves 350 m³/h at up to 3700 Pa and suits fibre laser markers and engravers, UV and CO2 laser coders, and inline marking stations on assembly lines.
How does the filtration work?
Two stages. An F5 pad pre-filter (80% @ 1.0 µm) takes the coarser particles and an H14 deeppleat filter (99.99% @ 0.3 µm) catches the sub-micron marking fume, which is invisible and does not settle. There is no activated carbon stage, so if odour or plastic vapour is a concern, tell us what you mark and we will advise.
How do we connect it to the marker?
With a short flexible hose from the extraction hood or the machine port to a 50 mm / 75 mm inlet. On an enclosed marker, take the air from the enclosure's own port. Keep the hose run short: the fume is fine and light, but capture velocity at the nozzle decides whether it reaches the unit at all.
What does it need on site?
A 90–110 V or 210–257 V single-phase, 50/60 Hz supply for a rated power of 0.35 kW, and floor space for a unit of 310 × 520 × 515 mm (W × D × H) weighing 20.5 kg net. Noise is below 63 dB(A) at 1 m. It sits on the bench or on castors beside the marking station. It is not explosion-proof.
What control does it have?
The PA-F350s is the standard version with PPS standard control, without the intelligent control package. From 15 September 2026 PURE-AIR supplies these units with a colour LCD touch screen and an upgraded control system. If you need real airflow readout, filter warnings, automatic compensation or RS-485 linkage with your line, ask us before you order.
