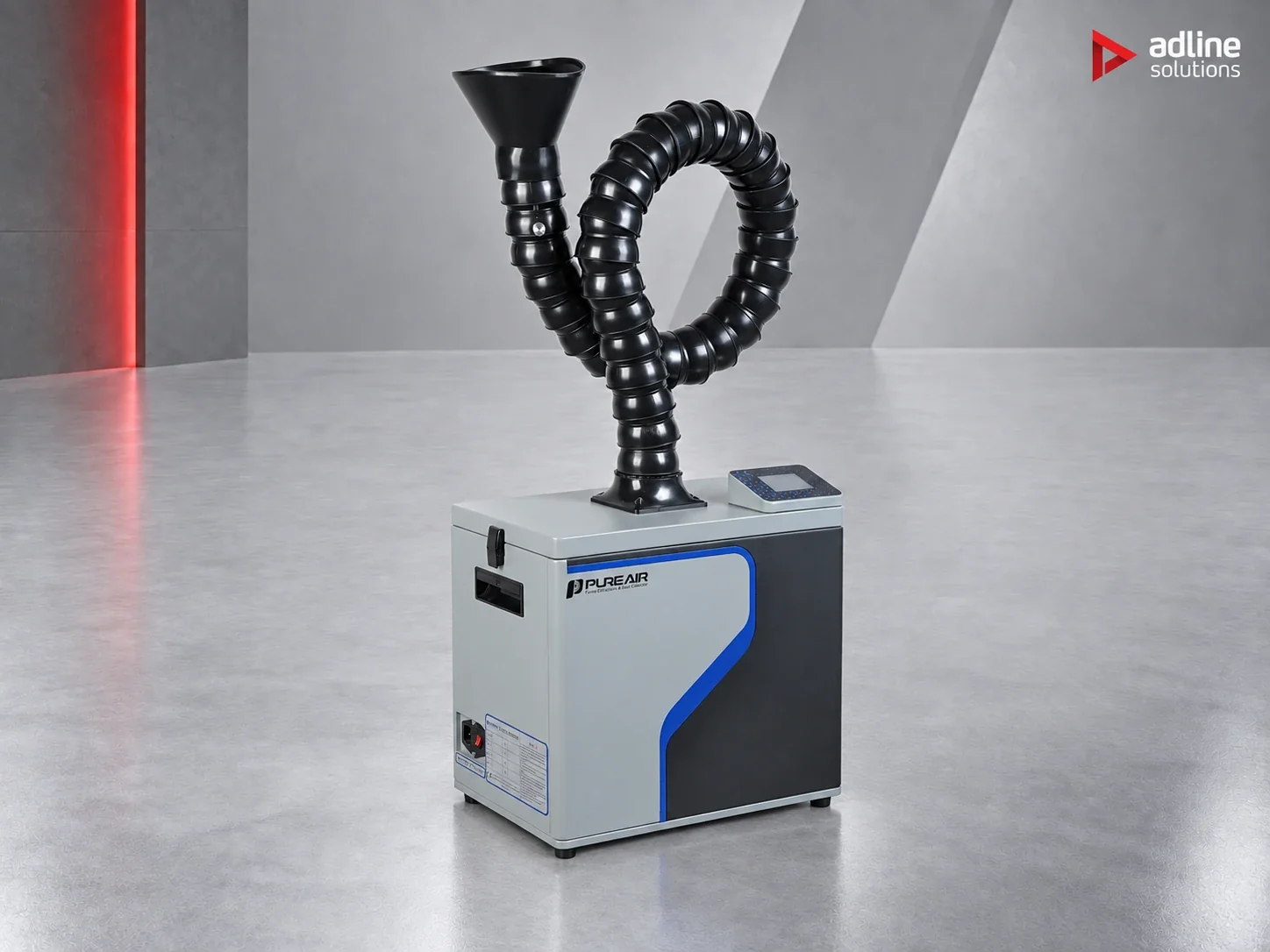

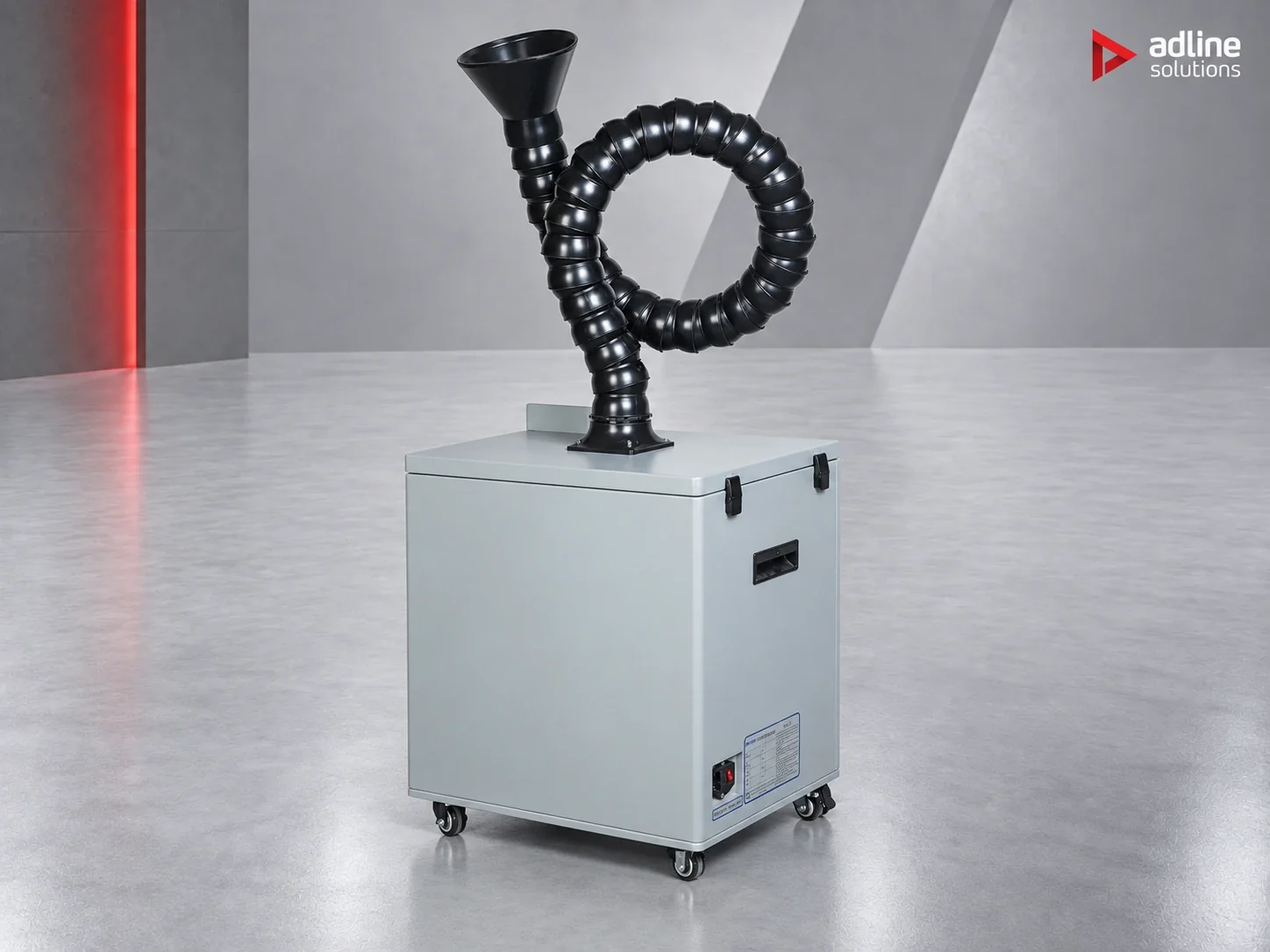

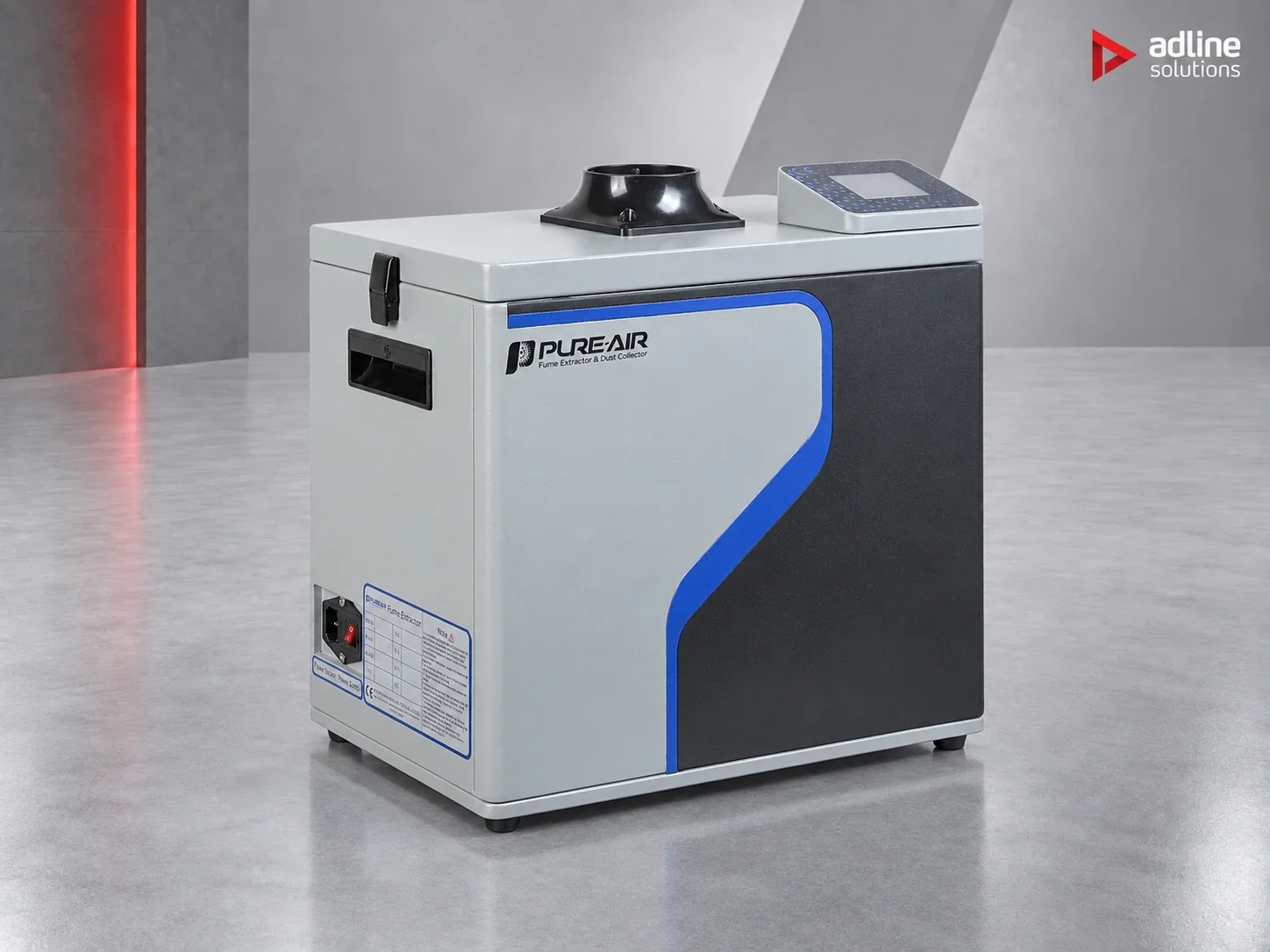

PURE-AIR PA-F250s Fume & Dust Extractor
SKU PA-F250s · On request
- 250 m³/h airflow
- Up to 2800 Pa negative pressure
- HEPA H14 filtration, 99.99% @ 0.3 µm
- PPS standard control
Compact fume extraction unit, 250 m³/h at up to 2800 Pa. Stainless steel and other metals, engineering plastics, cartons, PET, PC, PCB and chips. PPS standard control.
Request a quote- Laser marking
- Laser coding
- Metal
- Plastics
- Electronics
About this machine
The PA-F250s extracts the fine metal oxide fume and plastic vapour produced by fibre and CO2 laser marking. A compact bench unit for a single marking station. Marking fume is almost entirely sub-micron, so it is invisible and it does not settle - it stays in the air the operator breathes until something removes it. 250 m³/h at up to 2800 Pa.

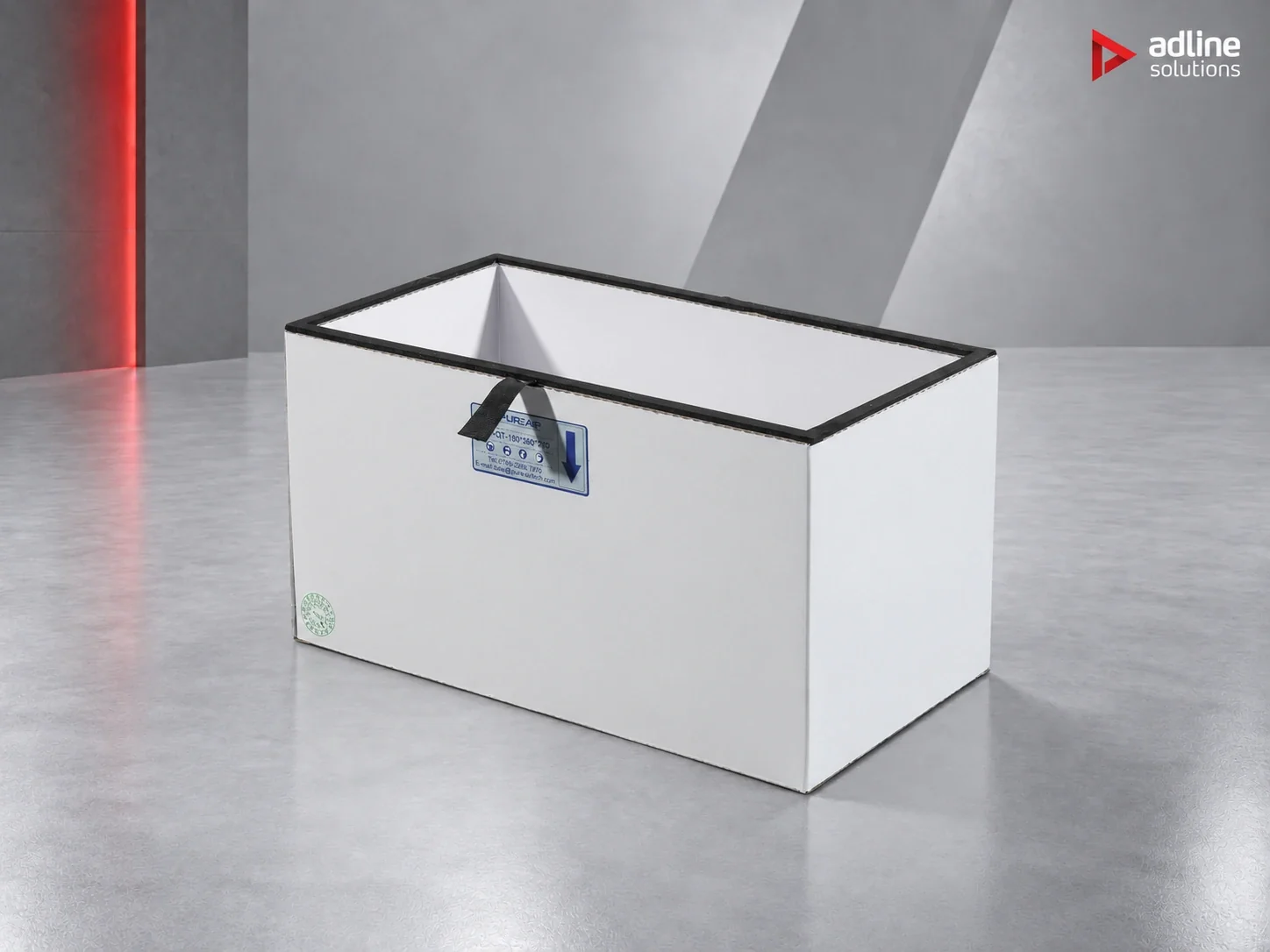

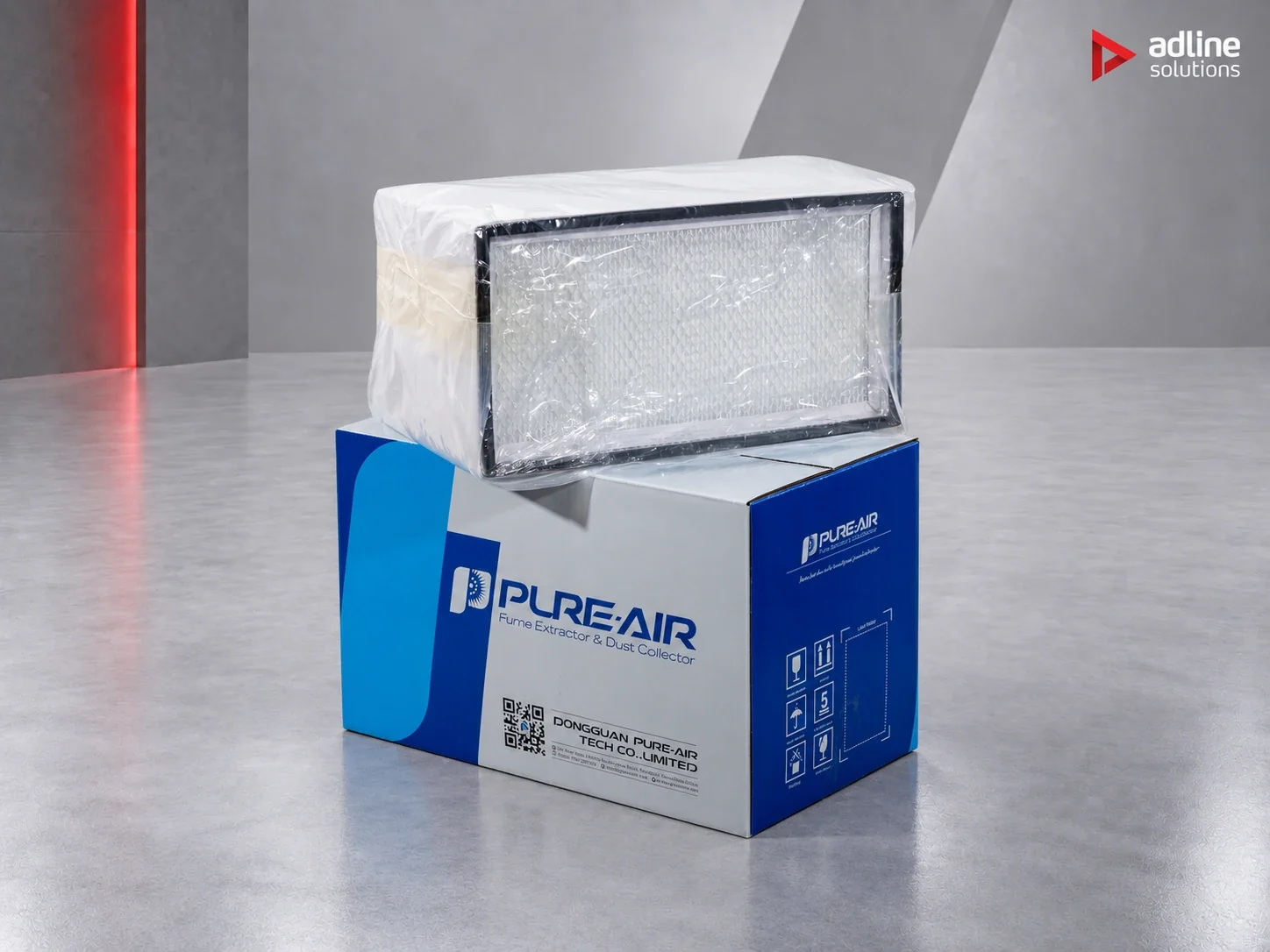

Filtration

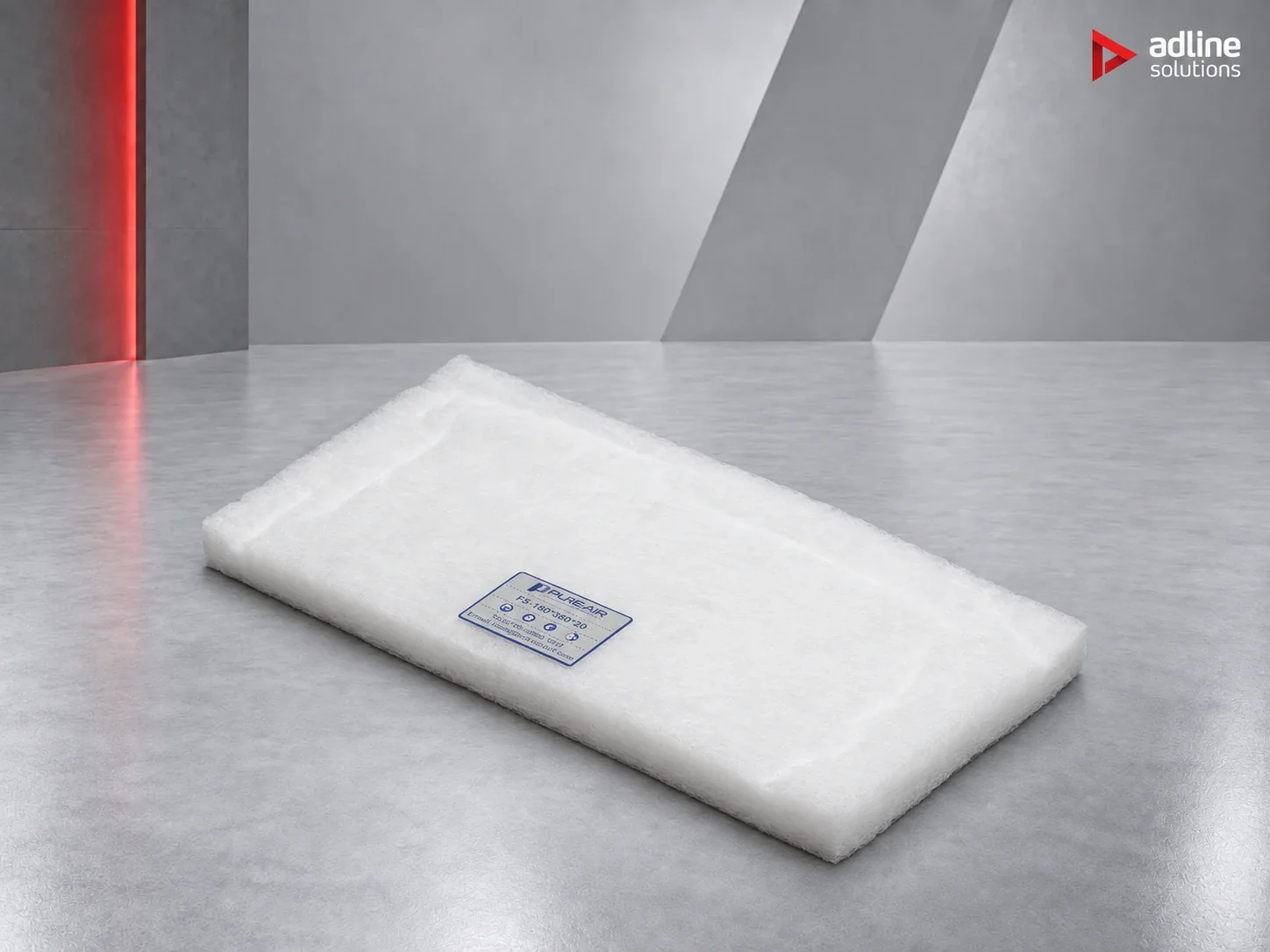

- F5 pad pre-filter, 80% @ 1.0 um

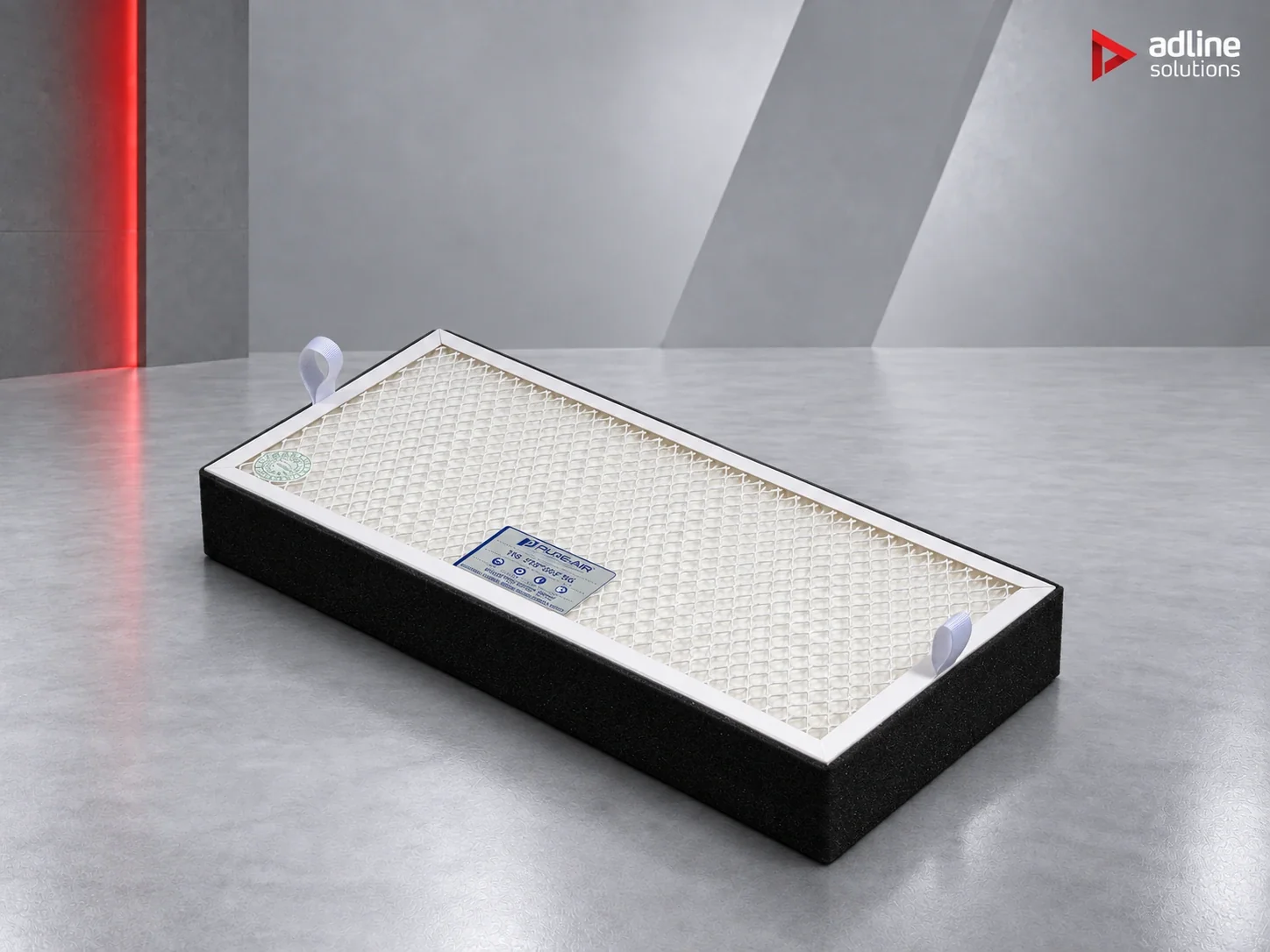

- H14 deeppleat filter, 99.99% @ 0.3 um
Key specifications
- Airflow: 250 m³/h
- Maximum negative pressure: 2800 Pa
- Rated power: 0.2 kW
- Power supply: 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Noise level: below 60 dBA at 1 m
- Dimensions (W x D x H): 250 x 440 x 412 mm
- Net weight: 14.5 kg
- Inlet: 50 / 75 mm
- Cabinet: Powder coated mild steel / brushed stainless steel
Recommended for
- Fibre laser markers and engravers
- UV and CO2 laser coders
- Inline marking stations on assembly lines
Standard version (PPS)
This is the standard version, without the intelligent control package. From 15 September 2026 PURE-AIR supplies these units with a colour LCD touch screen and an upgraded control system. If the intelligent functions matter - real airflow readout, filter warnings, automatic compensation, RS-485 linkage - choose the i version of the same model.
Installation
Bench-top or on castors beside the marking station. Connect the extraction hood or the machine port to the inlet with a short flexible hose; on an enclosed marker, take the air from the enclosure's own port. Keep the hose run short - marking fume is fine and light, but capture velocity at the nozzle is what decides whether it reaches the unit at all.
Technical specifications
- Phase
- Single-phase
- Airflow
- 250 m³/h
- Inlet size
- 50 / 75 mm
- Net weight
- 14.5 kg
- Pre-filter
- F5 pad pre-filter, 80% @ 1.0 um
- Main filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Noise level
- 60 dB(A) max.
- Rated power
- 0.2 kW
- Power supply
- 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Control system
- PPS standard control
- Explosion-proof
- No
- Activated carbon
- No
- Cabinet construction
- Powder coated mild steel / brushed stainless steel
- Dimensions (W×D×H)
- 250 x 440 x 412 mm
- Max. negative pressure
- 2800 Pa
Application details
Recommended for
Fibre laser markers and engravers; UV and CO₂ laser coders; Inline marking stations on assembly lines
Materials
Stainless steel and other metals, engineering plastics, cartons, PET, PC, PCB and chips
Typical working format
Single station
Control system
PPS - Pure-Air Purification System (standard control). From 15.09.2026 supplied with a colour LCD touch screen and an upgraded control system.
Installation
Bench-top or on castors beside the marking station. Connect the extraction hood or the machine port to the inlet with a short flexible hose; on an enclosed marker, take the air from the enclosure's own port. Keep the hose run short - marking fume is fine and light, but capture velocity at the nozzle is what decides whether it reaches the unit at all.
Series
F
