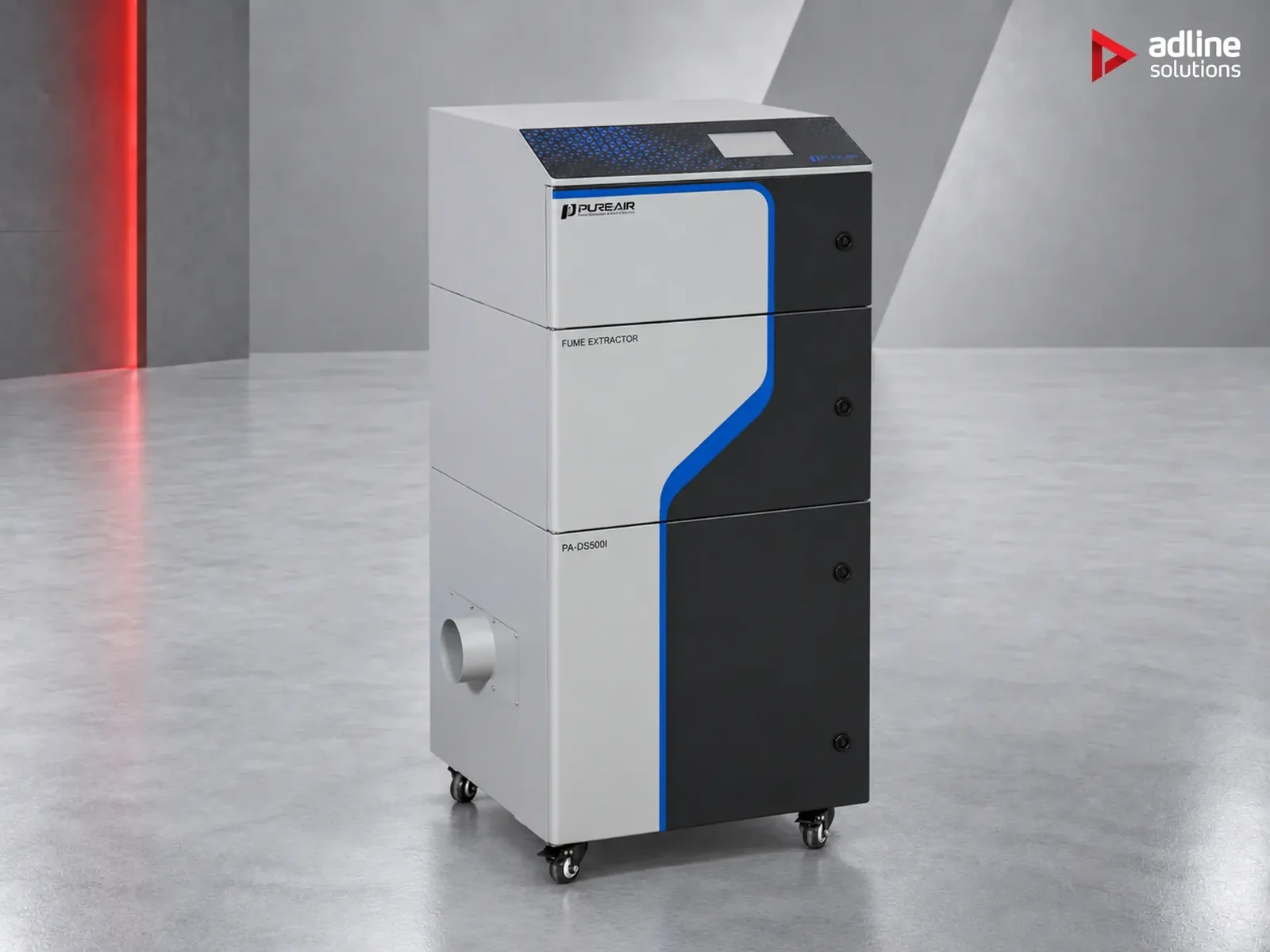

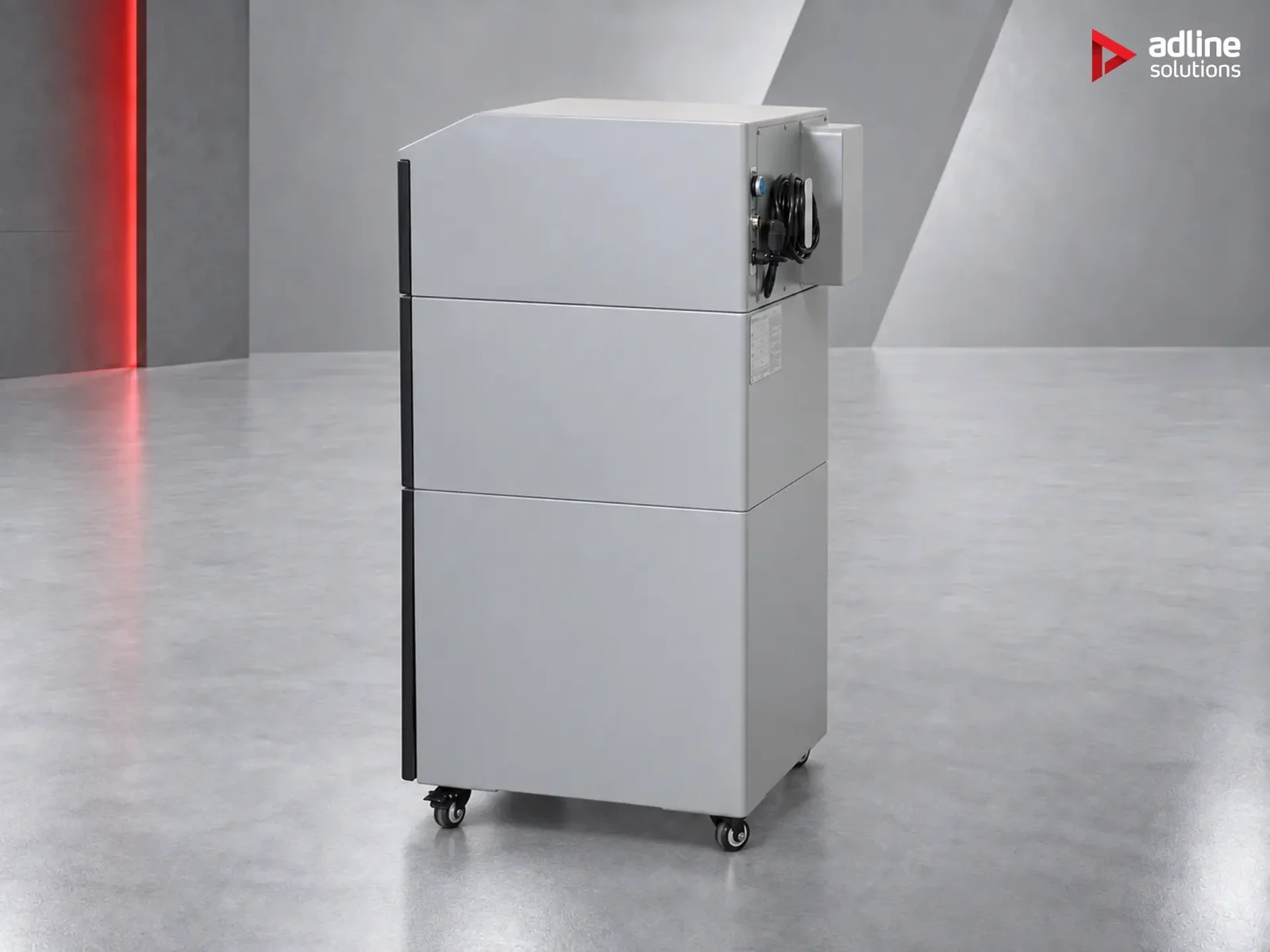

PURE-AIR PA-DS500i Fume & Dust Extractor
On request
- 500 m³/h airflow
- Up to 10000 Pa negative pressure
- HEPA H14 filtration, 99.99% @ 0.3 µm
- Activated carbon stage for VOC and odour
- PIPS intelligent control
Intelligent fume extraction unit, 500 m³/h at up to 10000 Pa. Stainless steel and other metals, engineering plastics, cartons, PET, PC, PCB and chips. PIPS intelligent control.
Request a quoteWhich model fits your machine? Read the guide- Laser marking
- Laser coding
- Metal
- Plastics
- Electronics
About this machine
The PA-DS500i extracts the fine metal oxide fume and plastic vapour produced by fibre and CO2 laser marking. Sized for a marking cell or an inline station on a production line. Marking fume is almost entirely sub-micron, so it is invisible and it does not settle - it stays in the air the operator breathes until something removes it. 500 m³/h at up to 10000 Pa.
Filtration
- F9 pre-filter, 95% @ 1.0 um
- H14 deeppleat filter, 99.99% @ 0.3 um
- Treated activated carbon, approx. 12-30 kg
Key specifications
- Airflow: 500 m³/h
- Maximum negative pressure: 10000 Pa
- Rated power: 1.1 kW
- Power supply: 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Noise level: below 62 dBA at 1 m
- Dimensions (W x D x H): 550 x 562 x 1091 mm
- Net weight: 72 kg
- Inlet: 75 / 100 mm
- Cabinet: Powder coated mild steel / brushed stainless steel
Recommended for
- Fibre laser markers and engravers
- UV and CO2 laser coders
- Inline marking stations on assembly lines
Intelligent version (PIPS)

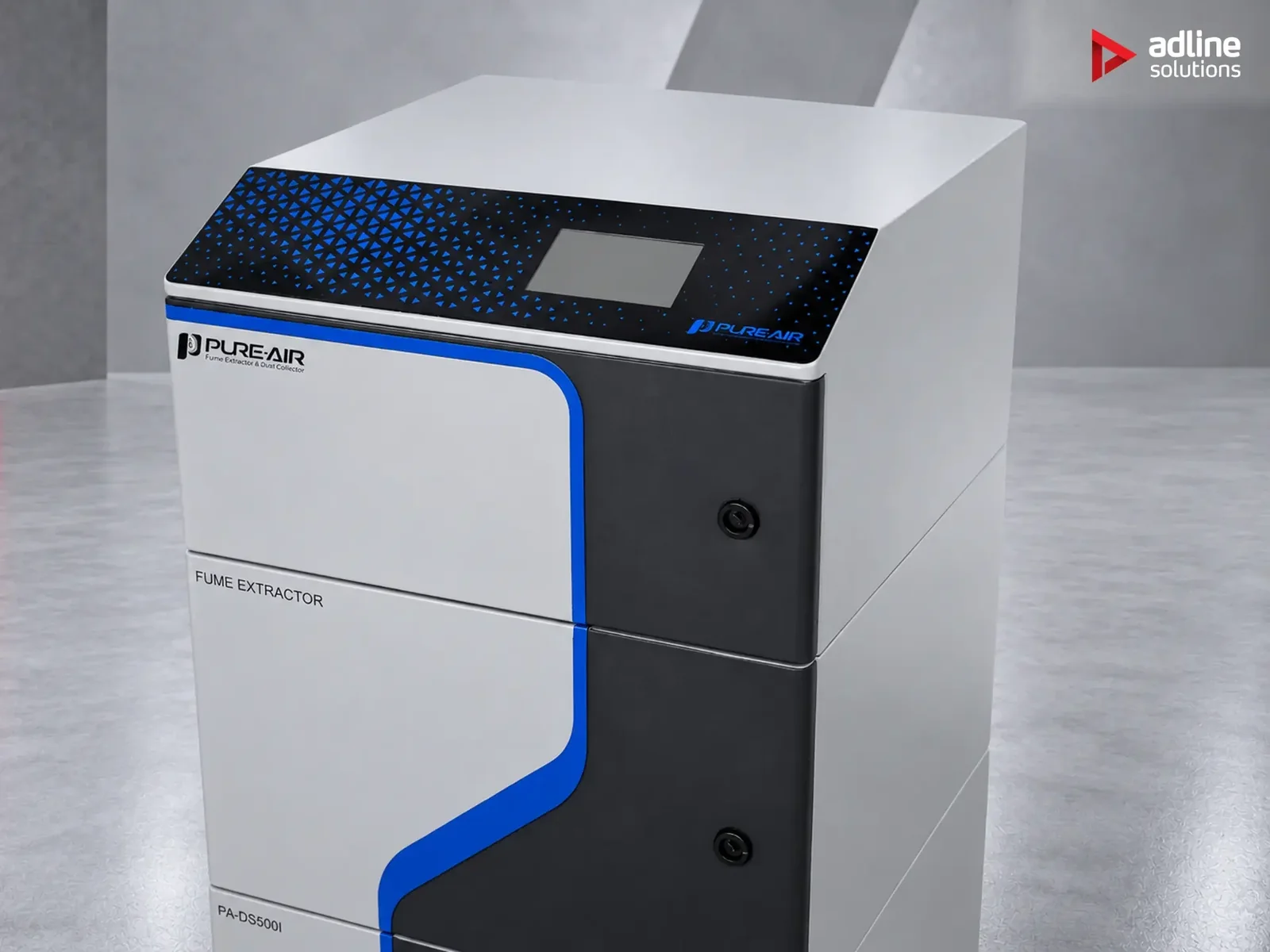

This is the i version of the model. It adds the Pure-Air Intelligent Purification System: an industrial touch screen that shows real airflow and negative pressure in real time, a filter health manager that warns before a stage blocks, and automatic airflow compensation so extraction does not fade as the filter loads. I/O and RS-485 allow remote start/stop, linkage with the host machine or robot and centralised control of several units. PM2.5, VOC and O3 sensors are available as an option, and firmware updates are loaded from a TF card.

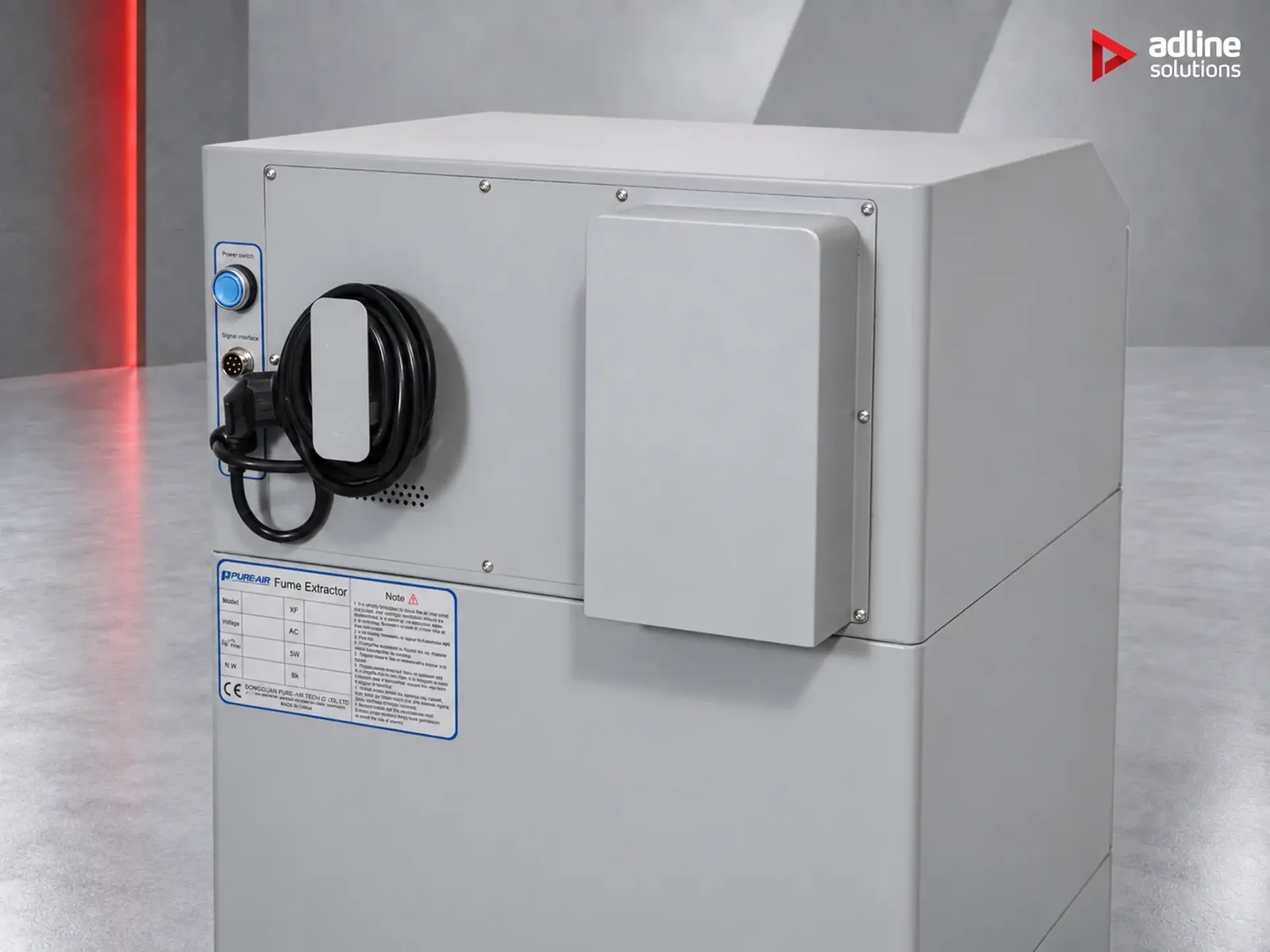

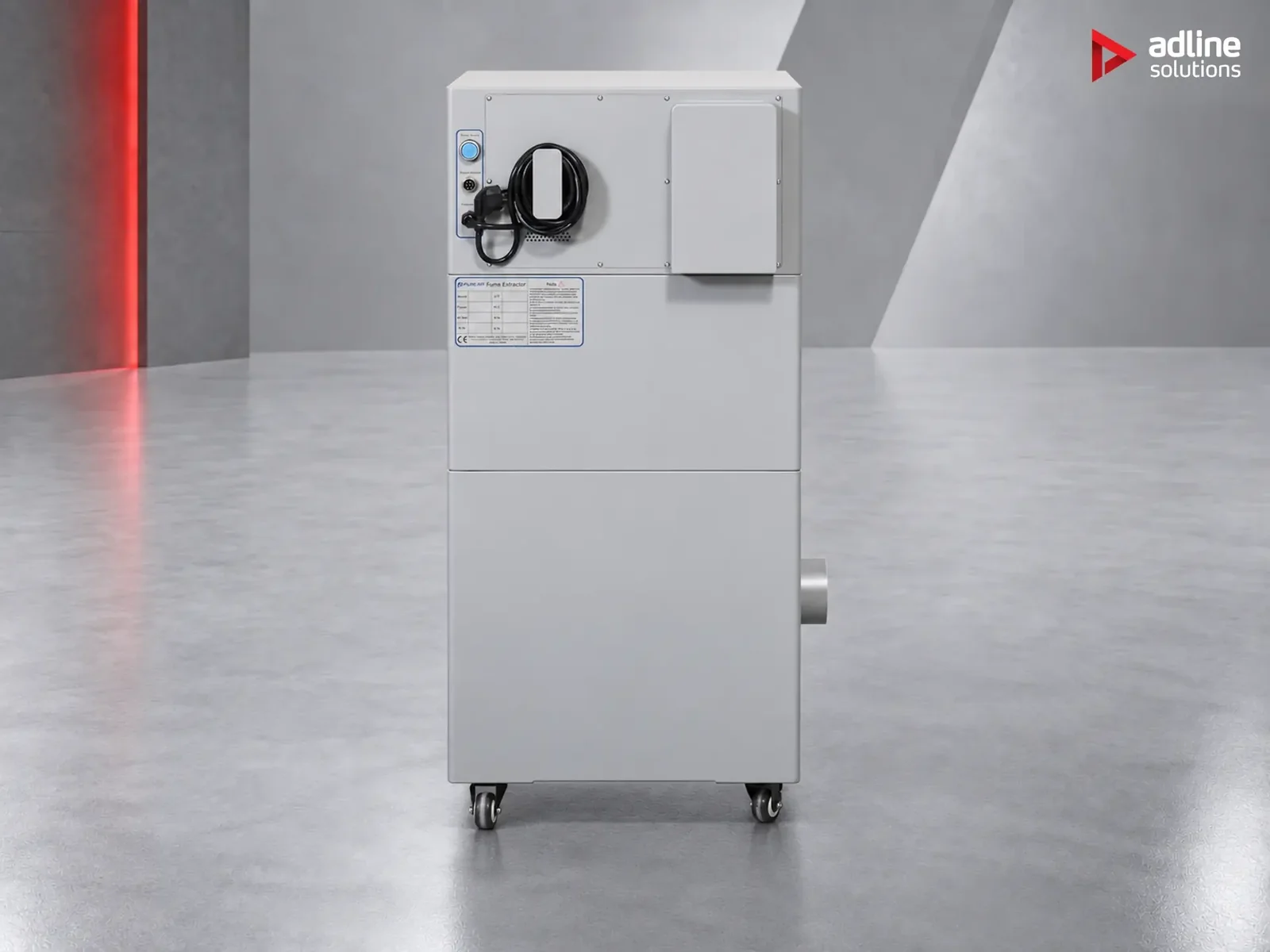

Installation
Bench-top or on castors beside the marking station. Connect the extraction hood or the machine port to the inlet with a short flexible hose; on an enclosed marker, take the air from the enclosure's own port. Keep the hose run short - marking fume is fine and light, but capture velocity at the nozzle is what decides whether it reaches the unit at all.

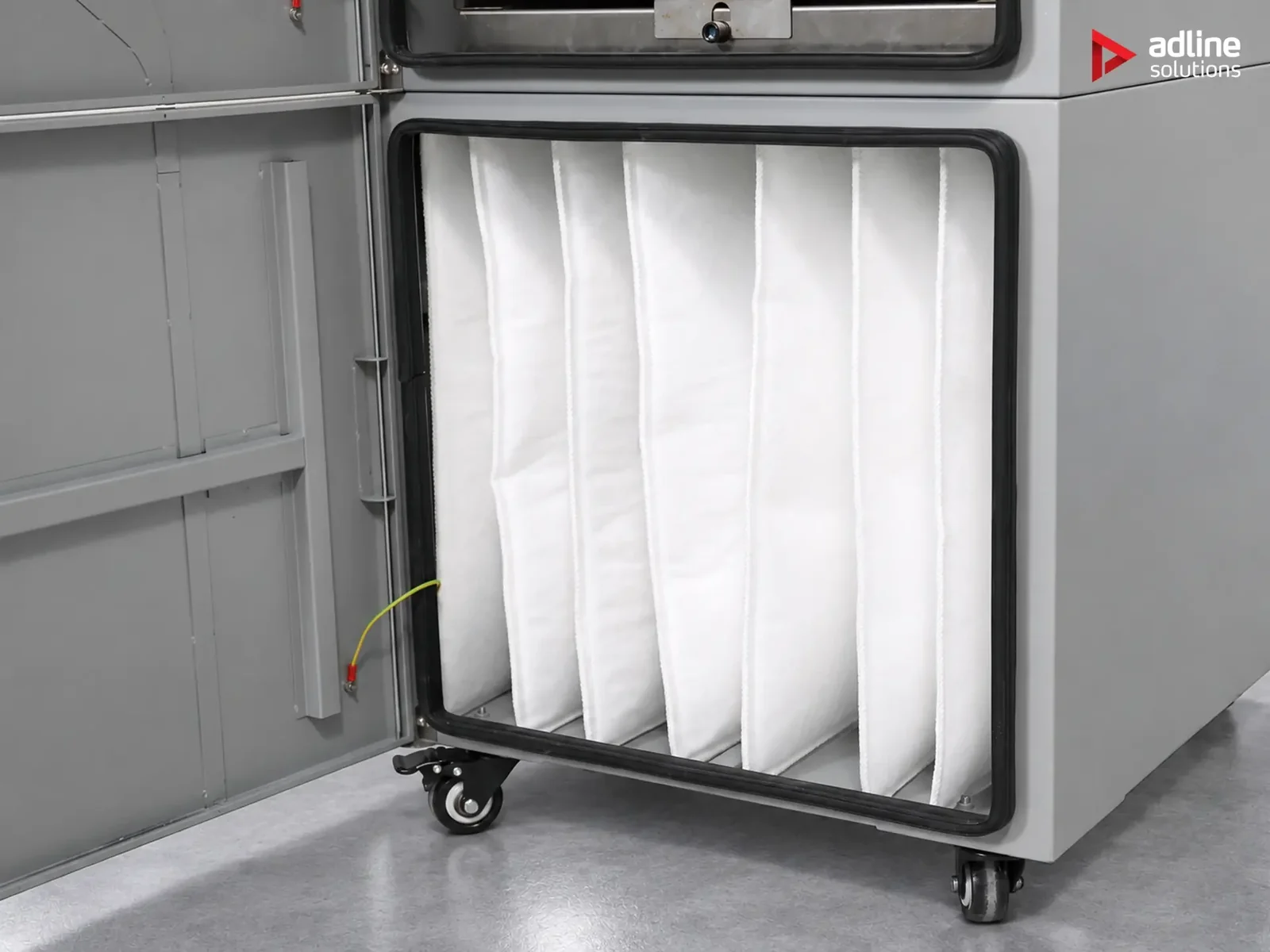

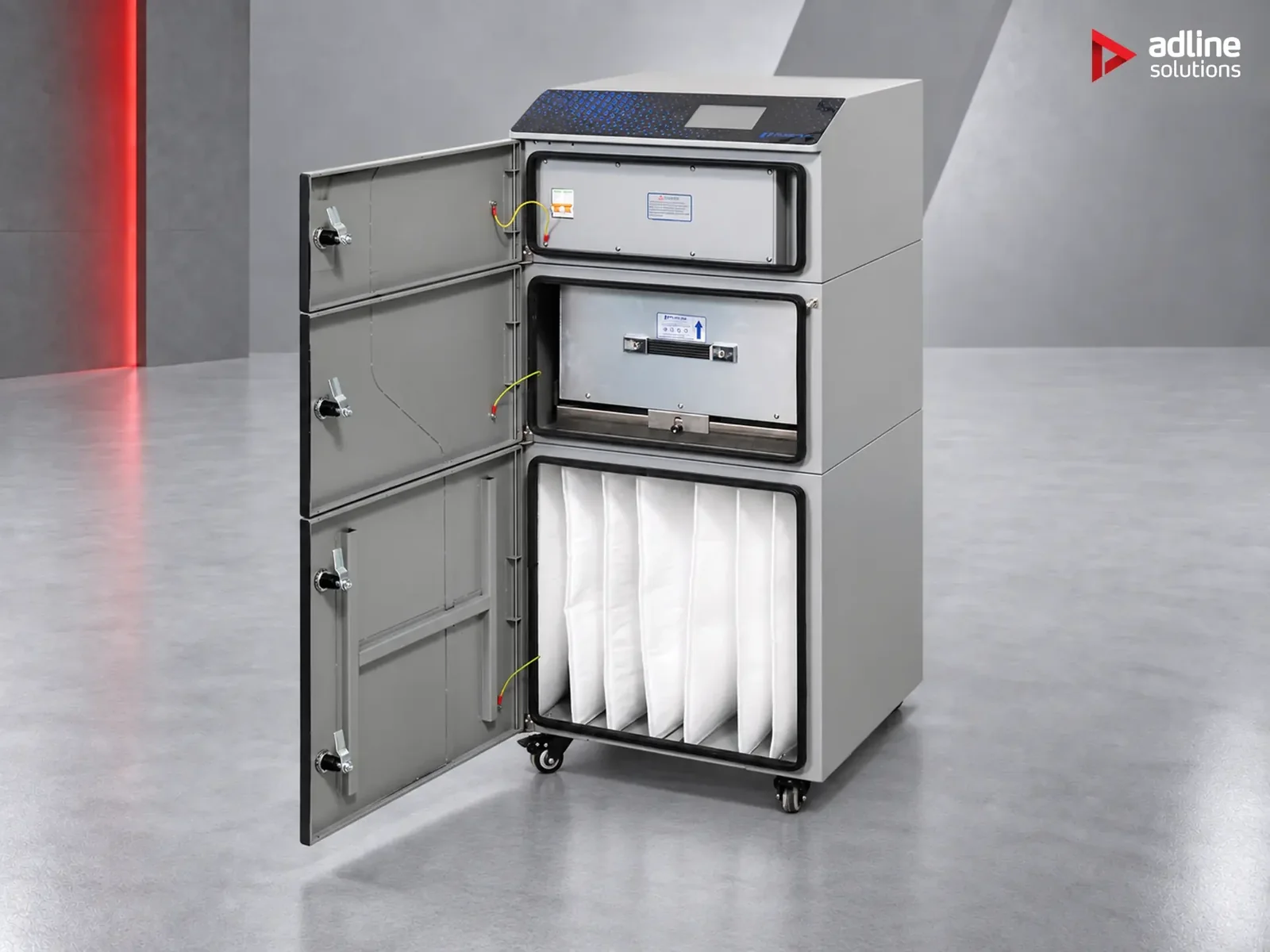

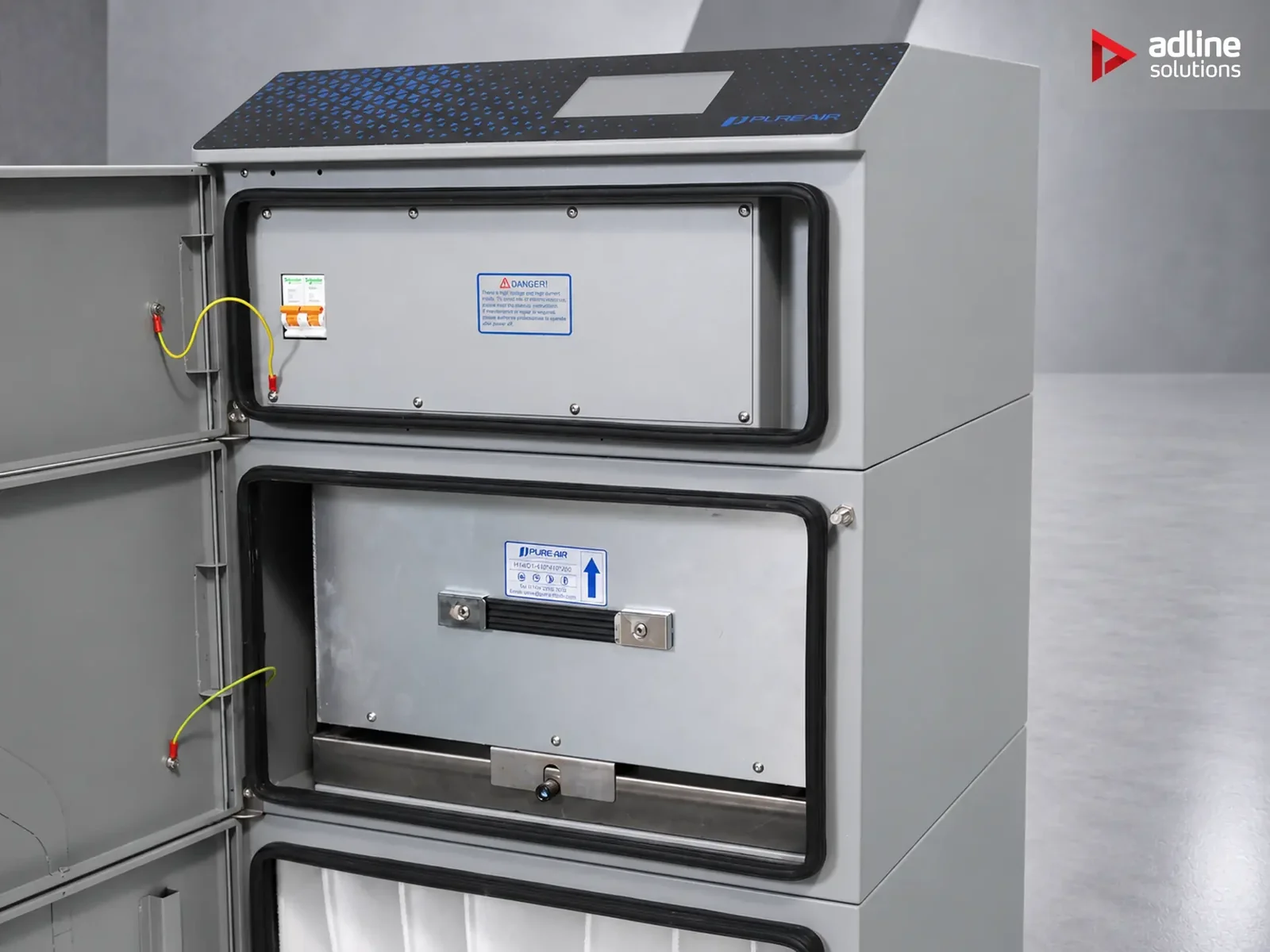

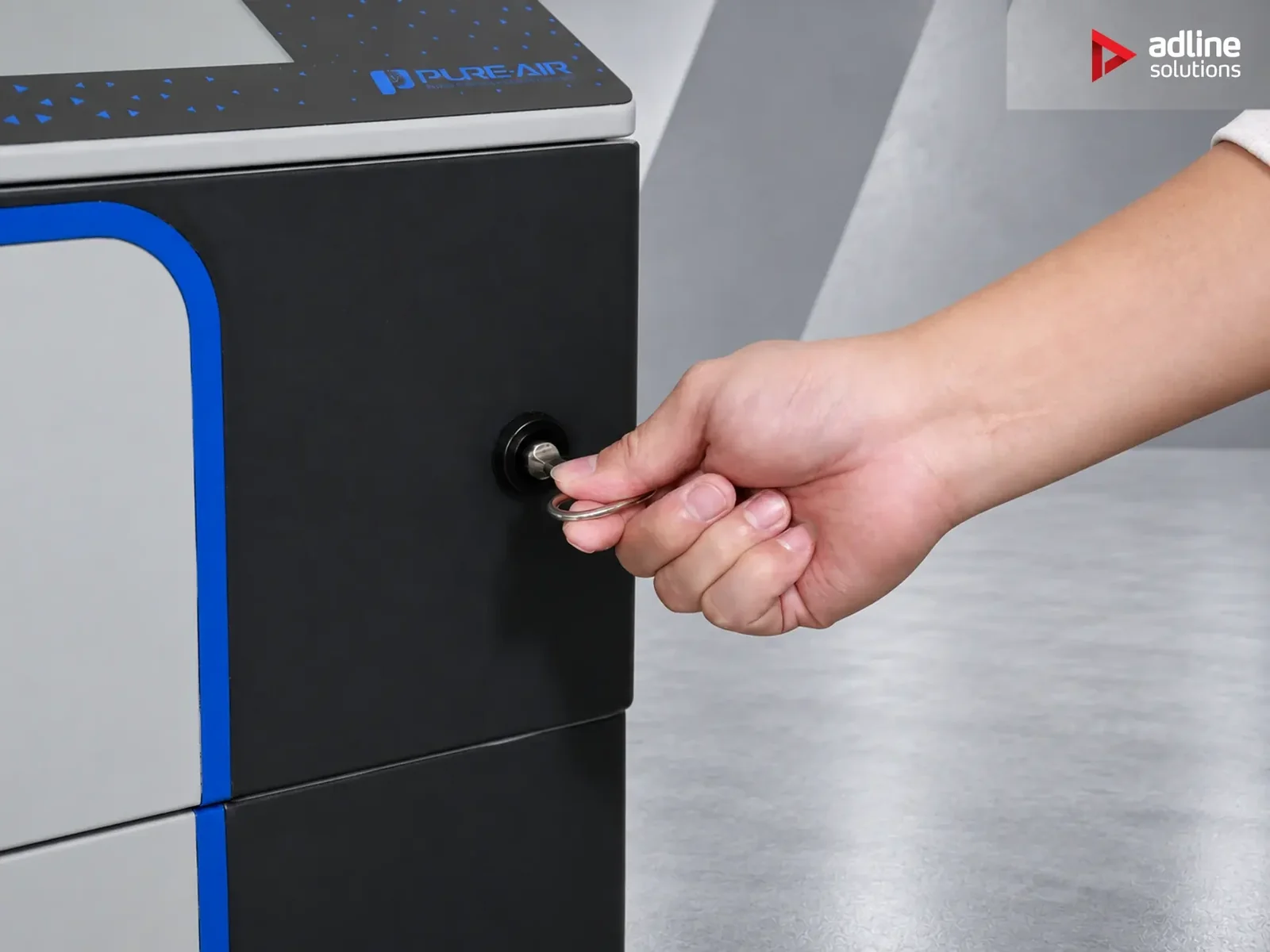

- Clean air out · brushless fanpulls through every stage
- Stage 3 · activated carbonholds VOC and odour
- Stage 2 · HEPA H1499.99% @ 0.3 µm
- Stage 1 · F5 / F9 pre-filterholds coarse particles
- Contaminated air inducted from the machine; dust drawer emptied from the front
Technical specifications
- Phase
- Single-phase
- Airflow
- 500 m³/h
- Inlet size
- 75 / 100 mm
- Net weight
- 72 kg
- Pre-filter
- F9 pre-filter, 95% @ 1.0 um
- Main filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Noise level
- 62 dB(A) max.
- Rated power
- 1.1 kW
- Power supply
- 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Control system
- PIPS intelligent control
- Explosion-proof
- No
- Activated carbon
- Yes - treated activated carbon, approx. 12-30 kg
- Cabinet construction
- Powder coated mild steel / brushed stainless steel
- Dimensions (W×D×H)
- 550 x 562 x 1091 mm
- Max. negative pressure
- 10000 Pa
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Fibre laser markers and engravers; UV and CO₂ laser coders; Inline marking stations on assembly lines
Materials
Stainless steel and other metals, engineering plastics, cartons, PET, PC, PCB and chips
Typical working format
Production line
Control system
PIPS - Pure-Air Intelligent Purification System. Industrial touch screen, real-time airflow and negative-pressure readout, filter health manager with early replacement warning, automatic airflow compensation as the filter loads, I/O and RS-485 for MES / robot / multi-unit linkage, optional PM2.5 / VOC / O3 sensors, temperature and humidity safety shutdown, TF-card firmware upgrade.
Installation
Bench-top or on castors beside the marking station. Connect the extraction hood or the machine port to the inlet with a short flexible hose; on an enclosed marker, take the air from the enclosure's own port. Keep the hose run short - marking fume is fine and light, but capture velocity at the nozzle is what decides whether it reaches the unit at all.
Series
DS
Frequently asked questions
What is it for?
The PA-DS500i extracts the fine metal oxide fume and plastic vapour from fibre and CO2 laser marking of stainless steel and other metals, engineering plastics, cartons, PET, PC, PCB and chips. It is sized for a marking cell or an inline station on a production line. It moves 500 m³/h at up to 10,000 Pa and suits fibre laser markers and engravers, UV and CO2 laser coders, and inline marking stations on assembly lines.
How does the filtration work?
Three stages. An F9 pre-filter (95% @ 1.0 µm) takes the coarser particles, an H14 deeppleat filter (99.99% @ 0.3 µm) catches the sub-micron fume, and approx. 12–30 kg of treated activated carbon deals with vapour. Marking fume is almost entirely sub-micron: it is invisible and stays in the air the operator breathes until something removes it.
How do we connect it to the marker?
With a short flexible hose from the extraction hood or the machine port to a 75 mm / 100 mm inlet. On an enclosed marker, take the air from the enclosure's own port. Keep the hose run short: the fume is fine and light, but capture velocity at the nozzle decides whether it reaches the unit at all.
What does it need on site?
A 90–110 V or 210–257 V single-phase, 50/60 Hz supply for a rated power of 1.1 kW, and floor space for a unit of 550 × 562 × 1091 mm (W × D × H) weighing 72 kg net. Noise is below 62 dB(A) at 1 m. It stands beside the marking station, on castors or bench-top. It is not explosion-proof.
What does the intelligent control add?
The PA-DS500i has PIPS intelligent control compared with the standard PA-DS500: an industrial touch screen showing real airflow and negative pressure in real time, a filter health manager that warns before a stage blocks, and automatic airflow compensation so extraction does not fade as the filter loads. I/O and RS-485 allow remote start/stop, linkage with the host machine or robot and centralised control of several units. PM2.5, VOC and O3 sensors are optional, and firmware updates load from a TF card.
