PURE-AIR PA-DS400i Fume & Dust Extractor
SKU PA-DS400i · On request
- 400 m³/h airflow
- Up to 8000 Pa negative pressure
- HEPA H14 filtration, 99.99% @ 0.3 µm
- Activated carbon stage for VOC and odour
- PIPS intelligent control
Intelligent fume extraction unit, 400 m³/h at up to 8000 Pa. Stainless steel and other metals, engineering plastics, cartons, PET, PC, PCB and chips. PIPS intelligent control.
Request a quote- Laser marking
- Laser coding
- Metal
- Plastics
- Electronics

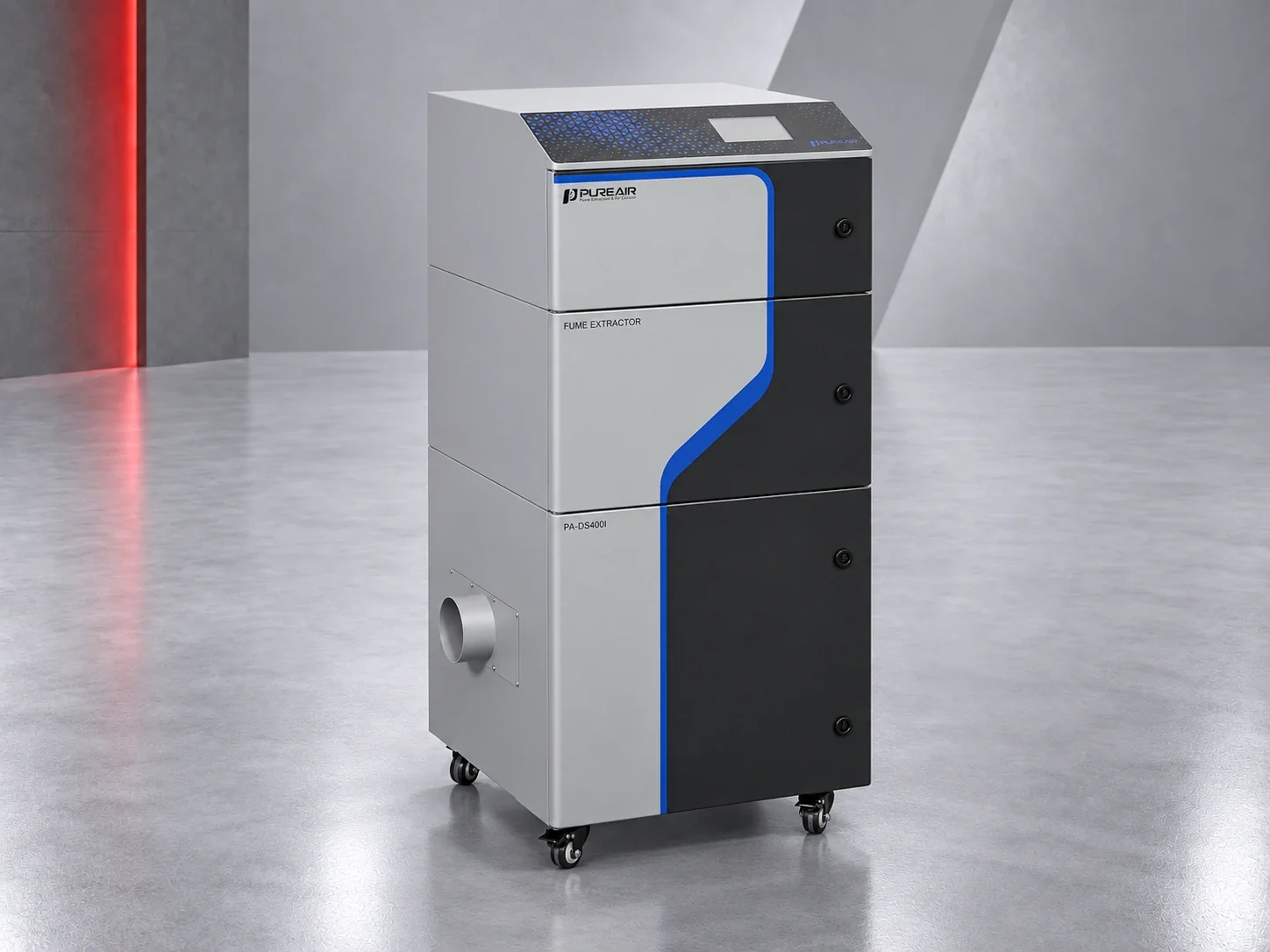

About this machine
The PA-DS400i extracts the fine metal oxide fume and plastic vapour produced by fibre and CO2 laser marking. Sized for a marking cell or an inline station on a production line. Marking fume is almost entirely sub-micron, so it is invisible and it does not settle - it stays in the air the operator breathes until something removes it. 400 m³/h at up to 8000 Pa.

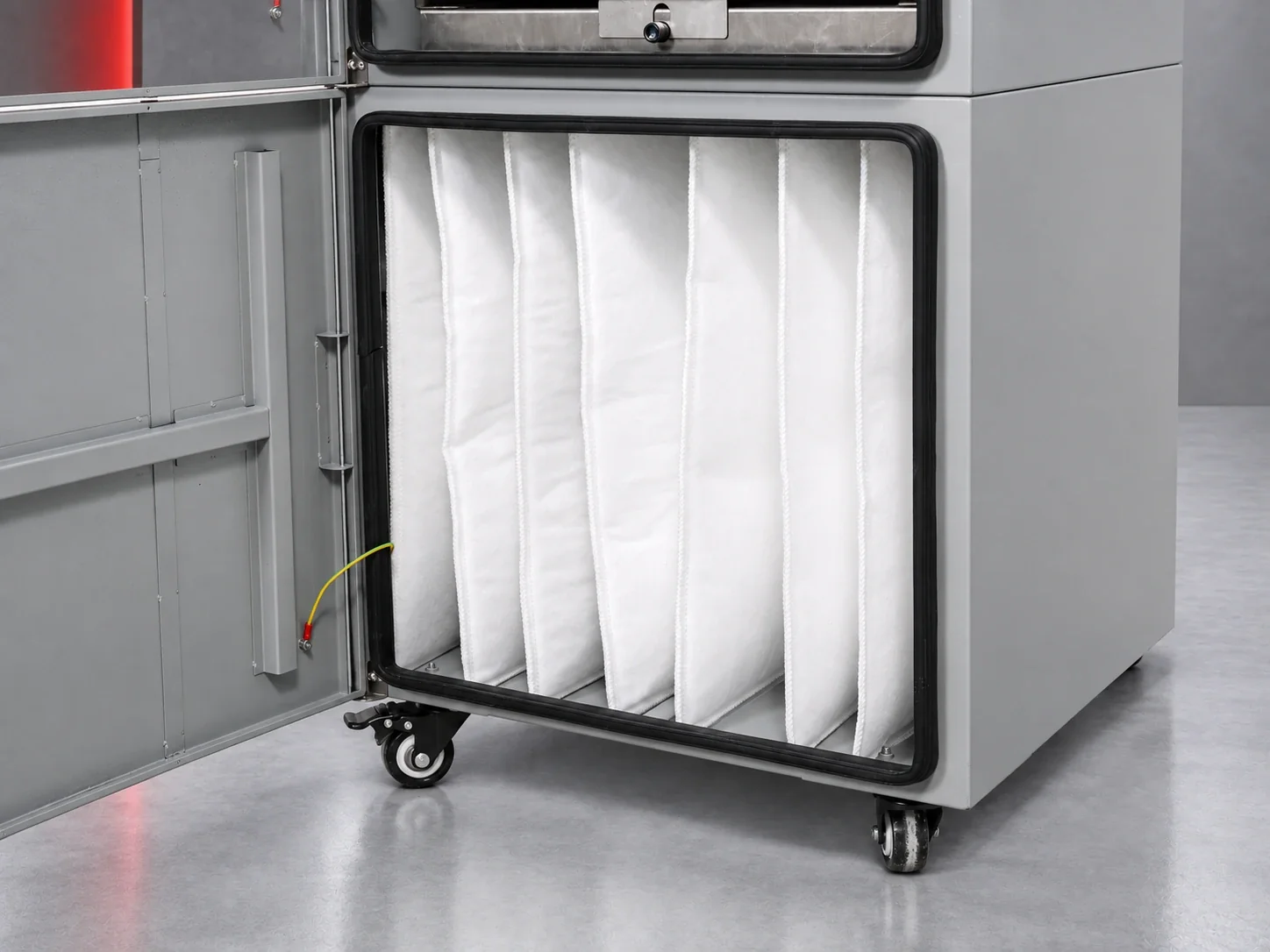

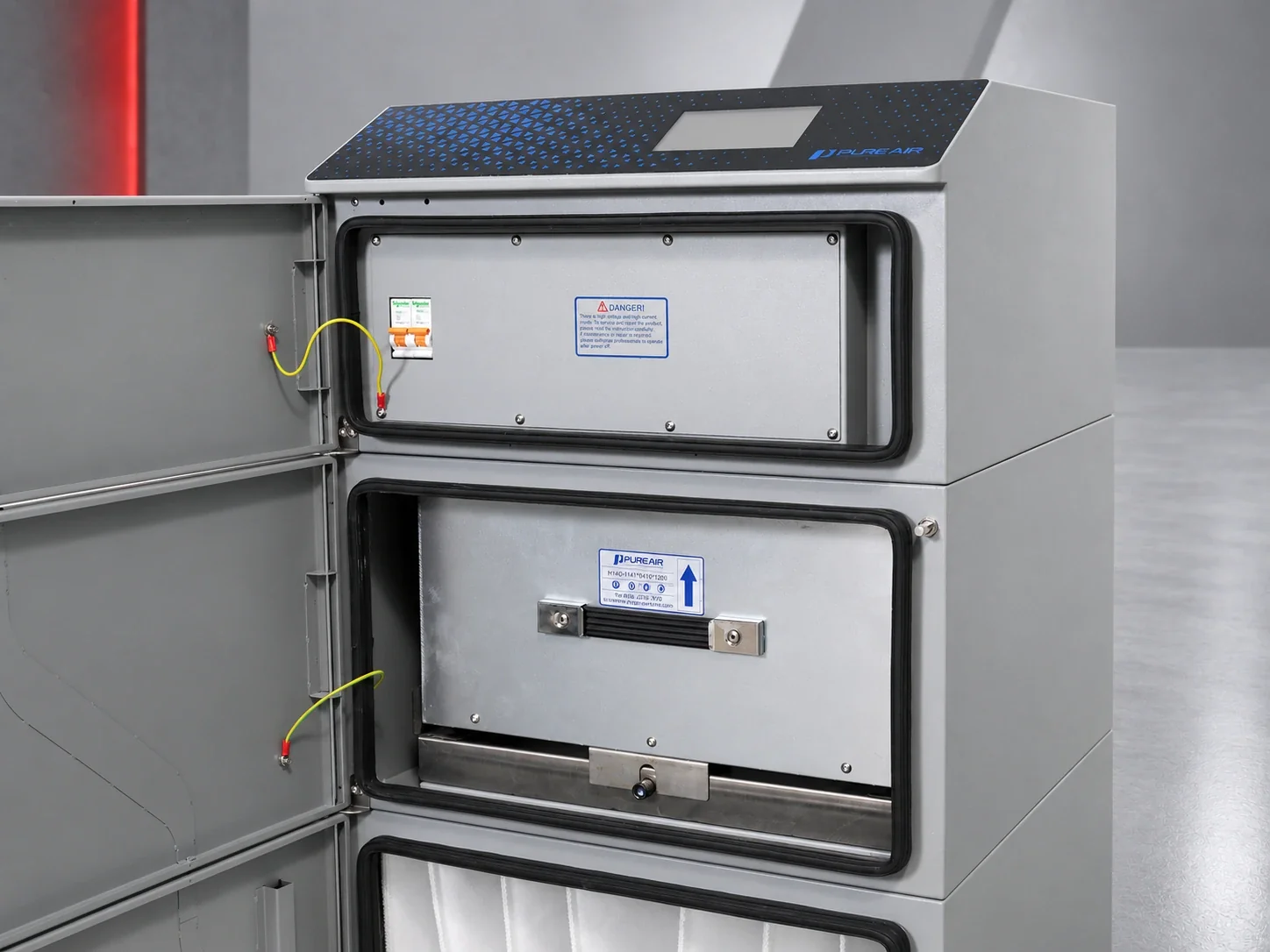

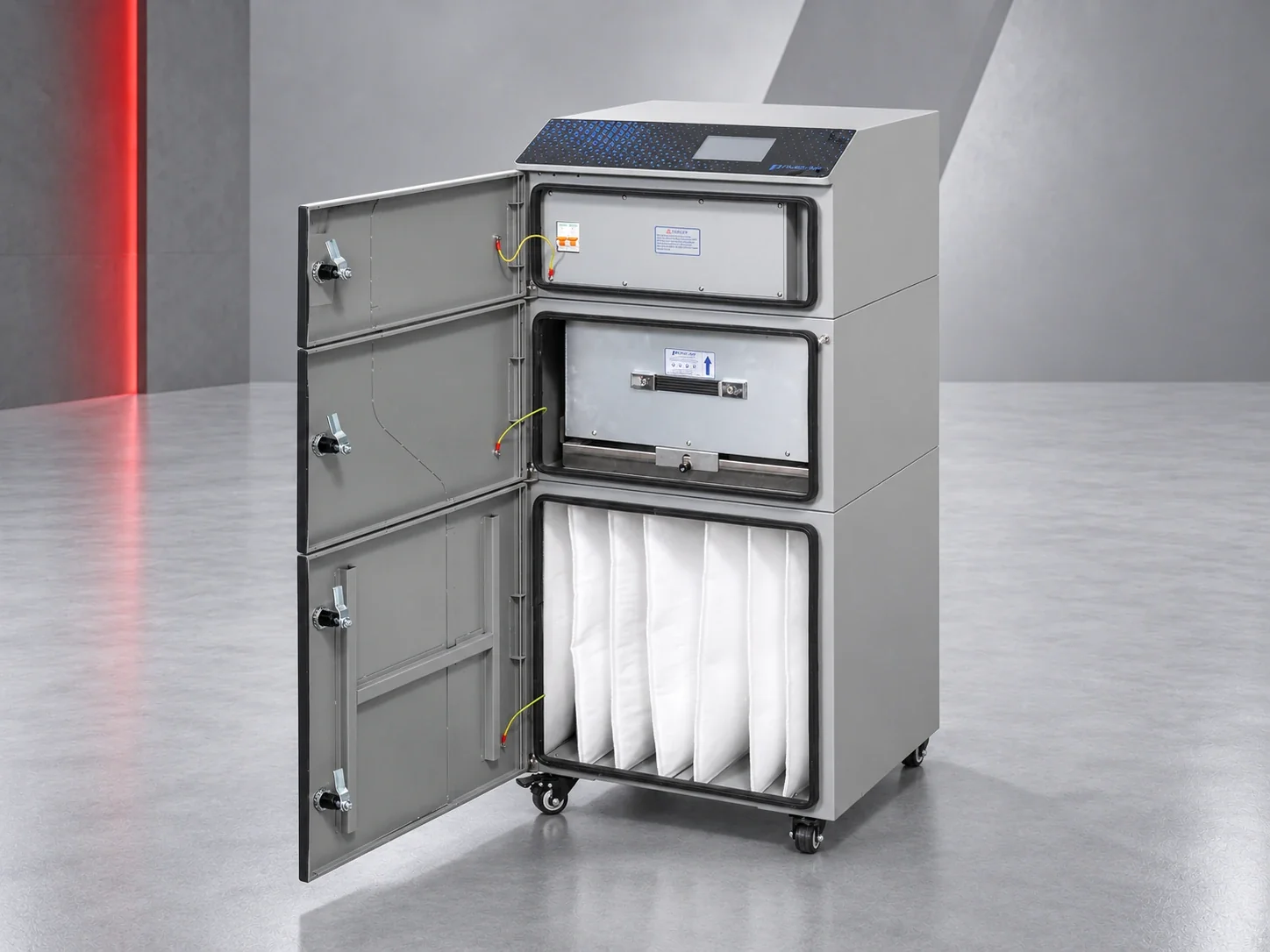

Filtration
- F9 pre-filter, 95% @ 1.0 um
- H14 deeppleat filter, 99.99% @ 0.3 um
- Treated activated carbon, approx. 12-30 kg
Key specifications
- Airflow: 400 m³/h
- Maximum negative pressure: 8000 Pa
- Rated power: 1.0 kW
- Power supply: 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Noise level: below 60 dBA at 1 m
- Dimensions (W x D x H): 450 x 482 x 941 mm
- Net weight: 45 kg
- Inlet: 75 / 100 mm
- Cabinet: Powder coated mild steel / brushed stainless steel
Recommended for
- Fibre laser markers and engravers
- UV and CO2 laser coders
- Inline marking stations on assembly lines
Intelligent version (PIPS)

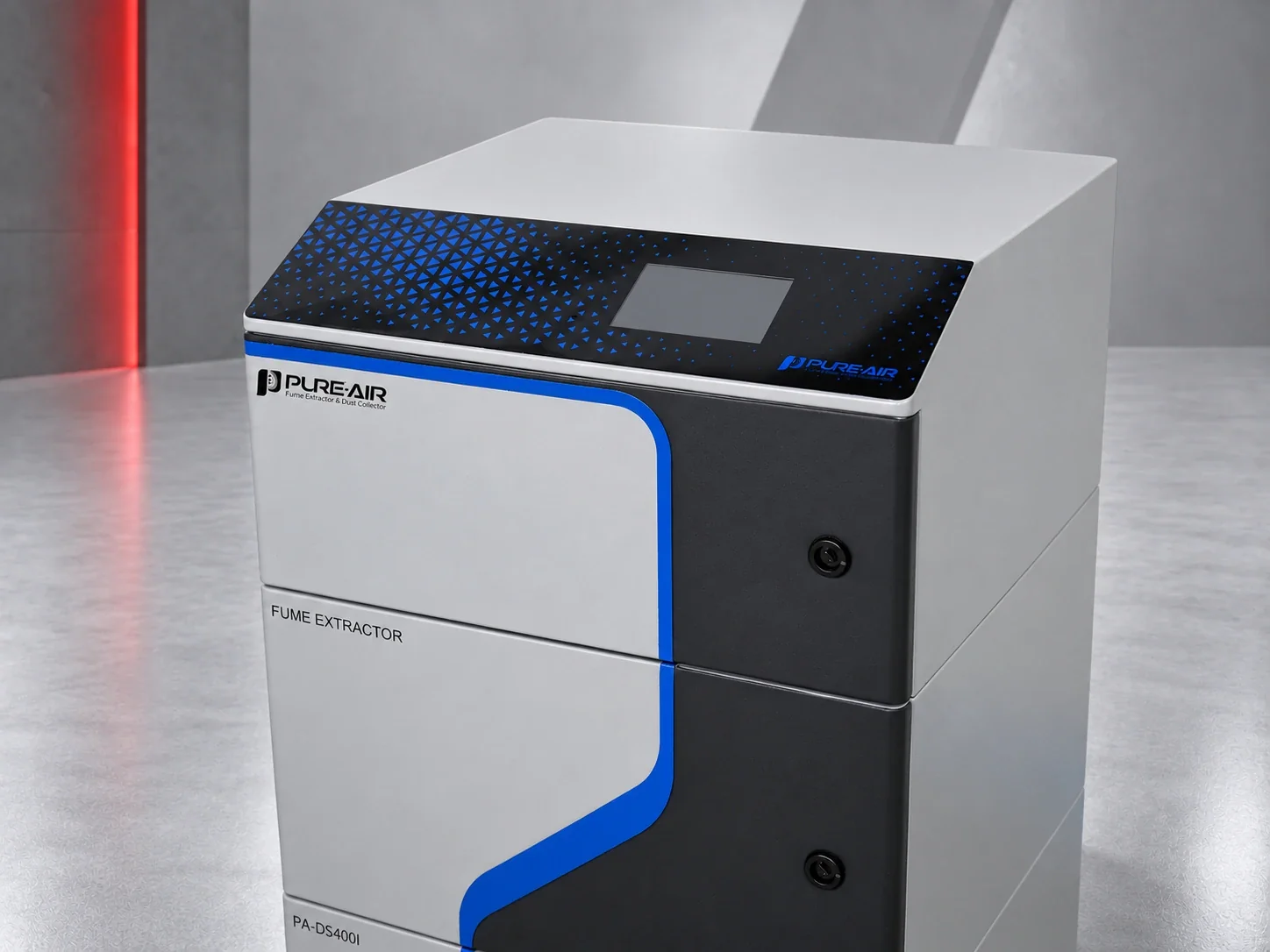

This is the i version of the model. It adds the Pure-Air Intelligent Purification System: an industrial touch screen that shows real airflow and negative pressure in real time, a filter health manager that warns before a stage blocks, and automatic airflow compensation so extraction does not fade as the filter loads. I/O and RS-485 allow remote start/stop, linkage with the host machine or robot and centralised control of several units. PM2.5, VOC and O3 sensors are available as an option, and firmware updates are loaded from a TF card.
Installation

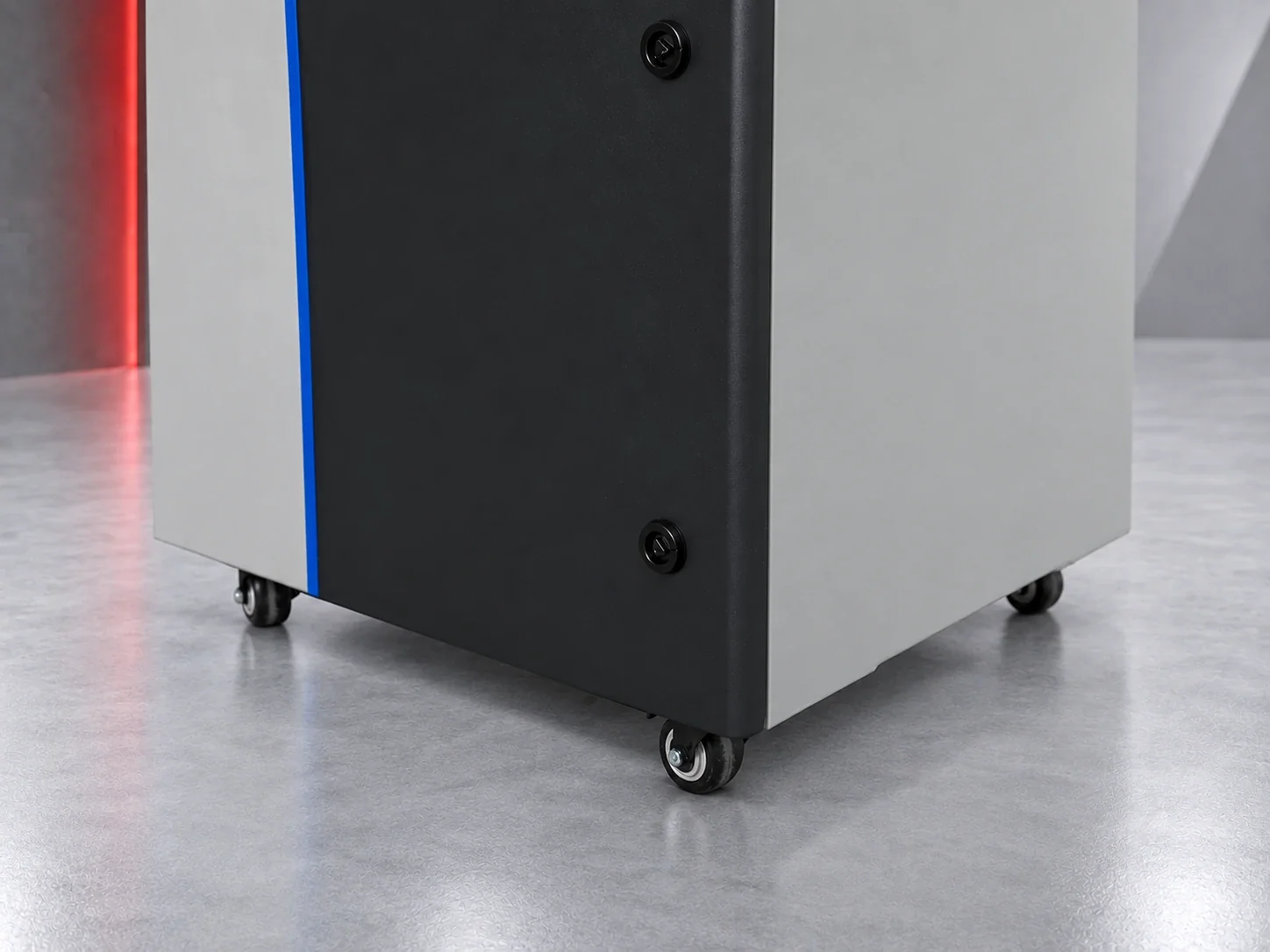

Bench-top or on castors beside the marking station. Connect the extraction hood or the machine port to the inlet with a short flexible hose; on an enclosed marker, take the air from the enclosure's own port. Keep the hose run short - marking fume is fine and light, but capture velocity at the nozzle is what decides whether it reaches the unit at all.
Technical specifications
- Phase
- Single-phase
- Airflow
- 400 m³/h
- Inlet size
- 75 / 100 mm
- Net weight
- 45 kg
- Pre-filter
- F9 pre-filter, 95% @ 1.0 um
- Main filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Noise level
- 60 dB(A) max.
- Rated power
- 1 kW
- Power supply
- 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Control system
- PIPS intelligent control
- Explosion-proof
- No
- Activated carbon
- Yes - treated activated carbon, approx. 12-30 kg
- Cabinet construction
- Powder coated mild steel / brushed stainless steel
- Dimensions (W×D×H)
- 450 x 482 x 941 mm
- Max. negative pressure
- 8000 Pa
Application details
Recommended for
Fibre laser markers and engravers; UV and CO₂ laser coders; Inline marking stations on assembly lines
Materials
Stainless steel and other metals, engineering plastics, cartons, PET, PC, PCB and chips
Typical working format
Production line
Control system
PIPS - Pure-Air Intelligent Purification System. Industrial touch screen, real-time airflow and negative-pressure readout, filter health manager with early replacement warning, automatic airflow compensation as the filter loads, I/O and RS-485 for MES / robot / multi-unit linkage, optional PM2.5 / VOC / O3 sensors, temperature and humidity safety shutdown, TF-card firmware upgrade.
Installation
Bench-top or on castors beside the marking station. Connect the extraction hood or the machine port to the inlet with a short flexible hose; on an enclosed marker, take the air from the enclosure's own port. Keep the hose run short - marking fume is fine and light, but capture velocity at the nozzle is what decides whether it reaches the unit at all.
Series
DS
