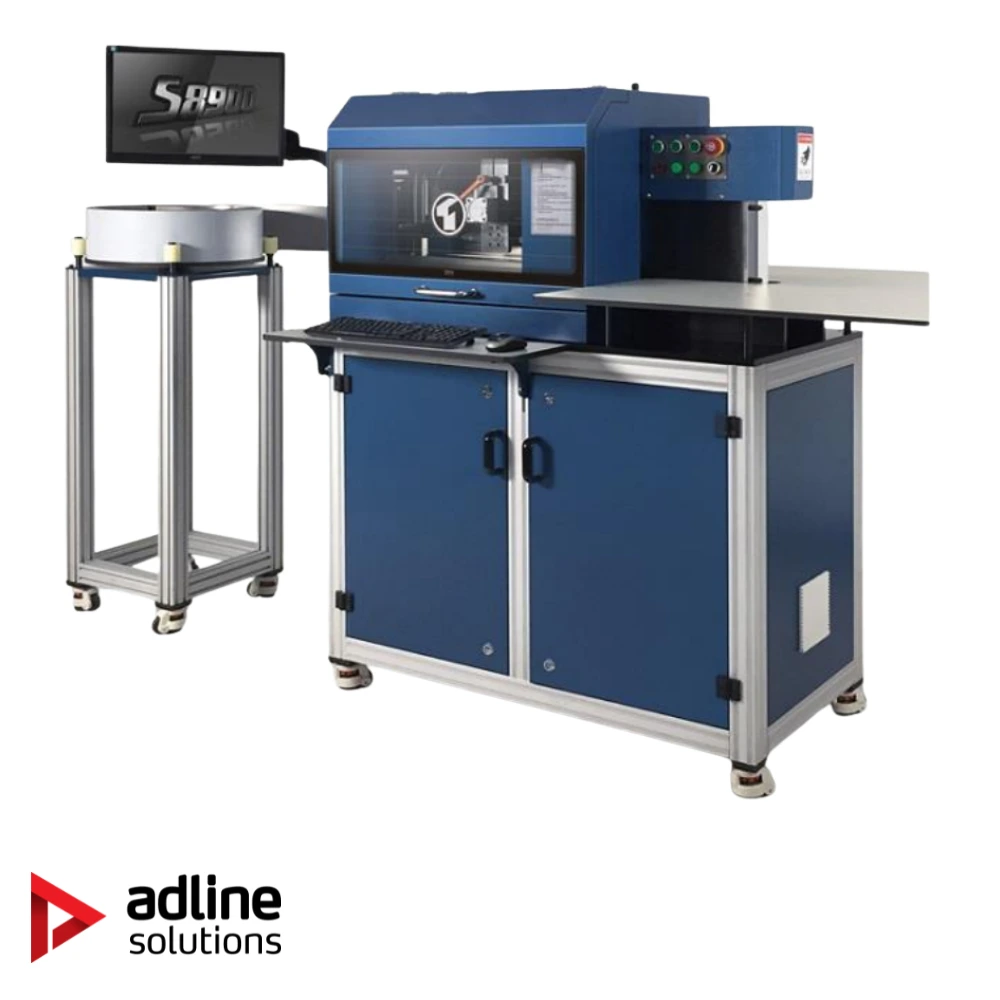

TPS S8900 Automatic Channel Letter Bending Machine
In stock
- 4 controlled axes — 3 servo motors and 1 stepper motor
- Double lead-screw alternate feeding for high torque and no strip creep
- Servo-controlled V-groove slotting with adjustable depth
- Telescopic alternating bending bars for thicker gauges and tall profiles
- Processing height up to 175 mm
- Optional side hole punching in the same pass
High-precision four-axis bender for tall and thick-gauge channel letters — up to 175 mm letter height, double lead-screw feeding and servo V-groove slotting.
Request a quote- Channel letters
- Illuminated signage
- Stainless steel
- Aluminium
- Sheet metal forming
About this machine
TPS S8900 Automatic Channel Letter Bending Machine
TPS S8900 is the precision machine in the range, a full upgrade of the earlier S8710. Closed-loop control, pneumatic clamping and a double lead-screw alternate feed replace the belt drive, which raises feeding torque and keeps the strip from creeping under load — the two things that decide whether a tall letter closes cleanly.
A servo-driven V-groove slotter with adjustable depth and the telescopic alternating bending bars handle heavier gauges and taller profiles than an entry-level bender can. Side hole punching is available as an option and is done in the same pass, which removes a separate drilling step when the back plate has to be fixed.
It is the machine for high-grade landscape LED letters, stainless steel letters, punched letters and resin letters where the finish is judged close up.
Applications
- High-grade illuminated LED letters for facades, malls and commercial buildings
- Tall stainless steel and galvanised lettering up to 175 mm
- Punched letters with side holes for back-plate fixing
- Resin-filled and decorative branding letters
- Landscape and architectural signage
Technical specifications
Forming
- Controlled axes
- 4
- Servo motors
- 3
- Stepper motors
- 1
- Minimum bending radius
- R7 mm
- Minimum distance between interior and exterior angle
- 3 mm
- Bending distance from start
- 3 mm
- Material feeding
- Alternate feeding, double lead screw
- Slotting
- V-groove, servo-controlled, adjustable depth
- Side hole punching
- Optional
Material
- Applied materials
- Stainless steel, galvanised sheet, aluminium coil
- Material thickness
- 0.6 – 1.0 mm
- Optional bending die
- 1.0 – 2.0 mm for aluminium
- Processing height
- 20 – 175 mm
Software & control
- Control system
- Closed-loop servo control with TPS in-house channel letter bending software
- File input
- DXF, PLT
- Compatible design software
- AutoCAD, Type3, CorelDRAW, Adobe Illustrator
Power & air
- Power supply
- AC 220 V, 50 Hz
- Installed power
- 2.5 kW
- Compressed air
- 0.4 – 0.6 MPa
Dimensions & weight
- Machine dimensions
- 1450 × 820 × 1550 mm
- Net weight
- 600 kg
- Gross weight
- 680 kg
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
High-precision four-axis bender for tall and thick-gauge channel letters — up to 175 mm letter height, double lead-screw feeding and servo V-groove slotting.
Series
S Series
Frequently asked questions
What is the S8900 built for?
High-grade lettering where the finish is judged close up: illuminated LED letters for facades, malls and commercial buildings, tall stainless steel and galvanised letters up to 175 mm, punched letters with side holes for back-plate fixing, resin-filled and decorative branding letters, and landscape and architectural signage.
Which materials and letter heights does it handle?
Stainless steel, galvanised sheet and aluminium coil from 0.6 to 1.0 mm, at a processing height of 20 – 175 mm. An optional bending die takes aluminium from 1.0 to 2.0 mm.
Why does the feeding system matter on tall letters?
The S8900 feeds with a double lead screw instead of a belt. That raises feeding torque and stops the strip from creeping under load, which decides whether a tall letter closes cleanly. Four axes are driven by three servo motors and one stepper motor under closed-loop control, with pneumatic clamping.
How is the strip slotted and bent?
A servo-driven V-groove slotter with adjustable depth and telescopic alternating bending bars handle heavier gauges and taller profiles. The minimum bending radius is R7 mm, the minimum distance between interior and exterior angles 3 mm, and bending starts 3 mm from the strip end.
Can it punch holes for the back plate?
Yes, as an option. Side hole punching is done in the same pass as bending, which removes a separate drilling step when the back plate has to be fixed. Tell us if you need it and we will include it in the quote.
Which files does it take?
DXF and PLT, so you work from the files you already draw in AutoCAD, Type3, CorelDRAW or Adobe Illustrator. The machine runs closed-loop servo control with TPS in-house channel letter bending software.
What does it need on site?
An AC 220 V, 50 Hz supply for 2.5 kW installed power, compressed air at 0.4 – 0.6 MPa, and floor space for 1450 × 820 × 1550 mm. It weighs 600 kg net and 680 kg gross.
