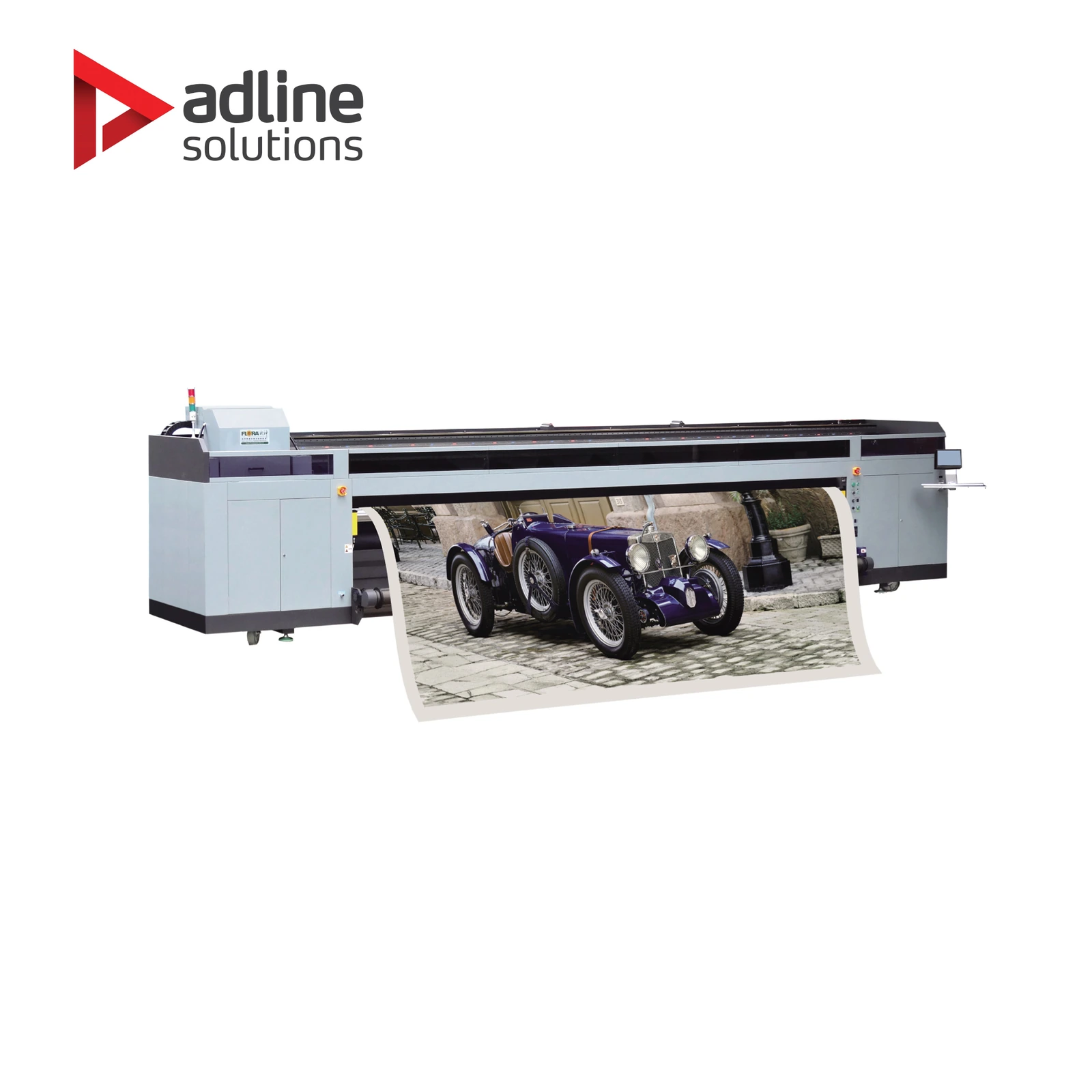

Flora Xtra3300 / Xtra5000 UV LED Roll-to-Roll Printer
On request
- Available in 3.3 m (Xtra3300) and 5 m superwide (Xtra5000)
- 8 to 16 Konica Minolta KM-1024A greyscale heads, up to 1440 dpi
- Up to 200 m2/h in 2-pass mode
- Prints up to three rolls simultaneously
- Industrial media handling for rolls up to 360 kg with vertical locking
- Linear-motor X axis with metal encoder strip for accurate drop placement
Roll-to-roll UV LED printer in 3.3 m and 5 m widths, with up to 16 Konica Minolta KM-1024A heads, 360 kg roll handling and up to 200 m2/h.
Request a quoteFlatbed, hybrid or roll? Read the guide- UV printing
- Large format
- Signage & advertising
- Textiles
Configurations
| Configuration | Differences | Availability |
|---|---|---|
| Xtra3300 - 3.3 mOn request | Print width: 3300 mm · Max. media size: 3300 mm wide x 200 m long | On request |
| Xtra5000 - 5 m superwideOn request | Print width: 5000 mm · Max. media size: 5000 mm wide x 200 m long · Machine dimensions: 7900 x 2000 x 1900 mm · Machine weight: 5,000 kg | On request |
About this machine
Flora Xtra3300 / Xtra5000 UV LED Roll-to-Roll Printer
The Flora Xtra roll-to-roll platform is built for high-volume outdoor and display production. It is available in two widths - Xtra3300 at 3.3 m and Xtra5000 at 5 m superwide - on the same mechanics, ink system and control software, so the choice is purely one of format.
Both widths carry 8 to 16 Konica Minolta KM-1024A greyscale heads, reaching up to 200 m2/h in 2-pass mode and 1440 dpi in the highest-quality mode. A linear-motor X axis with a metal encoder strip keeps drop placement accurate at production speed.
Media handling is industrial: rolls up to 400 mm in diameter and 360 kg, vertical roll locking for fast changeover, a multi-zone individually controlled vacuum chamber and multi-point tensioning. Up to three rolls can be printed side by side in one run, and double-sided printing is supported with software front/back alignment.
Applications
- Billboards and large outdoor advertising
- Building wraps and mesh facade graphics
- Superwide seamless banners and backdrops
- Backlit and frontlit display graphics
- Vehicle and fleet graphics
- Exhibition and event backdrops
Technical specifications
Print system
- Print heads
- Konica Minolta KM-1024A - 8 to 16 heads depending on configuration
- Drop size
- Variable, 6–18 pl
- Ink type
- UV / UV LED ink
- Ink colours
- CMYK + Lc + Lm + White
- Colour configurations offered
- CMYK · CMYK + Lc + Lm · CMYK + White x2 · CMYK + Lc + Lm + White x2 · CMYK + White + Varnish
- Print resolution
- 1440 dpi
- Print modes
- Double-sided printing with software front/back image alignment
- Variable drop
- Yes — 4-level greyscale printing
- Ink cartridge capacity
- 2.5 litres per colour
- Print resolution modes
- 540×720, 540×1080, 726×720, 726×1080, 726×1440 dpi
Performance
- Print speed
- Max. speed 200 m²/h (2-pass) · high quality 54 m²/h (8-pass)
Media
- Media thickness
- 2 mm
- Roll specifications
- Roll outer diameter 400 mm, roll weight up to 360 kg
- Media handling
- Industrial roll-to-roll transport with tensioning
- Take-up system
- Dual servo feed and take-up with automatic media tension control and vertical roll locking
- Multi-roll printing
- Up to 3 rolls printed simultaneously
- Vacuum table
- Vacuum chamber divided into 4 independently controlled zones
- Media types
- Frontlit, backlit, mesh, canvas, self-adhesive vinyl and similar
- Compatible materials
- Backlit film, photo paper, polypropylene, canvas, floor graphics, pop-up banner and other flexible roll media up to 2 mm thick
- File formats
- TIFF, JPG, PDF, PSD, EPS, PS, Bitmap and others
- Roll outer diameter
- 400 mm
- Roll weight
- Up to 360 kg
Curing
- Curing system
- UV LED
Software & connectivity
- RIP software
- PhotoPrint Flora Edition 10.5 (Onyx optional)
- Computer connection
- USB 3.0
- Calibration
- Software
Power & environment
- Power supply
- 220 V, 50/60 Hz
- Power consumption
- Max. 5,000 W
- Operating temperature
- 20–30 °C
- Operating humidity
- 35–65% RH, non-condensing
Features
- Motion system
- Linear-motor X axis with metal encoder strip; servo motors on carriage, transport, feed and take-up
- Head height / gap
- Automatic print head height adjustment
- Anti-collision system
- Infrared safety system detecting obstructions in front of and behind the machine
- Print monitoring
- Built-in LED light box for real-time print inspection
- Maintenance system
- Electronic flush and purge system
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Roll-to-roll UV LED printer in 3.3 m and 5 m widths, with up to 16 Konica Minolta KM1024i heads, 360 kg roll handling and up to 200 m2/h.
Series
Flora
Frequently asked questions
Xtra3300 or Xtra5000: how do we choose?
By format only. Both run on the same mechanics, ink system and control software. The Xtra3300 prints 3300 mm wide and the Xtra5000 5000 mm wide, each on media up to 200 m long. The Xtra5000 measures 7900 × 2000 × 1900 mm and weighs 5,000 kg. Tell us the widest job you sell and we will advise.
How fast does it print, and at what resolution?
Up to 200 m²/h in 2-pass mode and 54 m²/h in 8-pass high-quality mode. Resolution modes are 540 × 720, 540 × 1080, 726 × 720, 726 × 1080 and 726 × 1440 dpi. It carries 8 to 16 Konica Minolta KM-1024A greyscale heads with a variable 6–18 pl drop, and a linear-motor X axis with a metal encoder strip keeps drop placement accurate.
Which colour configurations are available?
Five: CMYK; CMYK + Lc + Lm; CMYK + White ×2; CMYK + Lc + Lm + White ×2; and CMYK + White + Varnish. Ink is cured by UV LED. Send us your job mix and we will help you choose.
What media and roll sizes does it take?
Frontlit, backlit, mesh, canvas, self-adhesive vinyl and similar flexible media up to 2 mm thick. Rolls can be 400 mm in outer diameter and up to 360 kg, with vertical roll locking for fast changes. Dual servo feed and take-up control tension automatically, a vacuum chamber has 4 independent zones, and up to three rolls can print side by side.
Can it print double-sided?
Yes. Double-sided printing is supported, with software alignment of the front and back images. A built-in LED light box lets the operator inspect prints in real time. Send us a double-sided job and we will show you the workflow.
What does it need on site?
A 220 V, 50/60 Hz supply with a maximum power draw of 5,000 W, and a room at 20–30 °C and 35–65% RH, non-condensing. The Xtra5000 measures 7900 × 2000 × 1900 mm and weighs 5,000 kg. Dimensions for the Xtra3300 are not in our data; we send them with the quote.
Which software and files does it use?
PhotoPrint Flora Edition 10.5 is the RIP, with Onyx as an option, and calibration is done in software. The printer connects to the computer over USB 3.0 and accepts TIFF, JPG, PDF, PSD, EPS, PS and Bitmap files, among others.
