Flora XTRA3300H Hybrid UV Printer - 3.3 m
On request
- Hybrid media handling: roll media up to 3,300 mm wide and rigid boards up to 3300 × 2500 mm
- Konica Minolta KM-1024A greyscale heads, up to 24 heads in a dual CMYK layout
- Up to 136 m2/h (4 pass), resolution up to 600 x 2400 dpi
- Variable drop size 6-18 pl, 4 grey levels
- 4-6 colours plus white; three-layer printing in CWC and WCV modes
- Media up to 51 mm thick with automatic head height adjustment
Industrial 3.3 m hybrid UV LED printer for roll media and rigid boards up to 3300 × 2500 mm and 51 mm thick, with Konica Minolta KM-1024A heads and up to 136 m2/h.
Request a quoteFlatbed, hybrid or roll? Read the guide- UV printing
- Acrylic
- Wood & MDF
- Metal
- Signage & advertising
- Large format
About this machine

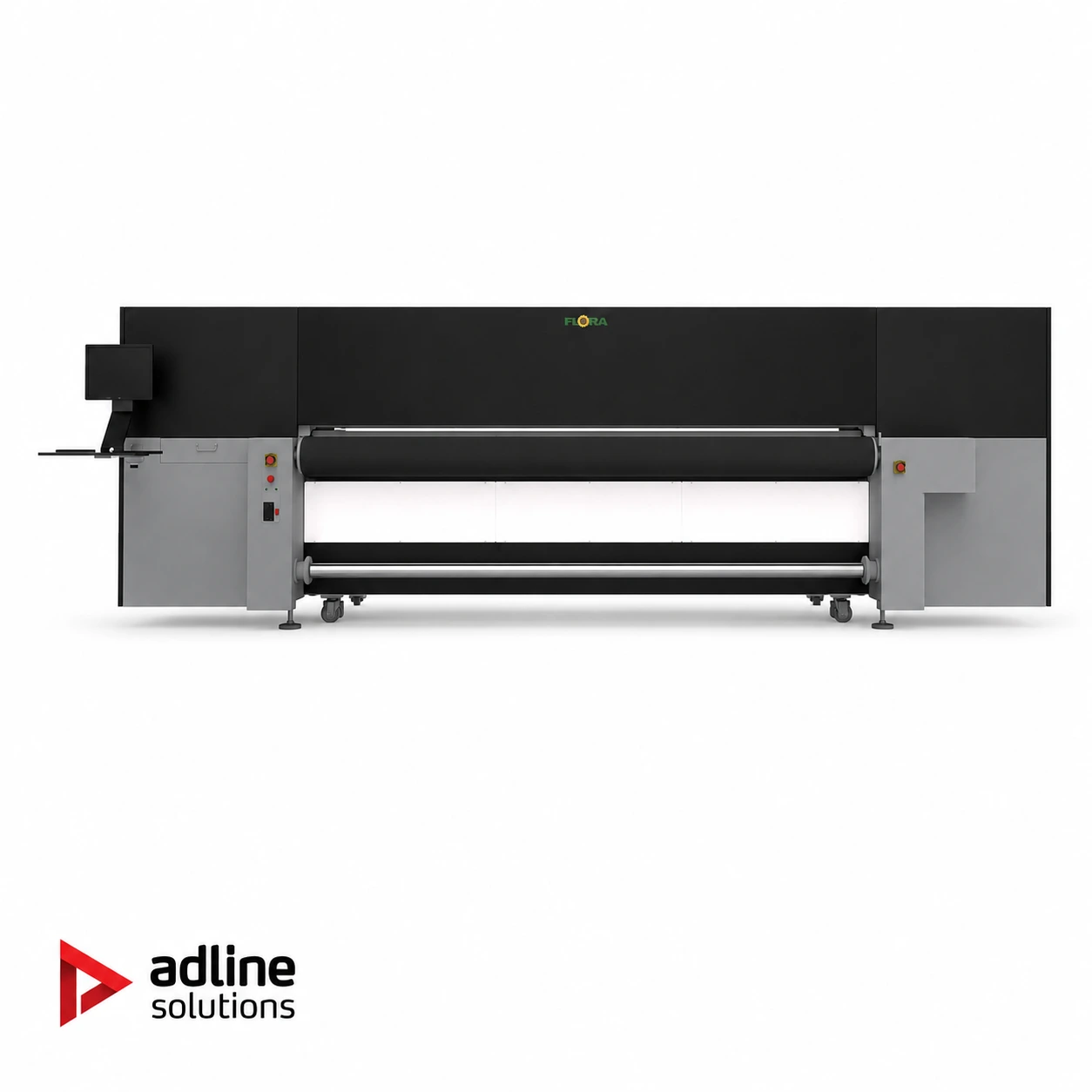

Flora XTRA3300H Hybrid UV Printer - 3.3 m
The XTRA3300H is an industrial hybrid UV LED printer that prints both on roll media up to 3,300 mm wide and on rigid boards up to 3300 × 2500 mm and 51 mm thick. A vacuum table with conveyor-belt movement and outrigger tables carries the boards, and rolls up to 40 cm in diameter run through the feed and take-up system, so one machine covers banner, vinyl and rigid signage work.
Heads and colour
The XTRA3300H is built with Konica Minolta KM-1024A greyscale heads, up to 24 heads in a dual CMYK layout. Four colours are standard; light cyan, light magenta and white are optional. Variable drop size from 6 to 18 pl with four grey levels and resolution up to 600 × 2400 dpi give smooth gradients and sharp detail. Three-layer spot-colour printing in CWC and WCV modes builds backlit graphics and white effects in a single job.
Productivity
Express mode (4 pass) runs at 136 m²/h, production mode (6 pass) at 103 m²/h and quality mode (8 pass) at 68 m²/h.
Built for steady production
Dynamic UV LED lamps cure the ink as it is printed. The printer measures media thickness and sets the head height automatically, the anti-collision function stops the carriage before the heads hit the material, and an infrared safeguard detects obstacles at the feed and take-up. An automatic dual negative-pressure system with separate white-ink control keeps the ink flow stable. Files are prepared in PhotoPRINT Server Flora Edition or Onyx, with Caldera as an option.
Applications
- Banners, tarpaulins and mesh for outdoor advertising
- Rigid panels, display and POS materials
- Backlit graphics and light boxes
- Interior decoration and wall graphics
- Signage and wayfinding
Technical specifications
Print system
- Print heads
- Konica Minolta KM-1024A (greyscale)
- Number of print heads
- Up to 24, dual CMYK layout (4 colours standard; light cyan, light magenta and white optional)
- Ink type
- UV LED
- Ink colours
- 4-6 colours + white
- Print resolution
- Up to 600 x 2400 dpi
- Drop size
- 6-18, variable, 4 grey levels pl
- Layer printing
- 3-layer spot colour, CWC and WCV modes
- Ink supply
- Automatic dual negative-pressure system with independent white-ink control
Performance
- Print speed
- Express (4 pass) 136 m2/h · Production (6 pass) 103 m2/h · Quality (8 pass) 68 m2/h
Media
- Print width
- Up to 3,300 mm
- Rigid media size
- 3300 x 2500 mm
- Media thickness
- Up to 51 mm
- Roll specifications
- Width up to 3,300 mm, roll diameter up to 40 cm
- Media handling
- Vacuum table with conveyor-belt movement, outrigger tables extending the printing format
- File formats
- TIFF, JPEG, PostScript, EPS, PDF (CMYK and RGB)
Curing
- Curing system
- Dynamic UV LED lamps
Software & connectivity
- RIP software
- PhotoPRINT Server Flora Edition, Onyx (Caldera optional)
Features
- Head height
- Automatic media thickness detection and head height adjustment
- Anti-collision system
- Carriage stops if the heads would hit the media
- Infrared safeguard
- Detects obstacles at the feed and take-up
Dimensions & weight
- Machine dimensions (W × D × H)
- 6000 x 1550 x 1600 mm
- Machine weight
- 3,000 kg
Power & environment
- Power supply
- 200-240 V AC, single phase, 50/60 Hz; 25 A printer + 25 A vacuum motor
- Operating temperature
- 20-30 C
- Operating humidity
- 40-80% (non-condensing)
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Industrial 3.3 m hybrid UV LED printer for roll media and rigid boards up to 45 mm thick, with greyscale heads, up to 99 m2/h and 705 x 2400 dpi.
Series
Flora
Frequently asked questions
What work is it suited to?
Banner, vinyl and rigid signage on one machine. It prints roll media up to 3,300 mm wide on rolls up to 40 cm in diameter, and rigid boards up to 3300 × 2500 mm and 51 mm thick. Applications include tarpaulins and mesh, display and POS panels, backlit graphics, interior and wall graphics, and wayfinding.
How fast does it print?
Express mode (4 pass) runs at 136 m²/h, production mode (6 pass) at 103 m²/h and quality mode (8 pass) at 68 m²/h. Resolution goes up to 600 × 2400 dpi with a variable drop of 6–18 pl in four grey levels. Send us a typical file and we will tell you which mode it needs.
Which heads and colours does it use?
Up to 24 Konica Minolta KM-1024A greyscale heads in a dual CMYK layout. Four colours are standard; light cyan, light magenta and white are optional, so you can run 4–6 colours plus white. Three-layer spot-colour printing in CWC and WCV modes builds backlit graphics and white effects in one job.
How are boards and rolls handled?
Boards ride on a vacuum table with conveyor-belt movement, and outrigger tables extend the printing format. Rolls run through the feed and take-up system. The printer measures media thickness and sets the head height, the anti-collision function stops the carriage before the heads hit the material, and an infrared safeguard detects obstacles at the feed and take-up.
What does it need on site?
A 200–240 V AC single-phase, 50/60 Hz supply with 25 A for the printer and 25 A for the vacuum motor, in a room at 20–30 °C and 40–80% humidity, non-condensing. The machine measures 6000 × 1550 × 1600 mm and weighs 3,000 kg.
Which RIP and file formats does it support?
Files are prepared in PhotoPRINT Server Flora Edition or Onyx, with Caldera as an option. The printer accepts TIFF, JPEG, PostScript, EPS and PDF in CMYK or RGB. Dynamic UV LED lamps cure the ink as it prints, and an automatic dual negative-pressure system with independent white-ink control keeps ink flow stable.
