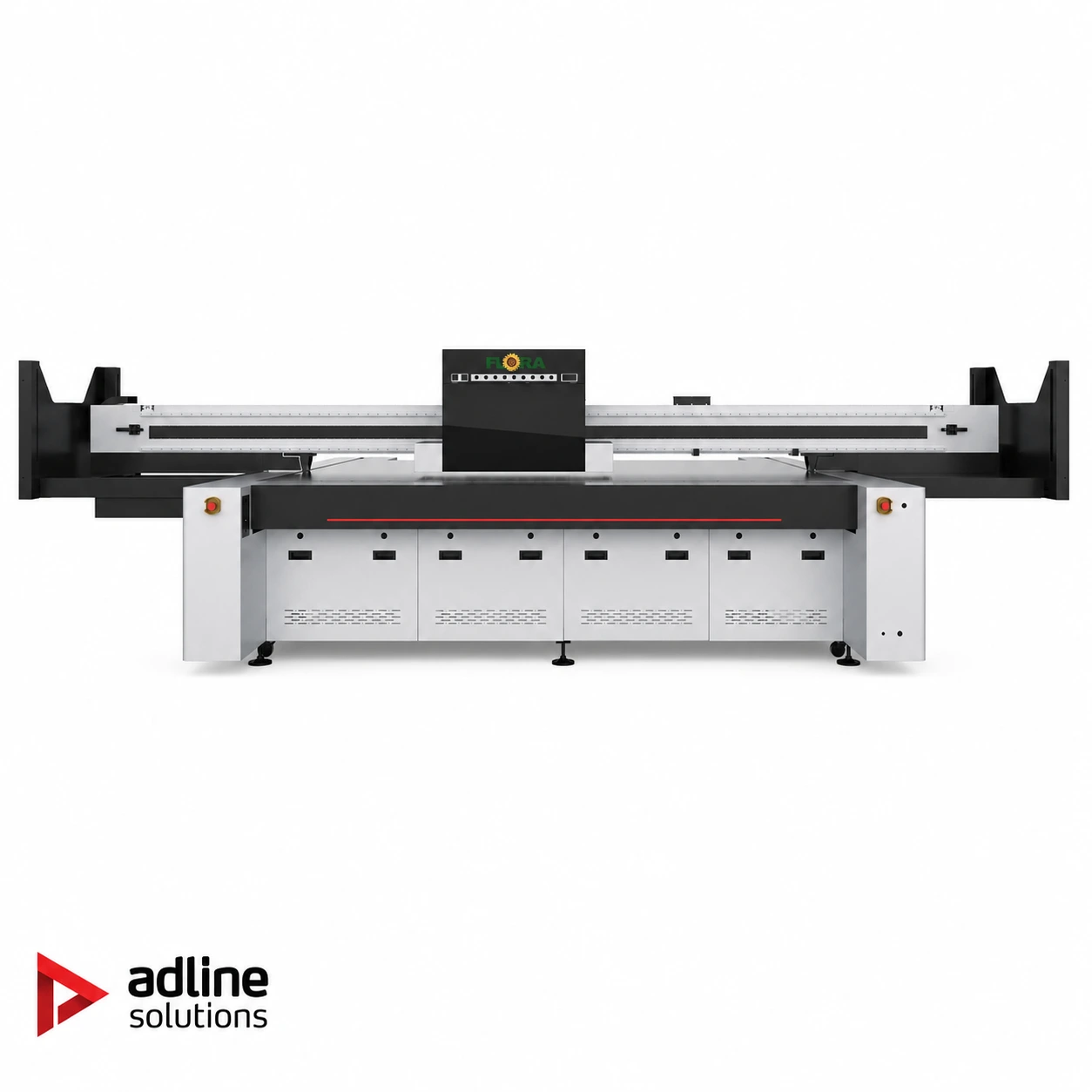

Flora XTRA3220LED UV LED Flatbed Printer - 3.2 x 2.0 m
On request
- 3200 x 2000 mm flatbed working area for rigid media up to 100 mm thick
- Epson T3200 or Konica Minolta KM1024A greyscale print heads, up to 24 heads in 6 rows
- Resolution up to 726 x 1440 dpi (KM1024A) or 705 x 2400 dpi (T3200)
- Speeds up to 219 m2/h (KM1024A) or 199 m2/h (T3200)
- Variable drop size 4-12 pl with 4 density levels
- Optional white and varnish, including three-layer C-W-V printing in a single pass
Industrial 3200 x 2000 mm UV LED flatbed printer for rigid media up to 100 mm thick, with up to 24 greyscale heads and speeds up to 219 m2/h.
Request a quoteFlatbed, hybrid or roll? Read the guide- UV printing
- Glass
- Paper
- Signage & advertising
About this machine
Flora XTRA3220LED UV LED Flatbed Printer - 3.2 x 2.0 m
The FLORA XTRA3220LED is a UV LED flatbed solution for producers who need fine detail quality and industrial throughput from the same machine. It prints directly on almost any rigid material up to 100 mm thick - wood, glass, aluminium, acrylic, PVC, ceramics, decorative panels or composite boards - removing lamination and post-application steps and significantly shortening the time from order to finished product.
With a generous 3200 x 2000 mm working area and speeds of up to 219 m2/h, the machine handles series production and one-off custom work equally well. Greyscale technology with variable drop size and multiple density levels reproduces smooth gradients, natural skin tones and small detail with clean edges at resolutions up to 726 x 1440 dpi. The result is premium-looking prints that stay consistent from the first board to the last.
Dynamic UV LED curing dries the ink instantly, directly on the substrate, with low energy consumption and far longer lamp life than conventional mercury-lamp UV systems. Prints come off the bed dry and ready to handle, and running costs stay under control.
Premium effects and finishes - optional white and varnish channels and three-layer printing (colour - white - varnish) in a single pass produce embossed textures, selective gloss, white backgrounds on transparent or coloured materials and a spot-UV look that raises the perceived value of the product.
Fast, repeatable loading - a vacuum table with six selectable zones and automatic pneumatic registration pins clamp boards in exactly the same position every time, for perfect alignment and high throughput even on long runs.
Reliable operation without unplanned stops - automatic thickness detection sets the head height for each material, the anti-collision system protects the print heads, and white-ink recirculation prevents sedimentation and clogging, keeping the workflow steady.
Configuration flexibility - choose Epson T3200 heads for maximum resolution or Konica Minolta KM1024A heads for maximum speed, depending on the work you do most. The machine grows with the business.
Broad workflow compatibility - support for the main RIP packages (Flora, Onyx, Caldera) and for all common file formats makes integration into an existing production environment straightforward.
Applications
- Advertising and rigid display
- Interior decoration: doors, furniture, decorative panels
- Direct printing on glass and ceramics
- Decorative boards and objects
- Signage and wayfinding
- Rigid packaging and customised industrial production
Technical specifications
Print system
- Print heads
- Epson T3200 or Konica Minolta KM1024A (greyscale)
- Number of print heads
- Up to 24, arranged in 6 rows
- Ink type
- UV LED
- Ink colours
- CMYK standard; white and varnish optional
- Print resolution
- 726 x 1440 dpi (KM1024A) / 705 x 2400 dpi (T3200)
- Drop size
- 4-12 pl
- Variable drop
- Yes - greyscale, 4-12 pl, 4 density levels
- Print head nozzle count
- 1,024 nozzles per head (Konica Minolta KM1024a series)
Performance
- Print speed
- Up to 219 m2/h (KM1024A) / 199 m2/h (T3200)
- Productivity
- Express 199 / 219 - Production 128 / 138 - Quality 88 / 98 m2/h (T3200 / KM1024A)
Media
- Print width
- 3,200 mm
- Printing area
- 3200 x 2000 mm
- Media thickness
- Up to 100 mm
- Media types
- Wood, aluminium, doors, paper, PVC, ceiling panels, glass, ceramics, acrylic, textiles, etc.
- Work table size
- Vacuum table with 6 selectable zones plus automatic pneumatic registration pins
- Automatic rigid media feeding
- Manual loading onto the flatbed table with pneumatic registration pins
- File formats
- TIFF, JPEG, PostScript, EPS, PDF (CMYK and RGB)
Curing
- Curing system
- UV LED lamps with dynamic curing
Software & connectivity
- RIP software
- PhotoPRINT Server Flora Edition, Onyx or Caldera (optional)
Dimensions & weight
- Machine dimensions
- 6070 x 3380 x 1620 mm
- Machine weight
- 2,300 kg
Power & environment
- Power supply
- 200-240 V, single phase, 50/60 Hz
- Total installed power
- 2 x 200-240 V AC inputs, single phase, 50/60 Hz, 32 A
- Operating temperature
- 20-30 C
- Operating humidity
- 40-80% (non-condensing)
Certifications
- Certifications
- ISO 9001:2008, CE, FCC, UL, RoHS
Features
- Head height / gap
- Automatically adjusted for media up to 100 mm thick
- Anti-static device
- Yes (anti-static bar)
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Industrial 3200 x 2000 mm UV LED flatbed printer for rigid media up to 100 mm thick, with up to 24 greyscale heads and speeds up to 219 m2/h.
Series
Flora
Frequently asked questions
What can it print on?
Rigid material up to 100 mm thick on a 3200 × 2000 mm flatbed: wood, glass, aluminium, acrylic, PVC, ceramics, doors, ceiling and decorative panels, composite boards, paper and textiles. Applications include rigid display, signage and wayfinding, furniture and door decoration, and customised industrial production. Send us a sample of your material and we will confirm how it prints.
Which heads should we choose?
Choose by the work you do most. Epson T3200 heads give the higher resolution, up to 705 × 2400 dpi, at up to 199 m²/h. Konica Minolta KM1024A heads (1,024 nozzles each) give the higher speed, up to 219 m²/h, at up to 726 × 1440 dpi. Either way the machine takes up to 24 greyscale heads in 6 rows.
How fast is it in each print mode?
With T3200 / KM1024A heads: Express 199 / 219 m²/h, Production 128 / 138 m²/h and Quality 88 / 98 m²/h. Greyscale printing with a variable drop of 4–12 pl and 4 density levels keeps gradients and small detail clean. Send us a file you print often and we will advise which mode suits it.
Can it print white and varnish?
Yes, as options. CMYK is standard; white and varnish channels can be added, and three-layer printing (colour – white – varnish) runs in a single pass. That gives white backgrounds on transparent or coloured materials, selective gloss, embossed textures and a spot-UV look. Dynamic UV LED curing means prints come off the bed dry.
How are boards loaded and held?
Boards are loaded by hand onto a vacuum table with 6 selectable zones, and automatic pneumatic registration pins put each board in the same position every time. The printer detects material thickness and sets the head height, an anti-collision system protects the heads, an anti-static bar is fitted, and white-ink recirculation prevents sedimentation.
What does it need on site?
Two 200–240 V single-phase, 50/60 Hz inputs at 32 A, a room at 20–30 °C with 40–80% humidity, non-condensing, and space for a machine of 6070 × 3380 × 1620 mm weighing 2,300 kg. Certifications listed are ISO 9001:2008, CE, FCC, UL and RoHS.
Which RIP software and file formats does it use?
The RIP options are PhotoPRINT Server Flora Edition, Onyx or Caldera; we confirm which one goes with your machine in the quote. It accepts TIFF, JPEG, PostScript, EPS and PDF files in CMYK or RGB, so artwork from an existing prepress workflow drops straight in.
