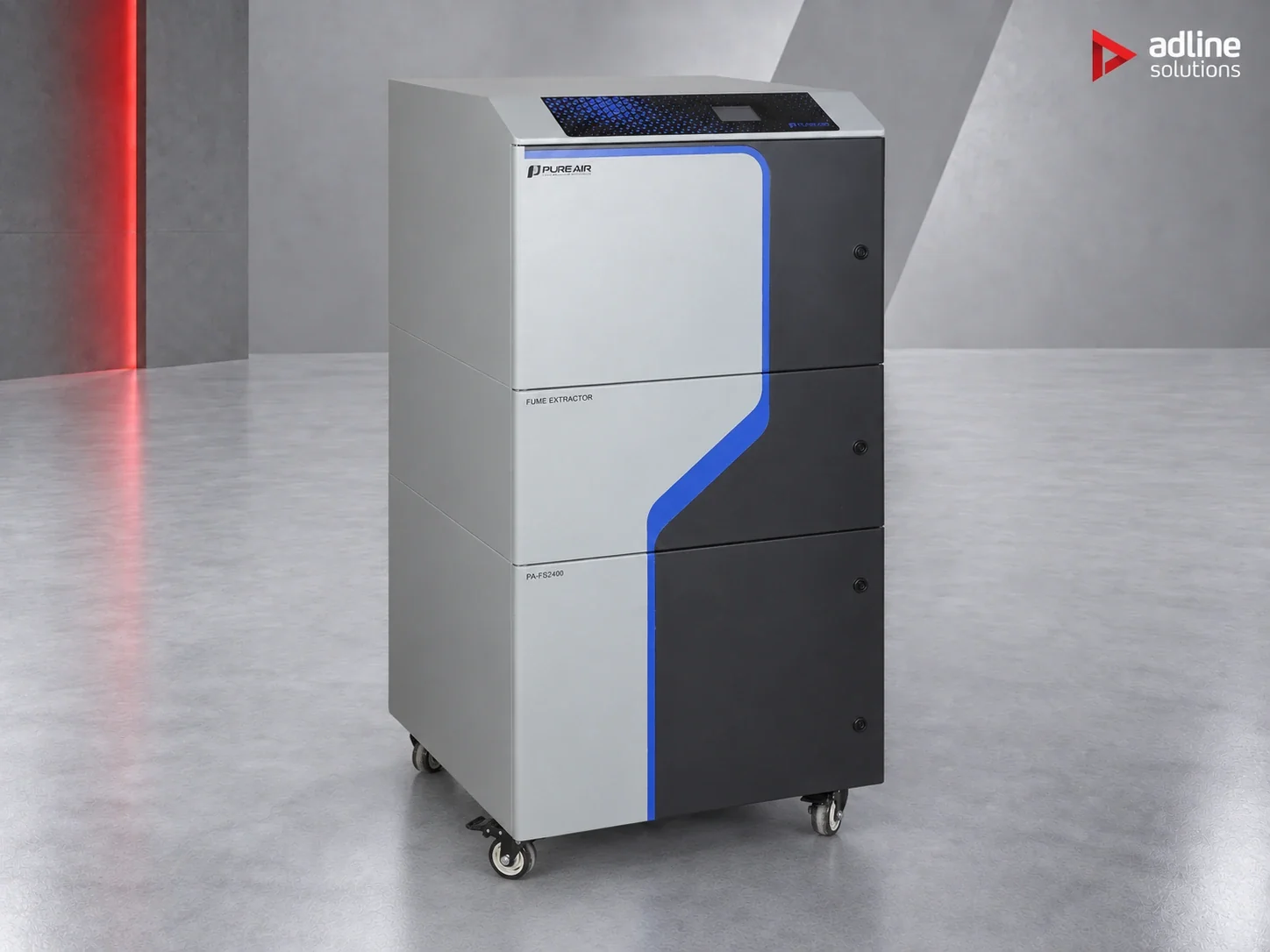

PURE-AIR PA-FS2400 Fume & Dust Extractor
SKU PA-FS2400 · On request
- 2400 m³/h airflow
- Up to 10000 Pa negative pressure
- HEPA H14 filtration, 99.99% @ 0.3 µm
- Activated carbon stage for VOC and odour
- PPS standard control
Industrial fume extraction unit, 2400 m³/h at up to 10000 Pa. Acrylic, paper and card, leather, textiles, technical plastics. PPS standard control.
Request a quote- Laser cutting
- Laser engraving
- CNC routing
- 3D printing / AM
- Acrylic & plastics
- Textiles & leather
About this machine
The PA-FS2400 is a self-contained fume extraction unit for CO2 laser cutting and engraving of non-metals, and for resin-based additive manufacturing. A brushless high-negative-pressure fan pulls 2400 m³/h at up to 10000 Pa, which is what it takes to clear smoke from the kerf rather than merely from the cabinet. Three progressive stages take out coarse particles, sub-micron smoke and finally the odour and solvent vapours that make an engraving shop unpleasant to work in, so the air can be discharged straight back into the room.

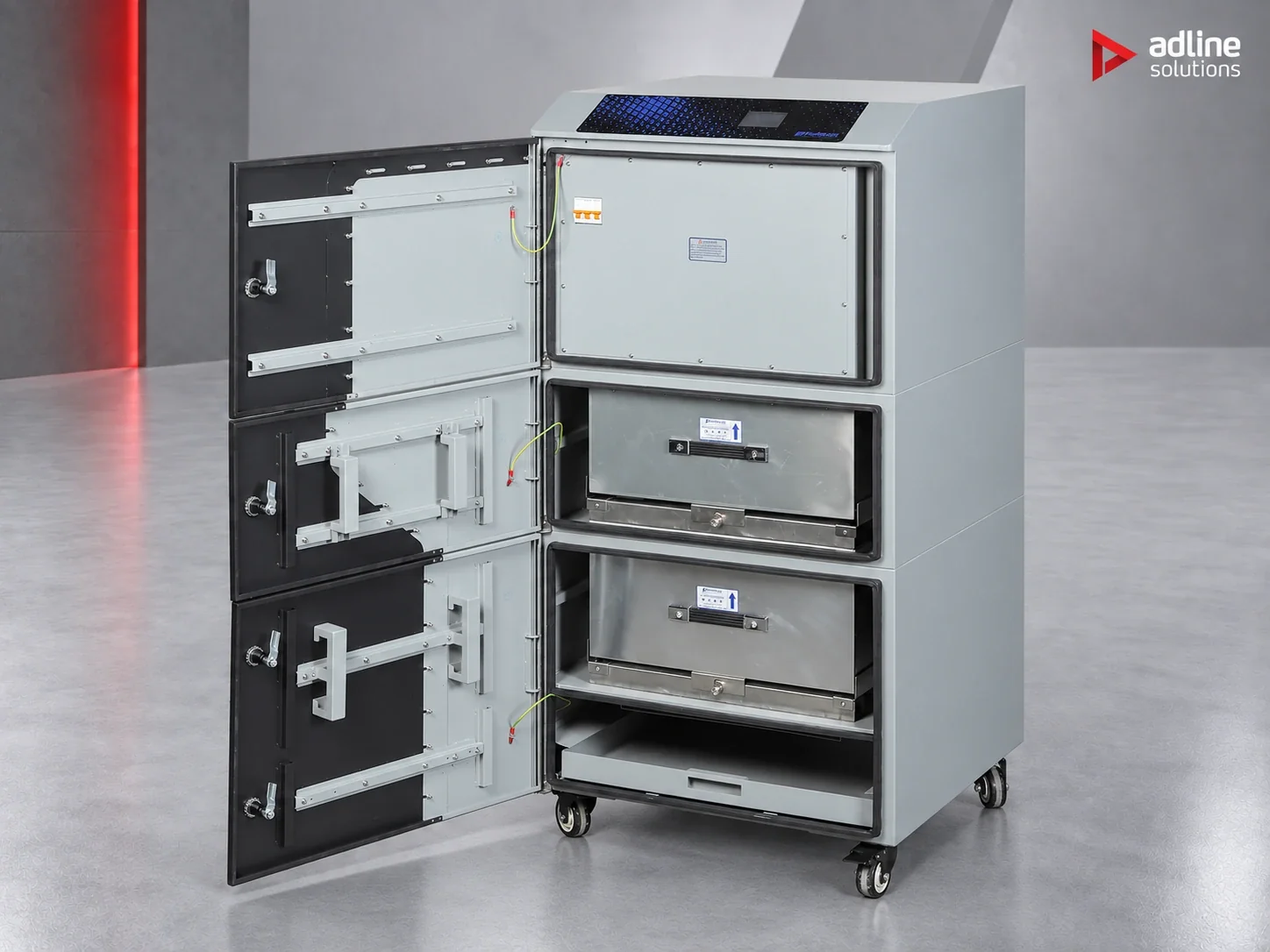

Filtration
- F9 deeppleat pre-filter, 95% @ 1.0 um, 12-30 m² of media
- H14 deeppleat filter, 99.99% @ 0.3 um
- Treated activated carbon, approx. 12-30 kg, for odour and VOC
Key specifications
- Airflow: 2400 m³/h
- Maximum negative pressure: 10000 Pa
- Rated power: 3.5 kW

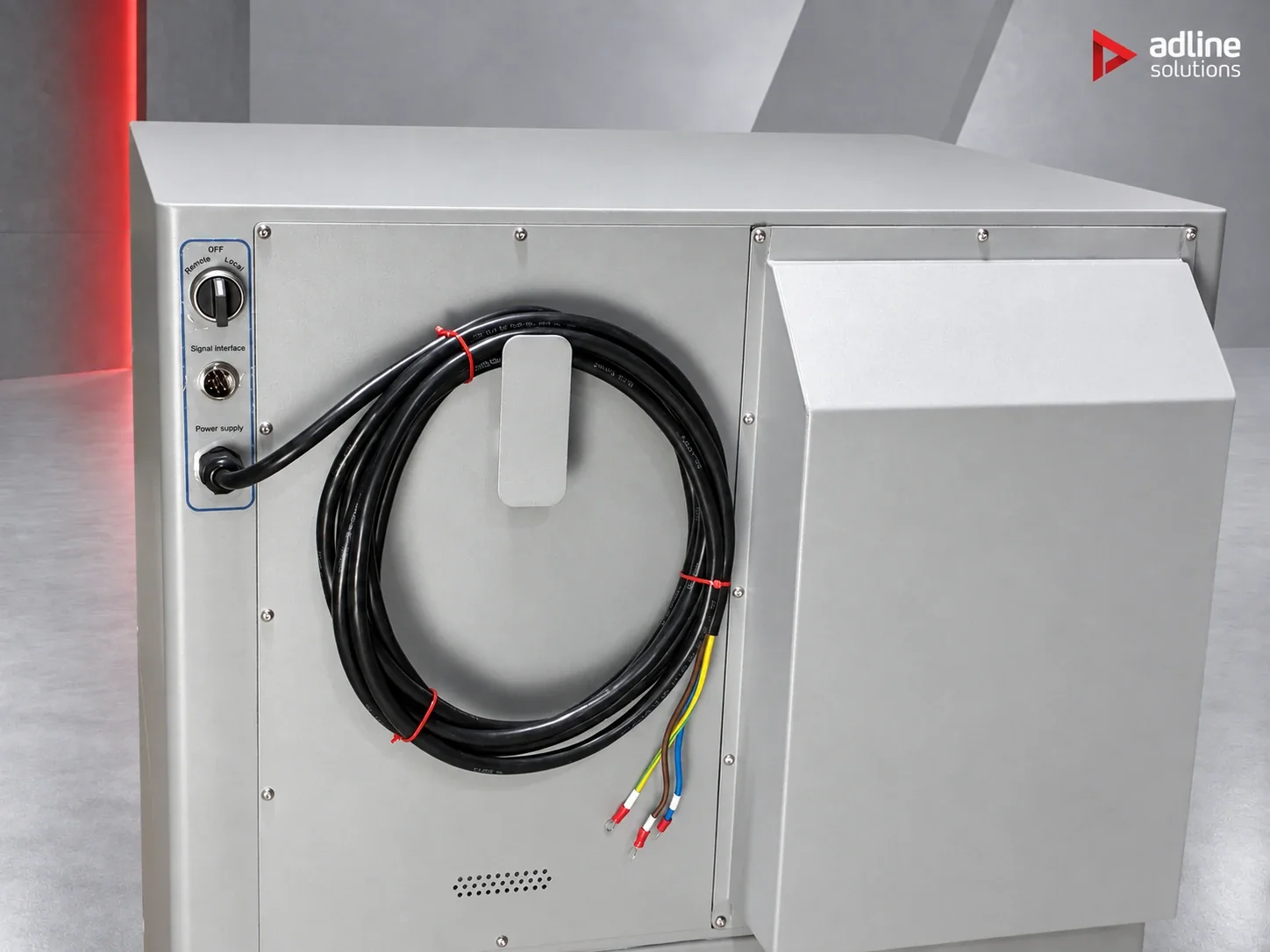

- Power supply: 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Noise level: below 68 dBA at 1 m
- Dimensions (W x D x H): 750 x 907 x 1341 mm
- Net weight: 205 kg

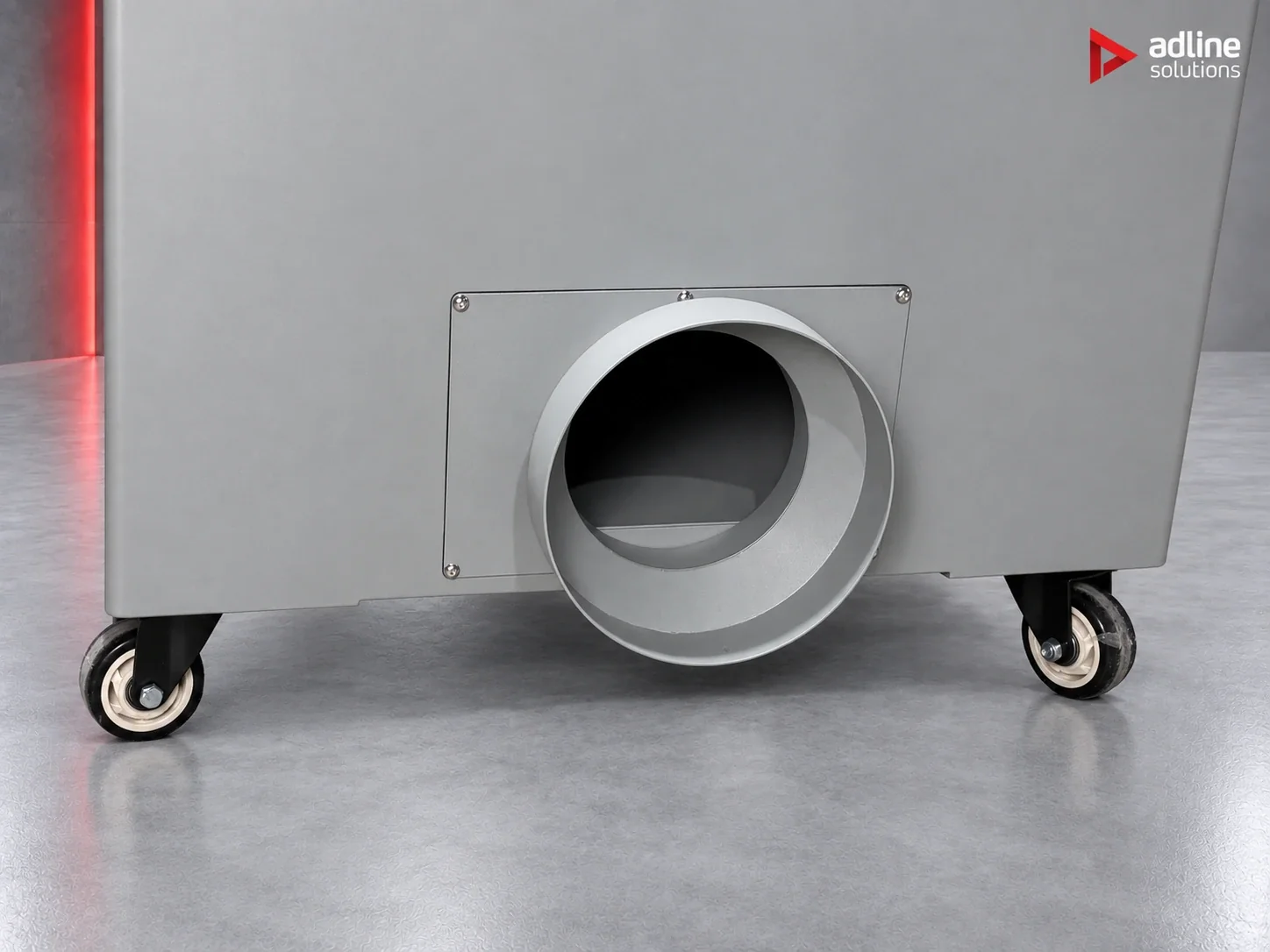

- Inlet: 200 mm
- Cabinet: Powder coated mild steel / brushed stainless steel
Recommended for
- CO2 laser cutters and engravers with a bed of 130x250 cm
- CNC routers cutting acrylic, composites and plastics
- Resin, SLA, DLP and FFF 3D printers
Standard version (PPS)
This is the standard version, without the intelligent control package. From 15 September 2026 PURE-AIR supplies these units with a colour LCD touch screen and an upgraded control system. If the intelligent functions matter - real airflow readout, filter warnings, automatic compensation, RS-485 linkage - choose the i version of the same model.
Important
If the machine cuts wood, plywood or MDF, choose the FGS series instead. That dust is resinous and sticky and will blind an F9 pre-filter in a fraction of its normal life.
Installation
Free-standing on castors next to the machine. Connect the machine's exhaust port to the inlet with flexible ducting kept as short and straight as possible - every extra bend costs suction. Allow 150 mm clearance at the outlet and keep the front accessible: all filter stages are changed from the front. Filtered air is discharged back into the room, so no outside duct is needed.
Technical specifications
- Phase
- Single-phase
- Airflow
- 2400 m³/h
- Inlet size
- 200 mm
- Net weight
- 205 kg
- Pre-filter
- F9 deeppleat pre-filter, 95% @ 1.0 um, 12-30 m² of media
- Main filter
- H14 deeppleat filter, 99.99% @ 0.3 um
- Noise level
- 68 dB(A) max.
- Rated power
- 3.5 kW
- Power supply
- 90-110 V / 210-257 V, 1 ph, 50/60 Hz
- Control system
- PPS standard control
- Explosion-proof
- No
- Activated carbon
- Yes - treated activated carbon, approx. 12-30 kg
- Cabinet construction
- Powder coated mild steel / brushed stainless steel
- Dimensions (W×D×H)
- 750 x 907 x 1341 mm
- Max. negative pressure
- 10000 Pa
Application details
Recommended for
CO₂ laser cutters and engravers with a bed of 130x250 cm; CNC routers cutting acrylic, composites and plastics; Resin, SLA, DLP and FFF 3D printers
Materials
Acrylic, paper and card, leather, textiles, technical plastics; resin-based 3D printing
Typical working format
130x250 cm
Control system
PPS - Pure-Air Purification System (standard control). From 15.09.2026 supplied with a colour LCD touch screen and an upgraded control system.
Installation
Free-standing on castors next to the machine. Connect the machine's exhaust port to the inlet with flexible ducting kept as short and straight as possible - every extra bend costs suction. Allow 150 mm clearance at the outlet and keep the front accessible: all filter stages are changed from the front. Filtered air is discharged back into the room, so no outside duct is needed.
Series
FS
