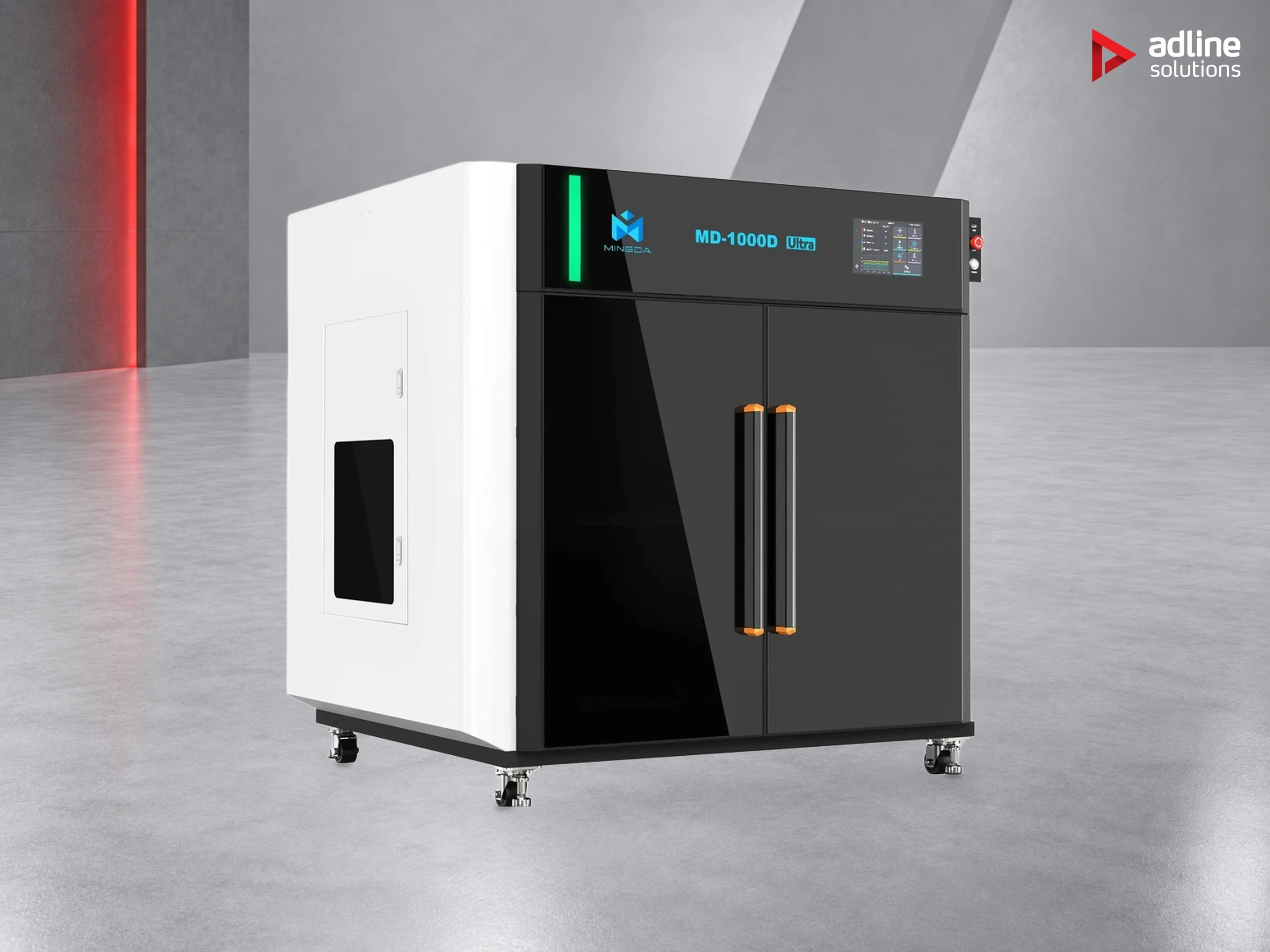

MINGDA MD-1000D Ultra
SKU MD-1000D-ULTRA · On request
- 1 m³ build volume (1000 mm cube)
- HIWIN linear guides + custom CNC parts
- Dual 350 °C extruders
- AI defect detection
- Smart dual-nozzle alignment
- Mobile app remote control
One cubic metre of build volume (1000 × 1000 × 1000 mm) with dual 350 °C extruders, AI defect detection and industrial linear guides - for full-size parts, moulds and jigs.
Request a quote- Large format
- Tooling & jigs
- Moulds & patterns
- Engineering polymers
- Industrial production
About this machine

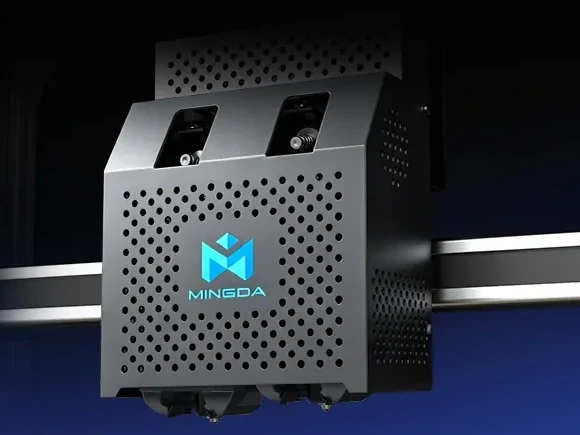

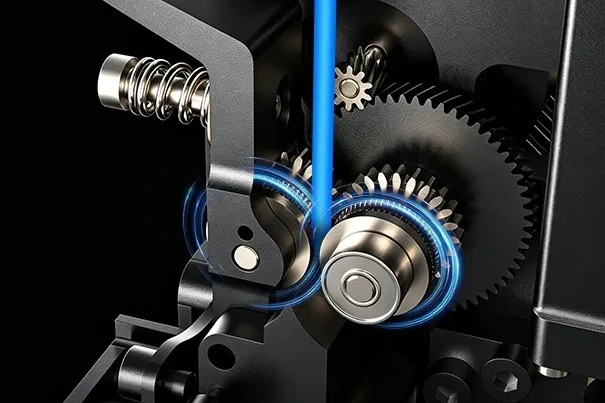

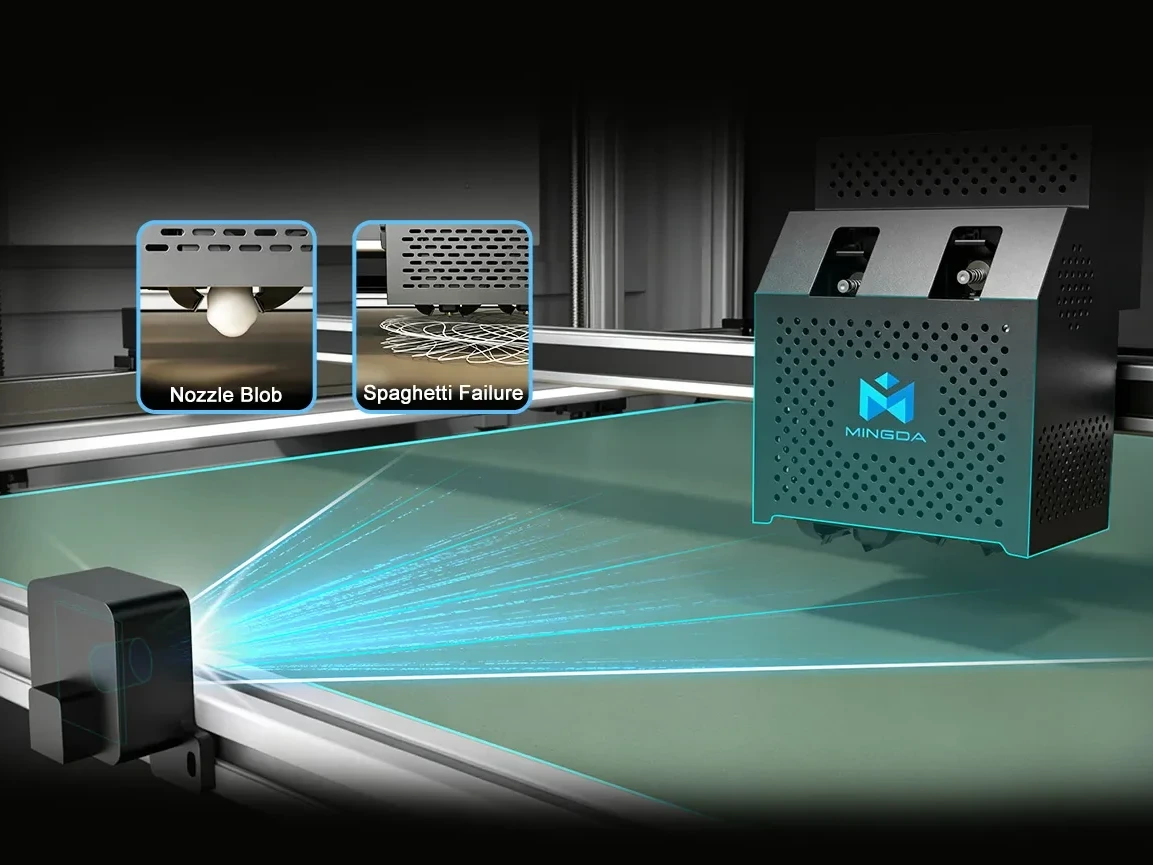

The MD-1000D Ultra is MINGDA's largest D-series machine: a full 1000 mm cube that prints full-size prototypes, tooling, moulds and production parts in one piece. HIWIN linear guides, custom CNC-machined parts and a closed-loop motion system carry a lighter redesigned extruder at up to 300 mm/s travel, while dual 350 °C hotends and a 45 °C enclosed chamber run carbon- and glass-filled engineering polymers. Smart dual-nozzle alignment (camera XY, probe Z), hands-free auto-levelling and AI defect detection protect jobs that can run for days; power-loss recovery resumes after an outage. Two 3 kg spools sit in a moisture-proof chamber with auxiliary feeding, and the machine is driven from a 10-inch touchscreen on the MINGDA PI platform or from a mobile app for remote monitoring and printing.
Key features
- 1 m³ build volume (1000 mm cube)
- HIWIN linear guides + custom CNC parts
- Dual 350 °C extruders
- AI defect detection
- Smart dual-nozzle alignment
- Mobile app remote control
Technical specifications
Printing
- Print Technology
- FDM (Fused Deposition Modeling)
- Print Volume
- 1000 × 1000 × 1000 mm
- Printing Nozzle
- Dual nozzle
- Layer Height
- 0.3 - 0.36 mm
- Filament Diameter
- 1.75 mm
- Filament Types
- PLA, PETG, PETG-CF, PET-CF/GF, ABS-CF/GF, PA12-CF, HtPA-CF/GF, HtPA-GF25/CF25, PPS, PPS-CF/GF, S-Multi, S-HtPA, etc.
- Nozzle Diameter
- 0.6 mm (optional 0.4 mm, 0.8 mm)
- Print File Type
- Gcode
Temperature & climate
- Nozzle Temperature
- Max 350 °C
- Hot Bed Temperature
- Max 110 °C
- Chamber Temperature
- 45 °C
Speed
- Max Printing Speed
- 300 mm/s
- Recommended Speed
- PLA 200 mm/s; PETG 180 mm/s; PET-CF 100 mm/s
- Moving Speed
- Max XY 500 mm/s; Max Z 15 mm/s
Electrical & control
- Maximum Power
- 3100 W
- Input Voltage
- 220 V 50/60 Hz
- Connection
- WiFi, Ethernet, USB

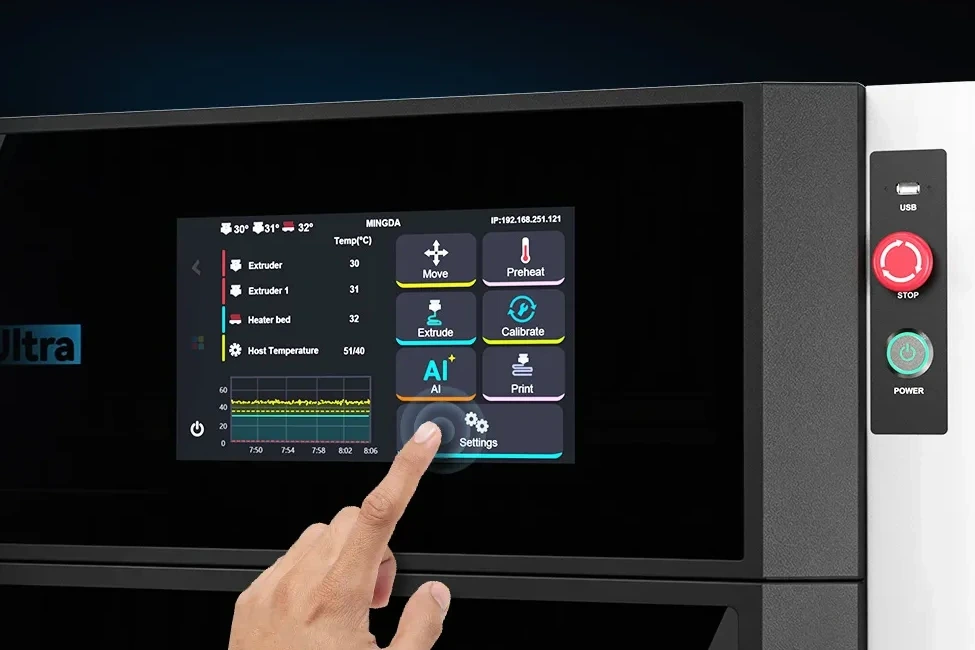

- Screen
- 10-inch colour touchscreen
Safety & certification
- Safety Design
- Three-colour warning light, emergency stop
- Regulatory Certification
- CE
Software

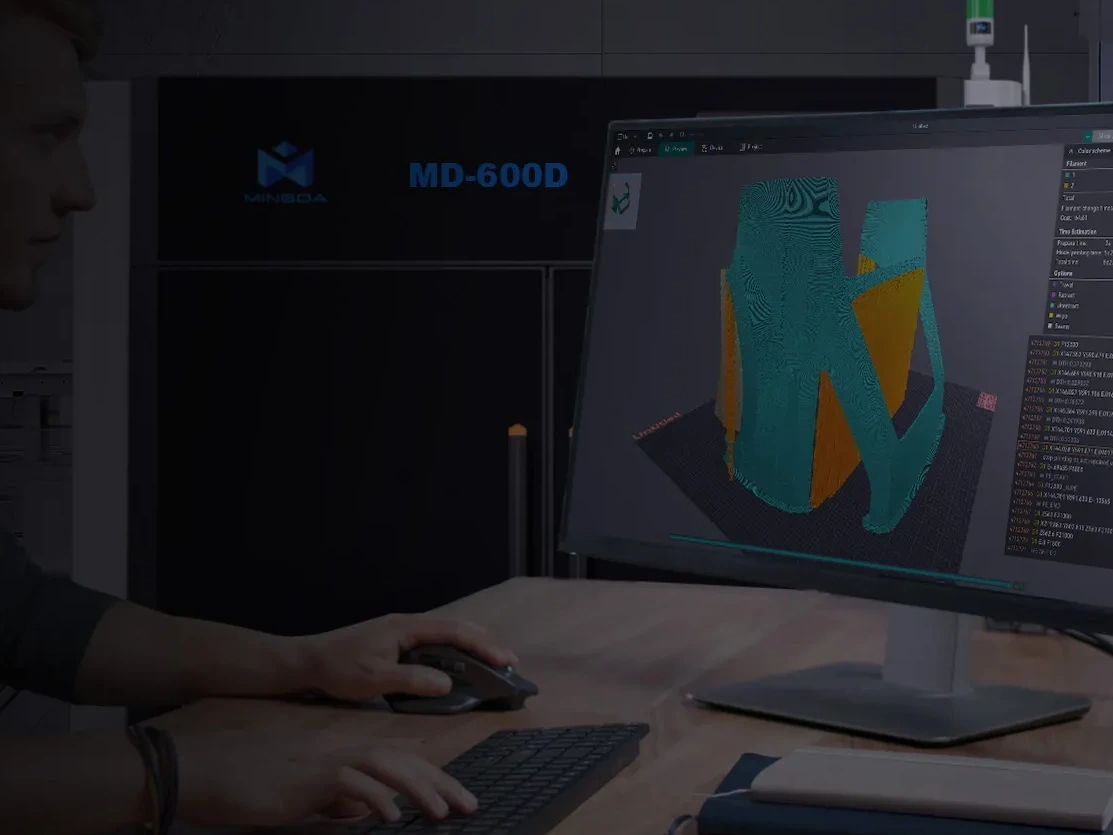

- Slicing Software
- MINGDA Slicer
- Data Type
- .3mf .stl .stp .step .amf .obj
- Operating System
- Windows / macOS
- Firmware
- Klipper
Functions
- Printing Detection
- AI detection
- XY-Offset Technology
- Camera calibration
- Z-Offset Technology
- Probe calibration
- Filament Detection
- Pause printing

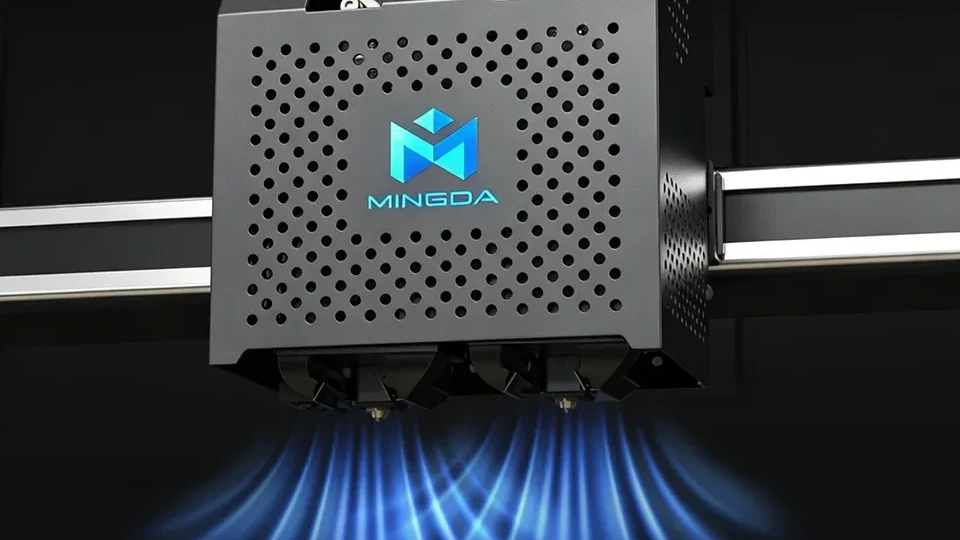

- Cooling System
- Air-cooled

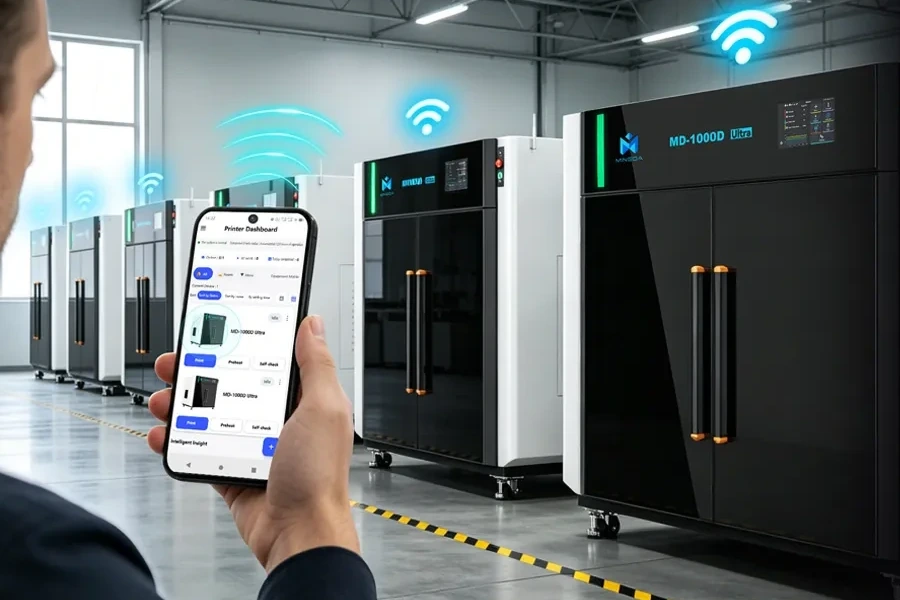

- Remote Management
- Remote monitoring & control; remote printing; mobile app
- Resume Printing
- Power-loss recovery
- Printing Performance
- Input shaper
Mechanics
- Printing Platform
- 10 mm thick aluminium plate + magnet + PEI
- Leveling Method
- Fast auto-levelling
- Extruder Type
- Dual extruders
- Resolution
- XY 20 µm; Z 10 µm
- Printing Chamber
- Enclosed chassis
- Motion System
- Closed-loop control system; HIWIN linear guides
- Filament Chamber Design

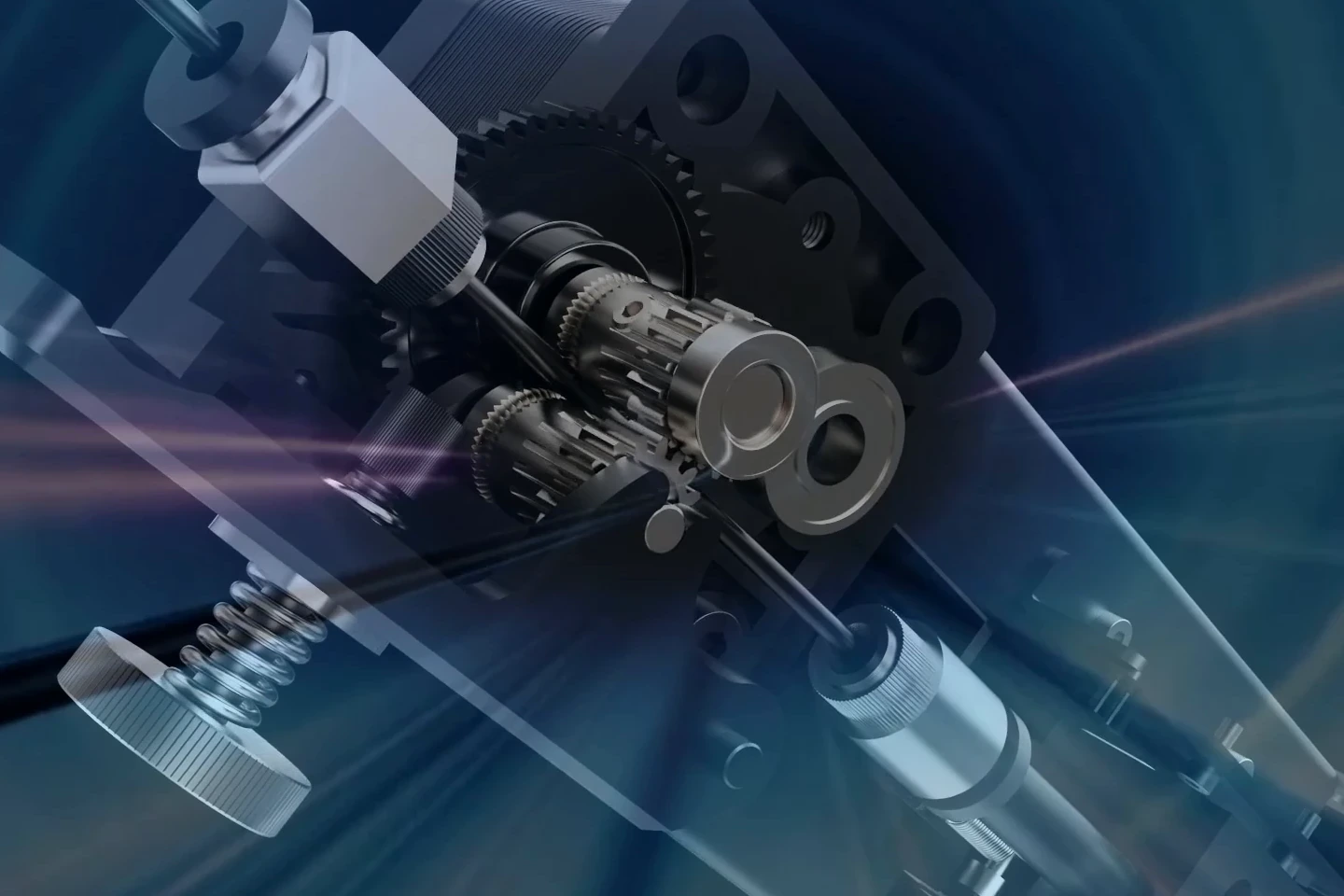

- 2 rolls of 3 kg filament, auxiliary feeding, moisture-proof chamber
Dimensions & weight
- Machine Dimensions
- 1710 × 1365 × 1665 mm
- Package Dimensions
- 1980 × 1630 × 1920 mm
- Package Weight
- 654.5 kg / 6.2 CBM

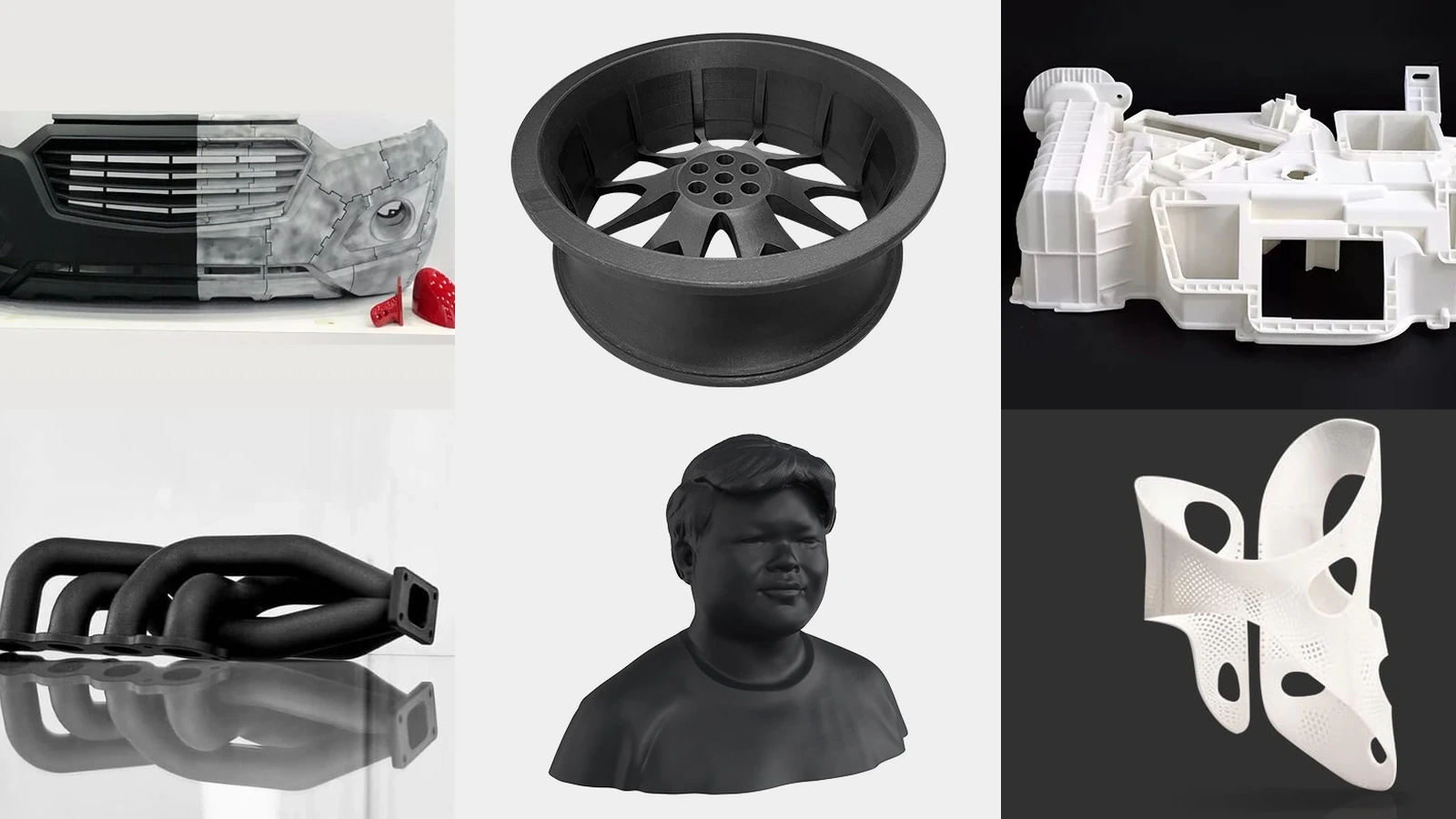

Application details
Type
Large-format industrial 3D printer
Recommended for

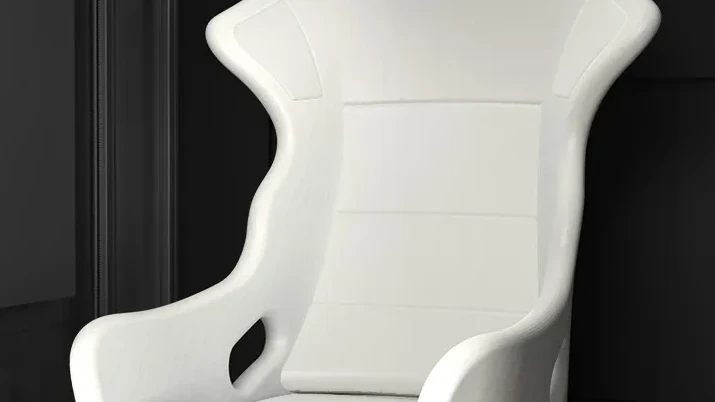

Industrial users printing full-size parts, moulds, patterns and tooling in one piece.
Series
D Series
