Scrap collection drawer
Cut pieces fall into a drawer below the bed for easier clearing and routine housekeeping.
AEON · Nova Super

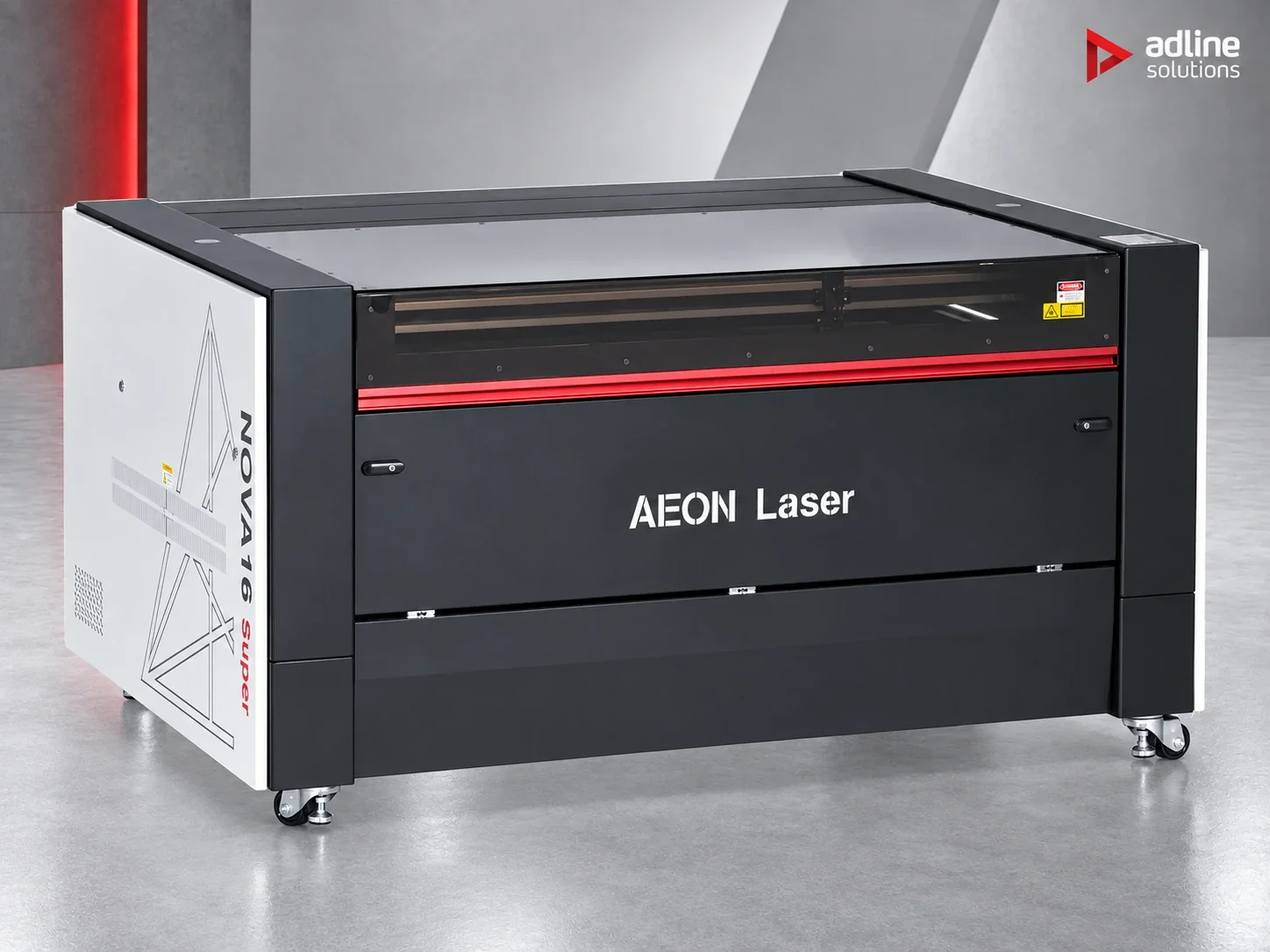

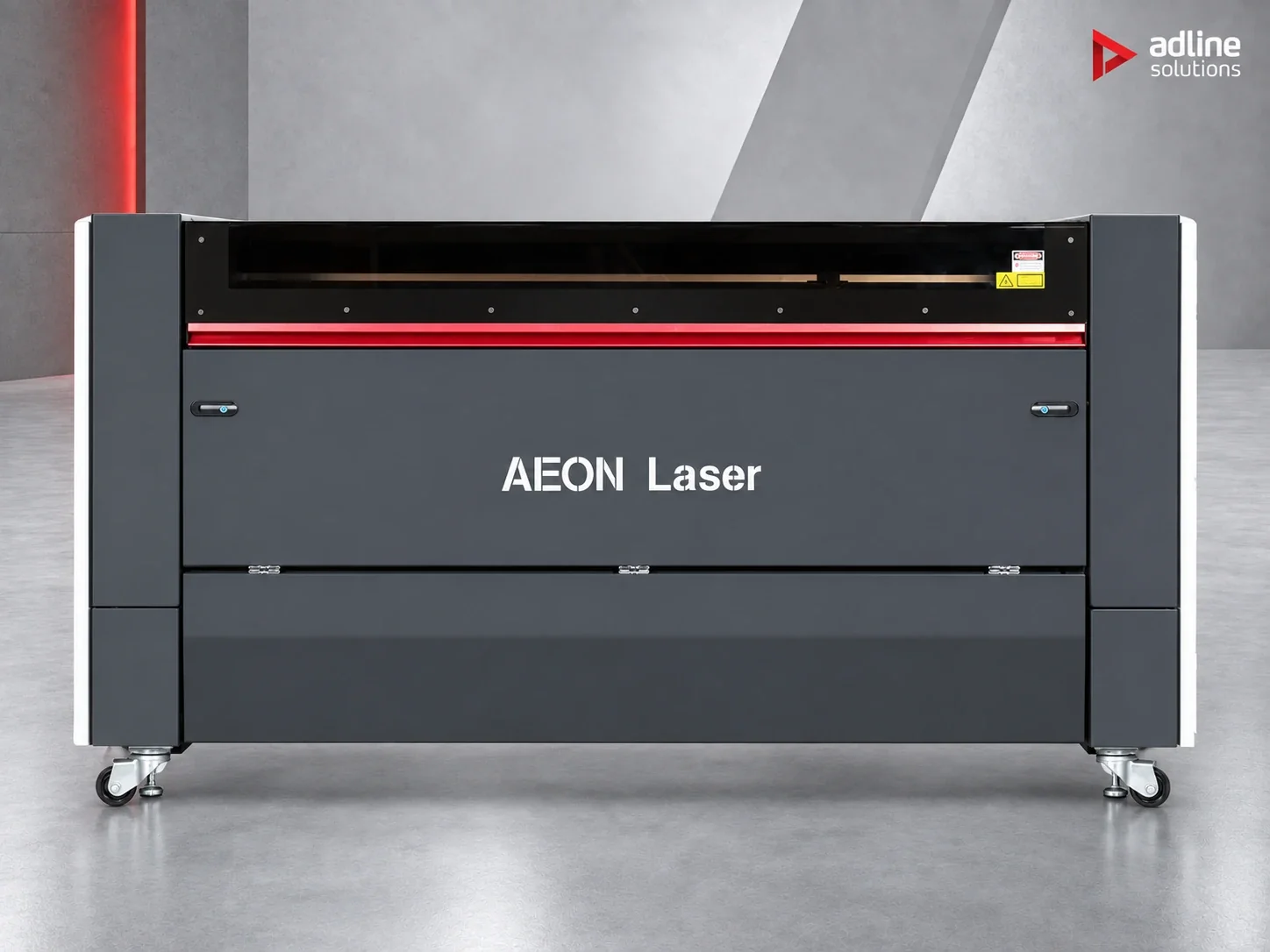

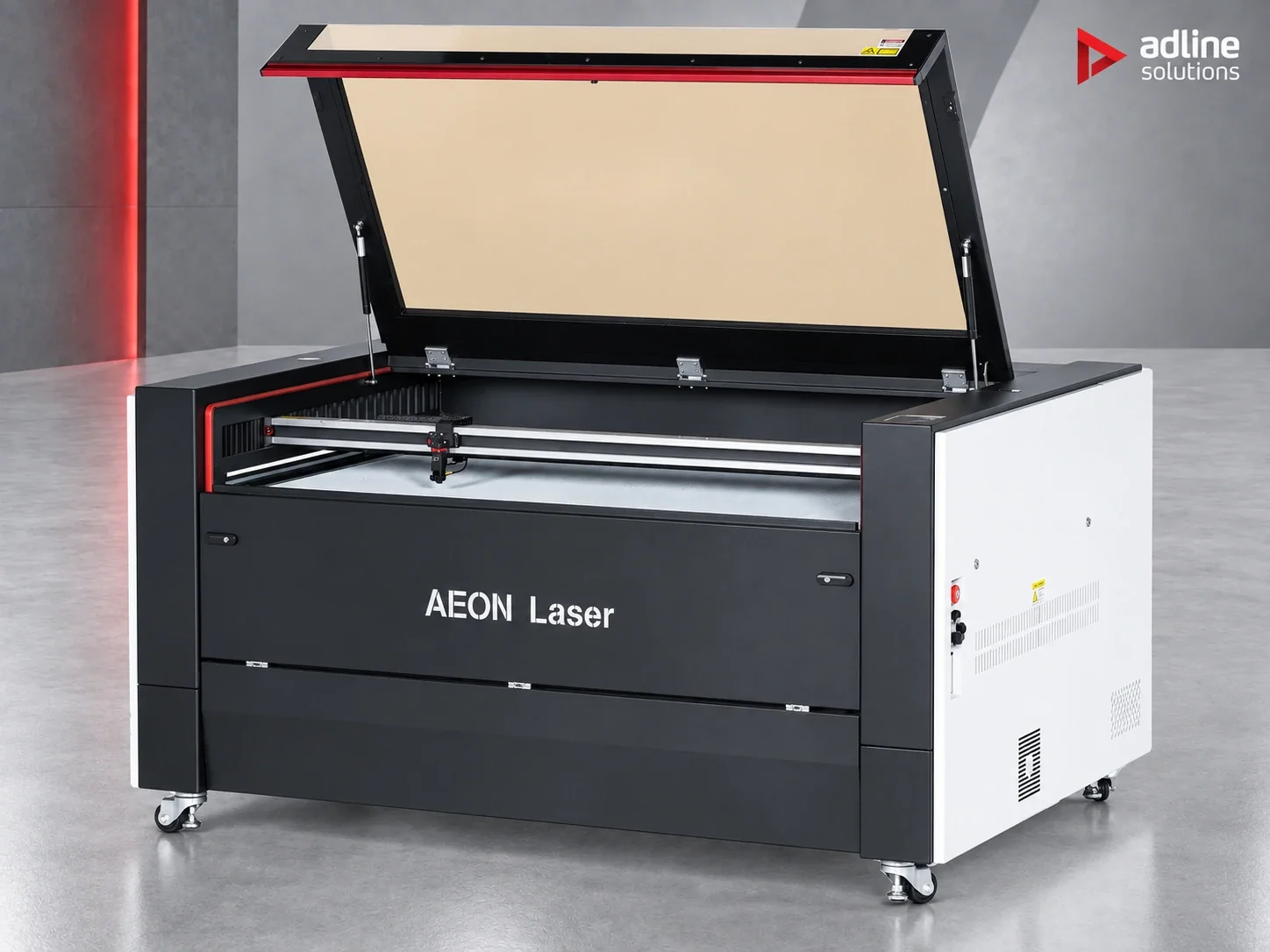

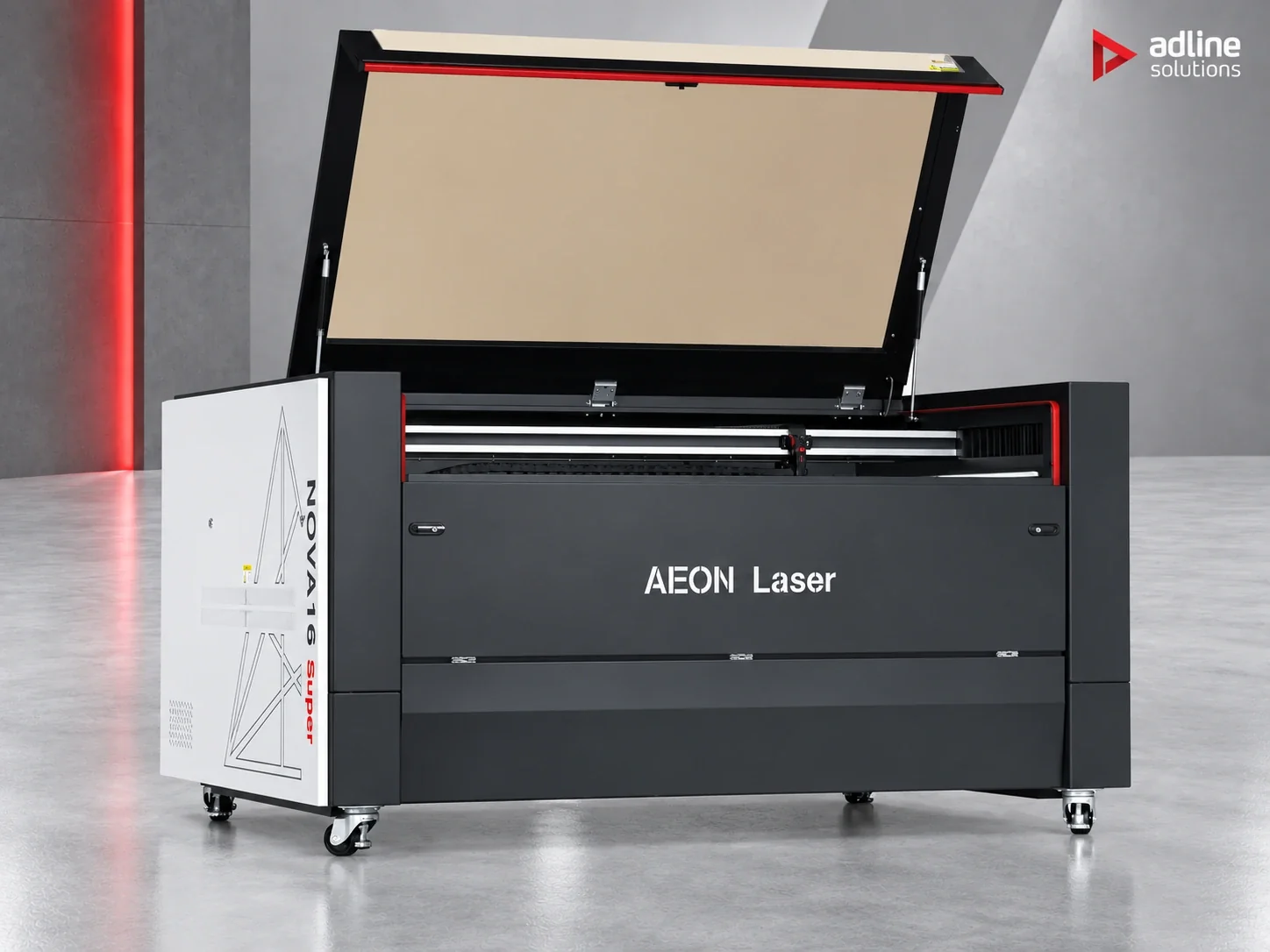

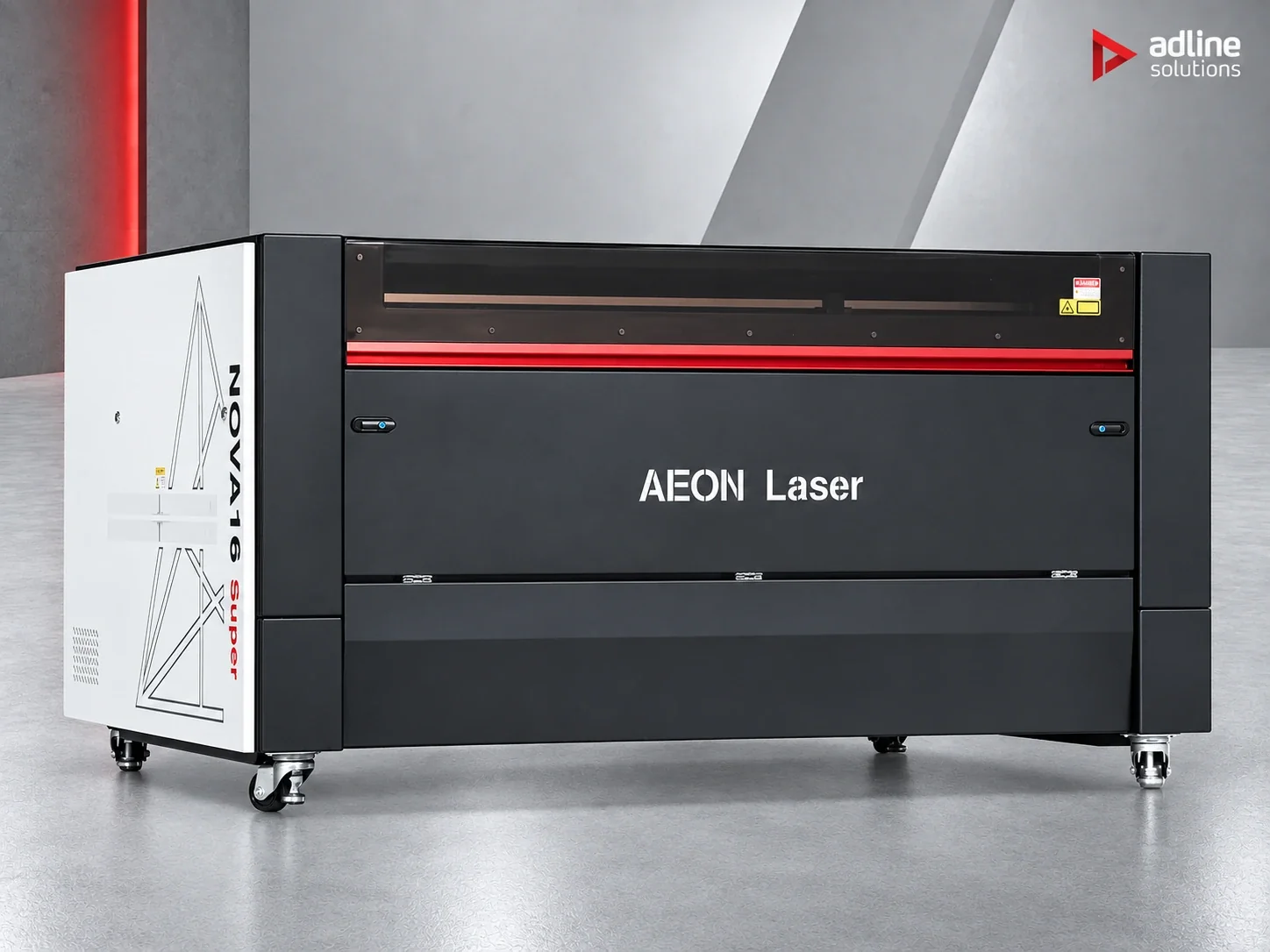

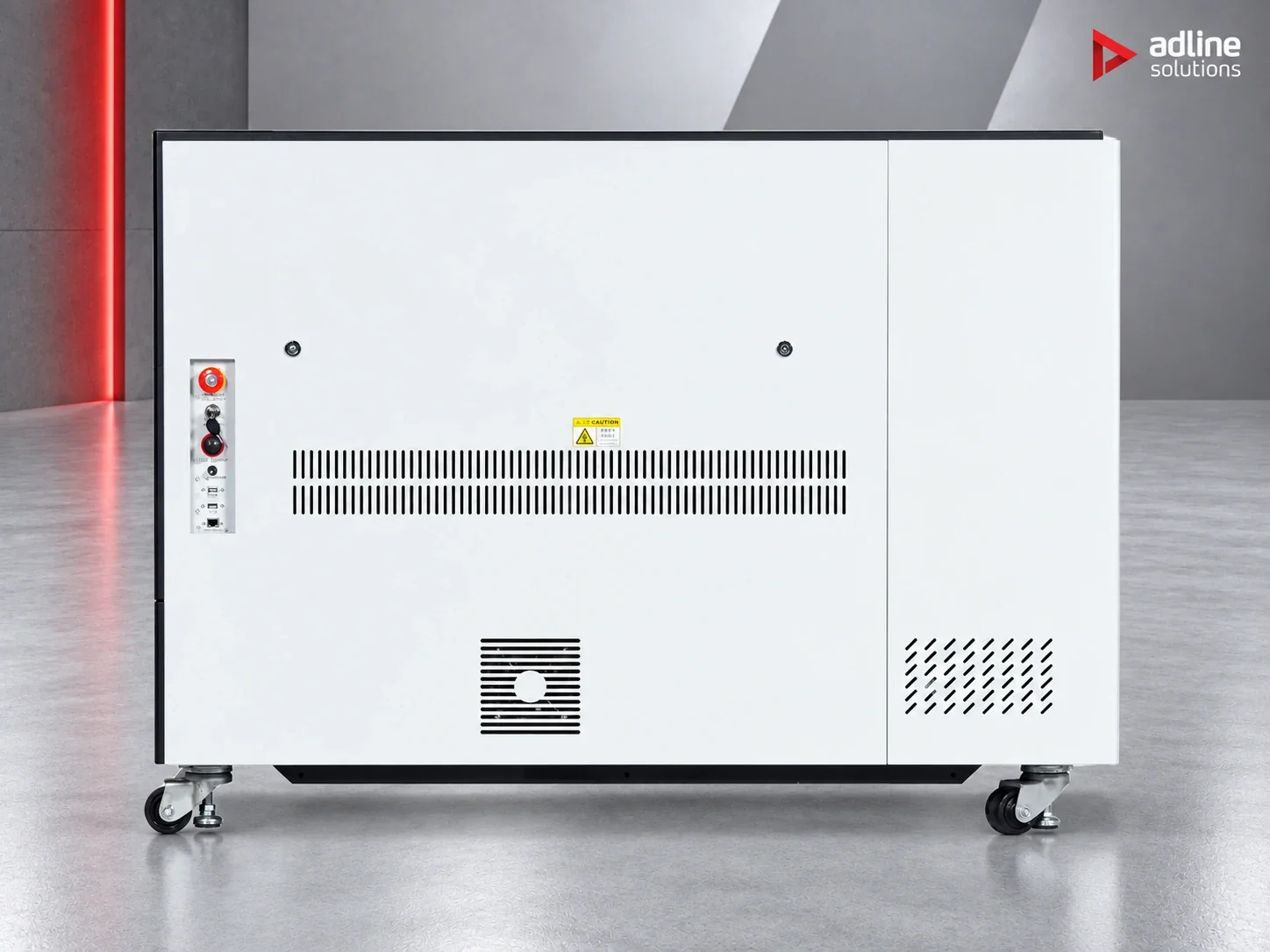

AEON Nova16 Super
In stock: Glass 260 W + RF 60 W (special configuration)
- Largest machine in the Redline range: 1600 × 1000 mm
- Dual source — Glass up to 150 W, 260 W as a special configuration
- RF engraving up to 4,200 mm/s
- Chiller 5200 and air-cooled RF source
- 750 W compressor air assist with 40 L tank
- 0.1 mm positioning accuracy across the full bed
The top of the Redline range: 1600 × 1000 mm bed, dual source with up to 260 W Glass and an RF tube of up to 60 W.
Request a quoteWhich bed size and source? Read the guide- Wood & MDF
- Acrylic
- Glass
- Leather
- Rubber
- Marble
- Two-colour ABS
- Signage & advertising
- Furniture
- Textiles
Configurations
| Configuration | Differences | Availability |
|---|---|---|
| Glass 100 W + RF 30 WOn request | Laser source: Glass 100 W · RF source: RF 30 W · Engraving speed (Glass): 1,200 mm/s · Engraving speed (RF): 4,200 mm/s | On request |
| Glass 100 W + RF 60 WOn request | Laser source: Glass 100 W · RF source: RF 60 W · Engraving speed (Glass): 1,200 mm/s · Engraving speed (RF): 4,200 mm/s | On request |
| Glass 130 W + RF 30 WOn request | Laser source: Glass 130 W · RF source: RF 30 W · Engraving speed (Glass): 1,200 mm/s · Engraving speed (RF): 4,200 mm/s | On request |
| Glass 130 W + RF 60 WOn request | Laser source: Glass 130 W · RF source: RF 60 W · Engraving speed (Glass): 1,200 mm/s · Engraving speed (RF): 4,200 mm/s | On request |
| Glass 150 W + RF 30 WOn request | Laser source: Glass 150 W · RF source: RF 30 W · Engraving speed (Glass): 1,200 mm/s · Engraving speed (RF): 4,200 mm/s | On request |
| Glass 150 W + RF 60 WOn request | Laser source: Glass 150 W · RF source: RF 60 W · Engraving speed (Glass): 1,200 mm/s · Engraving speed (RF): 4,200 mm/s | On request |
| Glass 260 W + RF 60 W (special configuration)In stock | Laser source: Glass 260 W · RF source: RF 60 W · Availability: Special configuration · Engraving speed (Glass): 1,200 mm/s · Engraving speed (RF): 4,200 mm/s · Chiller: CW-5300 (instead of the standard CW-5200) | In stock |
About this machine
AEON Nova16 Super
The Nova16 Super is the largest and fastest machine in the Redline range: a 1600 × 1000 mm bed, a Glass source from 100 W to 150 W — 260 W available as a special configuration — and an RF tube of 30 W or 60 W engraving at up to 4,200 mm/s.
Round-the-clock production
At 260 W the machine cuts stock that normally needs a second process, and the RF source still returns a 1 × 1 mm minimum font for identification plates and fine lettering. Chiller 5200, 750 W compressor with a 40 L tank and a 500 W automatic integrated exhaust keep it running through a full shift.
Control
Smart Panel, 1 G internal memory, WiFi, AutoFocus and a 100° 8 MP camera; positioning stays within 0.1 mm across the whole bed.
Extraction
AEON Nova16 Super

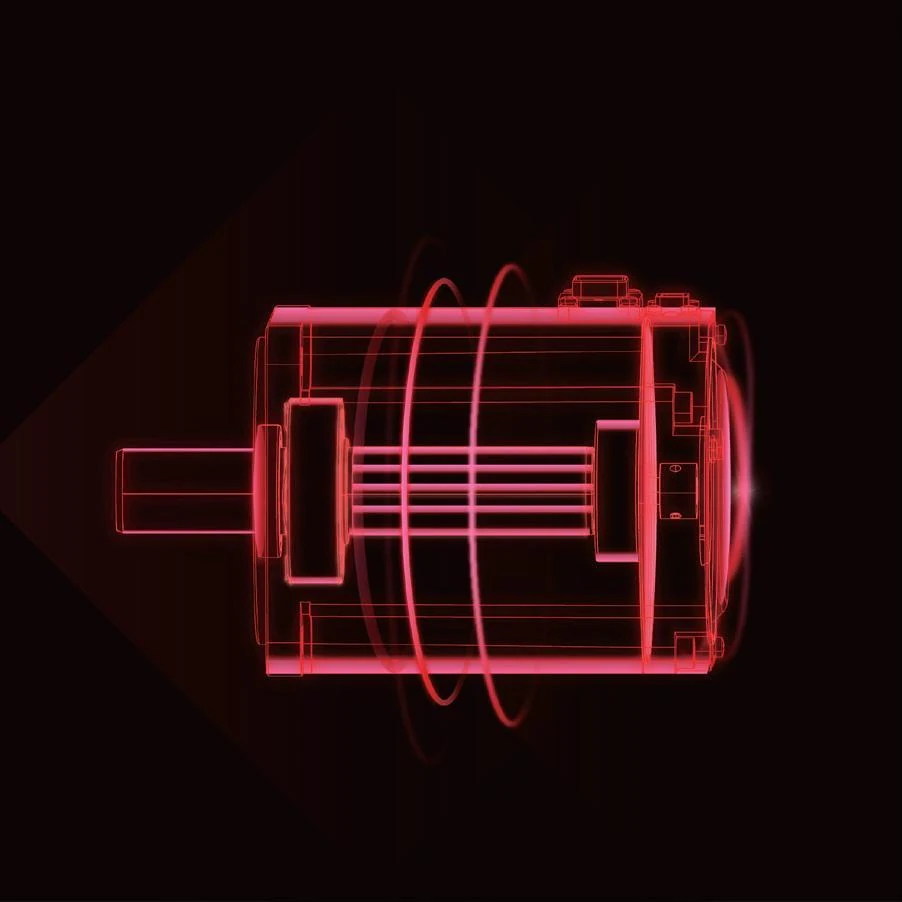

A large-format dual-source CO₂ machine combining Glass cutting capacity with RF engraving detail, AC servo motion and an 4,200 mm/s maximum RF engraving speed.
NOVA SUPER / LARGE-FORMAT PRODUCTION
Two sources. One production platform.
Use the Glass source for cutting and the RF source for fine, high-speed engraving without moving work between machines.
- 1,600 × 1,000 mm
- working area
- 200 mm
- Z travel · 120 kg lift capacity
- 4,200 mm/s
- maximum RF engraving speed
SOURCE & MOTION / SUPER
Cut with Glass. Engrave with RF.
The dual-source arrangement combines current catalogue Glass and RF configurations. Glass-side cooling remains water-based; only the RF source is air-cooled.
SMART PANEL / MACHINE STATUS
Operating information at a glance.
Temperature monitoring and machine diagnostics are presented on the control panel, while the illuminated front logo communicates status across the workshop.
OPTICAL PATH / EASIER SERVICE
Designed for practical optical maintenance.
The align-free design simplifies access and replacement for the tube, mirrors and lens, reducing repeated optical-path adjustment during routine service.
MAGNETIC LENS HOLDER
Remove, inspect and refit.
The magnetic holder makes routine lens access straightforward. Alternative 2, 2.5 and 4 inch focal lengths are available for different applications; inclusion depends on the selected configuration.
WORKFLOW / MATERIAL HANDLING
Built around real production work.
Interchangeable work tables
Use the honeycomb or slat table according to the material and process.
Camera positioning
A 100° 8 MP camera supports artwork placement and tracing. AutoFocus and WiFi are included; a LightBurn licence is optional.
Material pass-through
Front and rear openings accommodate longer stock; the active processing area remains 1,600 × 1,000 mm.
INTEGRATED SUPPORT SYSTEMS
Air, cooling and exhaust within the machine.
The machine integrates a 750 W compressor with a 40 L tank and a 500 W inline exhaust with automatic start-stop. Glass configurations use a built-in Chiller 5200; the RF source is air-cooled.
- 01 · Air assist
- 750 W compressor · 40 L tank
- 02 · Inline exhaust
- 500 W · automatic start-stop
- 03 · Cooling
- Chiller 5200 for Glass · air-cooled RF
PLAN YOUR WORKSPACE
Extraction and material safety.
CO₂ processing produces fumes. Use suitable extraction and process only exact material grades explicitly approved for laser use. PVC must not be laser processed; extraction does not make an unsuitable material safe.
Plastics, rubber and composites require verification against the manufacturer’s safety documentation. This machine is not presented for bare-metal or glass cutting.
Explore fume extraction units for laser and CNC →Technical specifications
Work area
- Work area
- 1600 × 1000 mm
- Z travel
- 200 mm
- Max. Z load
- 120 kg
Laser source
- Glass laser tube
- 100 W / 130 W / 150 W (260 W optional)
- RF laser tube
- 30 W / 60 W
Speed & motion
- Engraving speed (Glass)
- 1,200 mm/s
- Engraving speed (RF)
- 4,200 mm/s
- Acceleration (Glass)
- 5G
- Acceleration (RF)
- 8G
- Motors (Glass)
- DC stepper
- Motors (RF)

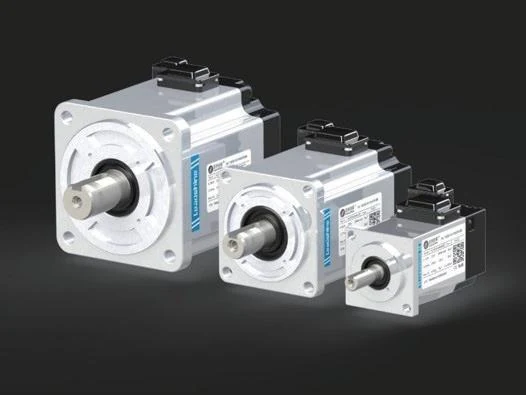

- AC servo
- Minimum font (RF)
- 1.0 × 1.0 mm
- Positioning accuracy
- ≤ 0.1 mm
Cooling & air
- Chiller
- Integrated CW-5200 (glass source); CW-5300 on the 260 W special configuration
- RF source cooling
- Air-cooled
- Air assist
- 750 W compressor / 40 L tank
- Exhaust
- 500 W, integrated, automatic
Table & optics
- Table
- Honeycomb + slat
- AutoFocus
- Yes
- Camera
- 100° · 8 MP (3840 × 2160)
Control & connectivity
- Smart Panel
- Yes
- Internal memory
- 1 G
- WiFi
- Yes
Dimensions & weight
- Packed dimensions
- 2100 × 1510 × 1125 mm
- Net weight
- 566 kg
- Gross weight
- 730 kg
Software
- Operating software
- RDWorks / LightBurn (optional)
- Design software
- CorelDraw / Illustrator / AutoCAD
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Round-the-clock industrial production — the largest and fastest machine in the range.
Series
Nova Super
Frequently asked questions
What is the Nova16 Super for?
Full-shift production on the largest bed in the Redline range, 1600 × 1000 mm, with two sources: a Glass tube for cutting and an RF tube for engraving. The RF source returns a 1 × 1 mm minimum font for identification plates and fine lettering, while the Glass side handles the heavy cutting.
Which source combination should we choose?
The standard configurations pair a Glass tube of 100 W, 130 W or 150 W with an RF tube of 30 W or 60 W. Engraving speeds are the same on all of them, 1,200 mm/s for Glass and 4,200 mm/s for RF, so the choice is cutting power and engraving power. Send us your materials, thicknesses and engraving samples and we will recommend the pairing.
What is the 260 W special configuration?
A 260 W Glass source paired with a 60 W RF tube, supplied as a special configuration. At 260 W the machine cuts stock that normally needs a second process. It uses a CW-5300 chiller instead of the standard CW-5200. Ask us for a quote on this configuration with your material and thickness.
How fast does it engrave?
The RF source engraves at up to 4,200 mm/s with a 1 × 1 mm minimum font; the Glass source engraves at 1,200 mm/s. Because both sources sit on the same machine, you can engrave fine detail and cut the part in one set-up.
How does it keep running through a full shift?
The integrated CW-5200 chiller cools the Glass tube, and the RF tube is air-cooled. Air assist comes from a 750 W compressor with a 40 L tank, and the 500 W integrated exhaust runs automatically with the job. Plan fume extraction with the machine.
How accurate is it, and how is it controlled?
Positioning stays within 0.1 mm across the whole 1600 × 1000 mm bed. The 100° 8 MP camera and AutoFocus handle placement and height, and jobs run from the Smart Panel with 1 G of memory and WiFi. Software is RDWorks, with LightBurn optional, fed from CorelDraw, Illustrator or AutoCAD.
What do we need on site?
A level floor for a 566 kg machine with 200 mm of Z travel and a 120 kg table load. It ships at 2100 × 1510 × 1125 mm and 730 kg gross, so plan for a forklift at delivery. We confirm the electrical supply with your quote.
