Scrap collection drawer
Cut pieces fall into a drawer below the bed for easier clearing and routine housekeeping.
AEON · Nova Super
AEON Nova14 Super
On request
- Dual source on a 1400 × 900 mm bed
- RF engraving up to 4,200 mm/s
- Glass source up to 130 W for heavy cutting
- Chiller 5200, air-cooled RF source
- 750 W compressor air assist with 40 L tank
- Smart Panel, 1 G memory, WiFi
Dual-source Redline machine with a 1400 × 900 mm bed and RF engraving at up to 4,200 mm/s.
Request a quoteWhich bed size and source? Read the guide- Wood & MDF
- Acrylic
- Glass
- Leather
- Signage & advertising
- Furniture
- Textiles
Configurations
| Configuration | Differences | Availability |
|---|---|---|
| Glass 100 W + RF 30 WOn request | Laser source: Glass 100 W · RF source: RF 30 W · Engraving speed (Glass): 1,200 mm/s · Engraving speed (RF): 4,200 mm/s | On request |
| Glass 100 W + RF 60 WOn request | Laser source: Glass 100 W · RF source: RF 60 W · Engraving speed (Glass): 1,200 mm/s · Engraving speed (RF): 4,200 mm/s | On request |
| Glass 130 W + RF 30 WOn request | Laser source: Glass 130 W · RF source: RF 30 W · Engraving speed (Glass): 1,200 mm/s · Engraving speed (RF): 4,200 mm/s | On request |
| Glass 130 W + RF 60 WOn request | Laser source: Glass 130 W · RF source: RF 60 W · Engraving speed (Glass): 1,200 mm/s · Engraving speed (RF): 4,200 mm/s | On request |
About this machine
AEON Nova14 Super
The Nova14 Super combines the large 1400 × 900 mm bed with both sources: a Glass tube of 100 W or 130 W for cutting and an RF tube of 30 W or 60 W engraving at up to 4,200 mm/s.
Large parts, fine detail
Large panels that also carry fine engraved detail — control panels, signage with small lettering, furniture fronts — are the work this machine is built for. The workpiece is clamped once and both operations run on the same coordinates.
Production details
Chiller 5200, air-cooled RF source, 750 W compressor air assist with a 40 L tank, 500 W automatic integrated exhaust, Smart Panel, 1 G memory, WiFi, AutoFocus, 100° 8 MP camera.
Extraction
AEON Nova14 Super
A large-format dual-source CO₂ machine combining Glass cutting capacity with RF engraving detail, AC servo motion and an 4,200 mm/s maximum RF engraving speed.
NOVA SUPER / LARGE-FORMAT PRODUCTION
Two sources. One production platform.
Use the Glass source for cutting and the RF source for fine, high-speed engraving without moving work between machines.
- 1,400 × 900 mm
- working area
- 200 mm
- Z travel · 120 kg lift capacity
- 4,200 mm/s
- maximum RF engraving speed
SOURCE & MOTION / SUPER
Cut with Glass. Engrave with RF.
The dual-source arrangement combines current catalogue Glass and RF configurations. Glass-side cooling remains water-based; only the RF source is air-cooled.
SMART PANEL / MACHINE STATUS
Operating information at a glance.
Temperature monitoring and machine diagnostics are presented on the control panel, while the illuminated front logo communicates status across the workshop.
OPTICAL PATH / EASIER SERVICE
Designed for practical optical maintenance.
The align-free design simplifies access and replacement for the tube, mirrors and lens, reducing repeated optical-path adjustment during routine service.
MAGNETIC LENS HOLDER
Remove, inspect and refit.
The magnetic holder makes routine lens access straightforward. Alternative 2, 2.5 and 4 inch focal lengths are available for different applications; inclusion depends on the selected configuration.
WORKFLOW / MATERIAL HANDLING
Built around real production work.
Interchangeable work tables
Use the honeycomb or slat table according to the material and process.
Camera positioning
A 100° 8 MP camera supports artwork placement and tracing. AutoFocus and WiFi are included; a LightBurn licence is optional.
Material pass-through
Front and rear openings accommodate longer stock; the active processing area remains 1,400 × 900 mm.
INTEGRATED SUPPORT SYSTEMS
Air, cooling and exhaust within the machine.

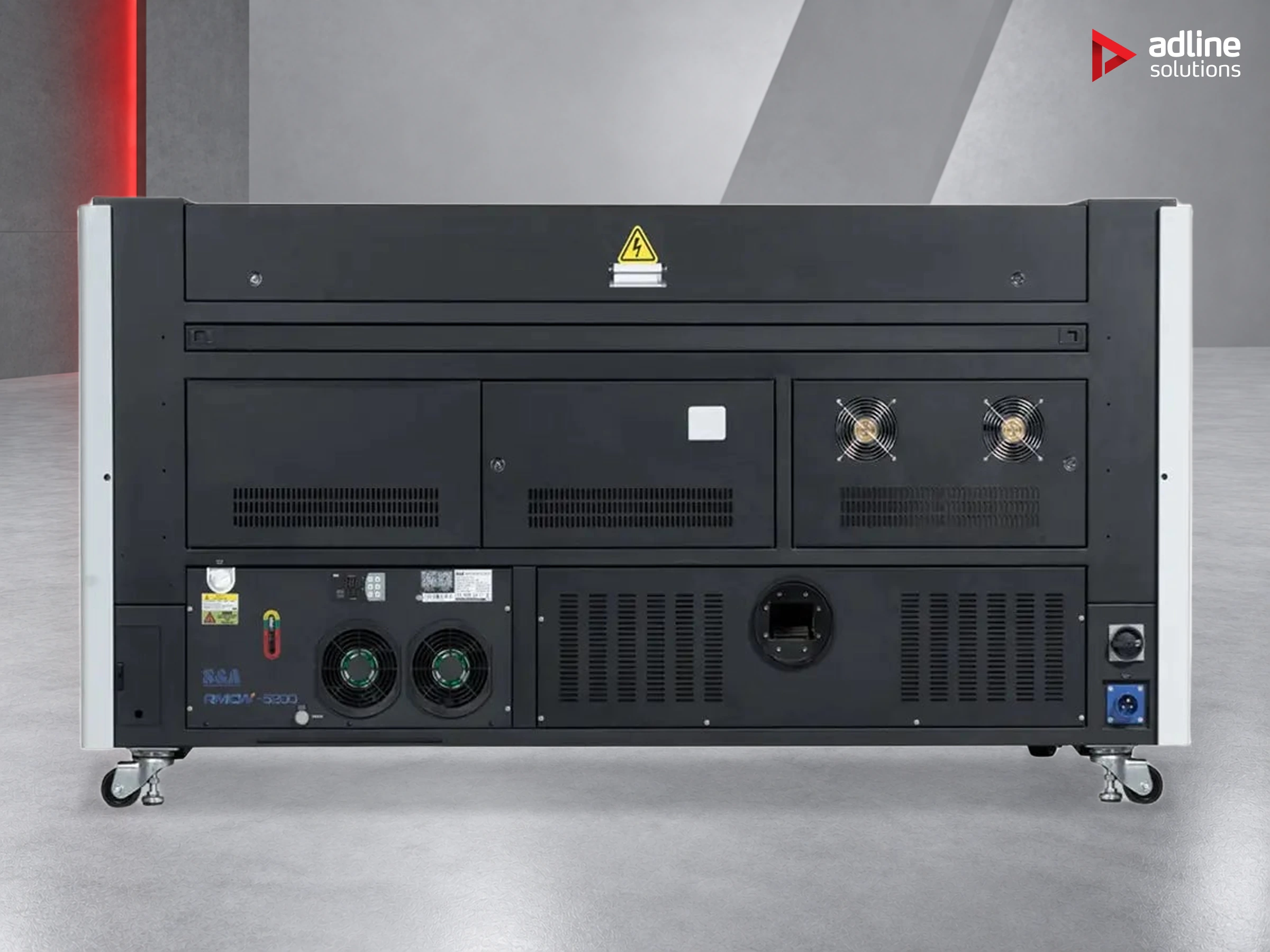

The machine integrates a 750 W compressor with a 40 L tank and a 500 W inline exhaust with automatic start-stop. Glass configurations use a built-in Chiller 5200; the RF source is air-cooled.
- 01 · Air assist
- 750 W compressor · 40 L tank
- 02 · Inline exhaust
- 500 W · automatic start-stop
- 03 · Cooling
- Chiller 5200 for Glass · air-cooled RF
PLAN YOUR WORKSPACE
Extraction and material safety.
CO₂ processing produces fumes. Use suitable extraction and process only exact material grades explicitly approved for laser use. PVC must not be laser processed; extraction does not make an unsuitable material safe.
Plastics, rubber and composites require verification against the manufacturer’s safety documentation. This machine is not presented for bare-metal or glass cutting.
Explore fume extraction units for laser and CNC →Technical specifications
Work area
- Work area
- 1400 × 900 mm
- Z travel
- 200 mm
- Max. Z load
- 120 kg
Laser source
- Glass laser tube
- 100 W / 130 W
- RF laser tube
- 30 W / 60 W
Speed & motion
- Engraving speed (Glass)
- 1,200 mm/s
- Engraving speed (RF)
- 4,200 mm/s
- Acceleration (Glass)
- 5G
- Acceleration (RF)
- 8G
- Motors (Glass)
- DC stepper
- Motors (RF)
- AC servo
- Minimum font (RF)
- 1.0 × 1.0 mm
- Positioning accuracy
- ≤ 0.1 mm
Cooling & air
- Chiller
- Integrated Chiller 5200 (Glass source)
- RF source cooling
- Air-cooled
- Air assist
- 750 W compressor / 40 L tank
- Exhaust
- 500 W, integrated, automatic
Table & optics
- Table
- Honeycomb + slat
- AutoFocus
- Yes
- Camera
- 100° · 8 MP (3840 × 2160)
Control & connectivity
- Smart Panel
- Yes
- Internal memory
- 1 G
- WiFi
- Yes
Dimensions & weight
- Packed dimensions
- 1900 × 1410 × 1125 mm
- Net weight
- 560 kg
- Gross weight
- 683 kg
Software
- Operating software
- RDWorks / LightBurn (optional)
- Design software
- CorelDraw / Illustrator / AutoCAD
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Large-part production combining fine engraving with heavy cutting.
Series
Nova Super
Frequently asked questions
What work is the Nova14 Super built for?
Large panels that also carry fine engraved detail: control panels, signage with small lettering and furniture fronts. It combines a 1400 × 900 mm bed with a Glass tube for cutting and an RF tube for engraving, so the workpiece is clamped once and both operations run on the same coordinates.
Which source combination should we choose?
The listed configurations pair a 100 W or 130 W Glass tube with a 30 W or 60 W RF tube. Engraving speeds are the same on all of them, 1,200 mm/s for Glass and 4,200 mm/s for RF. Choose the Glass power for the thickness you cut and the RF power for your engraving; send us samples of both and we will recommend a pairing.
How fine can it engrave?
The RF source engraves at up to 4,200 mm/s and returns a 1 × 1 mm minimum font, which is what small lettering on large signage and control panels needs. Positioning accuracy is ≤ 0.1 mm.
How big and heavy can the parts be?
The bed is 1400 × 900 mm with 200 mm of Z travel and a maximum Z load of 120 kg. Honeycomb and slat tables suit engraving and cutting, and AutoFocus sets the height for each thickness.
How are cooling and air handled?
The Glass tube runs on an integrated Chiller 5200 and the RF tube is air-cooled. Air assist comes from a 750 W compressor with a 40 L tank, and the 500 W integrated exhaust runs automatically with the job. Plan fume extraction with the machine.
How is it set up and controlled?
A 100° 8 MP camera (3840 × 2160) shows the bed on screen and AutoFocus sets the height. Jobs run from the Smart Panel with 1 G of memory and WiFi. Operating software is RDWorks, with LightBurn as an option, and designs are prepared in CorelDraw, Illustrator or AutoCAD.
What do we need on site?
A level floor for a 560 kg machine and a delivery route for a 1900 × 1410 × 1125 mm package at 683 kg gross, so plan for a forklift. We confirm the electrical supply with your quote.
