Scrap collection drawer
Cut pieces fall into a drawer below the bed for easier clearing and routine housekeeping.
AEON · Nova Elite

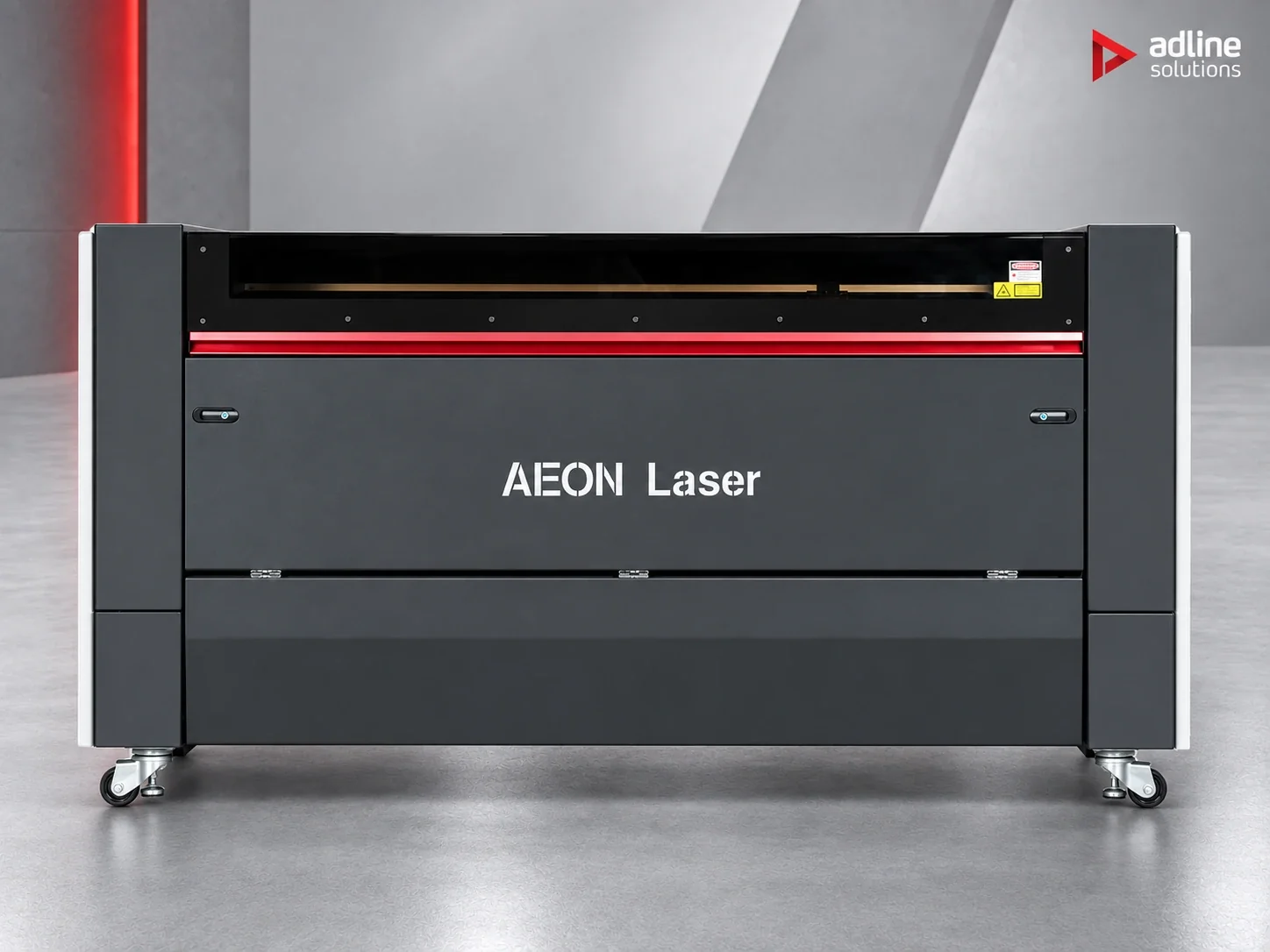

AEON Nova16 Elite
In stock: Glass 130 W, Glass 150 W
- 1600 × 1000 mm industrial bed
- Glass source 130 W or 150 W
- Integrated Chiller 5200
- 750 W compressor air assist with 40 L tank
- Automatic 500 W integrated exhaust
- 0.1 mm positioning accuracy across the full bed
The largest Nova Elite: 1600 × 1000 mm bed and a Glass source of up to 150 W for industrial sheet work.
Request a quoteWhich bed size and source? Read the guide- Wood & MDF
- Acrylic
- Signage & advertising
- Furniture
- Marble
- Textiles
Configurations
| Configuration | Differences | Availability |
|---|---|---|
| Glass 130 WIn stock | Laser source: Glass 130 W · Engraving speed: 1,200 mm/s | In stock |
| Glass 150 WIn stock | Laser source: Glass 150 W · Engraving speed: 1,200 mm/s | In stock |
About this machine

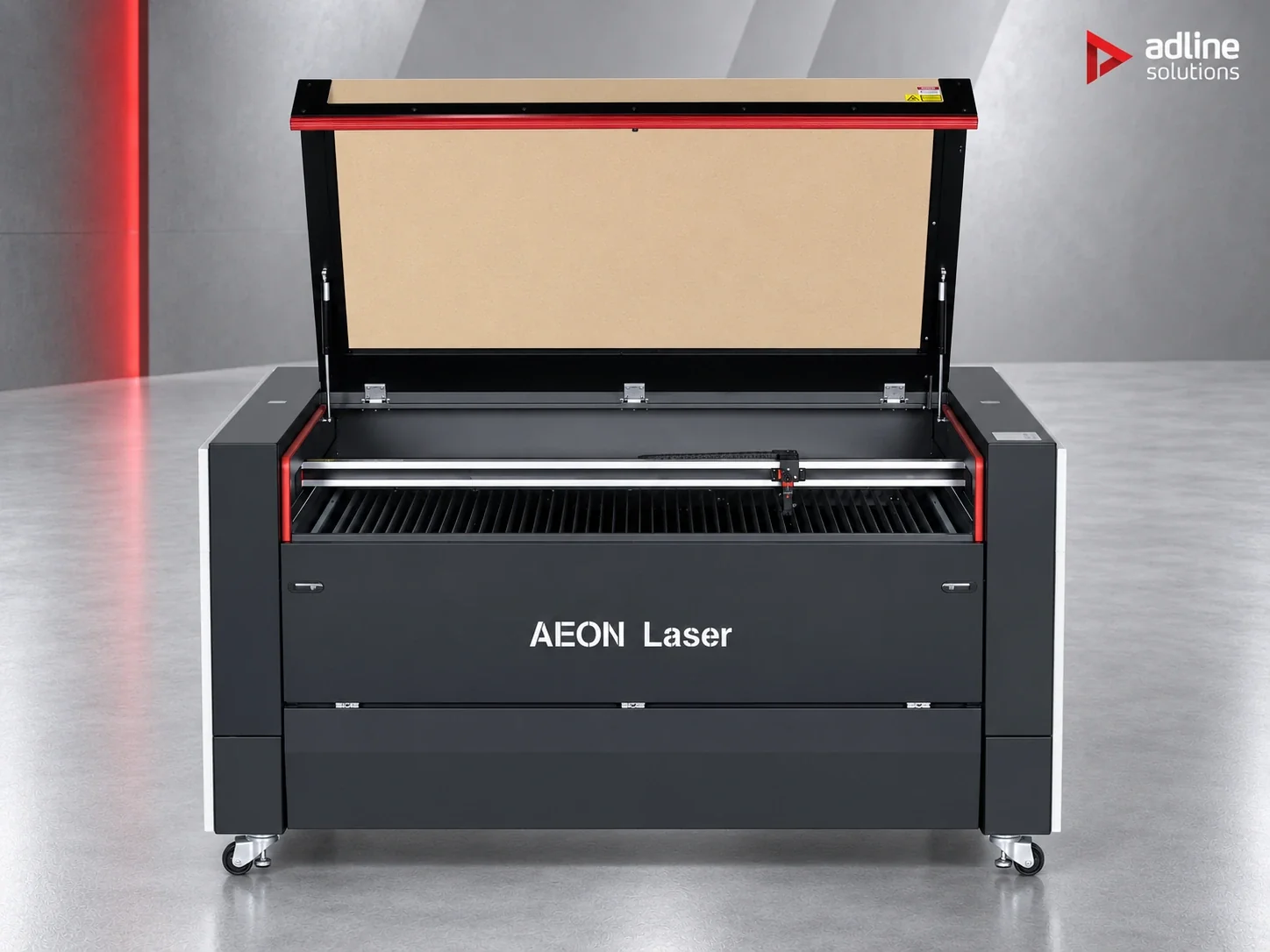

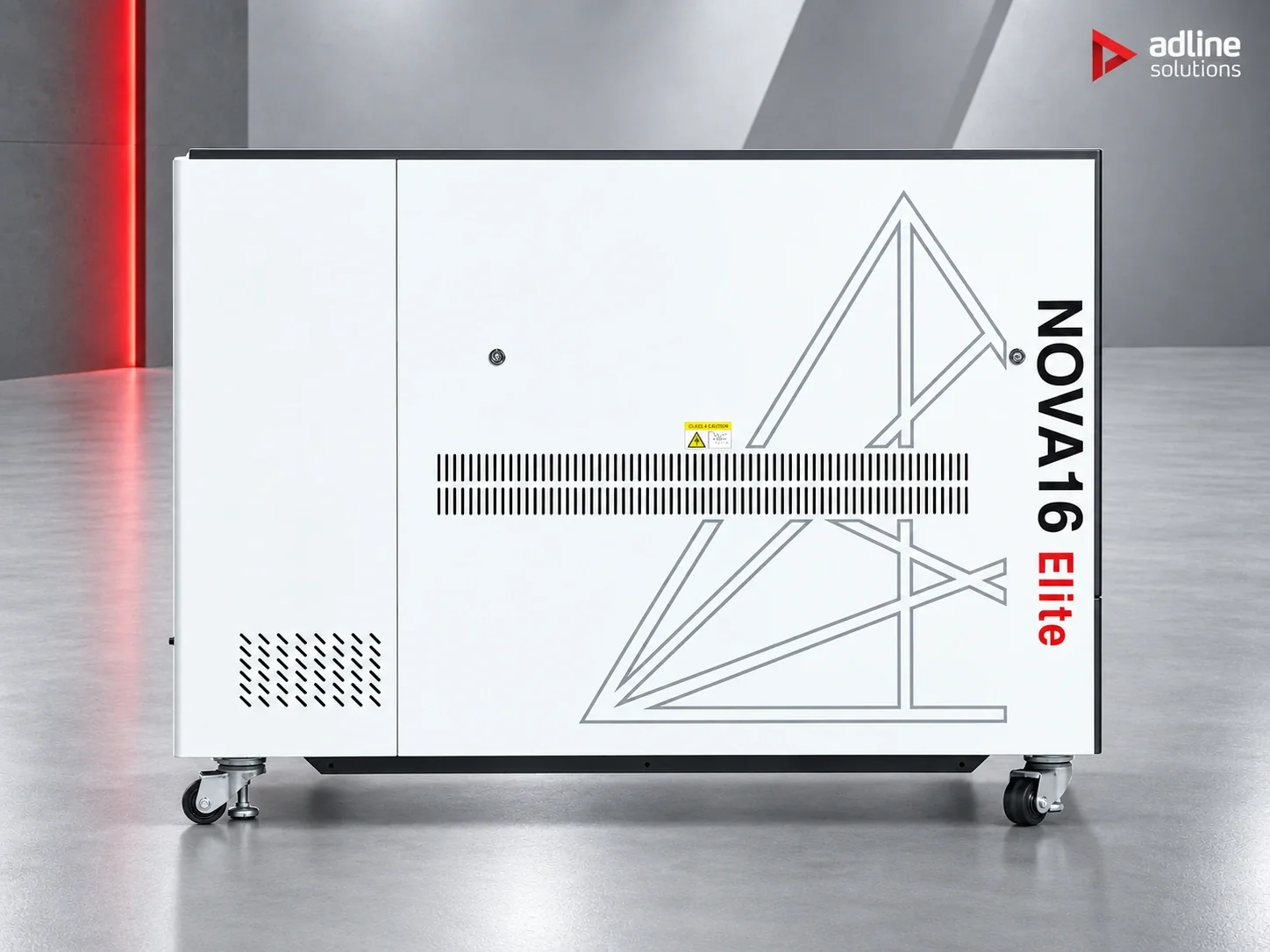

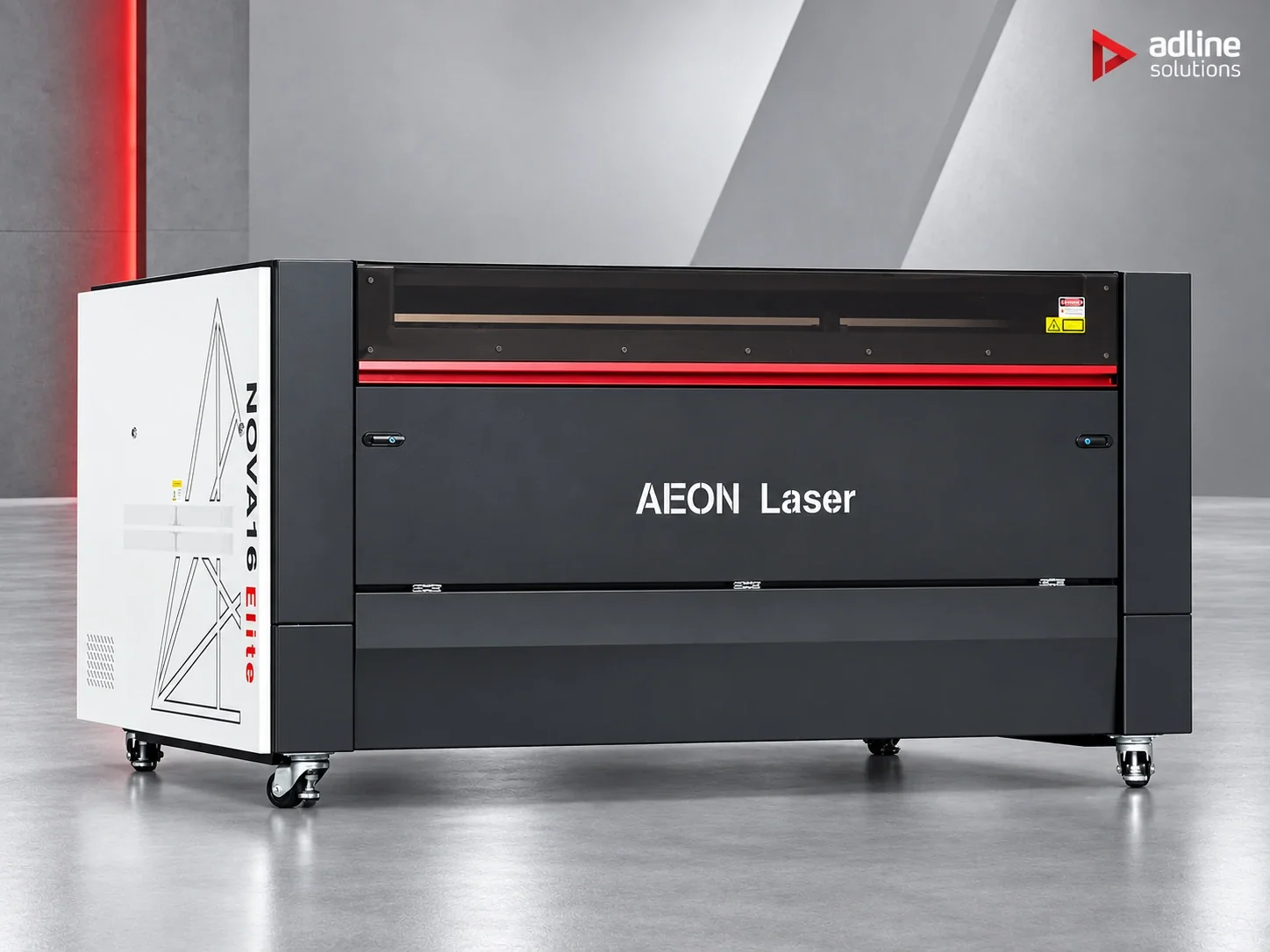

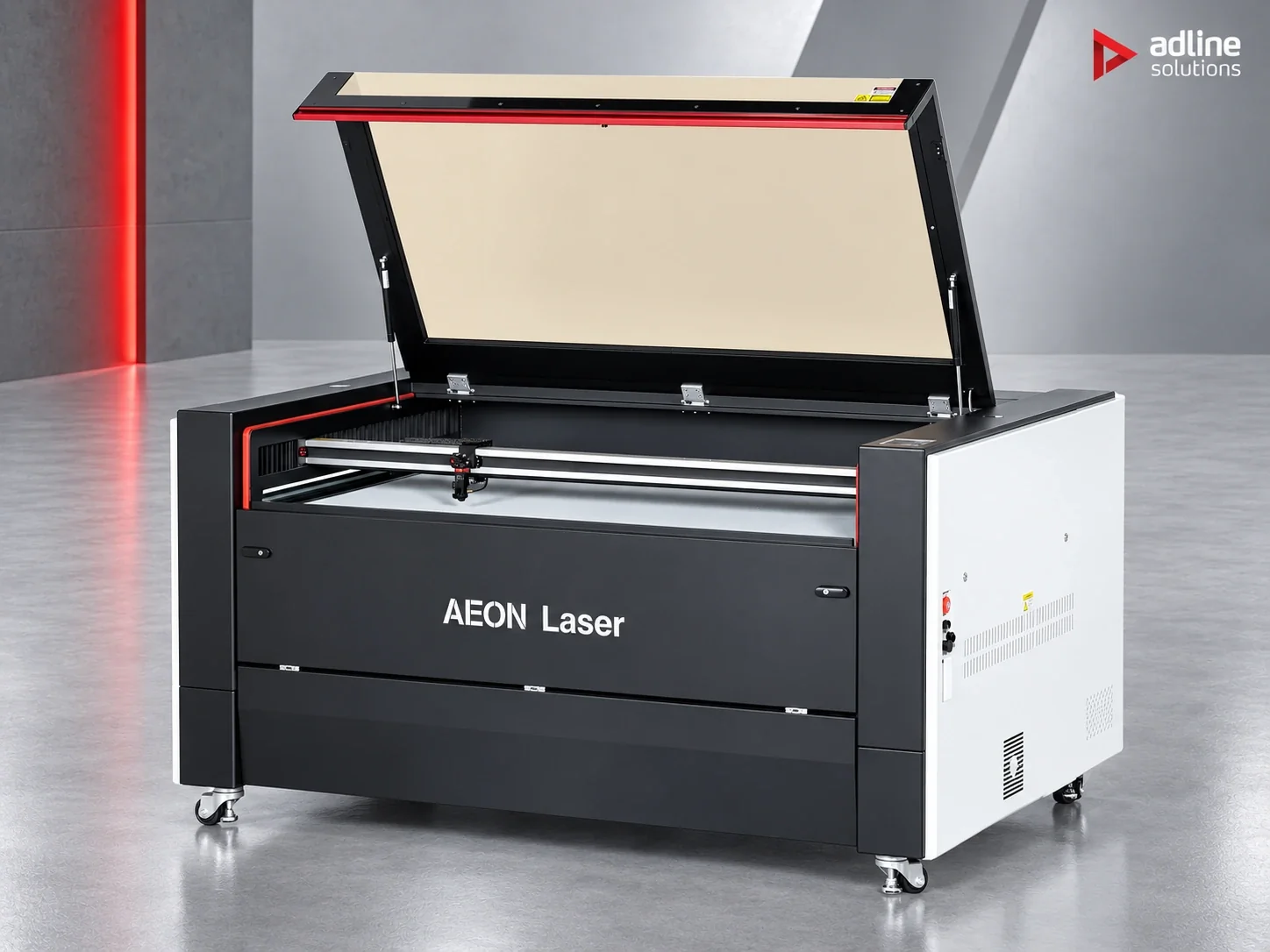

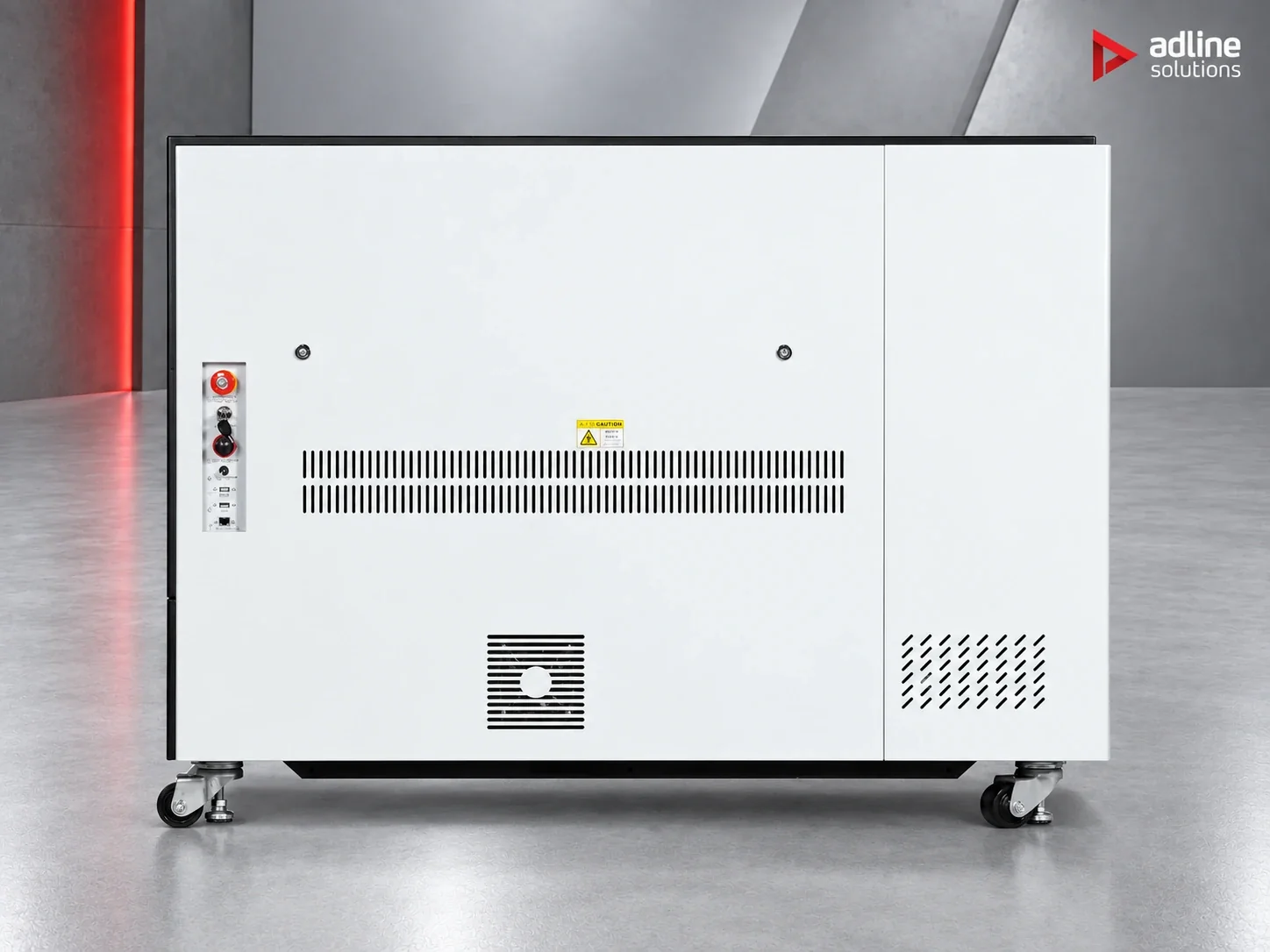

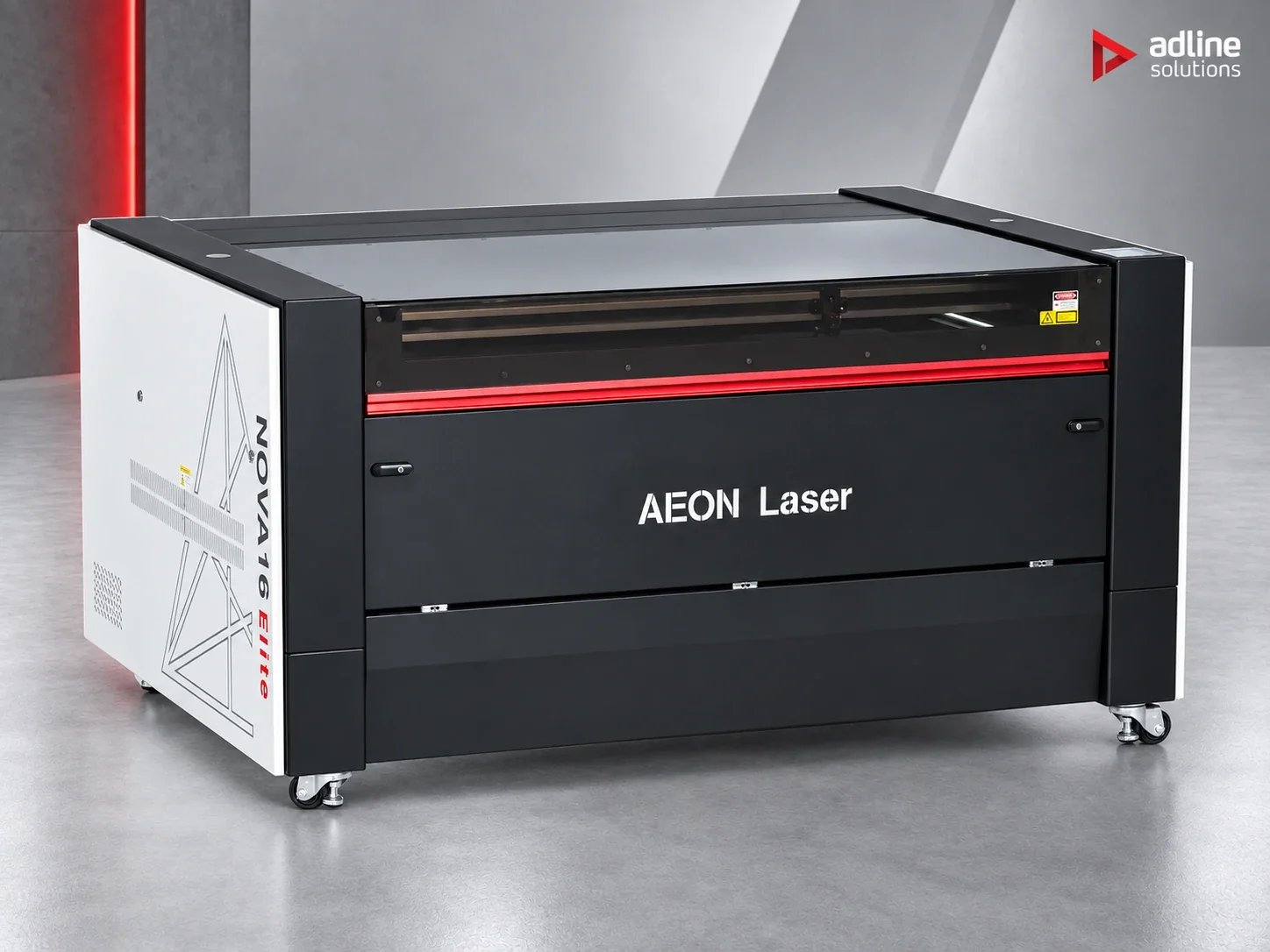

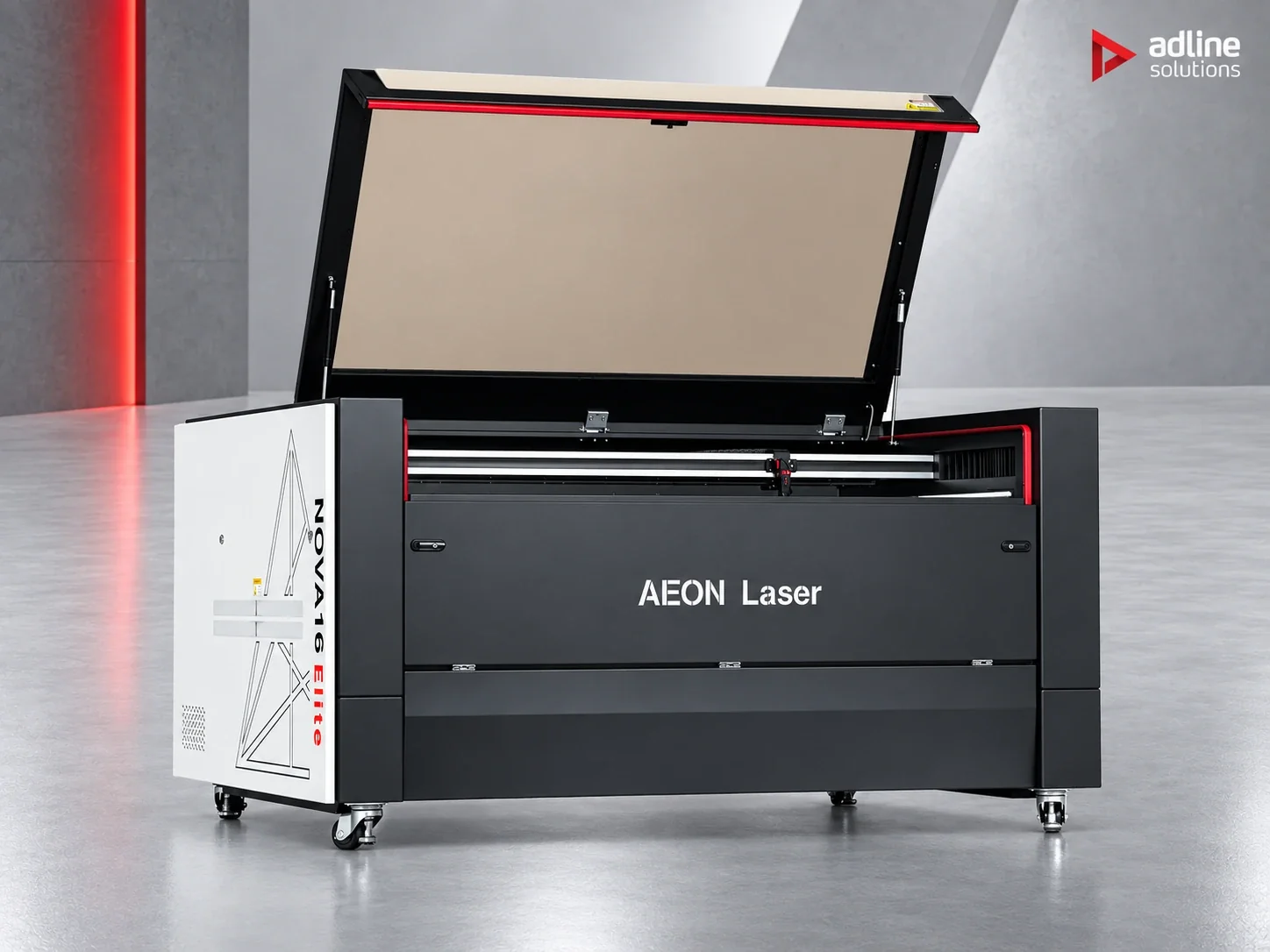

AEON Nova16 Elite
The Nova16 Elite is the largest single-source machine in the Redline family: a 1600 × 1000 mm bed and a Glass source of 130 W or 150 W. It is built for industrial sheet production — furniture panels, signage, door elements — where the sheet, not the machine, sets the pace.
Power and cooling
150 W of Glass source cuts thicker stock in one pass and reduces edge charring at speed. The Chiller 5200 is integrated, air assist runs from a 750 W compressor with a 40 L tank, and the 500 W exhaust is integrated and automatic.
Set-up and control
Smart Panel, 1 G internal memory, WiFi, AutoFocus and a 100° 8 MP camera. Positioning accuracy stays within 0.1 mm across the full bed.
Extraction
AEON Nova16 Elite
A large-format Glass CO₂ machine configured for dependable cutting and engraving with DC stepper motion and speeds up to 1,200 mm/s.
NOVA ELITE / LARGE-FORMAT PRODUCTION
Glass-source production, purposefully configured.
Elite concentrates on Glass-source cutting and everyday engraving without inheriting the Super family’s RF or servo specification.
- 1,600 × 1,000 mm
- working area
- 200 mm
- Z travel · 120 kg lift capacity
- 1,200 mm/s
- maximum Glass engraving speed
SOURCE & MOTION / ELITE
Glass power for cutting-led work.
Elite uses a Glass source with 5G acceleration and DC stepper motors. It is not an RF-source or AC-servo configuration.
SMART PANEL / MACHINE STATUS
Operating information at a glance.
Temperature monitoring and machine diagnostics are presented on the control panel, while the illuminated front logo communicates status across the workshop.
OPTICAL PATH / EASIER SERVICE
Designed for practical optical maintenance.
The align-free design simplifies access and replacement for the tube, mirrors and lens, reducing repeated optical-path adjustment during routine service.
MAGNETIC LENS HOLDER
Remove, inspect and refit.
The magnetic holder makes routine lens access straightforward. Alternative 2, 2.5 and 4 inch focal lengths are available for different applications; inclusion depends on the selected configuration.
WORKFLOW / MATERIAL HANDLING
Built around real production work.
Interchangeable work tables
Use the honeycomb or slat table according to the material and process.
Camera positioning
A 100° 8 MP camera supports artwork placement and tracing. AutoFocus and WiFi are included; a LightBurn licence is optional.
Material pass-through
Front and rear openings accommodate longer stock; the active processing area remains 1,600 × 1,000 mm.
INTEGRATED SUPPORT SYSTEMS
Air, cooling and exhaust within the machine.

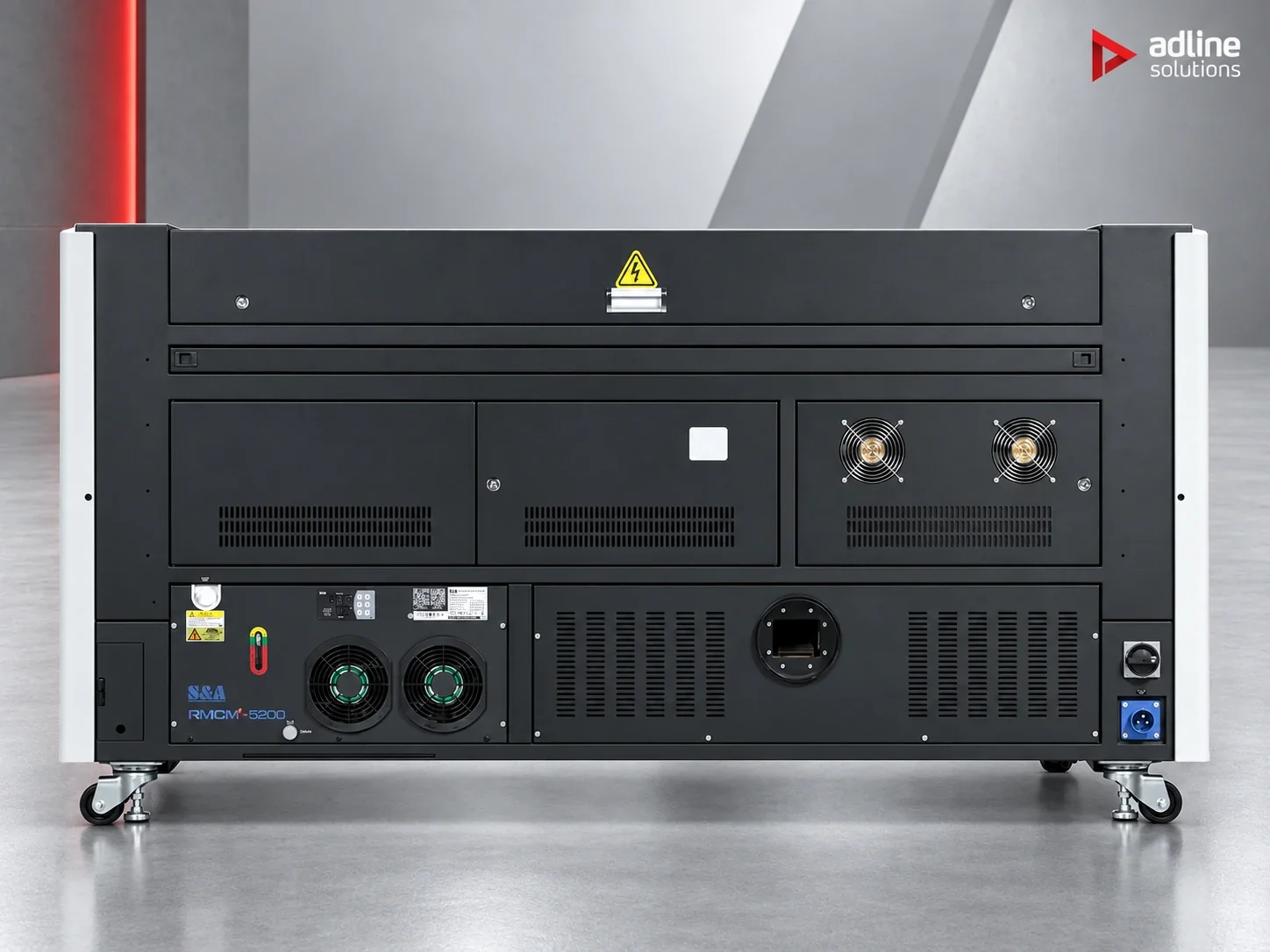

The machine integrates a 750 W compressor with a 40 L tank and a 500 W inline exhaust with automatic start-stop. Glass configurations use a built-in Chiller 5200; cooling remains water-based for the Glass source.
- 01 · Air assist
- 750 W compressor · 40 L tank
- 02 · Inline exhaust
- 500 W · automatic start-stop
- 03 · Cooling
- Chiller 5200 for Glass
PLAN YOUR WORKSPACE
Extraction and material safety.
CO₂ processing produces fumes. Use suitable extraction and process only exact material grades explicitly approved for laser use. PVC must not be laser processed; extraction does not make an unsuitable material safe.
Plastics, rubber and composites require verification against the manufacturer’s safety documentation. This machine is not presented for bare-metal or glass cutting.
Explore fume extraction units for laser and CNC →Technical specifications
Work area
- Work area
- 1600 × 1000 mm
- Z travel
- 200 mm
- Max. Z load
- 120 kg
Laser source
- Glass laser tube
- 130 W / 150 W
Speed & motion
- Engraving speed (Glass)
- 1,200 mm/s
- Acceleration (Glass)
- 5G
- Motors (Glass)
- DC stepper
- Positioning accuracy
- ≤ 0.1 mm
Cooling & air
- Chiller
- Integrated Chiller 5200
- Air assist
- 750 W compressor / 40 L tank
- Exhaust
- 500 W, integrated, automatic
Table & optics
- Table
- Honeycomb + slat
- AutoFocus
- Yes
- Camera
- 100° · 8 MP (3840 × 2160)
Control & connectivity
- Smart Panel
- Yes
- Internal memory
- 1 G
- WiFi
- Yes
Dimensions & weight
- Packed dimensions
- 2100 × 1510 × 1125 mm
- Net weight
- 566 kg
- Gross weight
- 730 kg
Software
- Operating software
- RDWorks / LightBurn (optional)
- Design software
- CorelDraw / Illustrator / AutoCAD
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Industrial production with large sheets — furniture, signage and doors.
Series
Nova Elite
Frequently asked questions
What is the Nova16 Elite for?
Industrial sheet production: furniture panels, signage and door elements, where the sheet, not the machine, sets the pace. It is the largest single-source Redline machine, with a 1600 × 1000 mm bed and a Glass source of 130 W or 150 W.
130 W or 150 W: which should we choose?
Take 150 W if thicker stock is a regular part of your work: it cuts thicker material in one pass and reduces edge charring at speed. Otherwise the two variants are the same machine, with the same 1,200 mm/s engraving speed. Send us your materials and thicknesses and we will recommend the power.
How accurate is it across such a large bed?
Positioning accuracy stays within 0.1 mm across the full 1600 × 1000 mm bed. A 100° 8 MP camera (3840 × 2160) shows the material on screen for placement, and AutoFocus sets the height for each thickness.
What can the table carry?
Up to 120 kg, with 200 mm of Z travel over the 1600 × 1000 mm bed. The table comes as honeycomb and slat, so you can match the support to engraving or cutting, and AutoFocus sets the height for each thickness of sheet you load.
What cooling and air does it use?
The Chiller 5200 is integrated, air assist runs from a 750 W compressor with a 40 L tank, and the 500 W exhaust is integrated and starts automatically with the job. Plan fume extraction with the machine; we can recommend a unit for your materials.
Which software and controls does it have?
Smart Panel, 1 G of internal memory and WiFi on the machine. The operating software is RDWorks, with LightBurn as an option, and designs come from CorelDraw, Illustrator or AutoCAD. Send us a typical file and we will check it runs as you expect.
What do we need on site?
A level floor for a 566 kg machine and access for a package of 2100 × 1510 × 1125 mm at 730 kg gross, so plan for a forklift at delivery. We confirm the electrical supply requirements with your quote.
