Scrap collection drawer
Cut pieces fall into a drawer below the bed for easier clearing and routine housekeeping.
AEON · Nova Elite
AEON Nova14 Elite
In stock: Glass 100 W, Glass 130 W
- 1400 × 900 mm bed for large parts
- Glass source 100 W or 130 W
- Integrated Chiller 5200
- 750 W compressor air assist with 40 L tank
- Automatic 500 W integrated exhaust
- Smart Panel, 1 G memory, WiFi

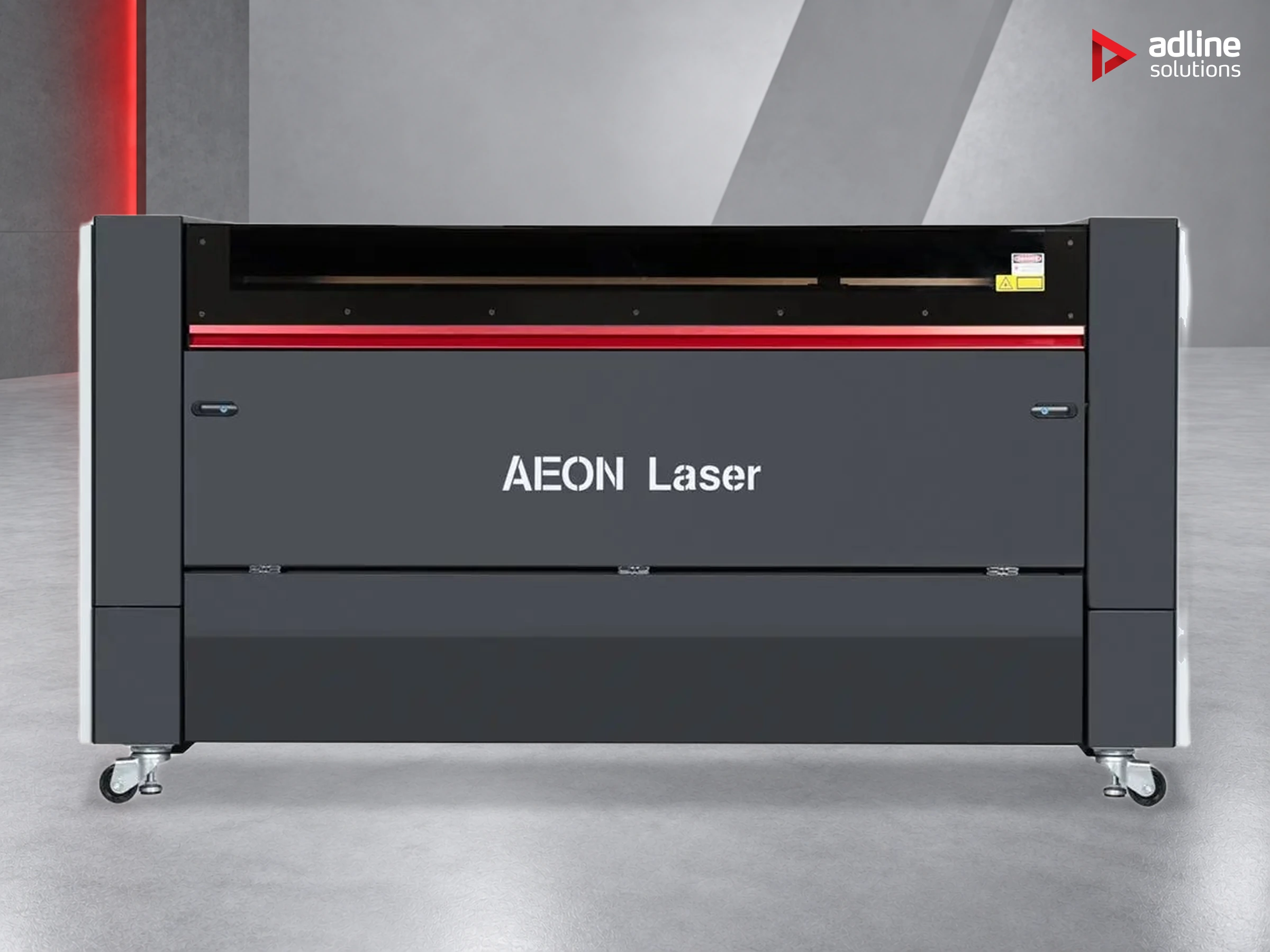

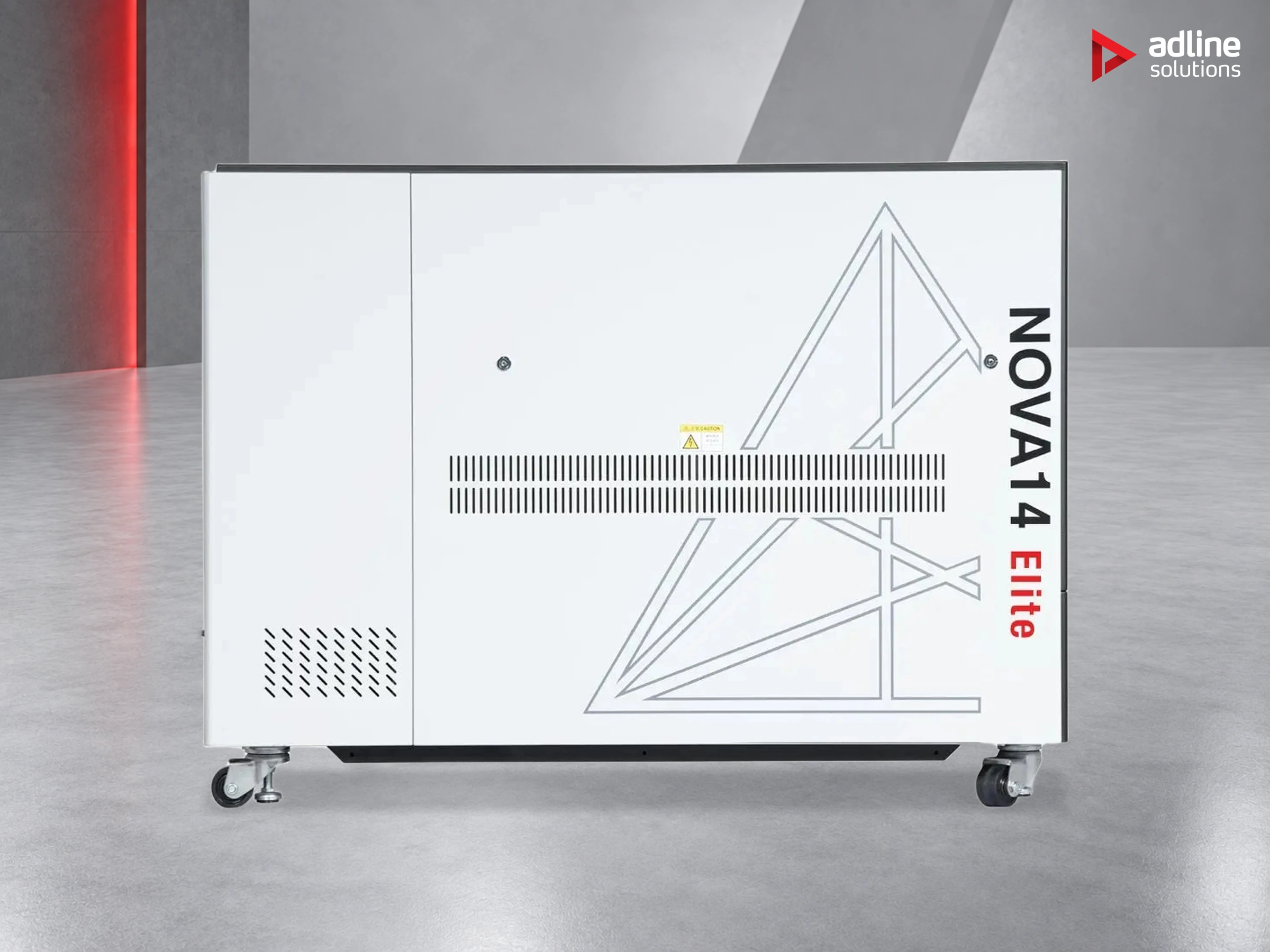

Free-standing Redline machine with a 1400 × 900 mm bed, Chiller 5200 and a Glass source of up to 130 W.
Request a quoteWhich bed size and source? Read the guide- Wood & MDF
- Acrylic
- Leather
- Signage & advertising
- Furniture
- Textiles
Configurations
| Configuration | Differences | Availability |
|---|---|---|
| Glass 100 WIn stock | Laser source: Glass 100 W · Engraving speed: 1,200 mm/s | In stock |
| Glass 130 WIn stock | Laser source: Glass 130 W · Engraving speed: 1,200 mm/s | In stock |
About this machine
AEON Nova14 Elite
The Nova14 Elite takes the free-standing Redline platform to a 1400 × 900 mm bed and a Glass source of up to 130 W. It is the machine for large parts: furniture components, shop fittings, signage panels and thick acrylic cut in a single pass.
Production cooling and air
The Chiller 5200 holds tube temperature through long cutting jobs. Air assist comes from a 750 W compressor with a 40 L tank, which keeps pressure steady across a large bed, and the 500 W integrated exhaust runs automatically with the job.
Set-up
100° 8 MP camera, AutoFocus, Smart Panel, 1 G internal memory and WiFi. Honeycomb and slat tables swap according to whether you are engraving or cutting.
Extraction
See our fume extraction units for laser and CNC — essential for acrylic, ABS, rubber, leather and wood. Do not cut PVC or other chlorinated plastics on a CO₂ laser: the fume is harmful and corrodes the optics and the mechanics.
AEON Nova14 Elite
A large-format Glass CO₂ machine configured for dependable cutting and engraving with DC stepper motion and speeds up to 1,200 mm/s.
NOVA ELITE / LARGE-FORMAT PRODUCTION
Glass-source production, purposefully configured.
Elite concentrates on Glass-source cutting and everyday engraving without inheriting the Super family’s RF or servo specification.
- 1,400 × 900 mm
- working area
- 200 mm
- Z travel · 120 kg lift capacity
- 1,200 mm/s
- maximum Glass engraving speed
SOURCE & MOTION / ELITE
Glass power for cutting-led work.
Elite uses a Glass source with 5G acceleration and DC stepper motors. It is not an RF-source or AC-servo configuration.
SMART PANEL / MACHINE STATUS
Operating information at a glance.
Temperature monitoring and machine diagnostics are presented on the control panel, while the illuminated front logo communicates status across the workshop.
OPTICAL PATH / EASIER SERVICE
Designed for practical optical maintenance.
The align-free design simplifies access and replacement for the tube, mirrors and lens, reducing repeated optical-path adjustment during routine service.
MAGNETIC LENS HOLDER
Remove, inspect and refit.
The magnetic holder makes routine lens access straightforward. Alternative 2, 2.5 and 4 inch focal lengths are available for different applications; inclusion depends on the selected configuration.
WORKFLOW / MATERIAL HANDLING
Built around real production work.

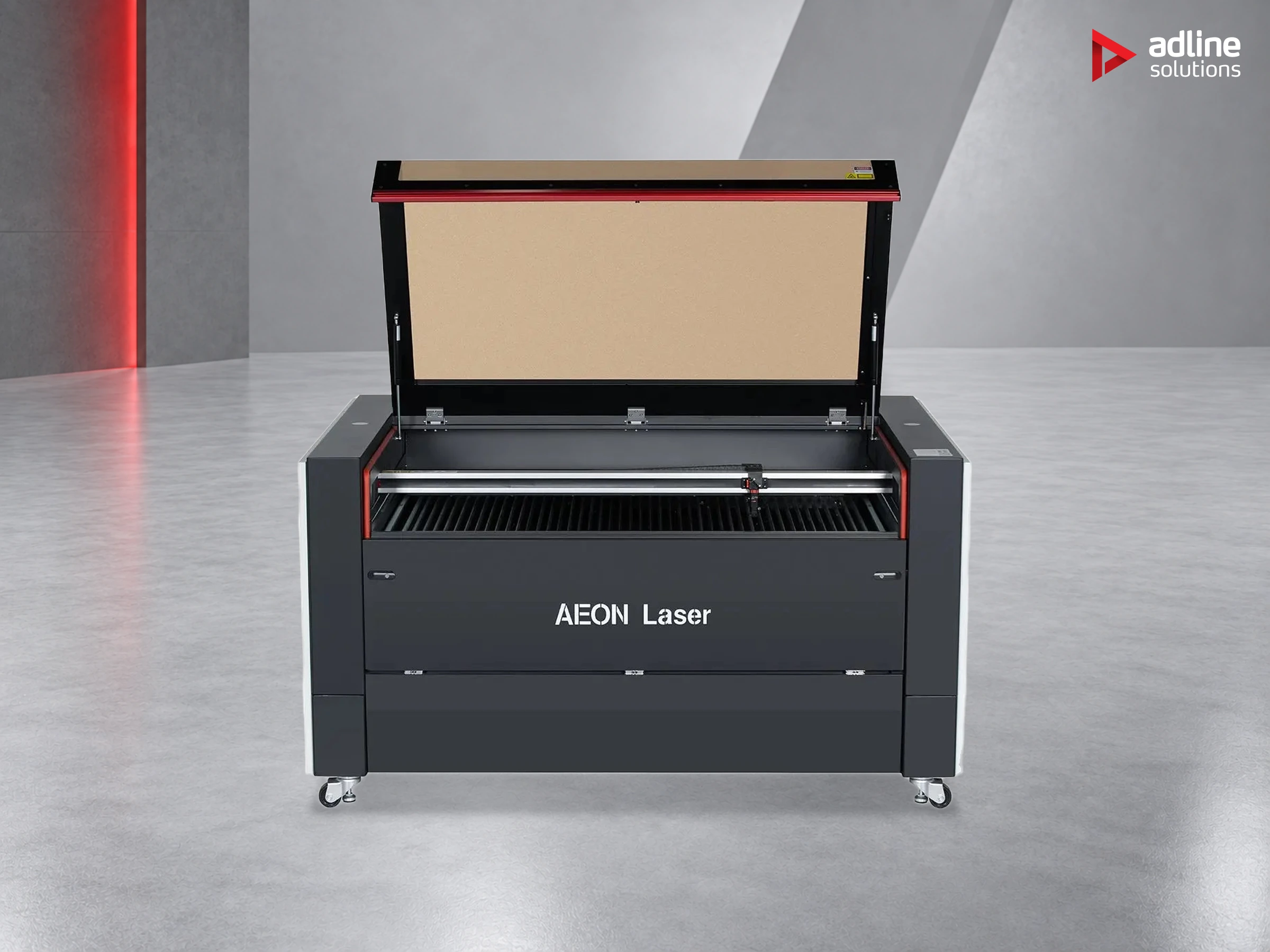

Interchangeable work tables
Use the honeycomb or slat table according to the material and process.
Camera positioning
A 100° 8 MP camera supports artwork placement and tracing. AutoFocus and WiFi are included; a LightBurn licence is optional.
Material pass-through

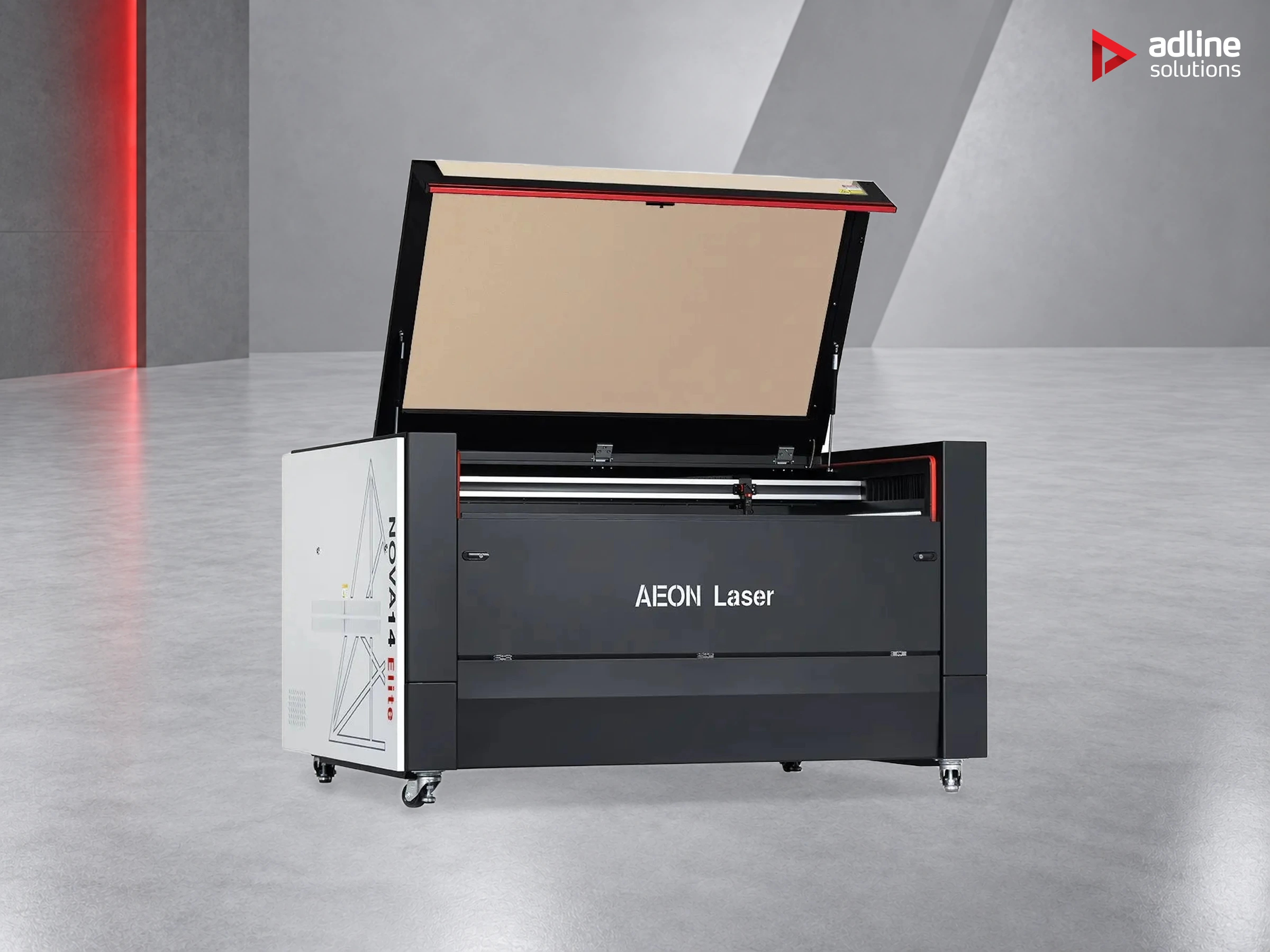

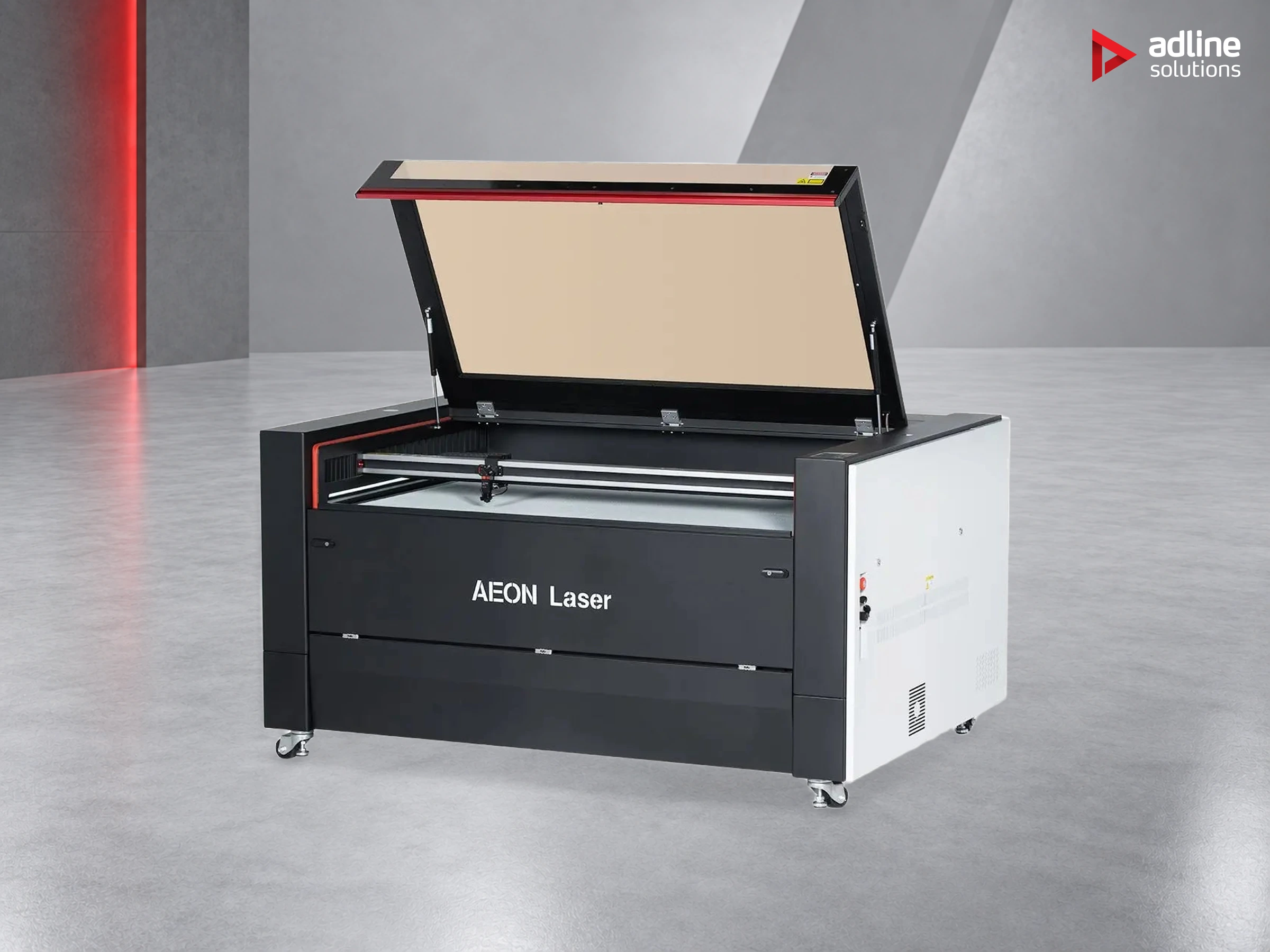

Front and rear openings accommodate longer stock; the active processing area remains 1,400 × 900 mm.
INTEGRATED SUPPORT SYSTEMS
Air, cooling and exhaust within the machine.
The machine integrates a 750 W compressor with a 40 L tank and a 500 W inline exhaust with automatic start-stop. Glass configurations use a built-in Chiller 5200; cooling remains water-based for the Glass source.
- 01 · Air assist
- 750 W compressor · 40 L tank
- 02 · Inline exhaust
- 500 W · automatic start-stop
- 03 · Cooling
- Chiller 5200 for Glass
PLAN YOUR WORKSPACE
Extraction and material safety.
CO₂ processing produces fumes. Use suitable extraction and process only exact material grades explicitly approved for laser use. PVC must not be laser processed; extraction does not make an unsuitable material safe.
Plastics, rubber and composites require verification against the manufacturer’s safety documentation. This machine is not presented for bare-metal or glass cutting.
Explore fume extraction units for laser and CNC →Technical specifications
Work area
- Work area
- 1400 × 900 mm
- Z travel
- 200 mm
- Max. Z load
- 120 kg
Laser source
- Glass laser tube
- 100 W / 130 W
Speed & motion
- Engraving speed (Glass)
- 1,200 mm/s
- Acceleration (Glass)
- 5G
- Motors (Glass)
- DC stepper
- Positioning accuracy
- ≤ 0.1 mm
Cooling & air
- Chiller
- Integrated Chiller 5200
- Air assist
- 750 W compressor / 40 L tank
- Exhaust
- 500 W, integrated, automatic
Table & optics
- Table
- Honeycomb + slat
- AutoFocus
- Yes
- Camera
- 100° · 8 MP (3840 × 2160)
Control & connectivity
- Smart Panel
- Yes
- Internal memory
- 1 G
- WiFi
- Yes
Dimensions & weight
- Packed dimensions
- 1900 × 1410 × 1125 mm
- Net weight
- 560 kg
- Gross weight
- 683 kg
Software
- Operating software
- RDWorks / LightBurn (optional)
- Design software
- CorelDraw / Illustrator / AutoCAD
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Intensive production with large parts — wood, MDF and acrylic cutting.
Series
Nova Elite
Frequently asked questions
What jobs is the Nova14 Elite built for?
Large parts: furniture components, shop fittings, signage panels and thick acrylic cut in a single pass. It is a free-standing machine with a 1400 × 900 mm bed and a single Glass source of 100 W or 130 W.
100 W or 130 W: which should we choose?
The two variants differ only in Glass tube power; engraving speed is 1,200 mm/s on both, and everything else on the machine is the same. The choice comes down to the materials and thicknesses you cut most. Send us samples or a list of your stock and we will recommend the power.
How much can the bed carry?
The bed is 1400 × 900 mm, with 200 mm of Z travel and a maximum Z load of 120 kg. Honeycomb and slat tables swap according to whether you are engraving or cutting, and AutoFocus sets the height for each thickness.
How does it cope with long cutting jobs?
The integrated Chiller 5200 holds tube temperature through long cutting jobs. Air assist comes from a 750 W compressor with a 40 L tank, which keeps pressure steady across the large bed, and the 500 W integrated exhaust runs automatically with the job.
How are jobs set up?
With a 100° 8 MP camera (3840 × 2160) that shows the bed on screen and AutoFocus for the height; positioning accuracy is ≤ 0.1 mm. Jobs are run from the Smart Panel with 1 G of internal memory and WiFi. The operating software is RDWorks, LightBurn optional, with designs from CorelDraw, Illustrator or AutoCAD.
What do we need on site?
Floor space and a level, solid floor for a 560 kg machine. It ships at 1900 × 1410 × 1125 mm and 683 kg gross, so plan for a forklift at delivery. Extraction is mandatory for PVC, ABS, polycarbonate, rubber and composites. We confirm the electrical supply with your quote.
