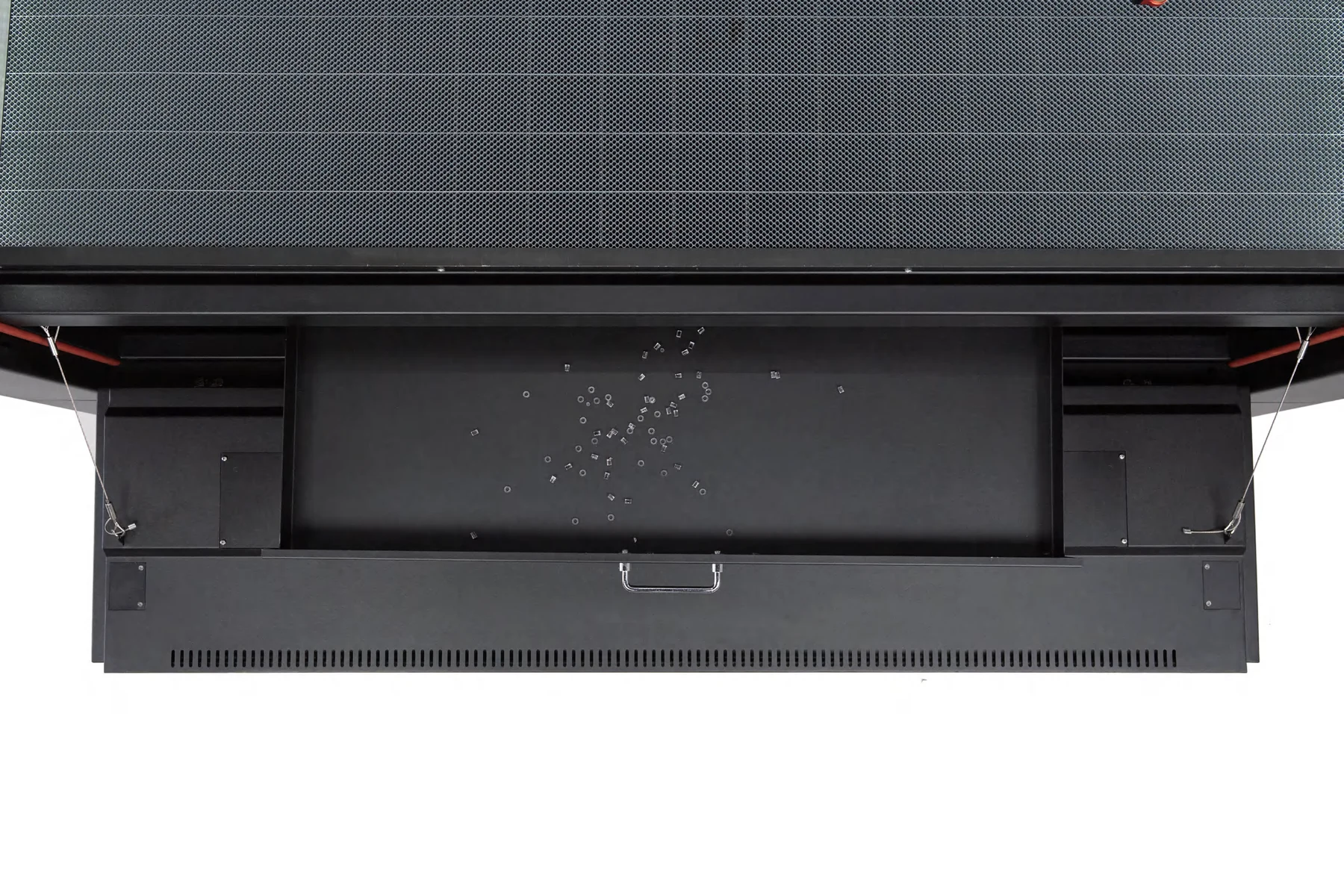

Scrap collection drawer
Cut pieces fall into a drawer below the bed for easier clearing and routine housekeeping.
AEON · Nova Elite

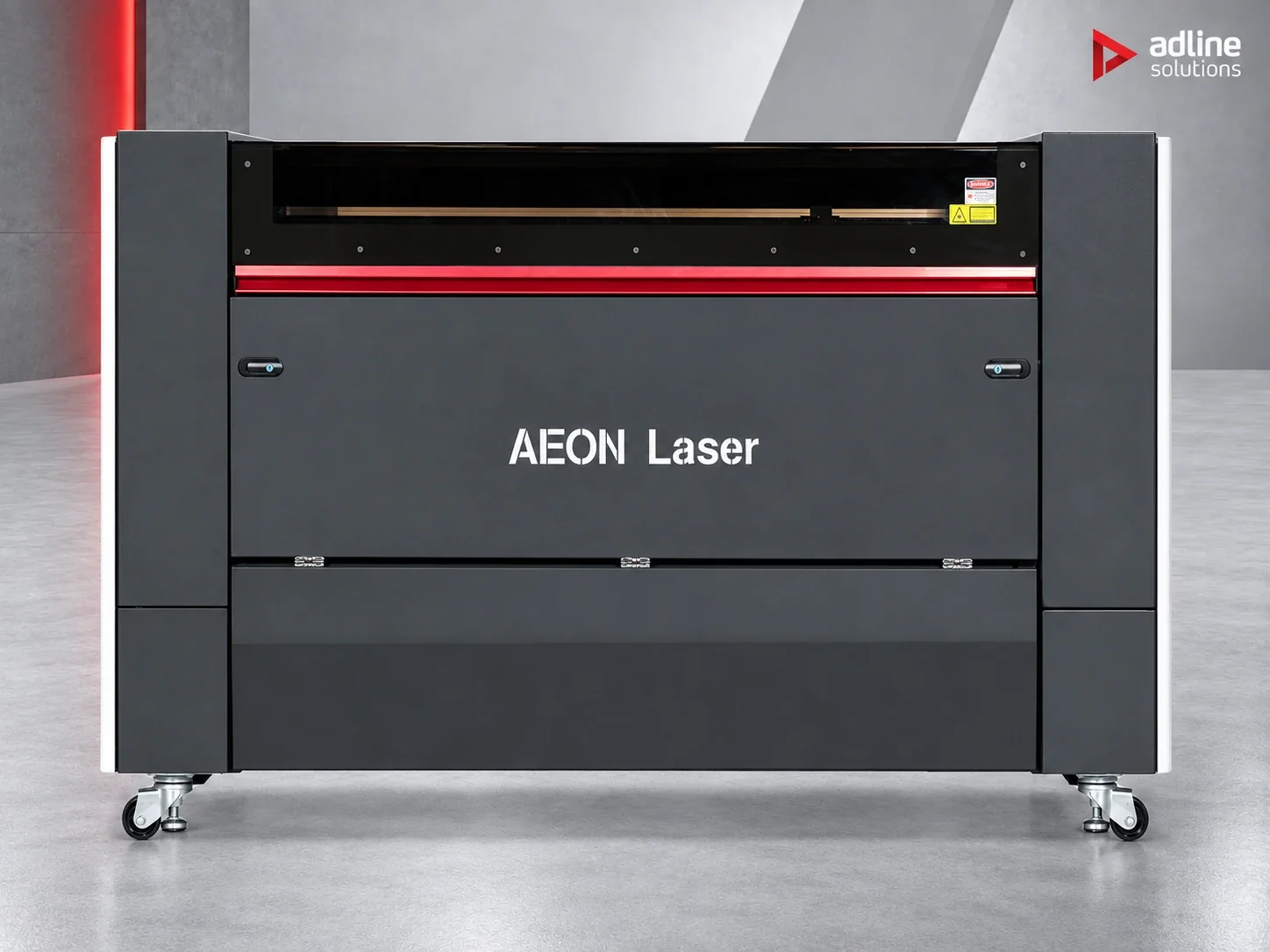

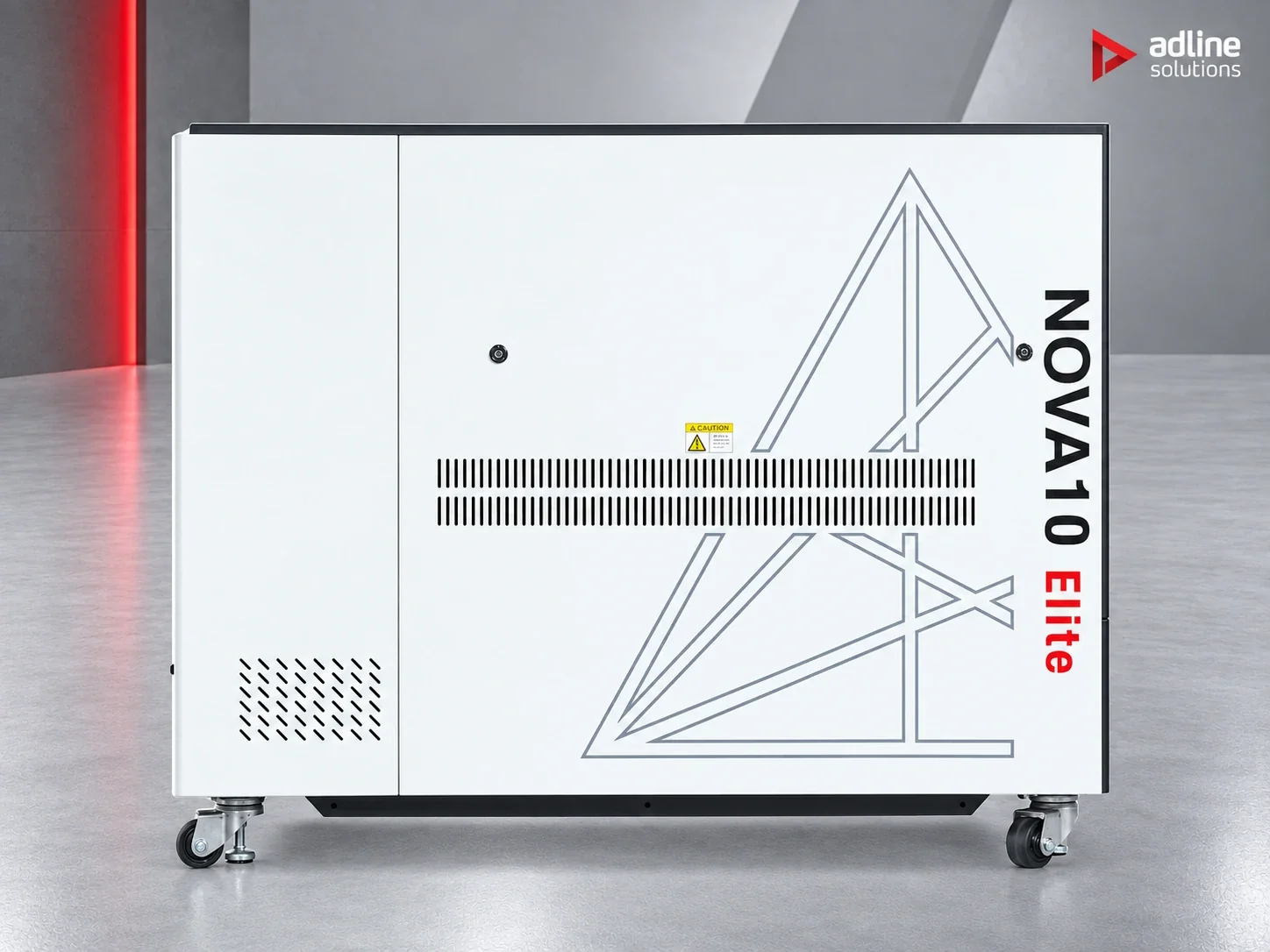

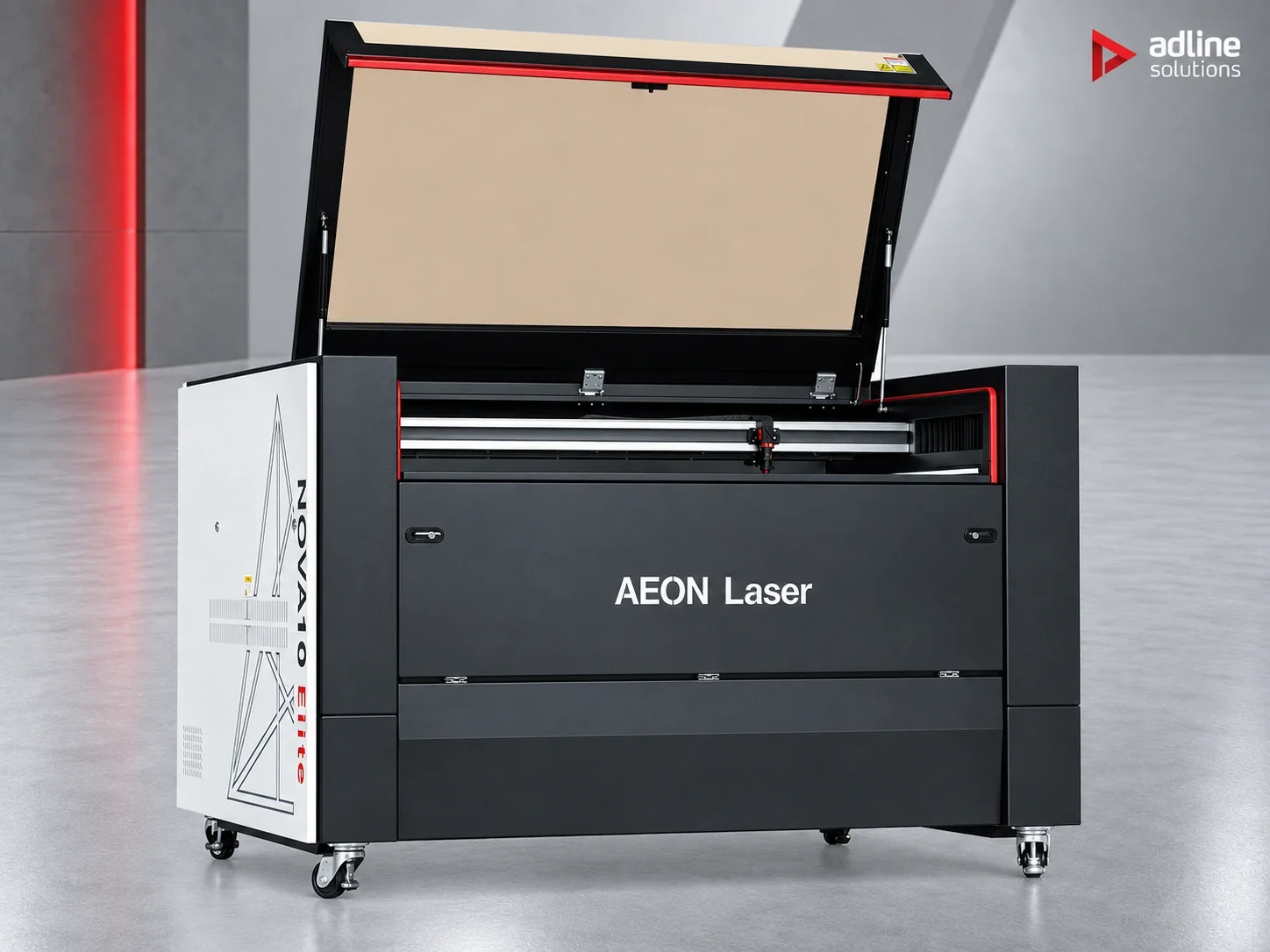

AEON Nova10 Elite
In stock: Glass 90 W, Glass 100 W
- 1000 × 700 mm bed, 200 mm Z travel, 120 kg table load
- Single Glass source, 90 W or 100 W
- Integrated Chiller 5000
- 750 W compressor air assist with 24 L tank
- Automatic 500 W integrated exhaust
- 100° 8 MP camera positioning and AutoFocus

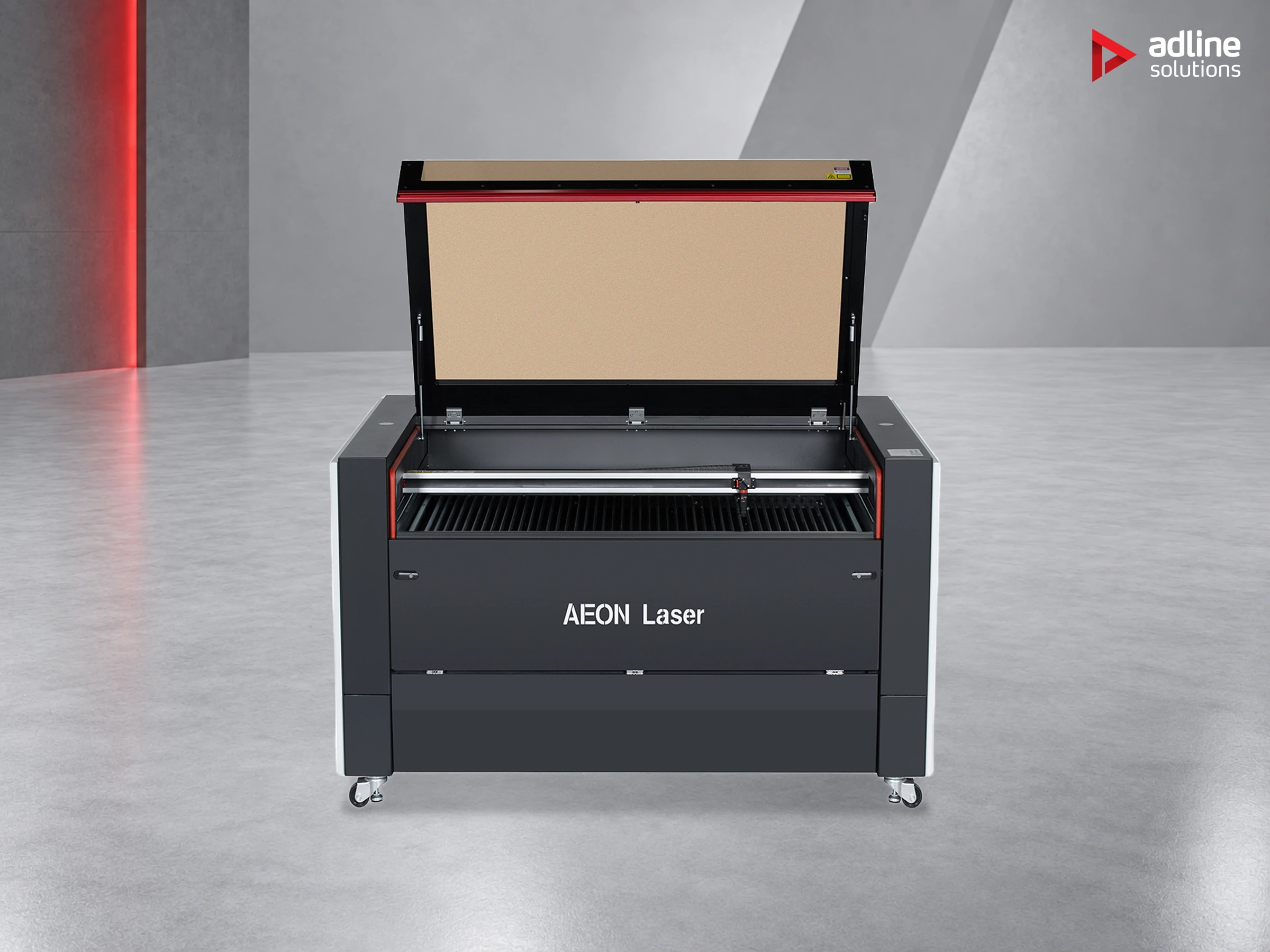

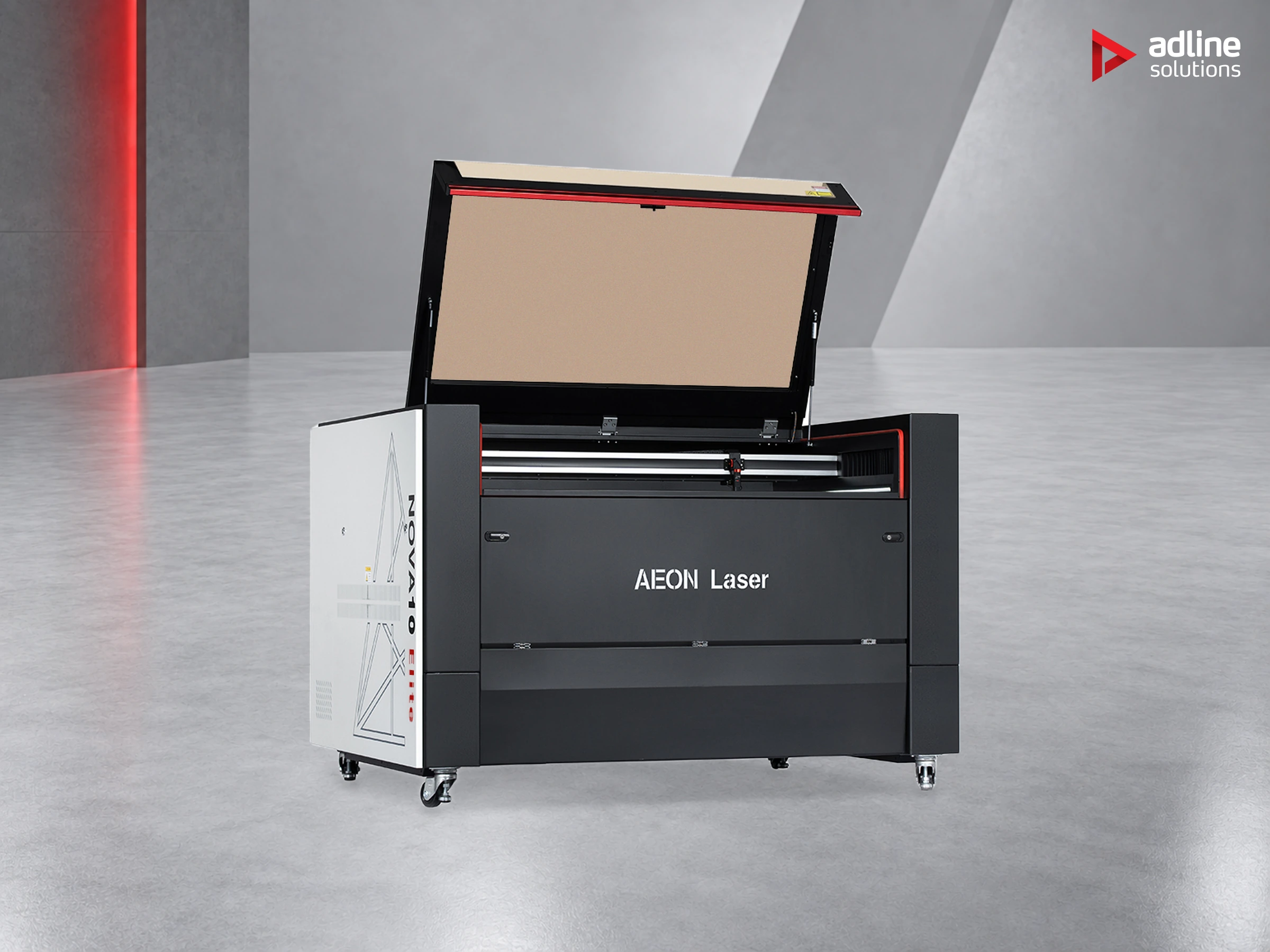

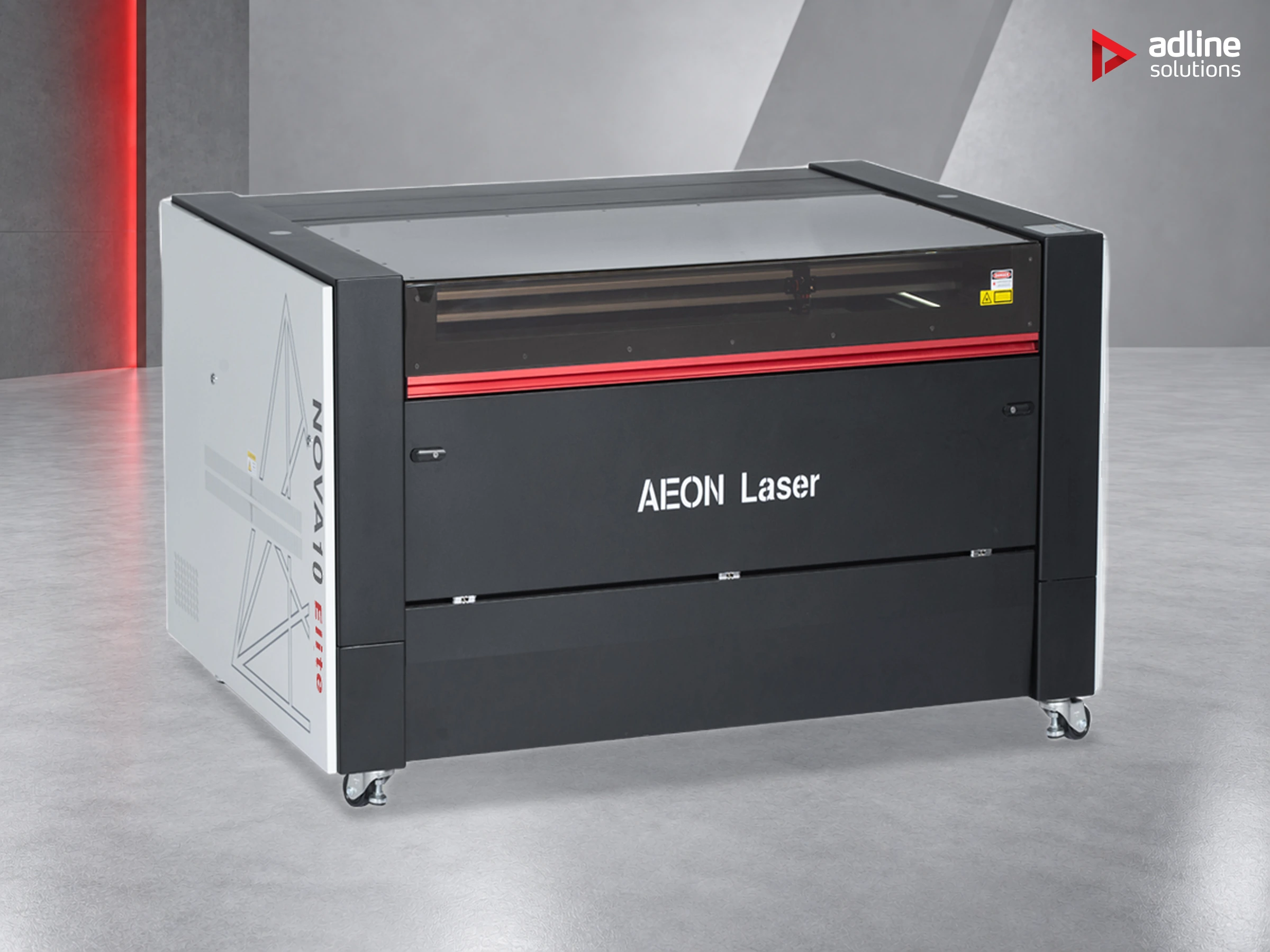

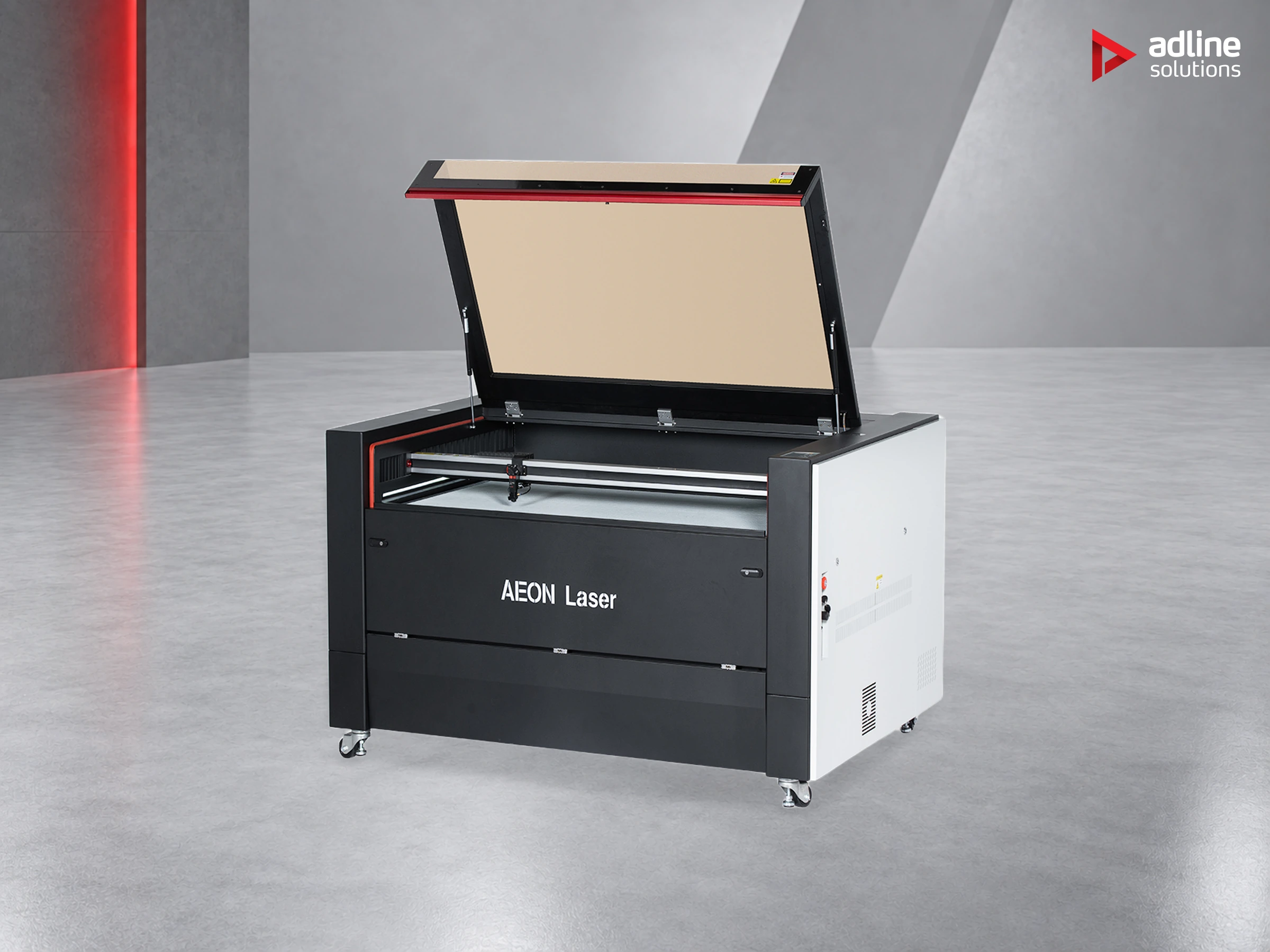

Free-standing Redline machine with a 1000 × 700 mm bed and a single high-power Glass source of 90 or 100 W.
Request a quoteWhich bed size and source? Read the guide- Wood & MDF
- Acrylic
- Leather
- Paper
- Signage & advertising
- Furniture
Configurations
| Configuration | Differences | Availability |
|---|---|---|
| Glass 90 WIn stock | Laser source: Glass 90 W · Engraving speed: 1,200 mm/s | In stock |
| Glass 100 WIn stock | Laser source: Glass 100 W · Engraving speed: 1,200 mm/s | In stock |
About this machine

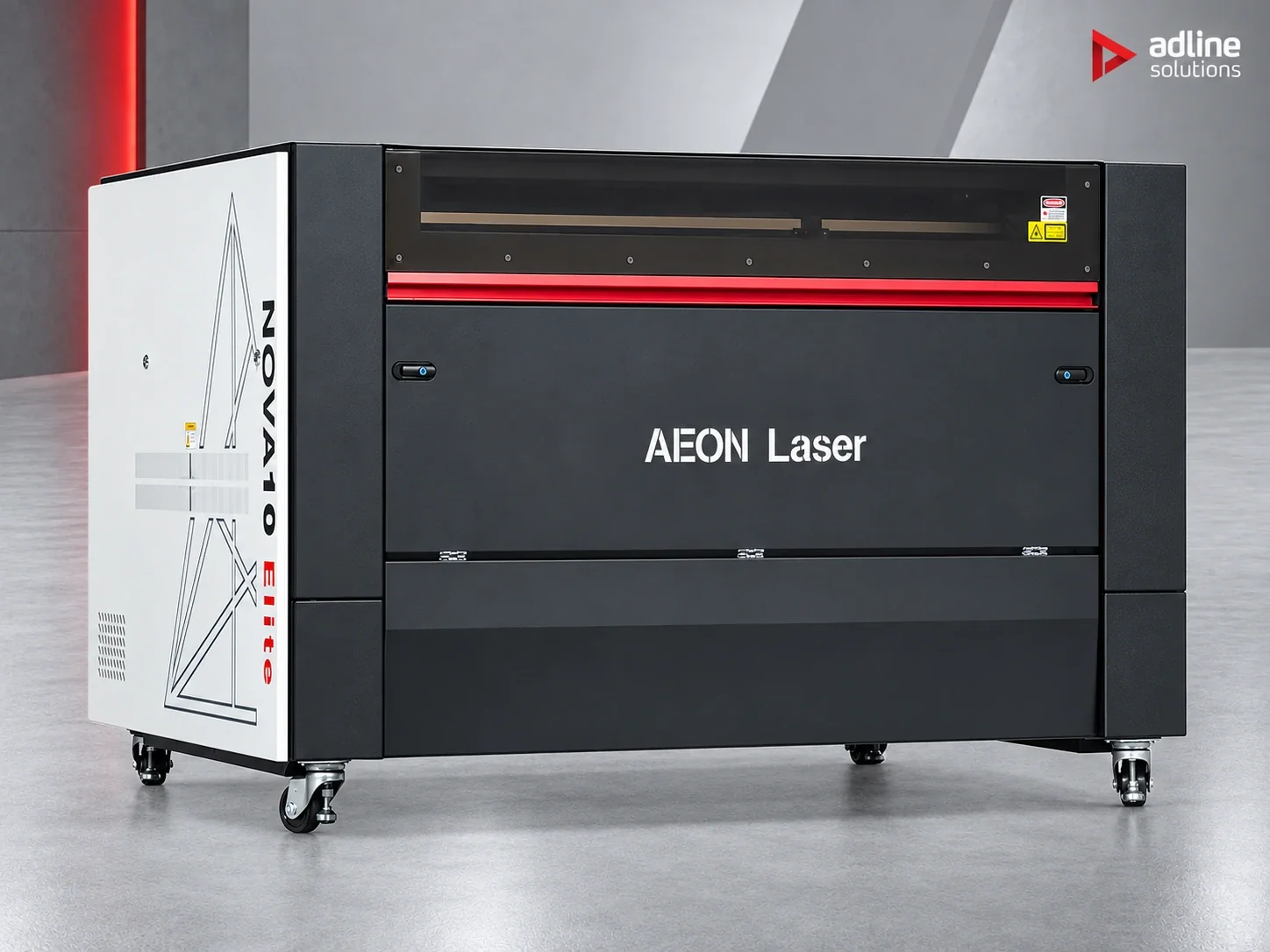

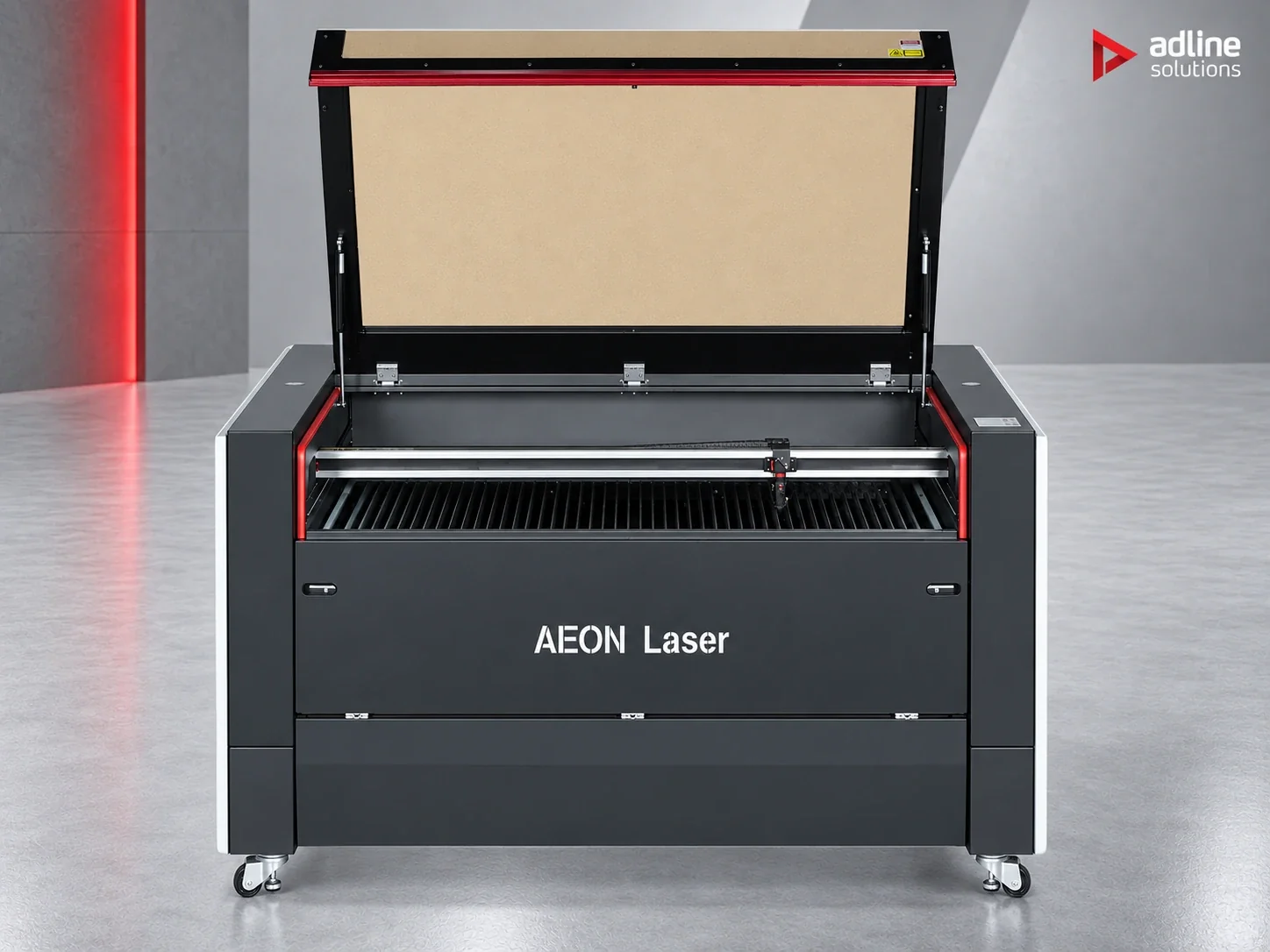

AEON Nova10 Elite
The Nova10 Elite is the entry point to AEON's free-standing Redline machines. A 1000 × 700 mm bed, a 200 mm Z travel and a 120 kg table load mean the machine takes real parts, not just sheet, and the single high-power Glass source of 90 W or 100 W cuts wood, MDF and acrylic cleanly in production.
Built for a working day
The Chiller 5000 is integrated, the 500 W exhaust starts and stops automatically with the job, and air assist is fed from a 750 W compressor with a 24 L tank. Smart Panel, 1 G of internal memory and WiFi keep the job queue on the machine.
Positioning
A 100° 8 MP camera (3840 × 2160) shows the bed on screen, so a design is dropped onto the material where it actually lies, and AutoFocus sets the height for each thickness.
Extraction
Extraction is essential for acrylic, ABS, rubber, leather and wood — see our fume extraction units for laser and CNC. Do not cut PVC or other chlorinated plastics on a CO₂ laser: the fume is harmful and corrodes the optics and the mechanics.
AEON Nova10 Elite

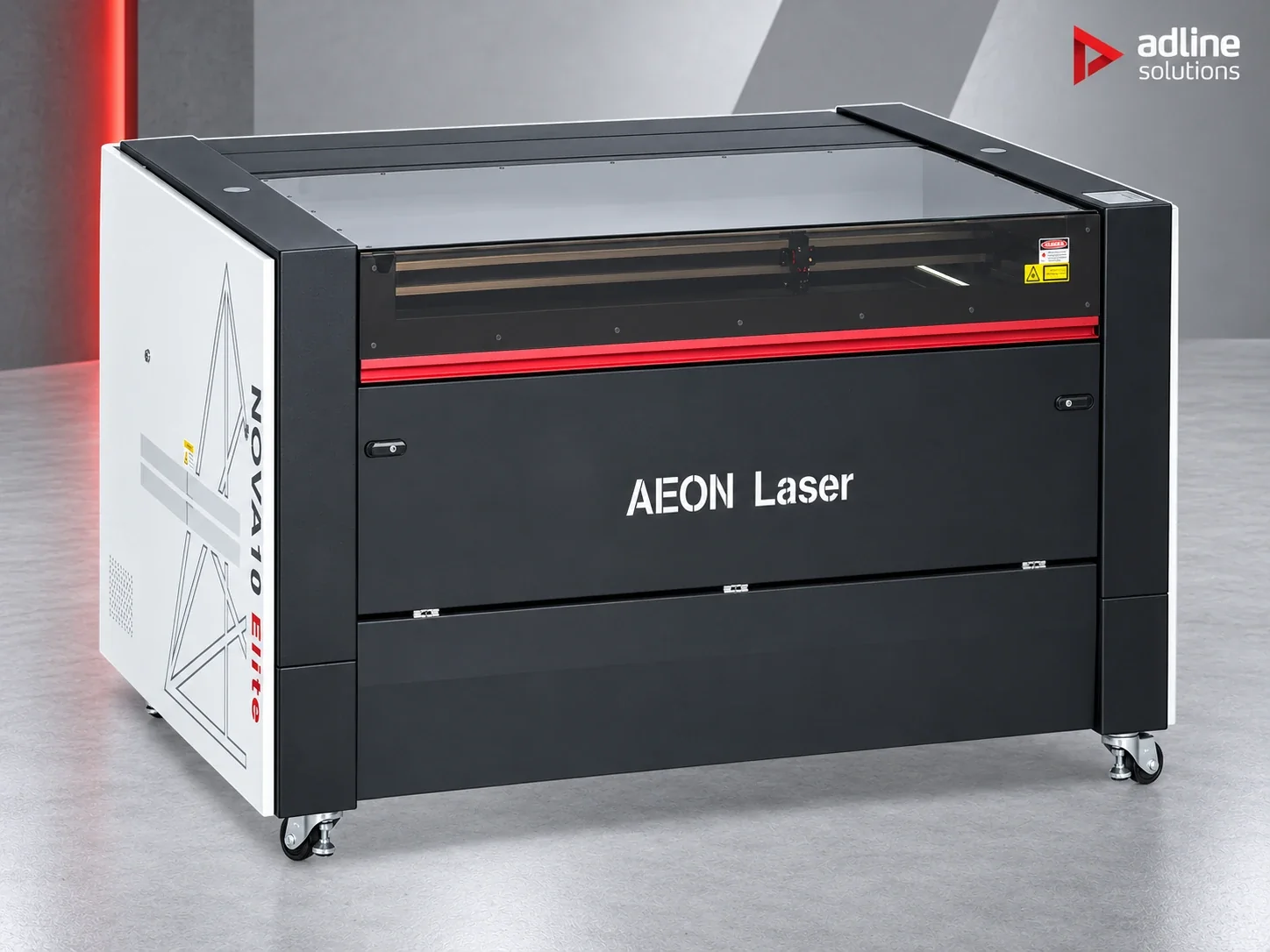

A large-format Glass CO₂ machine configured for dependable cutting and engraving with DC stepper motion and speeds up to 1,200 mm/s.
NOVA ELITE / LARGE-FORMAT PRODUCTION
Glass-source production, purposefully configured.
Elite concentrates on Glass-source cutting and everyday engraving without inheriting the Super family’s RF or servo specification.
- 1,000 × 700 mm
- working area
- 200 mm
- Z travel · 120 kg lift capacity
- 1,200 mm/s
- maximum Glass engraving speed
SOURCE & MOTION / ELITE
Glass power for cutting-led work.
Elite uses a Glass source with 5G acceleration and DC stepper motors. It is not an RF-source or AC-servo configuration.

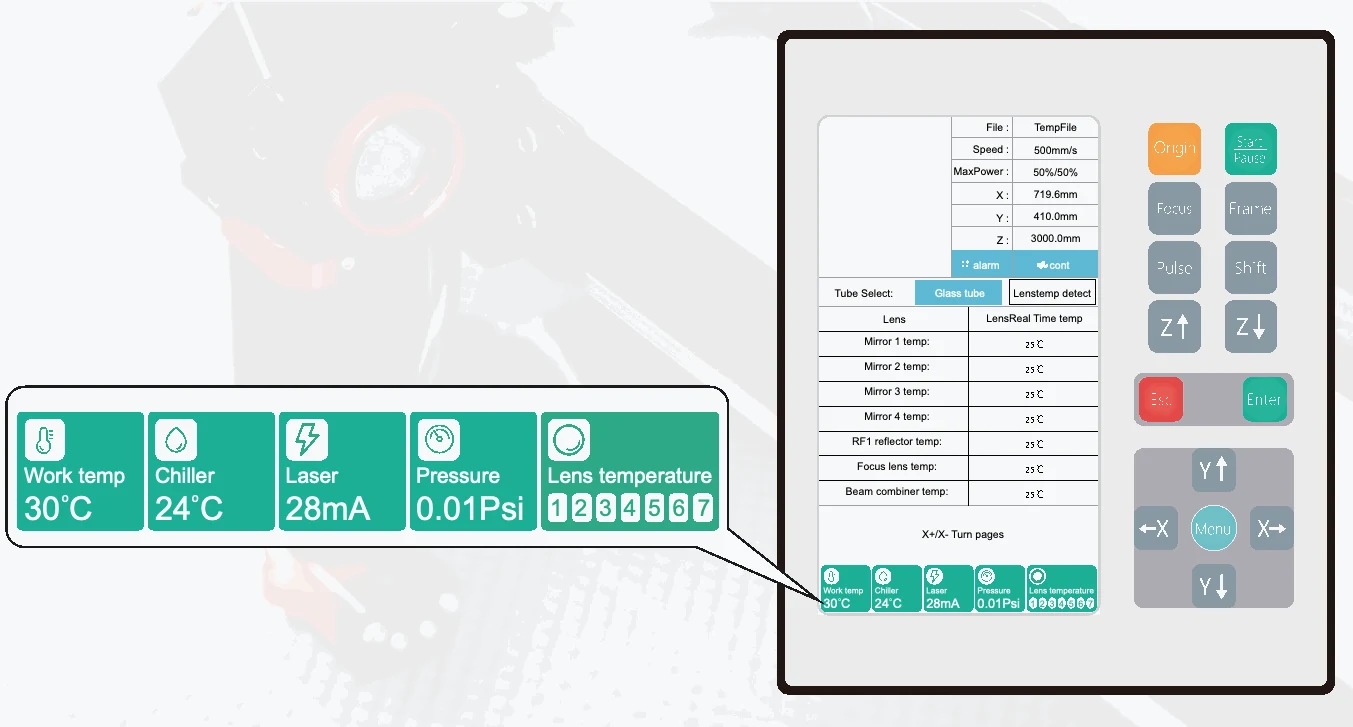

SMART PANEL / MACHINE STATUS
Operating information at a glance.

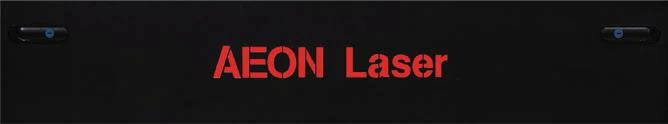

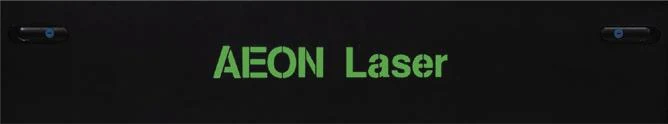

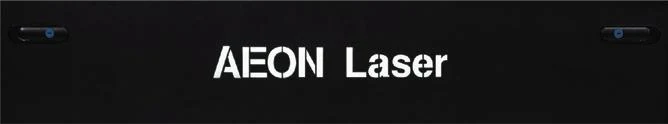

Temperature monitoring and machine diagnostics are presented on the control panel, while the illuminated front logo communicates status across the workshop.

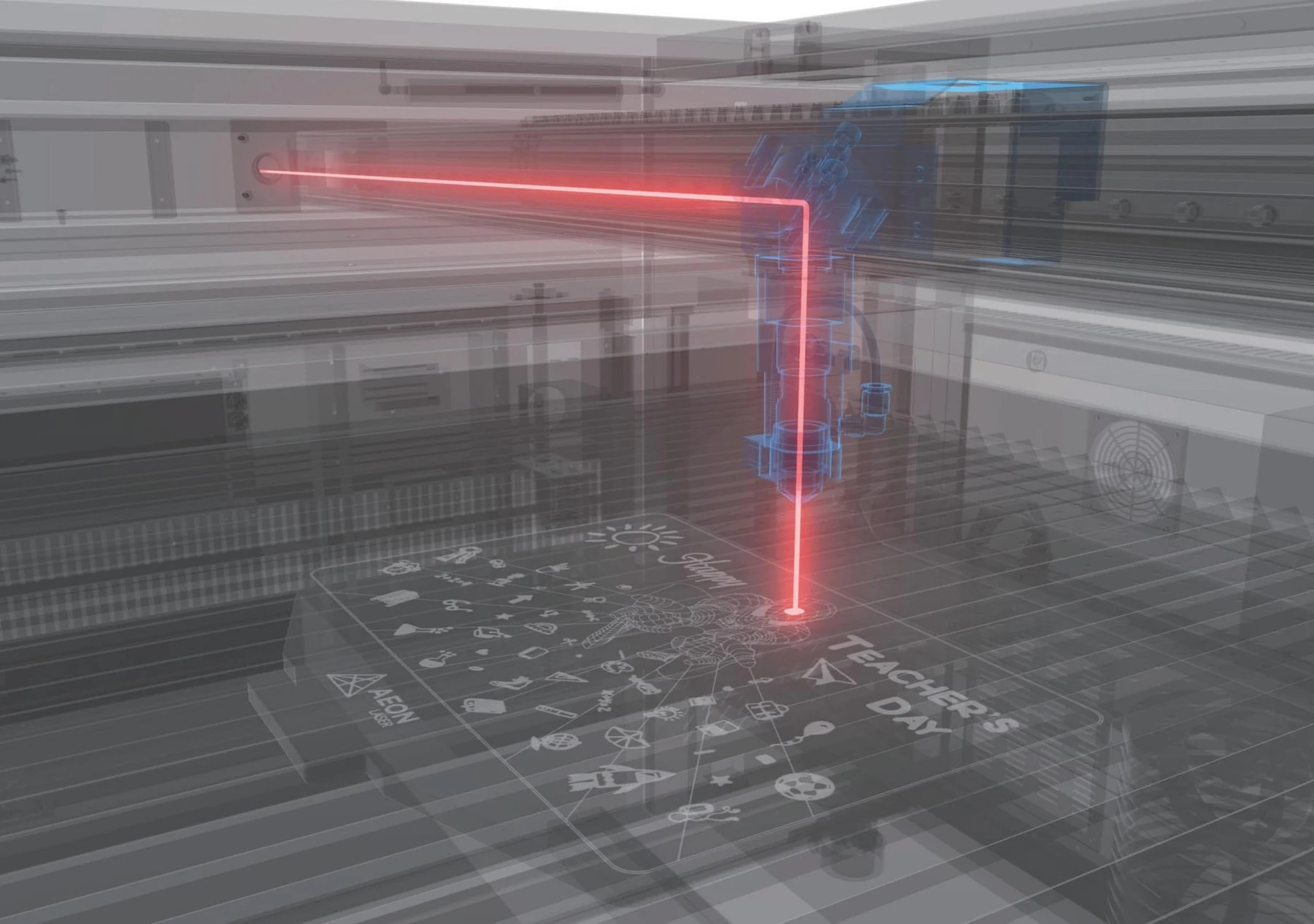

OPTICAL PATH / EASIER SERVICE
Designed for practical optical maintenance.

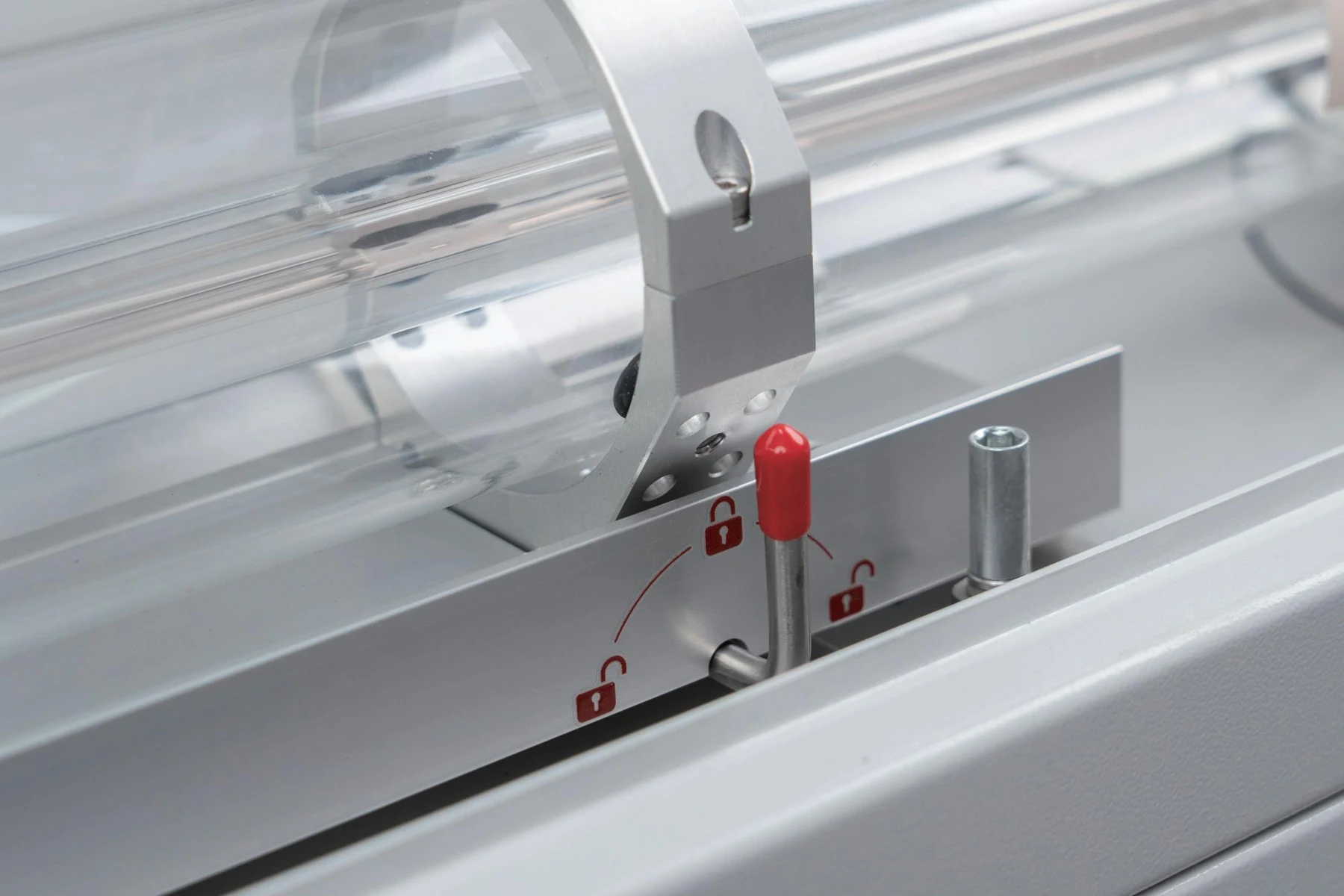

The align-free design simplifies access and replacement for the tube, mirrors and lens, reducing repeated optical-path adjustment during routine service.

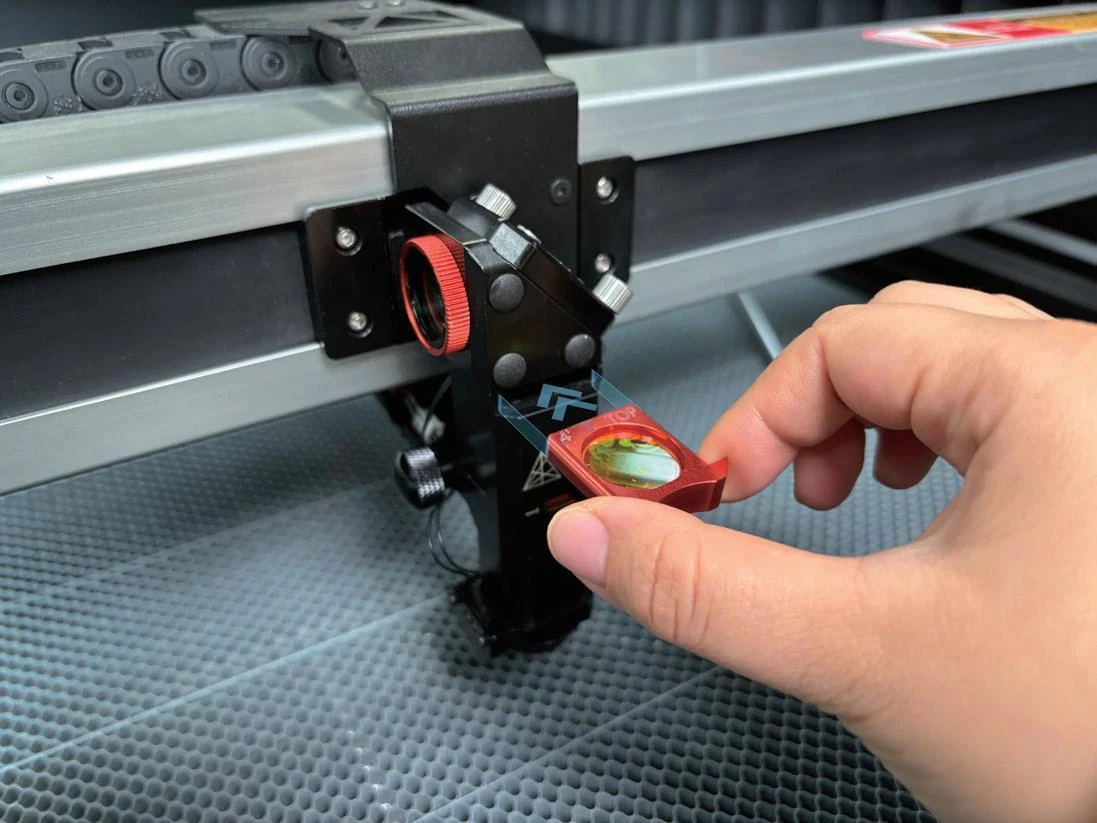

MAGNETIC LENS HOLDER
Remove, inspect and refit.

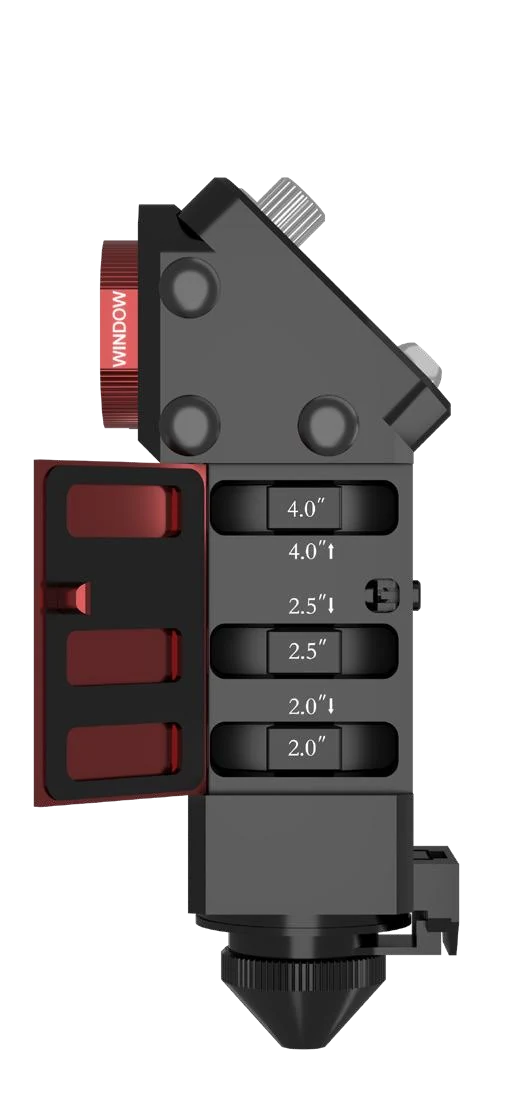

The magnetic holder makes routine lens access straightforward. Alternative 2, 2.5 and 4 inch focal lengths are available for different applications; inclusion depends on the selected configuration.
WORKFLOW / MATERIAL HANDLING
Built around real production work.

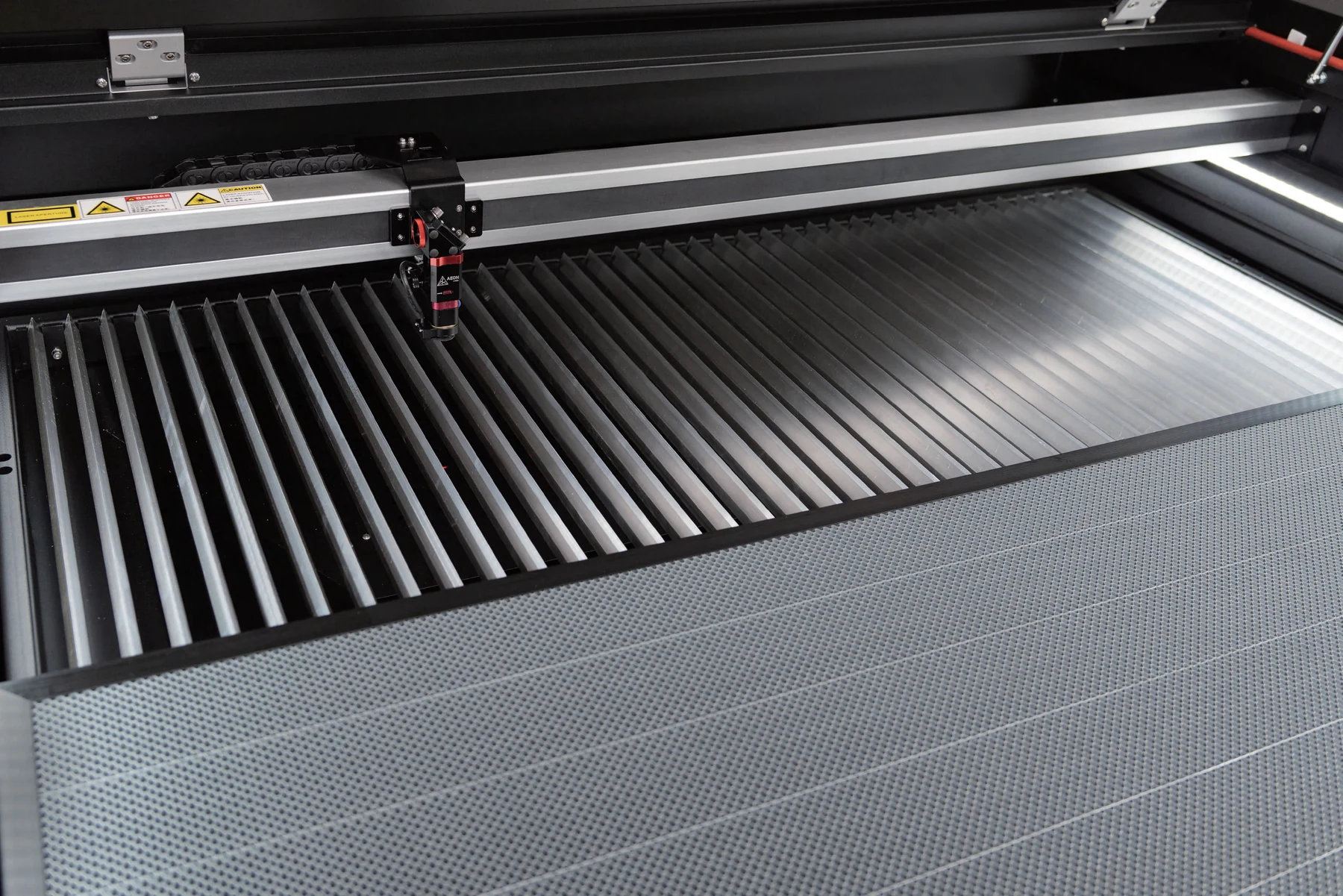

Interchangeable work tables
Use the honeycomb or slat table according to the material and process.

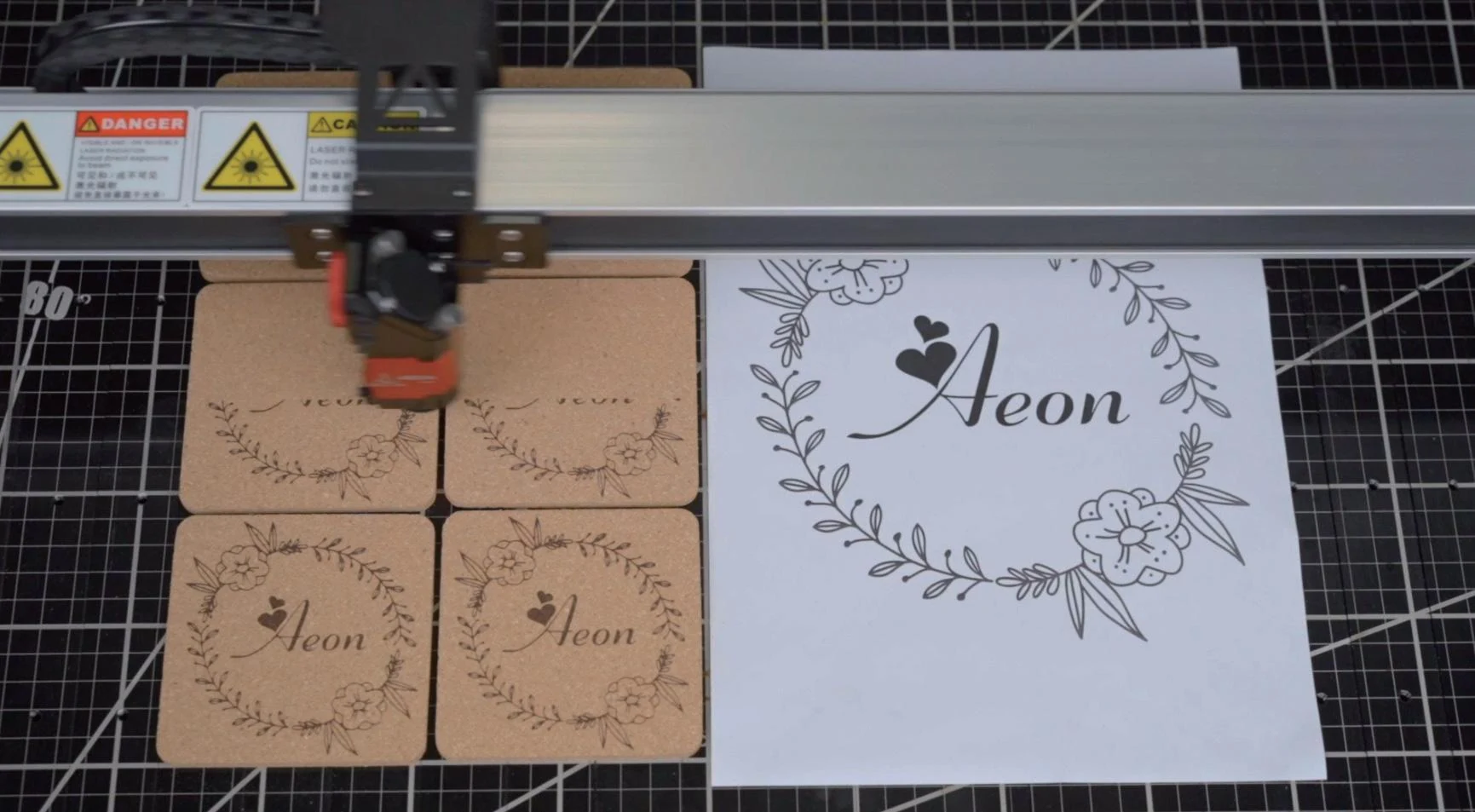

Camera positioning
A 100° 8 MP camera supports artwork placement and tracing. AutoFocus and WiFi are included; a LightBurn licence is optional.

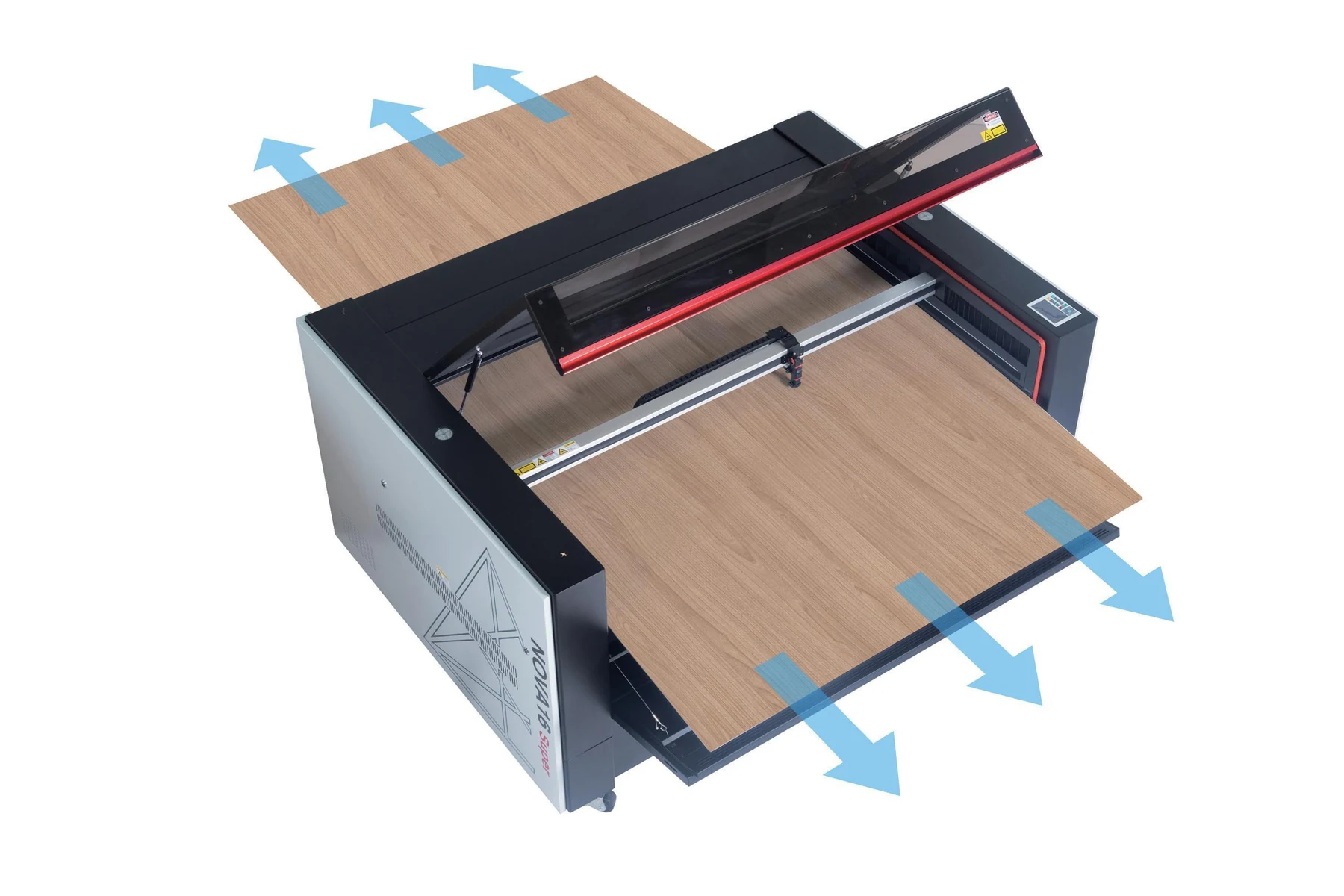

Material pass-through
Front and rear openings accommodate longer stock; the active processing area remains 1,000 × 700 mm.

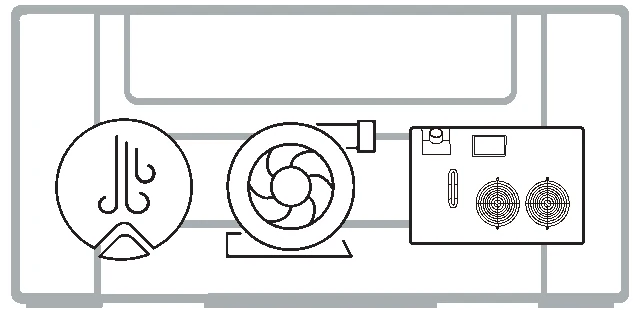

INTEGRATED SUPPORT SYSTEMS

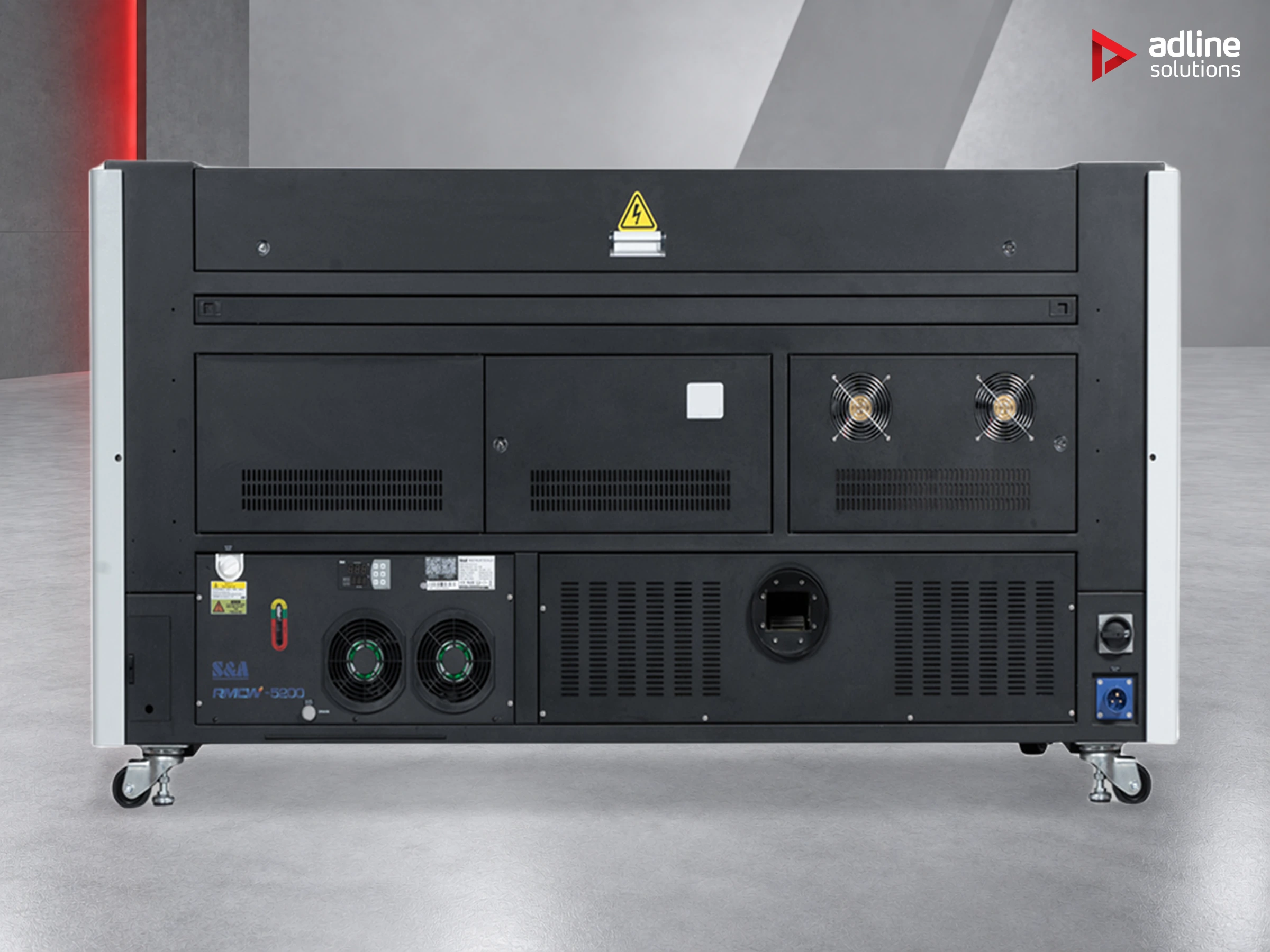

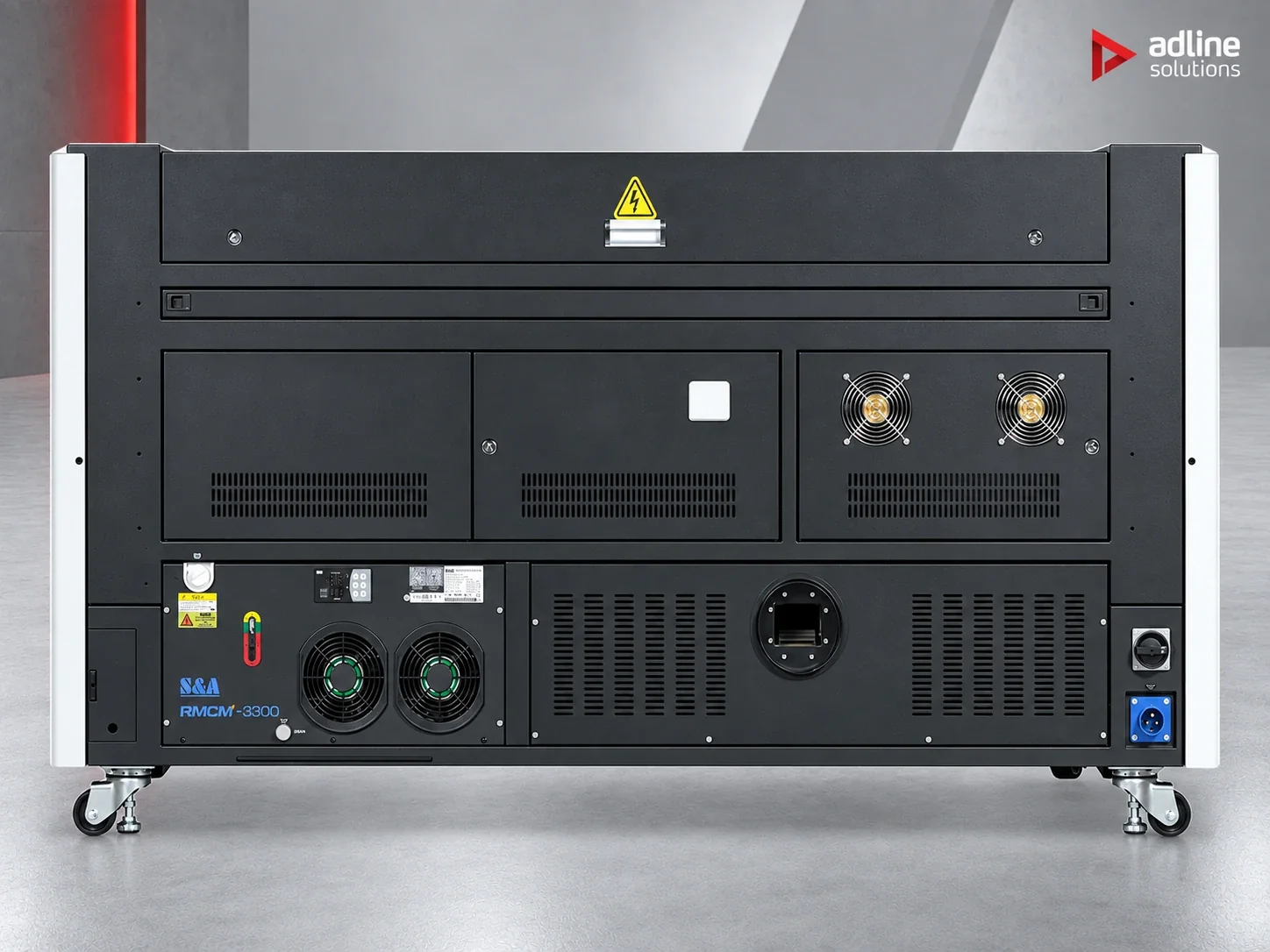

Air, cooling and exhaust within the machine.
The machine integrates a 750 W compressor with a 24 L tank and a 500 W inline exhaust with automatic start-stop. Glass configurations use a built-in Chiller 5000; cooling remains water-based for the Glass source.
- 01 · Air assist
- 750 W compressor · 24 L tank
- 02 · Inline exhaust
- 500 W · automatic start-stop
- 03 · Cooling
- Chiller 5000 for Glass
PLAN YOUR WORKSPACE
Extraction and material safety.
CO₂ processing produces fumes. Use suitable extraction and process only exact material grades explicitly approved for laser use. PVC must not be laser processed; extraction does not make an unsuitable material safe.
Plastics, rubber and composites require verification against the manufacturer’s safety documentation. This machine is not presented for bare-metal or glass cutting.
Explore fume extraction units for laser and CNC →Technical specifications
Work area
- Work area
- 1000 × 700 mm
- Z travel
- 200 mm
- Max. Z load
- 120 kg

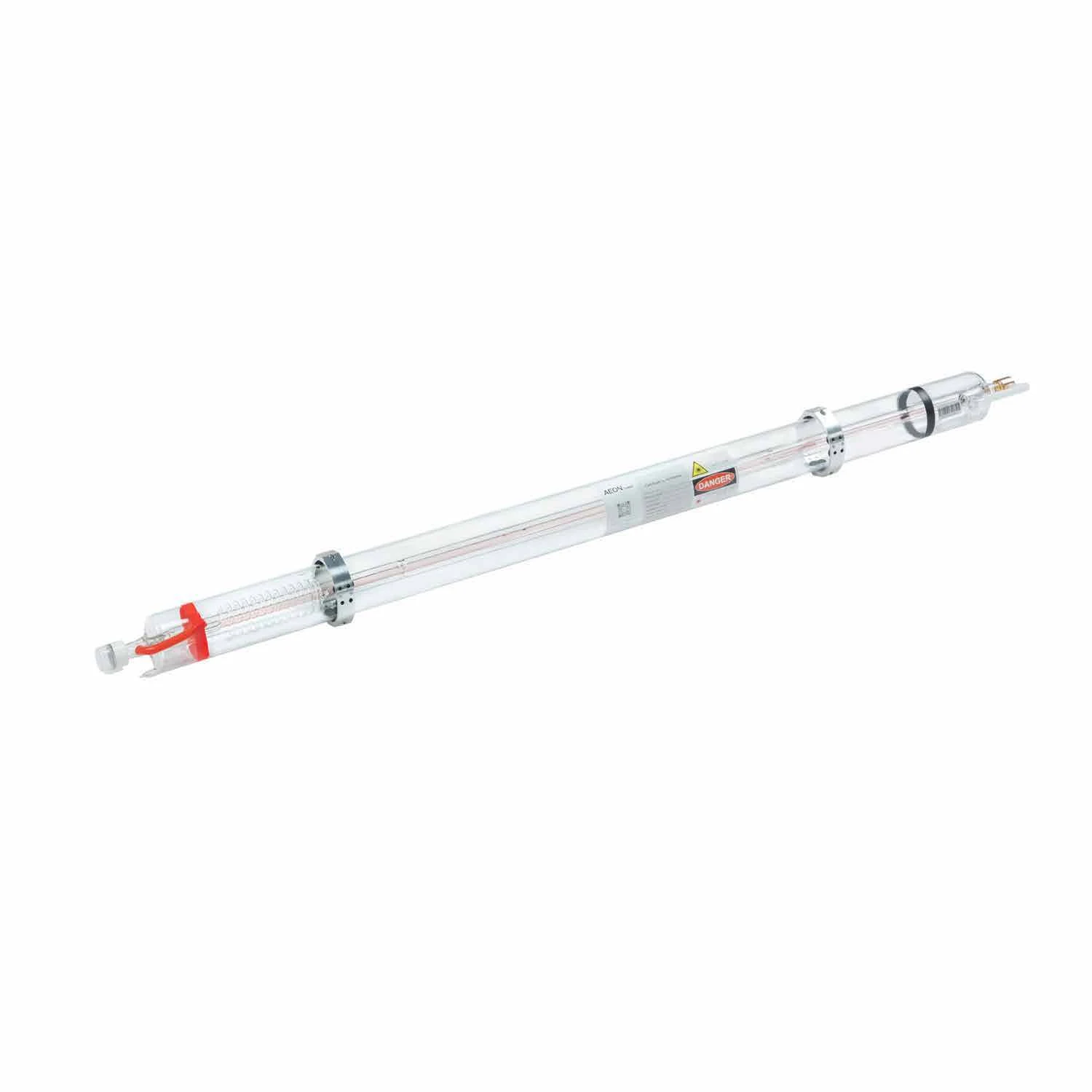

Laser source
- Glass laser tube
- 90 W / 100 W
Speed & motion
- Engraving speed (Glass)
- 1,200 mm/s
- Acceleration (Glass)
- 5G
- Motors (Glass)
- DC stepper
- Positioning accuracy
- ≤ 0.1 mm
Cooling & air
- Chiller
- Integrated Chiller 5000
- Air assist
- 750 W compressor / 24 L tank
- Exhaust
- 500 W, integrated, automatic
Table & optics
- Table
- Honeycomb + slat
- AutoFocus
- Yes
- Camera
- 100° · 8 MP (3840 × 2160)
Control & connectivity
- Smart Panel
- Yes
- Internal memory
- 1 G
- WiFi
- Yes
Dimensions & weight
- Packed dimensions
- 1500 × 1210 × 1125 mm
- Net weight
- 415 kg
- Gross weight
- 532 kg
Software
- Operating software
- RDWorks / LightBurn (optional)
- Design software
- CorelDraw / Illustrator / AutoCAD
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Medium-to-intensive production workshops needing quality engraving and consistent cutting.
Series
Nova Elite
Frequently asked questions
What is the Nova10 Elite for?
Production cutting of wood, MDF and acrylic on a free-standing machine. It has a 1000 × 700 mm bed, 200 mm of Z travel and a 120 kg table load, so it takes real parts, not just sheet. A single high-power Glass source of 90 W or 100 W does the cutting.
90 W or 100 W: what is the difference?
Only the Glass tube power; the rest of the machine is the same, including the 1,200 mm/s engraving speed. Both are single-source machines with no RF tube. Send us your materials and thicknesses and we will recommend the power.
How are cooling, air assist and exhaust handled?
The Chiller 5000 is integrated. Air assist is fed from a 750 W compressor with a 24 L tank, and the 500 W integrated exhaust starts and stops automatically with the job. For PVC, ABS, polycarbonate, rubber and composites, a separate fume extraction unit is mandatory.
How do we position the design on the material?
A 100° 8 MP camera (3840 × 2160) shows the bed on screen, so the design is dropped onto the material where it actually lies. AutoFocus sets the height for each thickness, and positioning accuracy is ≤ 0.1 mm.
How are jobs controlled?
From the Smart Panel, with 1 G of internal memory and WiFi, so the job queue stays on the machine. Operating software is RDWorks, with LightBurn as an option, and designs are prepared in CorelDraw, Illustrator or AutoCAD.
What do we need on site?
A level floor for a 415 kg machine. It ships in a 1500 × 1210 × 1125 mm package at 532 kg gross, so plan for a forklift or a pallet truck at delivery. Chiller and exhaust are integrated; add fume extraction if you process plastics or composites. We confirm the electrical supply with your quote.
