45 W / 60 W / 80 W / 90 W / 100 W · 5G acceleration
DC stepper motorsAEON · Mira S

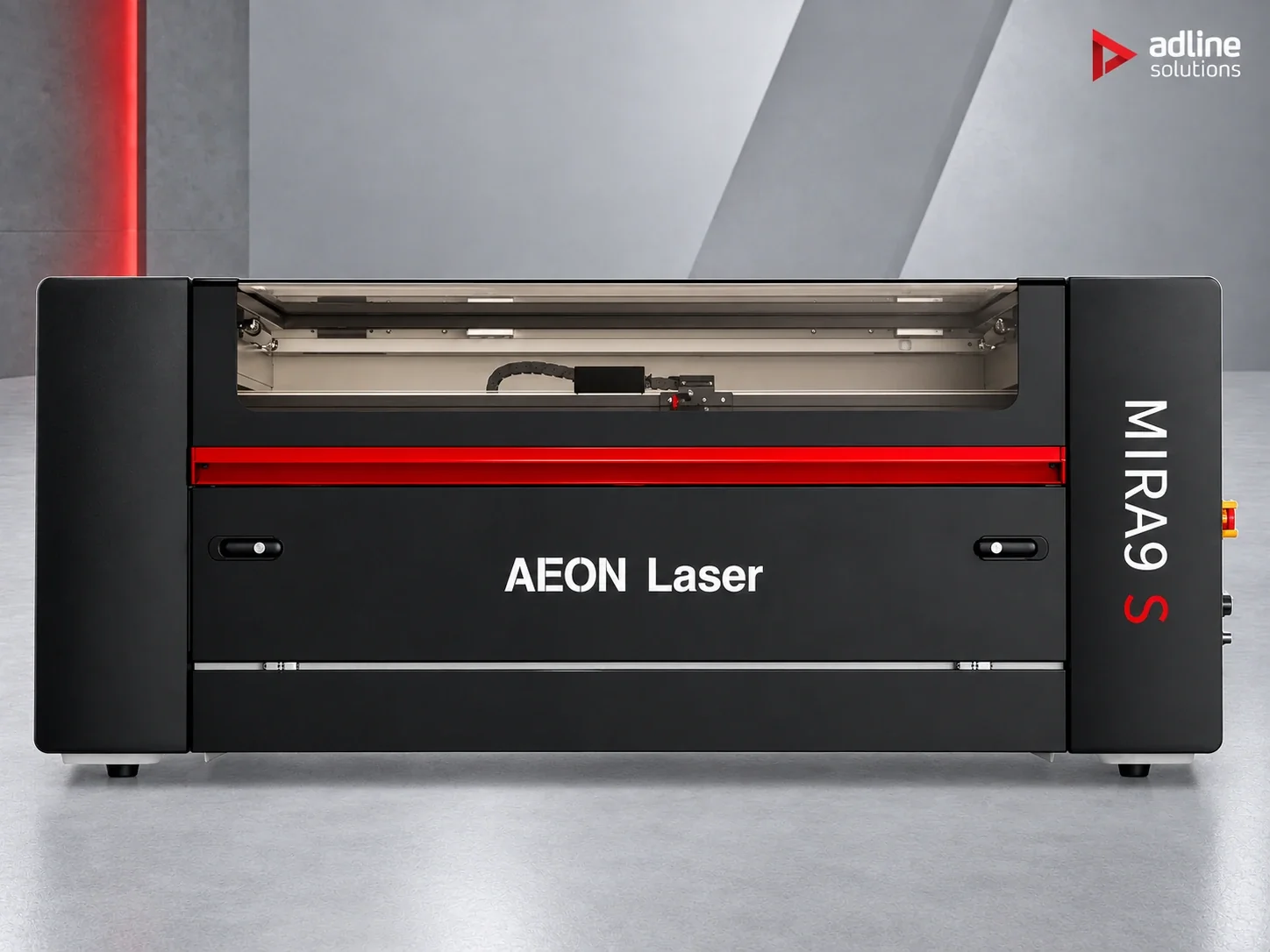

AEON Mira9 S
- 900 × 600 mm work area
- Glass source up to 100 W for thick wood and MDF
- Integrated Chiller 5000
- RF option engraving up to 4,000 mm/s
- Smart Panel, 1 G memory and WiFi
- AutoFocus and 90° 5 MP camera positioning
The most powerful compact Redline machine: 900 × 600 mm work area, integrated Chiller 5000 and Glass or RF source up to 100 W.
Request a quoteWhich bed size and source? Read the guide- Wood & MDF
- Acrylic
- Glass
- Leather
- Paper
- Rubber
- Marble
- Two-colour ABS
- Signage & advertising
Configurations
| Configuration | Differences | Availability |
|---|---|---|
| Glass 45 WIn stock | Laser source: Glass 45 W · Engraving speed: 1,200 mm/s | In stock |
| Glass 60 WIn stock | Laser source: Glass 60 W · Engraving speed: 1,200 mm/s | In stock |
| Glass 80 WIn stock | Laser source: Glass 80 W · Engraving speed: 1,200 mm/s | In stock |
| Glass 90 WIn stock | Laser source: Glass 90 W · Engraving speed: 1,200 mm/s | In stock |
| Glass 100 WIn stock | Laser source: Glass 100 W · Engraving speed: 1,200 mm/s | In stock |
| RF 30 WOn request | Laser source: RF 30 W · Engraving speed: 4,000 mm/s | On request |
| RF 60 WOn request | Laser source: RF 60 W · Engraving speed: 4,000 mm/s | On request |
About this machine

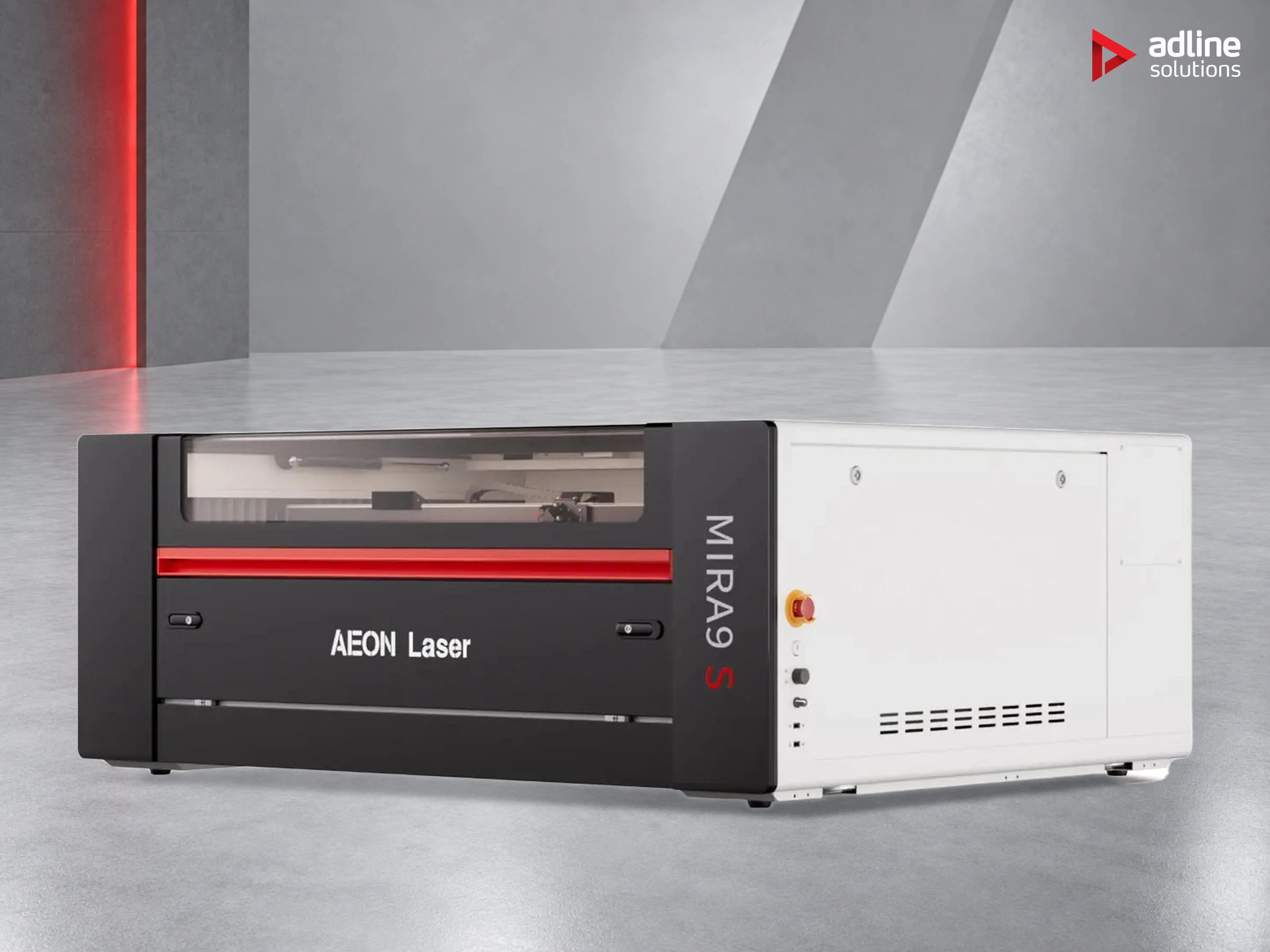

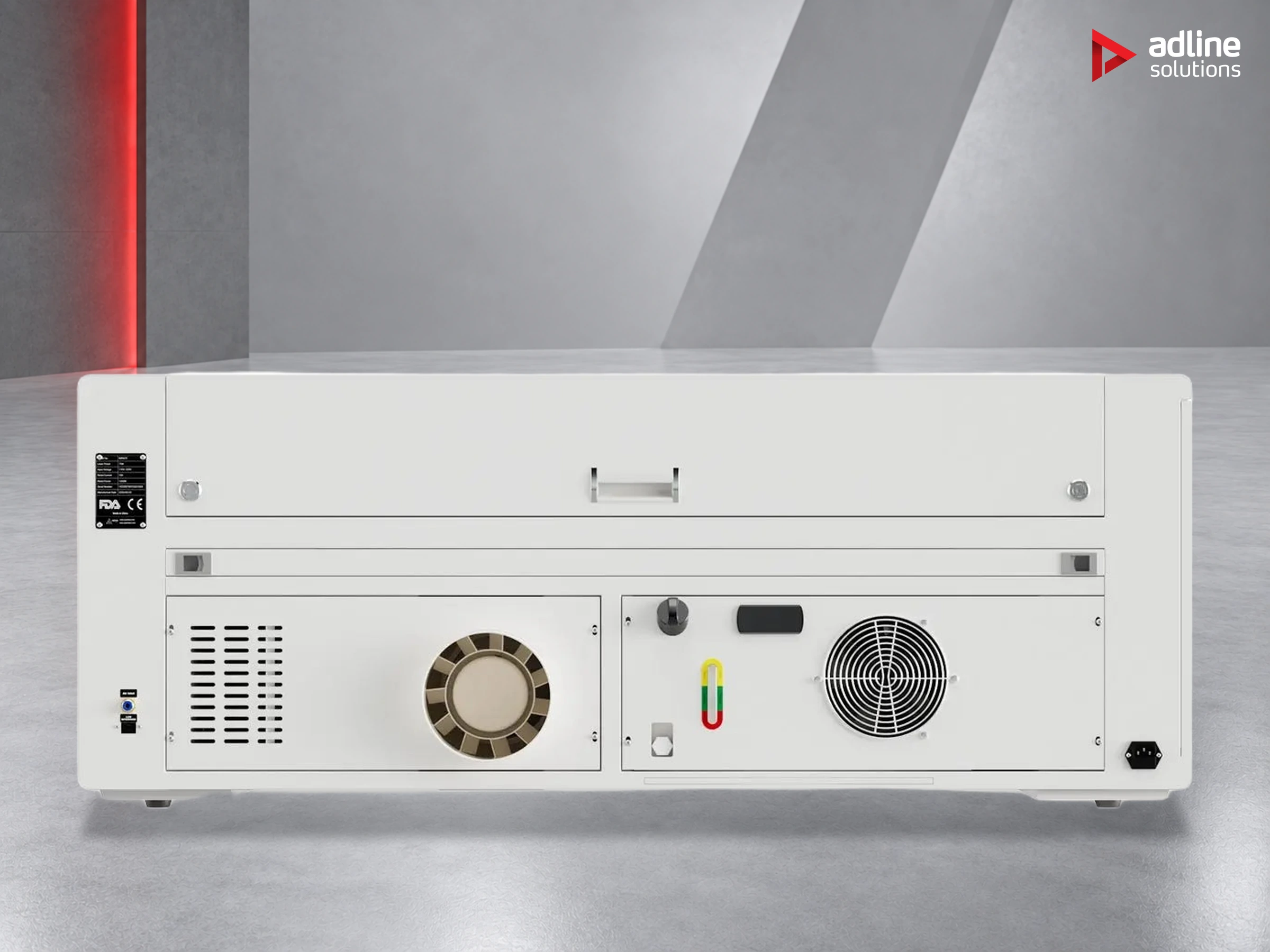

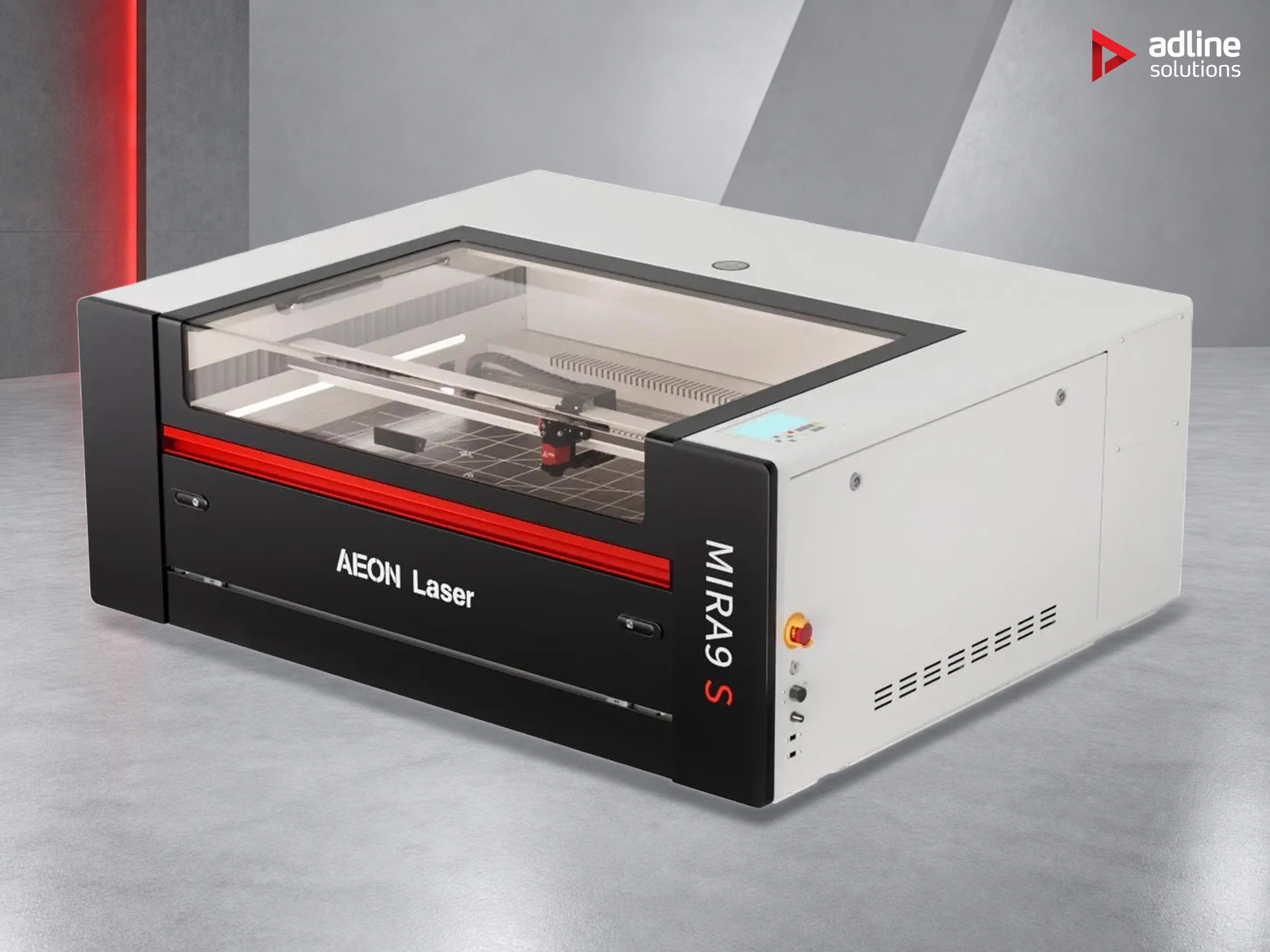

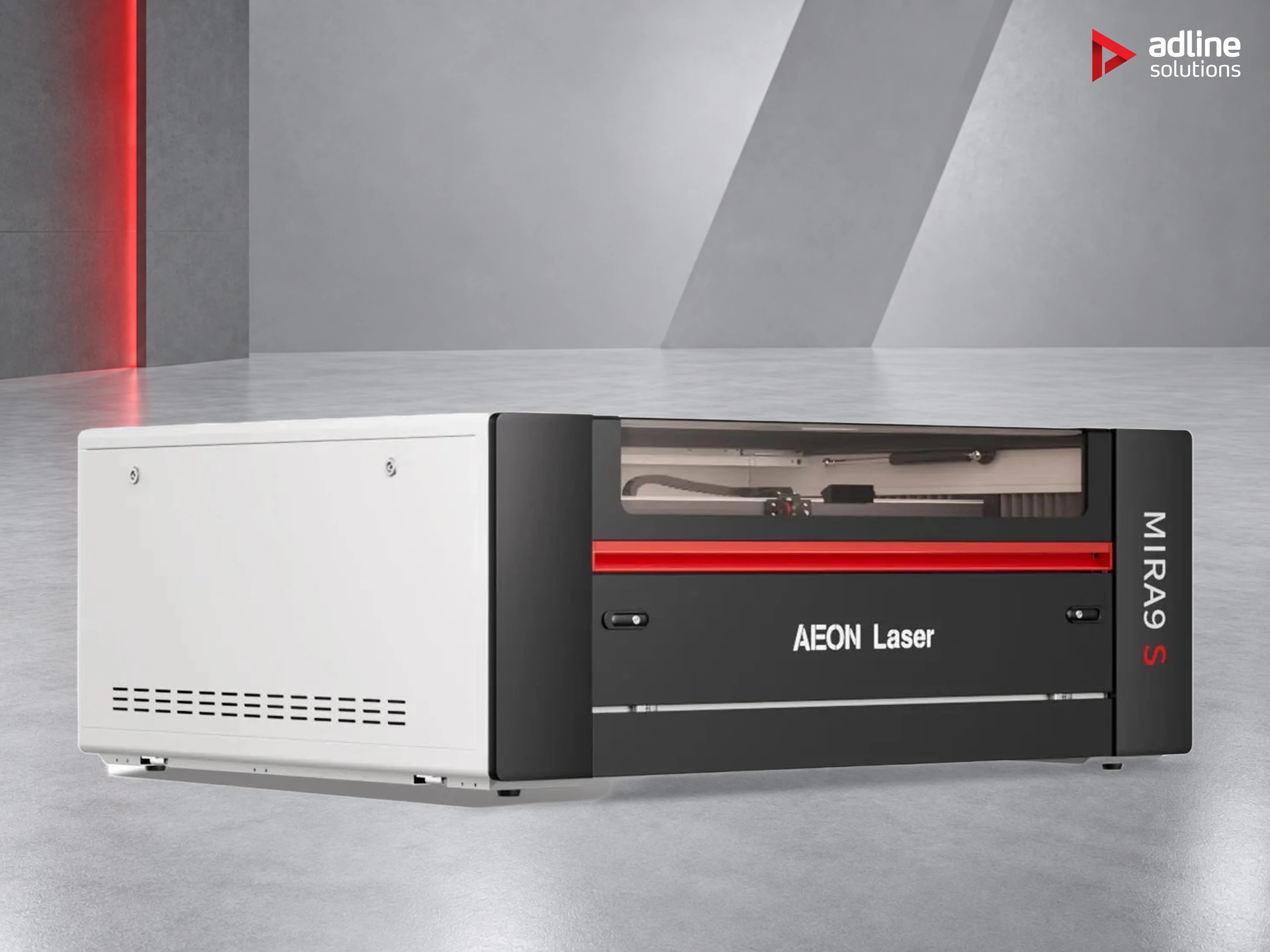

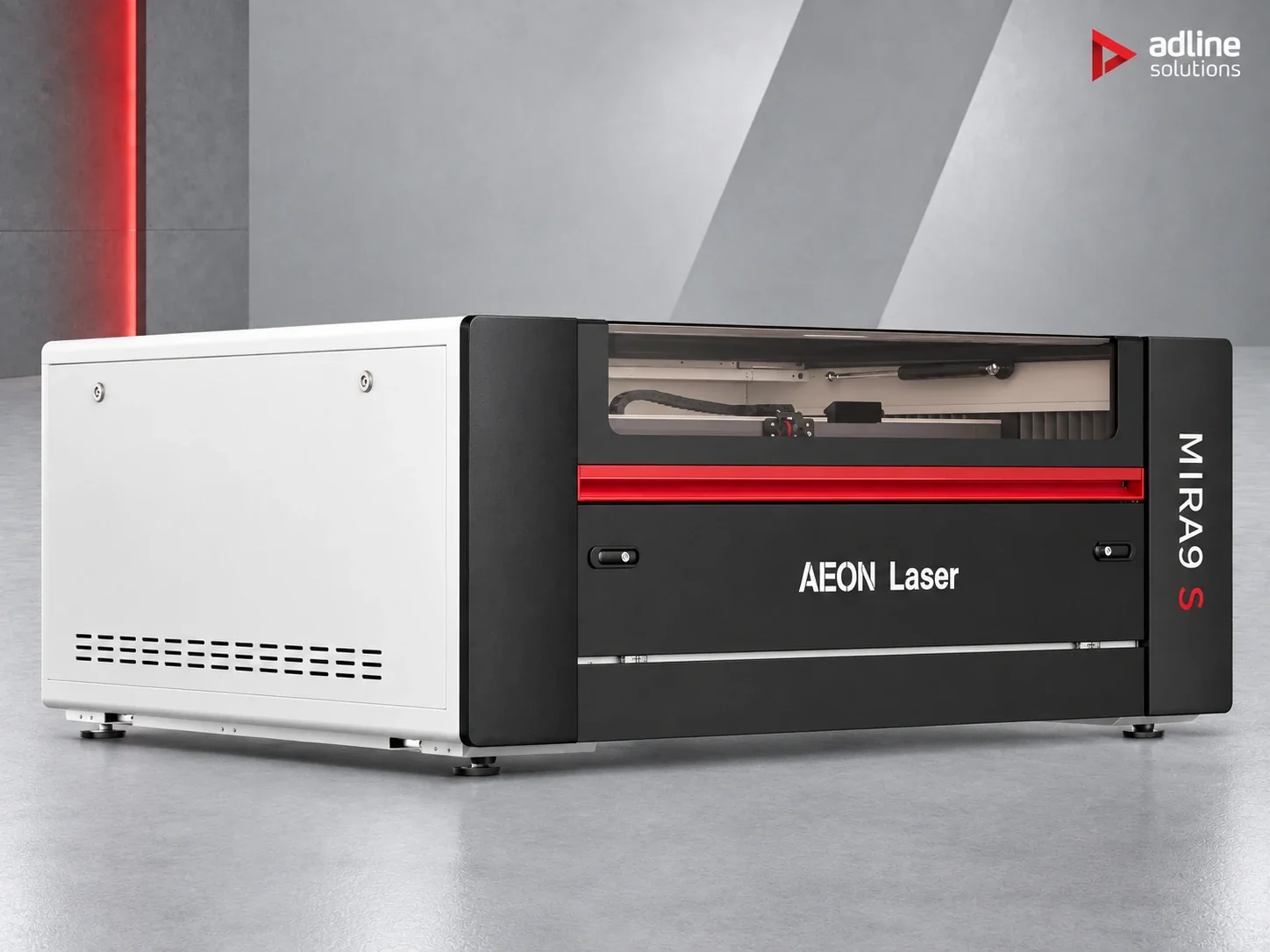

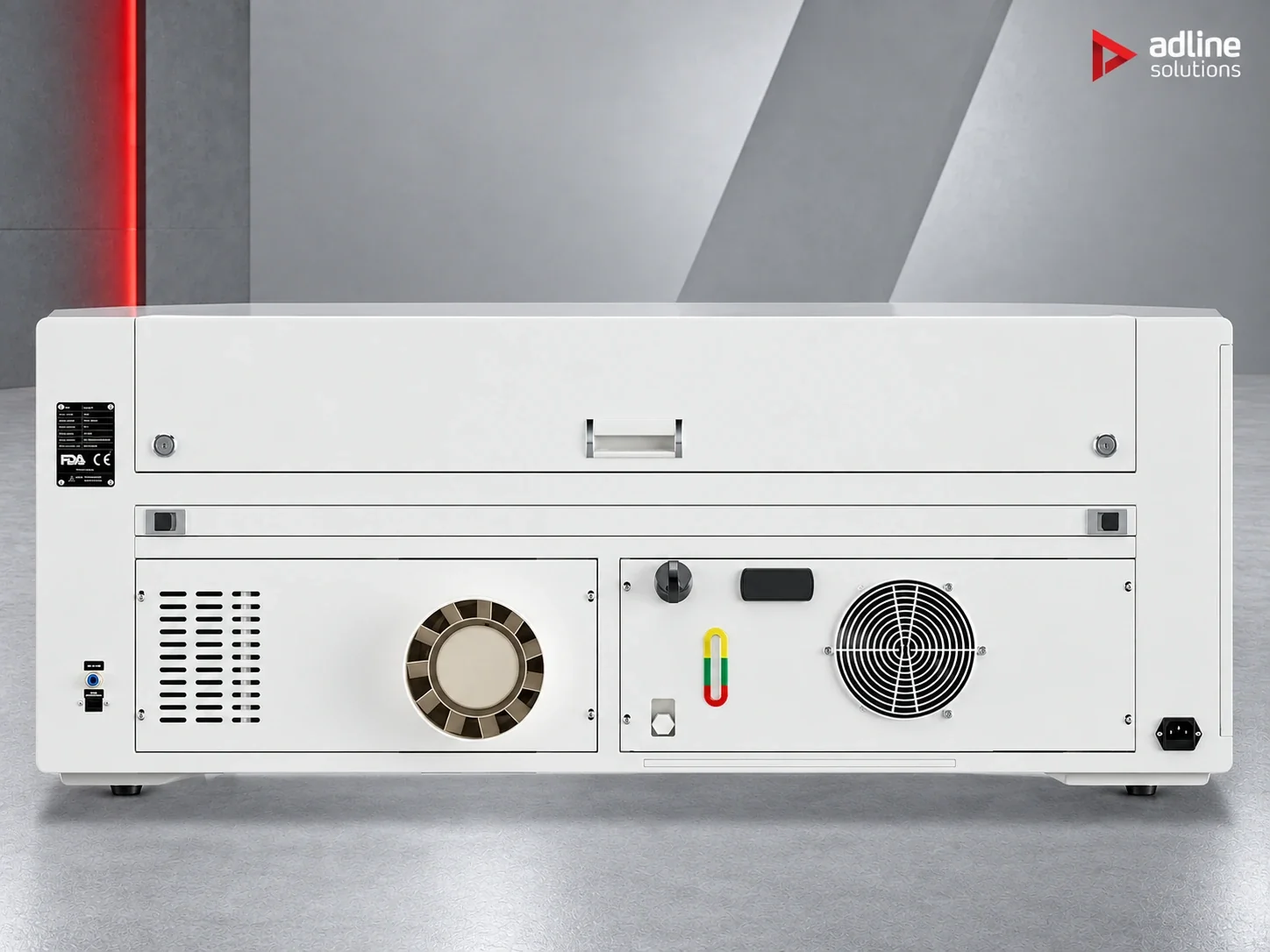

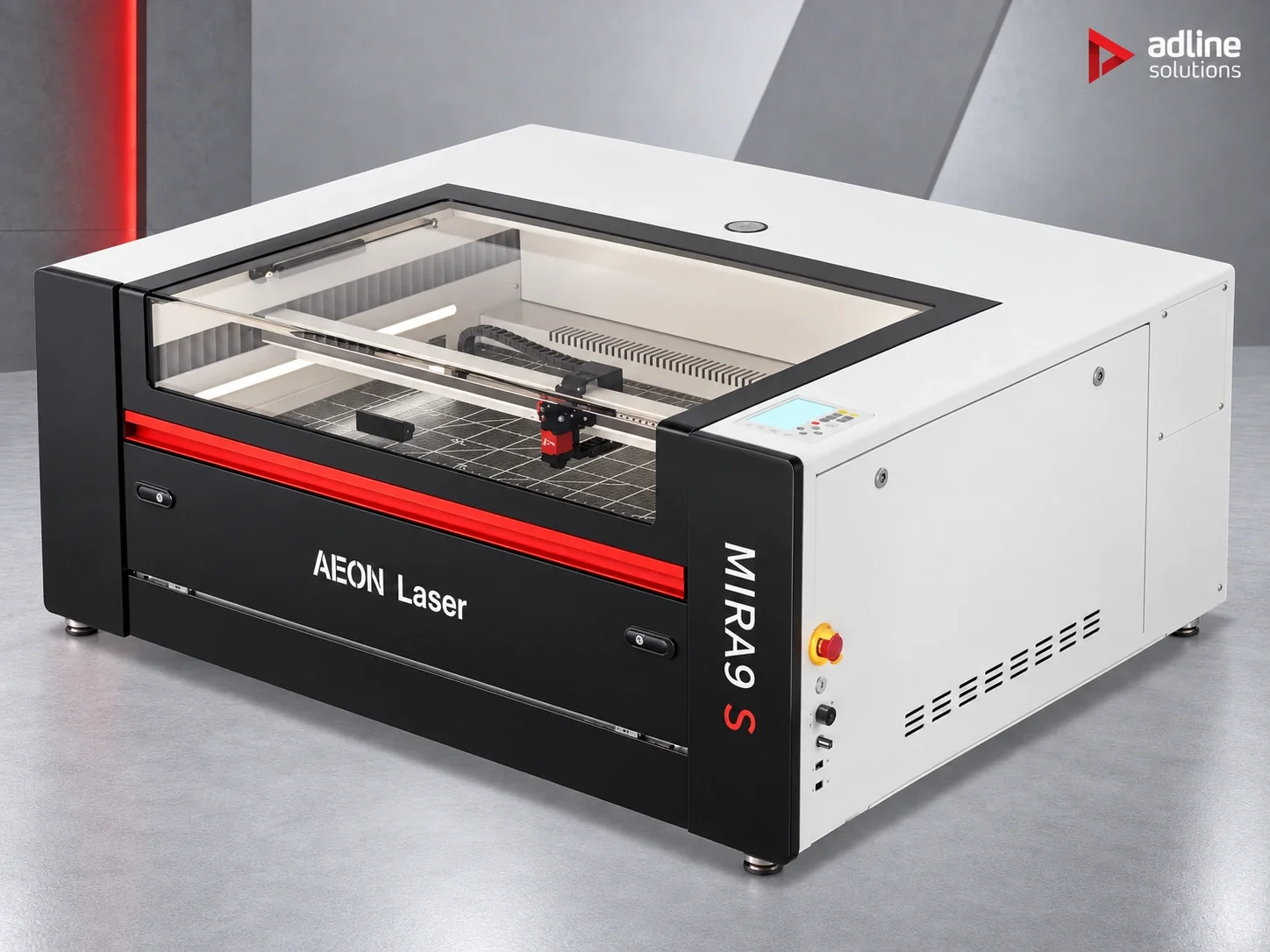

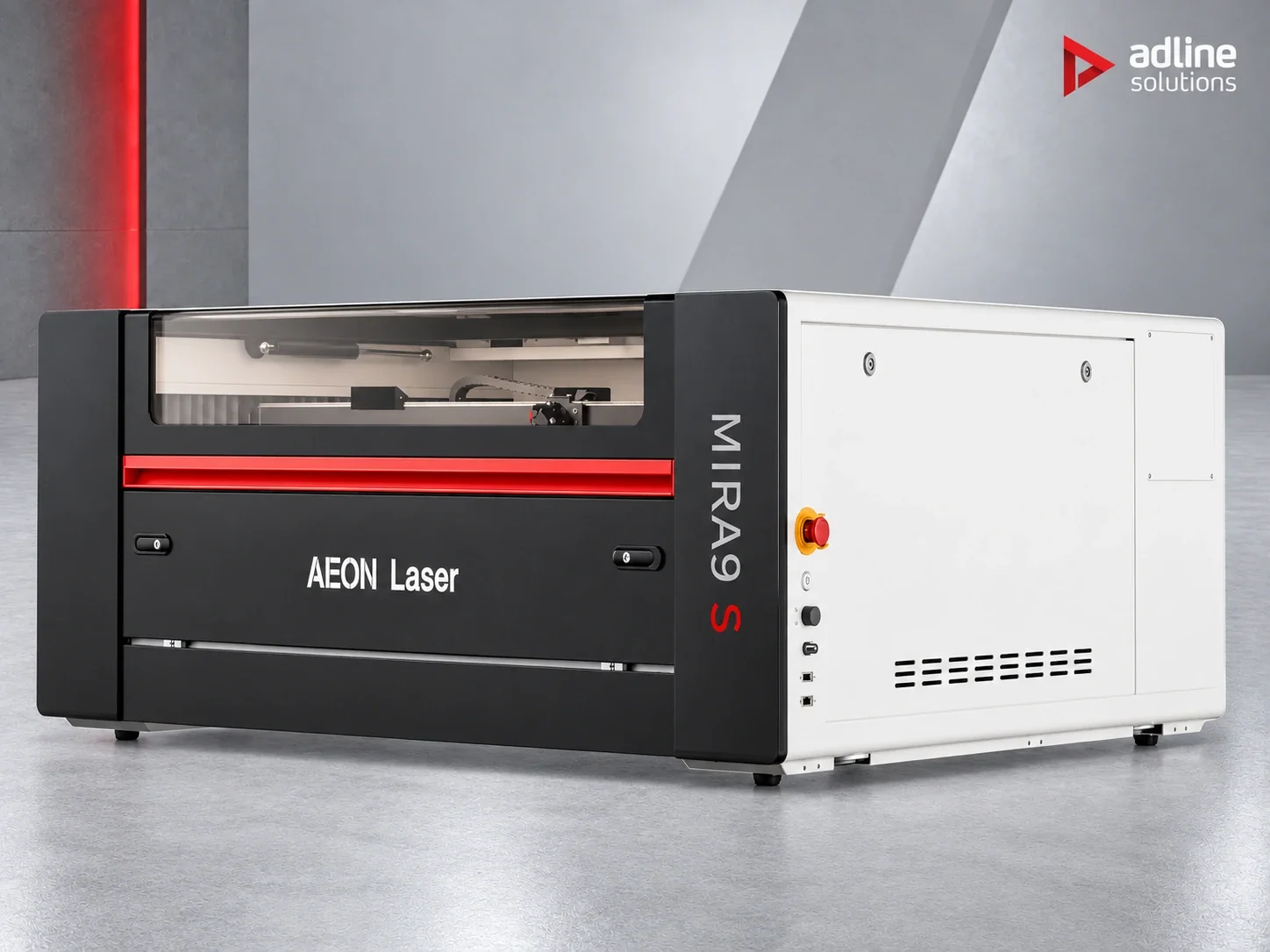

AEON Mira9 S
The Mira9 S is the largest and most powerful machine of the compact Redline family. The 900 × 600 mm bed and a Glass source of up to 100 W move it out of the studio and into production: thick ply, MDF and cast acrylic are cut in one pass, and the integrated Chiller 5000 keeps the tube stable through long runs.
Source choice
Glass 45 W to 100 W for cutting power, or RF 30 W / 60 W for engraving at up to 4,000 mm/s. The choice follows the job, not the model year.
Production details
Smart Panel, 1 G of internal memory, WiFi, 85 W automatic air assist and an integrated 75 W inline exhaust. AutoFocus and the 90° 5 MP camera keep set-up short when the order mix changes several times a day.
Extraction
At this power extraction is not optional for plastics and composites — see our fume extraction units for laser and CNC.
AEON Mira9 S
The Mira9 S is the largest and most powerful machine in AEON’s compact Redline family: a desktop CO₂ laser with a 900 × 600 mm work area and a choice of Glass or RF source. More bed area and Glass cutting power for demanding production work.
MIRA9 S / ENGINEERED FOR YOUR WORKSPACE
Built around the work.
A closer look at the design, components and details that make everyday production simpler.
- 900 × 600 mm
- work area
- 150 mm
- Z-axis travel · 25 kg lift
- 90° 5 MP
- camera positioning
PERFORMANCE / YOUR CHOICE
Glass or RF: two current technologies.
Choose Glass for cost-effective cutting, or RF for a finer spot and faster detailed engraving. RF is not simply a newer Glass source: each technology is suited to different work.
30 W / 60 W · 8G acceleration
AC servo motors
ALL-IN-ONE DESIGN
Built in, not bolted on.
Air assist and inline exhaust are integrated. The 90° 5 MP camera supports artwork positioning, while AutoFocus sets the working height. Cooling depends on the selected source.
- 01 · Air assist
- Integrated · 85 W
- 02 · Inline exhaust
- Integrated · 75 W
- 03 · Cooling
- Chiller 5000 for Glass · air-cooled RF source
Mira S family illustration. Component layout may vary by model and source configuration.
SMART MONITORING / MIRA7 S & MIRA9 S
Status and diagnostics at the machine.
The Smart Panel monitors operation and provides immediate visual and audible fault alerts for faster checks.
PRECISION / EASY ACCESS
Less realignment. More time creating.
The optical system simplifies replacement of the laser tube, mirror and lens while reducing optical-path realignment work.
−90%fewer optical path alignment operations, according to the AEON brochure.
MAGNETIC LENS HOLDER
Snap off. Clean. Snap on.
The magnetic holder makes the lens easy to remove and refit—a small detail that makes routine maintenance more convenient.
CLEAN PACK DESIGN
Protection built into the details.
Fully enclosed guides help protect the motion system and optical path from dust, reducing maintenance frequency.
FLEXIBILITY / EVERYDAY WORK
Different projects. The same workspace.
A table that adapts.
Use the honeycomb or slat table to suit the job, with a flat surface for mounting jigs.
Space for longer pieces.
The pass-through opening accommodates longer stock; the processing area remains 900 × 600 mm.
Detail photographs illustrate the Mira S family and may show a different family model.
PLAN YOUR WORKSPACE
Extraction and material safety.
CO₂ cutting and engraving produce fumes. Use suitable extraction and process only materials explicitly approved for laser use. PVC must not be laser processed; extraction does not make an unsuitable material safe.
Plastics, rubber and composites must be verified by exact grade and safety documentation before processing.
Explore fume extraction units for laser and CNC →Technical specifications
Work area
- Work area
- 900 × 600 mm
- Z travel
- 150 mm
- Max. Z load
- 25 kg
Laser source
- Glass laser tube
- 45 W / 60 W / 80 W / 90 W / 100 W
- RF laser tube
- 30 W / 60 W
Speed & motion
- Engraving speed (Glass)
- 1,200 mm/s
- Engraving speed (RF)
- 4,000 mm/s
- Acceleration (Glass)
- 5G
- Acceleration (RF)
- 8G
- Motors (Glass)
- DC stepper
- Motors (RF)
- AC servo
- Minimum font (RF)
- 1.0 × 1.0 mm
- Positioning accuracy
- ≤ 0.1 mm
Cooling & air
- Chiller
- Integrated Chiller 5000 (Glass source)
- RF source cooling
- Air-cooled
- Air assist
- Integrated, 85 W, automatic start/stop
- Exhaust
- 75 W inline, integrated
Table & optics
- Table
- Honeycomb + slat
- AutoFocus
- Yes
- Camera
- 90° · 5 MP (2592 × 1944)
Control & connectivity
- Smart Panel
- Yes
- Internal memory
- 1 G
- WiFi
- Yes
Dimensions & weight
- Packed dimensions
- 1328 × 1070 × 530 mm
- Net weight
- 220 kg
- Gross weight
- 290 kg
Software
- Operating software
- RDWorks / LightBurn (optional)
- Design software
- CorelDraw / Illustrator / AutoCAD
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Intensive production, cutting thick wood and MDF with the 100 W source, workshops with high and varied order volume.
Series
Mira S
Frequently asked questions
What is the Mira9 S for?
Production work on a compact machine. It is the largest Redline desktop model, with a 900 × 600 mm bed and a Glass source of up to 100 W, so thick ply, MDF and cast acrylic are cut in one pass. The integrated Chiller 5000 keeps the tube stable through long runs.
Which Glass power should we choose?
Glass comes in 45 W, 60 W, 80 W, 90 W and 100 W; the 100 W top end is what makes thick wood and MDF a one-pass job. Engraving speed is 1,200 mm/s on every Glass variant, so the choice is about the stock you cut. Send us your materials and thicknesses and we will recommend the power.
When does the RF option make sense?
When engraving is the main job. The RF source, at 30 W or 60 W, engraves at up to 4,000 mm/s with a 1 × 1 mm minimum font, runs on AC servo motors at 8G acceleration and is air-cooled. The Glass versions use DC stepper motors at 5G. The choice follows the job, not the model year.
How big and heavy can the workpiece be?
The bed is 900 × 600 mm with 150 mm of Z travel and a maximum Z load of 25 kg. Honeycomb and slat tables swap for engraving or cutting, and AutoFocus sets the height when the material changes.
How quickly can we switch between jobs?
Set-up is kept short for a mixed order book. The 90° 5 MP overview camera shows the material on screen for placing the job (it is not a CCD camera for contour-cutting printed work), AutoFocus sets the height, and positioning accuracy is ≤ 0.1 mm. The Smart Panel with 1 G of internal memory and WiFi keeps jobs on the machine; the software is RDWorks, with LightBurn optional.
What do we need on site?
Space and a strong base for a 220 kg machine; it ships at 1328 × 1070 × 530 mm and 290 kg gross. Chiller, 85 W automatic air assist and 75 W inline exhaust are integrated. At this power, extraction is not optional for plastics and composites, so plan it with the machine. We confirm the electrical supply with your quote.
