45 W / 60 W / 80 W · 5G acceleration
DC stepper motorsAEON · Mira S

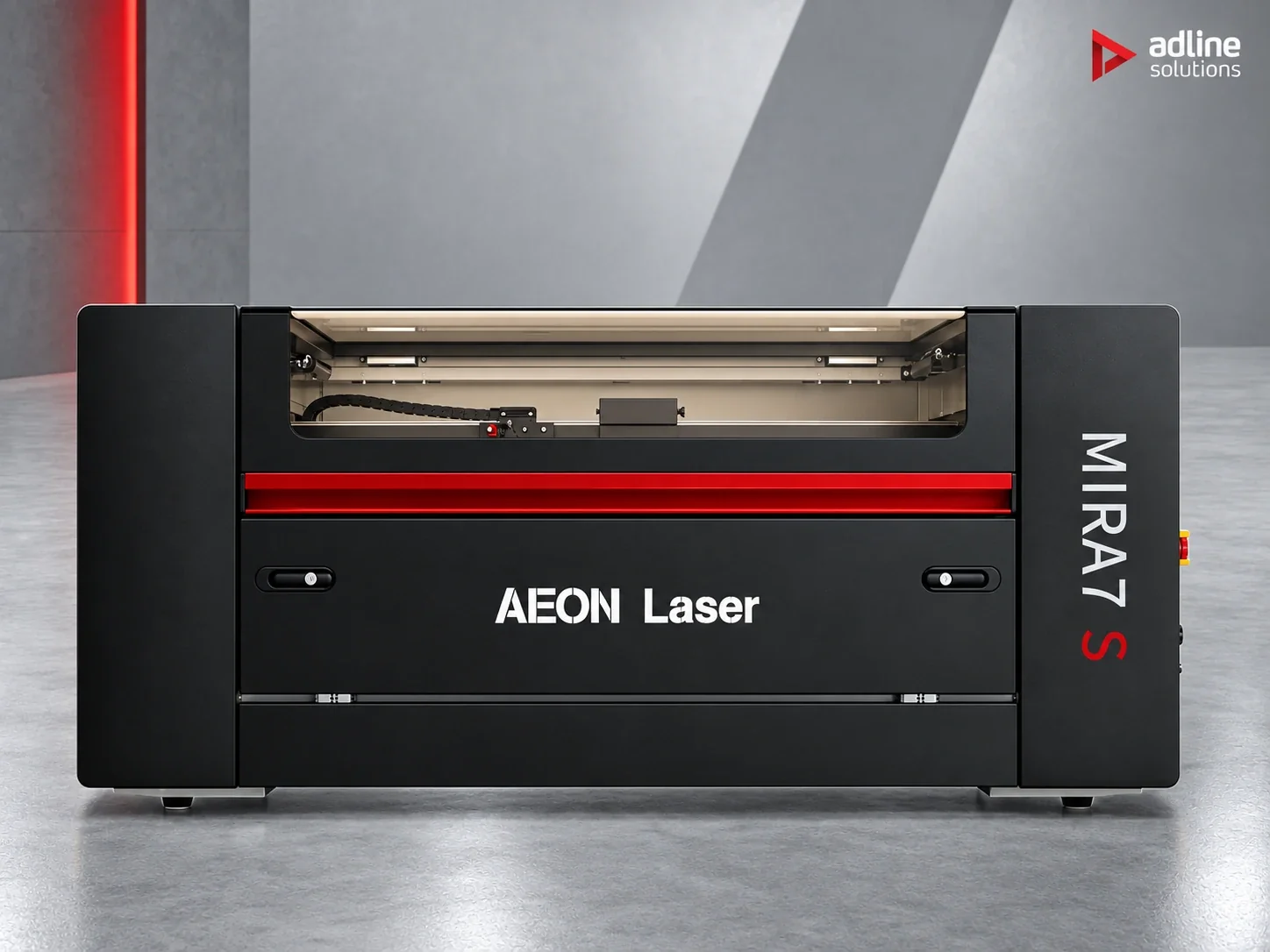

AEON Mira7 S
- 700 × 500 mm work area
- Smart Panel with on-machine diagnostics
- Glass 45/60/80 W or RF 30/60 W source
- RF engraving up to 4,000 mm/s
- Integrated 85 W air assist with automatic start/stop
- 90° 5 MP camera positioning and AutoFocus
Mid-size Redline desktop machine: 700 × 500 mm work area, Smart Panel diagnostics, integrated chiller and Glass or RF source.
Request a quoteWhich bed size and source? Read the guide- Wood & MDF
- Acrylic
- Glass
- Leather
- Paper
- Rubber
- Two-colour ABS
- Signage & advertising
Configurations
| Configuration | Differences | Availability |
|---|---|---|
| Glass 45 WIn stock | Laser source: Glass 45 W · Engraving speed: 1,200 mm/s | In stock |
| Glass 60 WIn stock | Laser source: Glass 60 W · Engraving speed: 1,200 mm/s | In stock |
| Glass 80 WIn stock | Laser source: Glass 80 W · Engraving speed: 1,200 mm/s | In stock |
| RF 30 WOn request | Laser source: RF 30 W · Engraving speed: 4,000 mm/s | On request |
| RF 60 WIn stock | Laser source: RF 60 W · Engraving speed: 4,000 mm/s | In stock |
About this machine

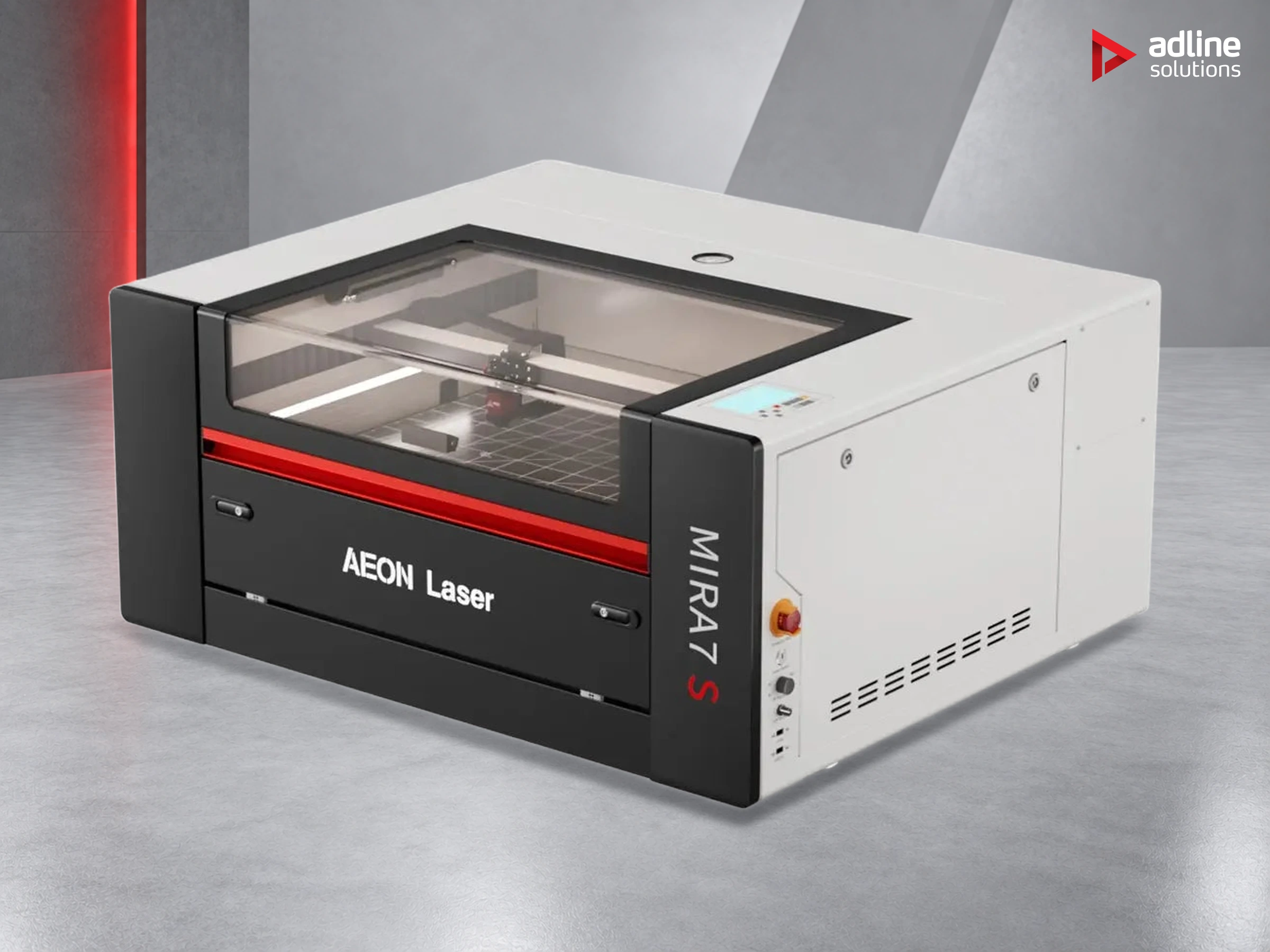

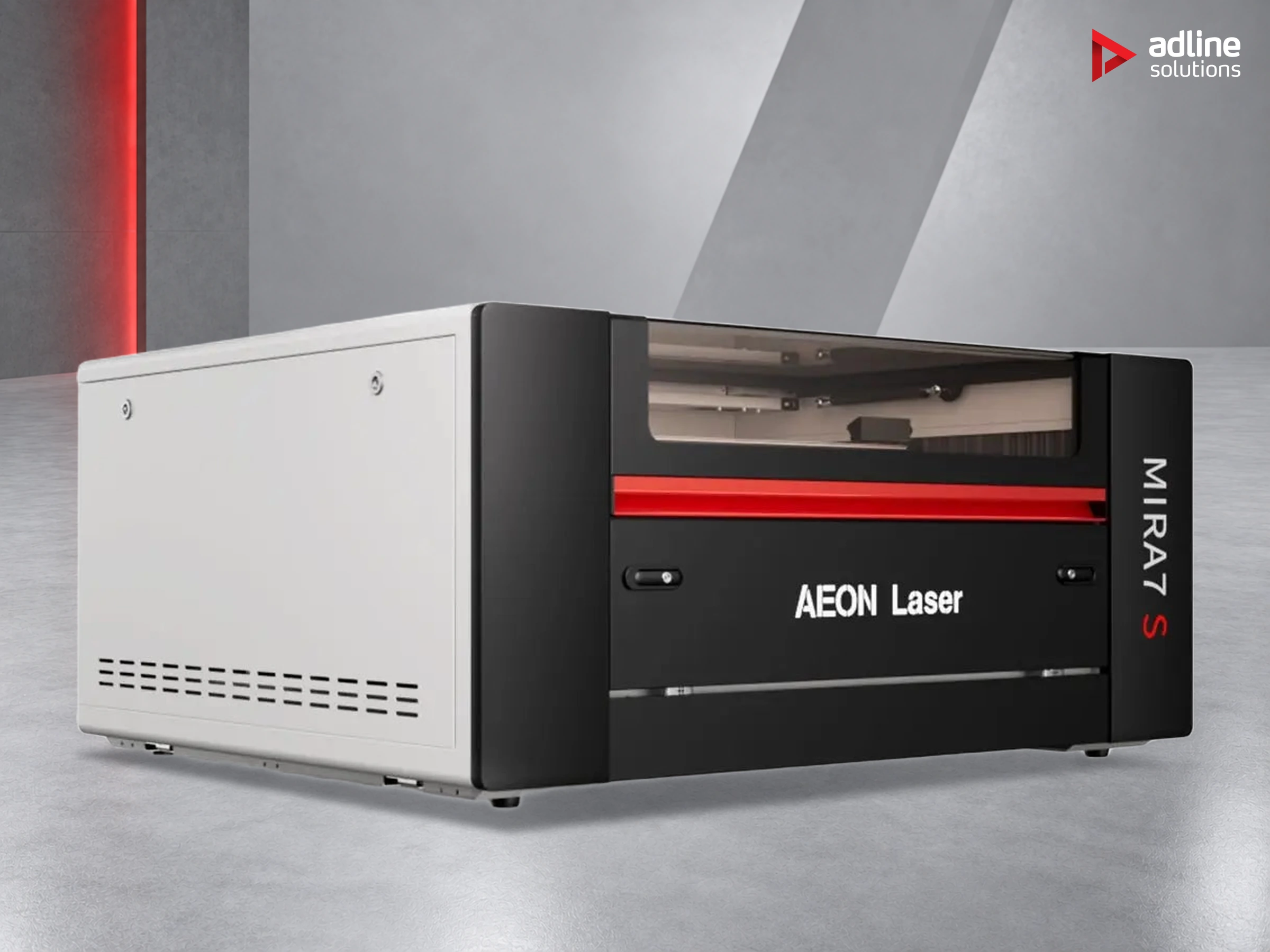

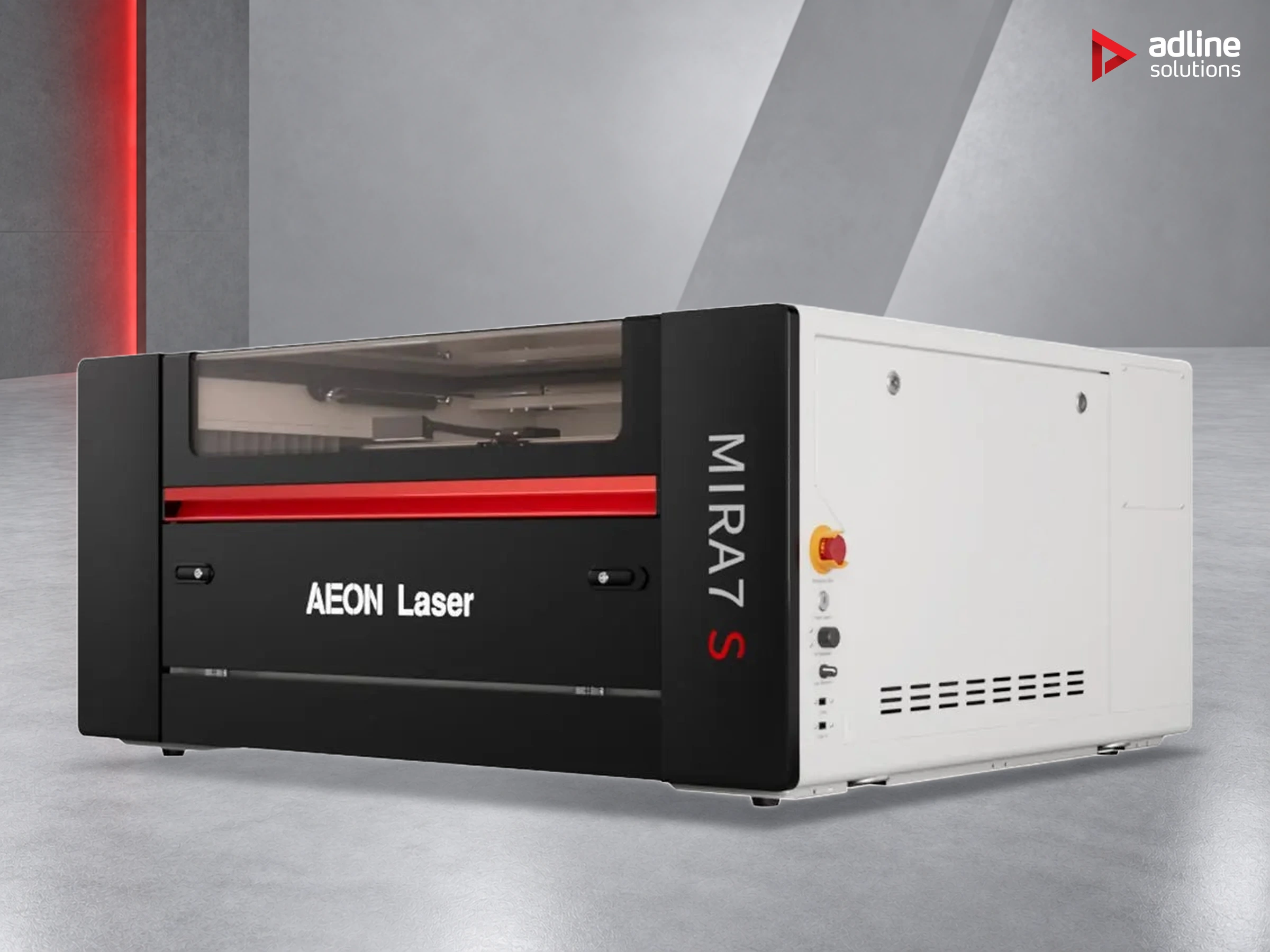

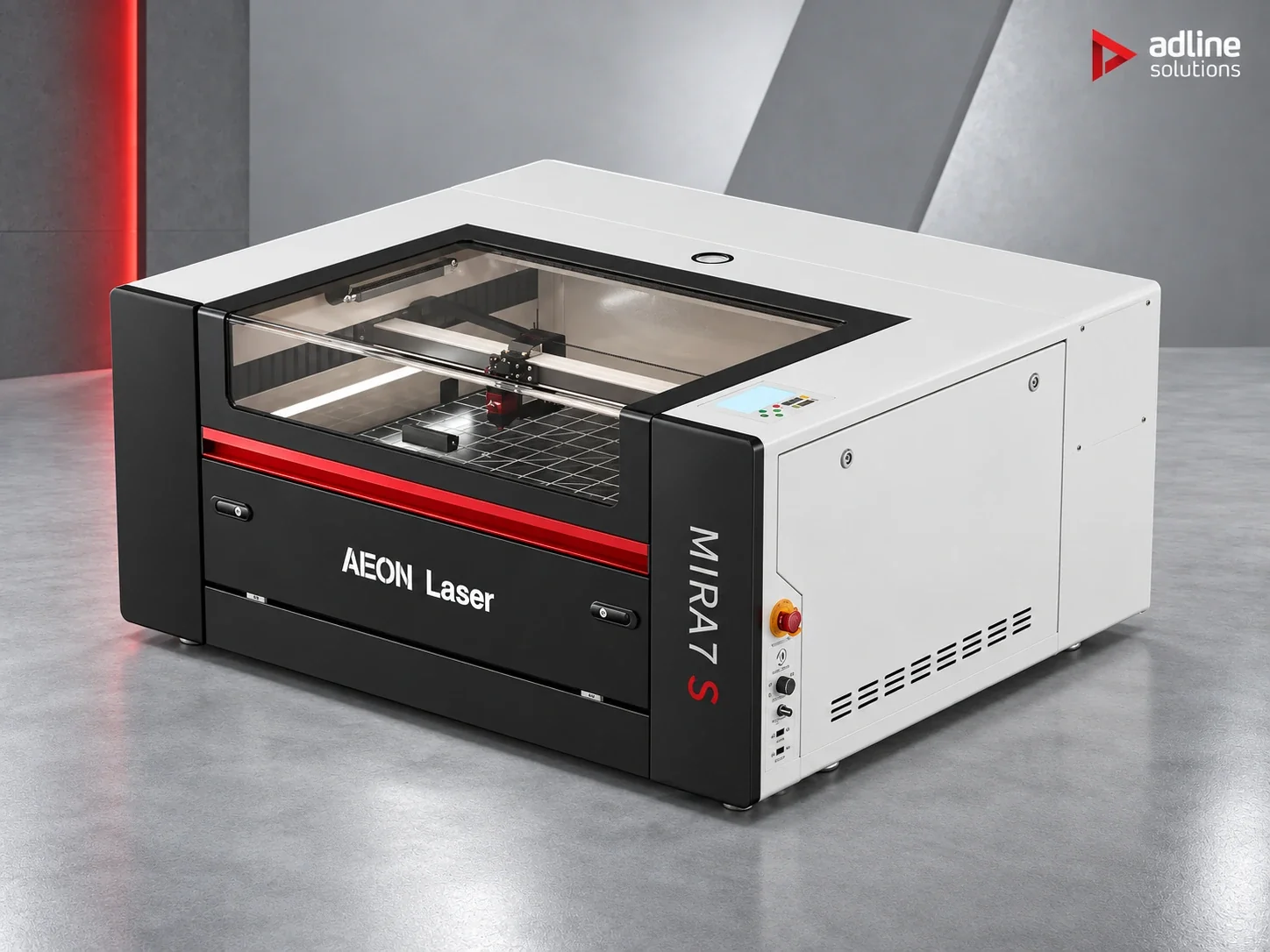

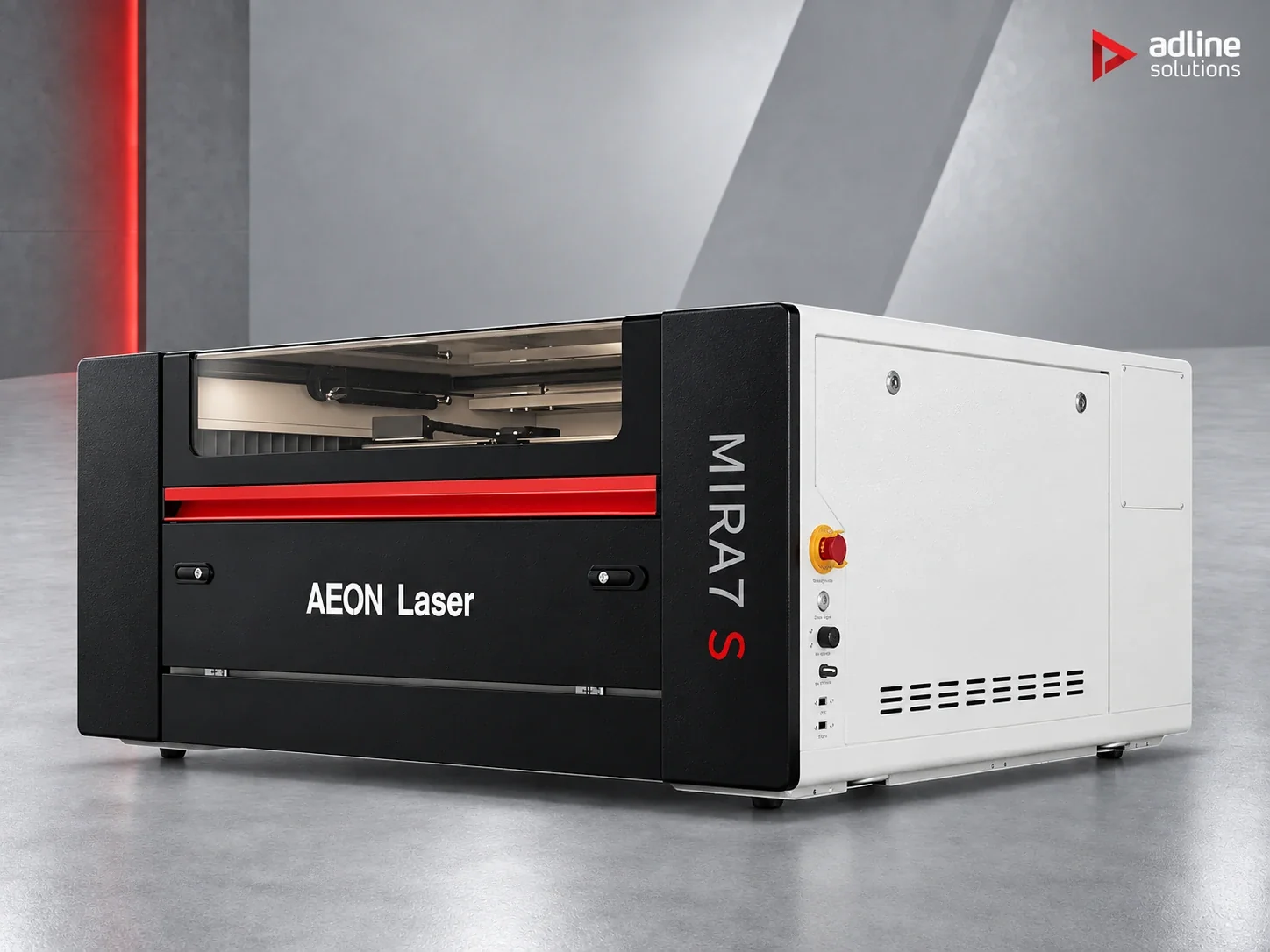

AEON Mira7 S
The Mira7 S is the mid-size machine of the Redline desktop family. The 700 × 500 mm bed takes a full sheet of small-format acrylic or ply, and the Smart Panel adds on-machine diagnostics and job control that the smaller Mira5 S does not carry.
Source choice
Glass 45 W, 60 W or 80 W for cutting; RF 30 W or 60 W for engraving at up to 4,000 mm/s with a 1 × 1 mm minimum font. Both sources are current options, chosen by the work you do rather than by generation.
Production details
Air assist is integrated at 85 W with automatic start and stop, so it runs only while the head is firing, and the 75 W inline exhaust is integrated too. The 90° 5 MP camera and AutoFocus make repeat jobs a matter of loading the material and pressing start.
Extraction
Plan extraction with the machine — see our fume extraction units for laser and CNC.
AEON Mira7 S
The Mira7 S is the mid-size machine in AEON’s Redline desktop family: a desktop CO₂ laser with a 700 × 500 mm work area and a choice of Glass or RF source. A larger working area with integrated systems and on-machine diagnostics.
MIRA7 S / ENGINEERED FOR YOUR WORKSPACE
Built around the work.
A closer look at the design, components and details that make everyday production simpler.
- 700 × 500 mm
- work area
- 140 mm
- Z-axis travel · 25 kg lift
- 90° 5 MP
- camera positioning
PERFORMANCE / YOUR CHOICE
Glass or RF: two current technologies.
Choose Glass for cost-effective cutting, or RF for a finer spot and faster detailed engraving. RF is not simply a newer Glass source: each technology is suited to different work.
30 W / 60 W · 8G acceleration
AC servo motors

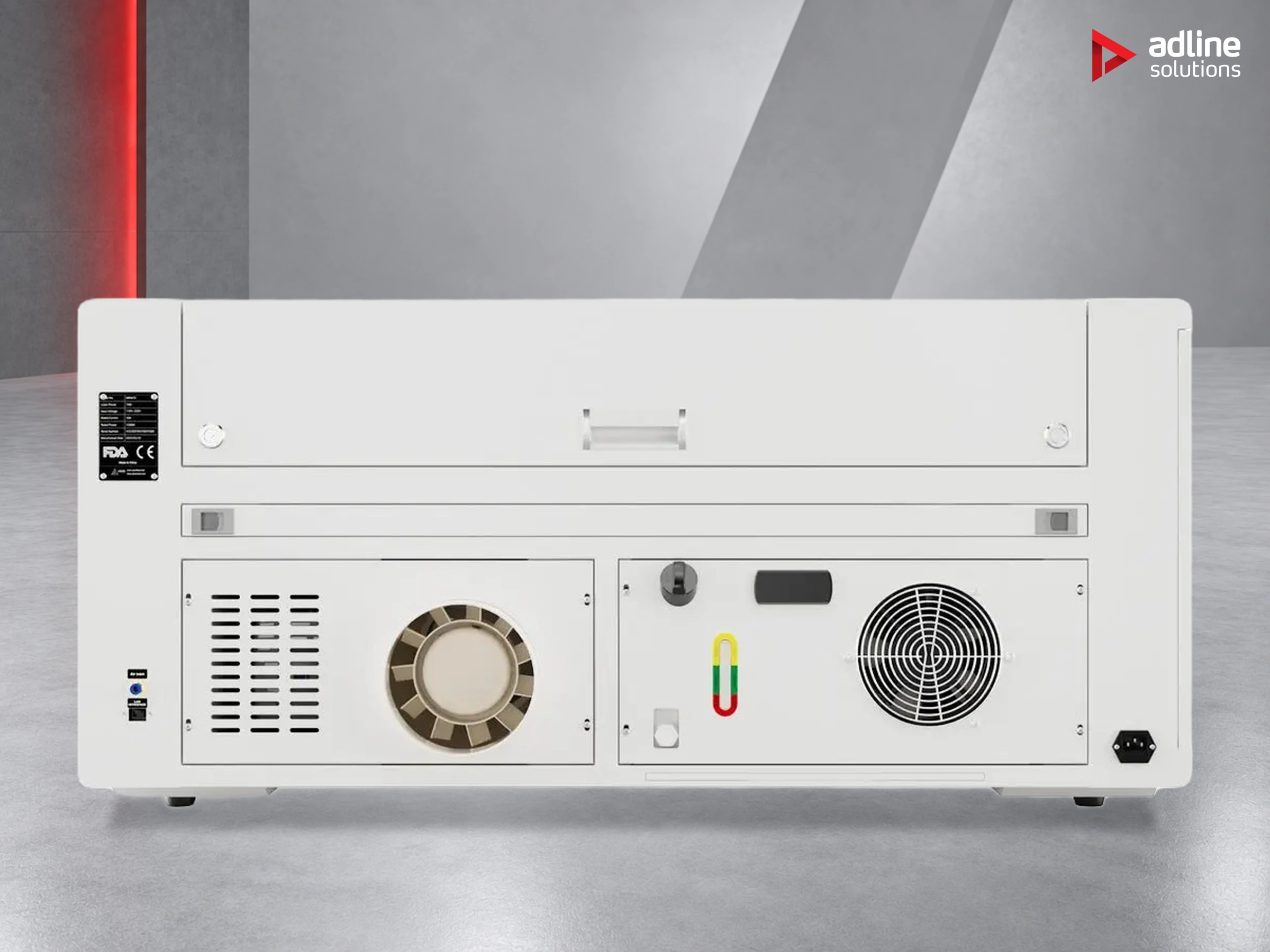

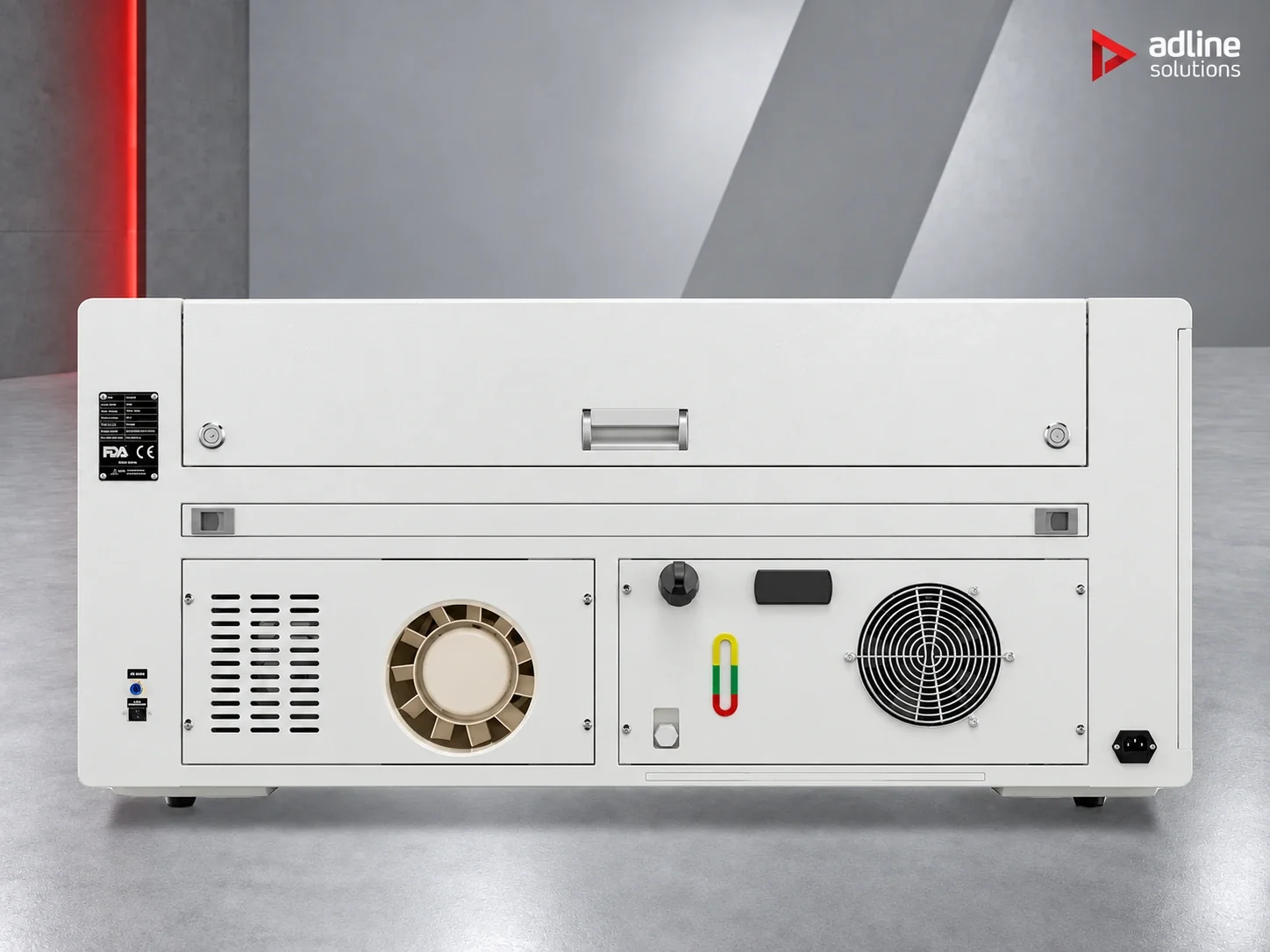

ALL-IN-ONE DESIGN
Built in, not bolted on.
Air assist and inline exhaust are integrated. The 90° 5 MP camera supports artwork positioning, while AutoFocus sets the working height. Cooling depends on the selected source.
- 01 · Air assist
- Integrated · 85 W
- 02 · Inline exhaust
- Integrated · 75 W
- 03 · Cooling
- Chiller 3000 for Glass · air-cooled RF source
Mira S family illustration. Component layout may vary by model and source configuration.
SMART MONITORING / MIRA7 S & MIRA9 S
Status and diagnostics at the machine.
The Smart Panel monitors operation and provides immediate visual and audible fault alerts for faster checks.
PRECISION / EASY ACCESS
Less realignment. More time creating.
The optical system simplifies replacement of the laser tube, mirror and lens while reducing optical-path realignment work.
−90%fewer optical path alignment operations, according to the AEON brochure.
MAGNETIC LENS HOLDER
Snap off. Clean. Snap on.
The magnetic holder makes the lens easy to remove and refit—a small detail that makes routine maintenance more convenient.
CLEAN PACK DESIGN
Protection built into the details.
Fully enclosed guides help protect the motion system and optical path from dust, reducing maintenance frequency.
FLEXIBILITY / EVERYDAY WORK
Different projects. The same workspace.
A table that adapts.
Use the honeycomb or slat table to suit the job, with a flat surface for mounting jigs.
Space for longer pieces.
The pass-through opening accommodates longer stock; the processing area remains 700 × 500 mm.
Detail photographs illustrate the Mira S family and may show a different family model.
PLAN YOUR WORKSPACE
Extraction and material safety.
CO₂ cutting and engraving produce fumes. Use suitable extraction and process only materials explicitly approved for laser use. PVC must not be laser processed; extraction does not make an unsuitable material safe.
Plastics, rubber and composites must be verified by exact grade and safety documentation before processing.
Explore fume extraction units for laser and CNC →Technical specifications
Work area
- Work area
- 700 × 500 mm
- Z travel
- 140 mm
- Max. Z load
- 25 kg
Laser source
- Glass laser tube
- 45 W / 60 W / 80 W
- RF laser tube
- 30 W / 60 W
Speed & motion
- Engraving speed (Glass)
- 1,200 mm/s
- Engraving speed (RF)
- 4,000 mm/s
- Acceleration (Glass)
- 5G
- Acceleration (RF)
- 8G
- Motors (Glass)
- DC stepper
- Motors (RF)
- AC servo
- Minimum font (RF)
- 1.0 × 1.0 mm
- Positioning accuracy
- ≤ 0.1 mm
Cooling & air
- Chiller
- Integrated Chiller 3000 (Glass source)
- RF source cooling
- Air-cooled
- Air assist
- Integrated, 85 W, automatic start/stop
- Exhaust
- 75 W inline, integrated
Table & optics
- Table
- Honeycomb + slat
- AutoFocus
- Yes
- Camera
- 90° · 5 MP (2592 × 1944)
Control & connectivity
- Smart Panel
- Yes
- Internal memory
- 1 G
- WiFi
- Yes
Dimensions & weight
- Packed dimensions
- 1128 × 945 × 510 mm
- Net weight
- 180 kg
- Gross weight
- 230 kg
Software
- Operating software
- RDWorks / LightBurn (optional)
- Design software
- CorelDraw / Illustrator / AutoCAD
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Professional engraving workshops, signage, medium-volume personalisation, larger acrylic and wood cutting.
Series
Mira S
Frequently asked questions
What is the Mira7 S for?
It is the mid-size desktop machine of the Redline family, for engraving and cutting. The 700 × 500 mm work area takes a full sheet of small-format acrylic or ply, and the Smart Panel gives you diagnostics and job control on the machine itself.
Which laser source should we choose?
It depends on the work. Glass, at 45 W, 60 W or 80 W, is the cutting source and engraves at 1,200 mm/s. RF, at 30 W or 60 W, engraves at up to 4,000 mm/s with a 1 × 1 mm minimum font. Both are current options, chosen by the job rather than by generation. Tell us what you cut and engrave most, and we will recommend the source and power.
What changes between the Glass and RF versions?
Besides the tube, the motion and cooling. Glass versions use DC stepper motors with 5G acceleration and the integrated Chiller 3000; RF versions use AC servo motors with 8G acceleration and an air-cooled tube. Work area, Z travel, overview camera, AutoFocus, Smart Panel, air assist and exhaust are common to all five variants.
How much height and weight does the bed take?
Z travel is 140 mm and the maximum Z load is 25 kg, over a 700 × 500 mm work area. The table swaps between honeycomb and slats for engraving or cutting, and AutoFocus sets the height for each material thickness.
How do the air assist and exhaust work?
Both are integrated. The 85 W air assist starts and stops automatically, so it runs only while the head is firing, and the 75 W inline exhaust is built into the machine. Plan an extraction unit together with the machine; we can recommend one for your materials.
How are jobs set up and stored?
The 90° 5 MP overview camera (2592 × 1944) shows the material on screen for placing the job, and AutoFocus sets the height; it is not a CCD camera for contour-cutting printed work. The Smart Panel gives job control on the machine, with 1 G of internal memory and WiFi. Operating software is RDWorks, with LightBurn as an option; designs come from CorelDraw, Illustrator or AutoCAD.
What do we need on site?
Room and a strong base for a 180 kg machine. It ships packed at 1128 × 945 × 510 mm and 230 kg gross, so plan how it will be moved in at delivery. The chiller for the Glass source is integrated, so no external cooling unit is needed. We confirm the electrical supply and recommend extraction with your quote.
