45 W / 60 W · 5G acceleration
DC stepper motorsAEON · Mira S
AEON Mira5 S
In stock: Glass 45 W, Glass 60 W, RF 30 W
- 500 × 300 mm work area in a true desktop footprint
- Integrated Chiller 3000 — no external cooling unit
- Glass 45/60 W or RF 30/60 W source
- RF engraving up to 3,400 mm/s
- 160° 5 MP camera positioning and AutoFocus
- Integrated air assist and inline exhaust
The most compact machine in the AEON Redline range: 500 × 300 mm work area, integrated chiller and a choice of Glass or RF source.
Request a quoteWhich bed size and source? Read the guide- Wood & MDF
- Acrylic
- Glass
- Leather
- Paper
- Rubber
- Two-colour ABS
- Signage & advertising
Configurations
| Configuration | Differences | Availability |
|---|---|---|
| Glass 45 WIn stock | Laser source: Glass 45 W · Engraving speed: 1,200 mm/s | In stock |
| Glass 60 WIn stock | Laser source: Glass 60 W · Engraving speed: 1,200 mm/s | In stock |
| RF 30 WIn stock | Laser source: RF 30 W · Engraving speed: 3,400 mm/s | In stock |
| RF 60 WOn request | Laser source: RF 60 W · Engraving speed: 3,400 mm/s | On request |
About this machine
AEON Mira5 S

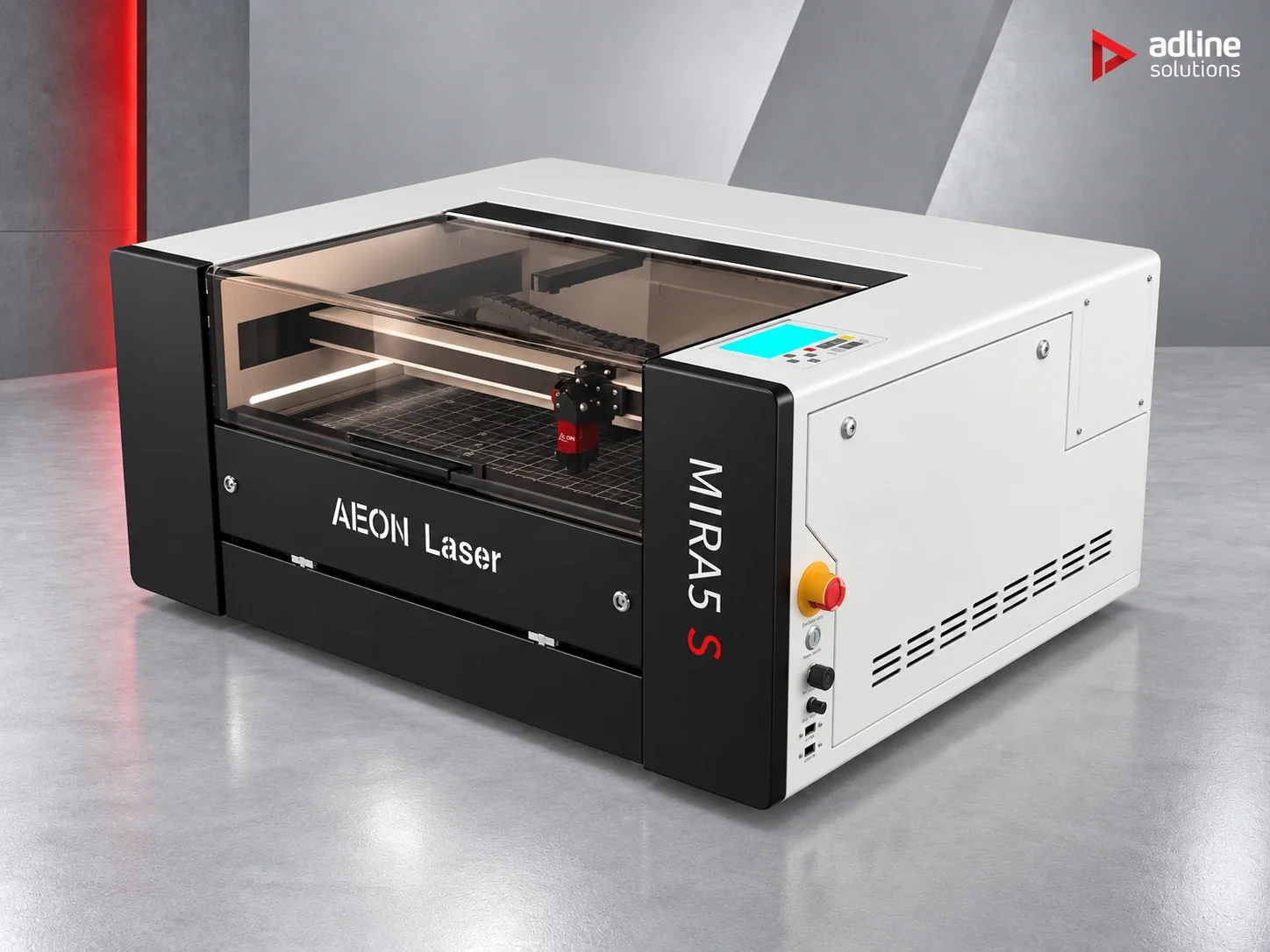

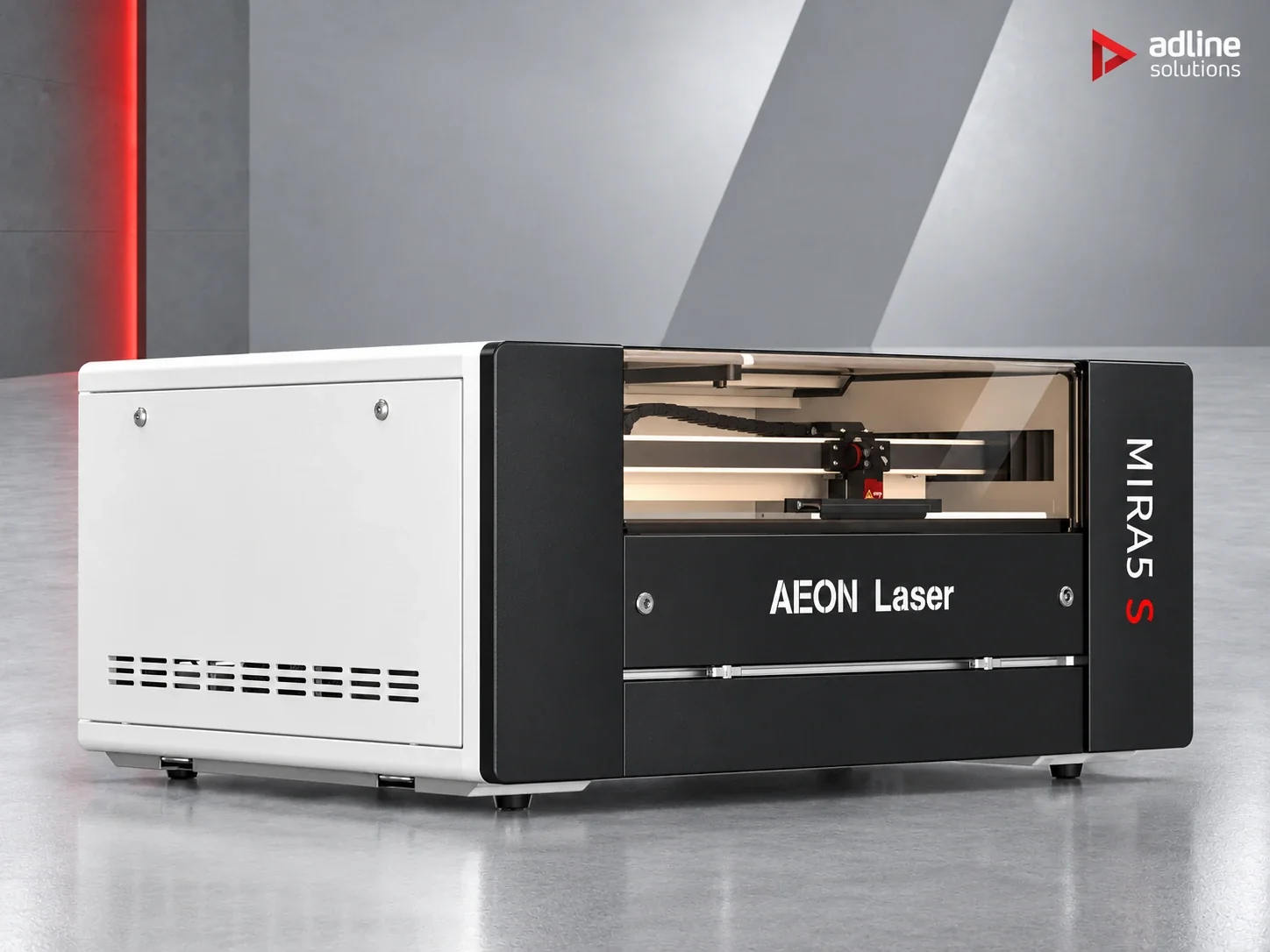

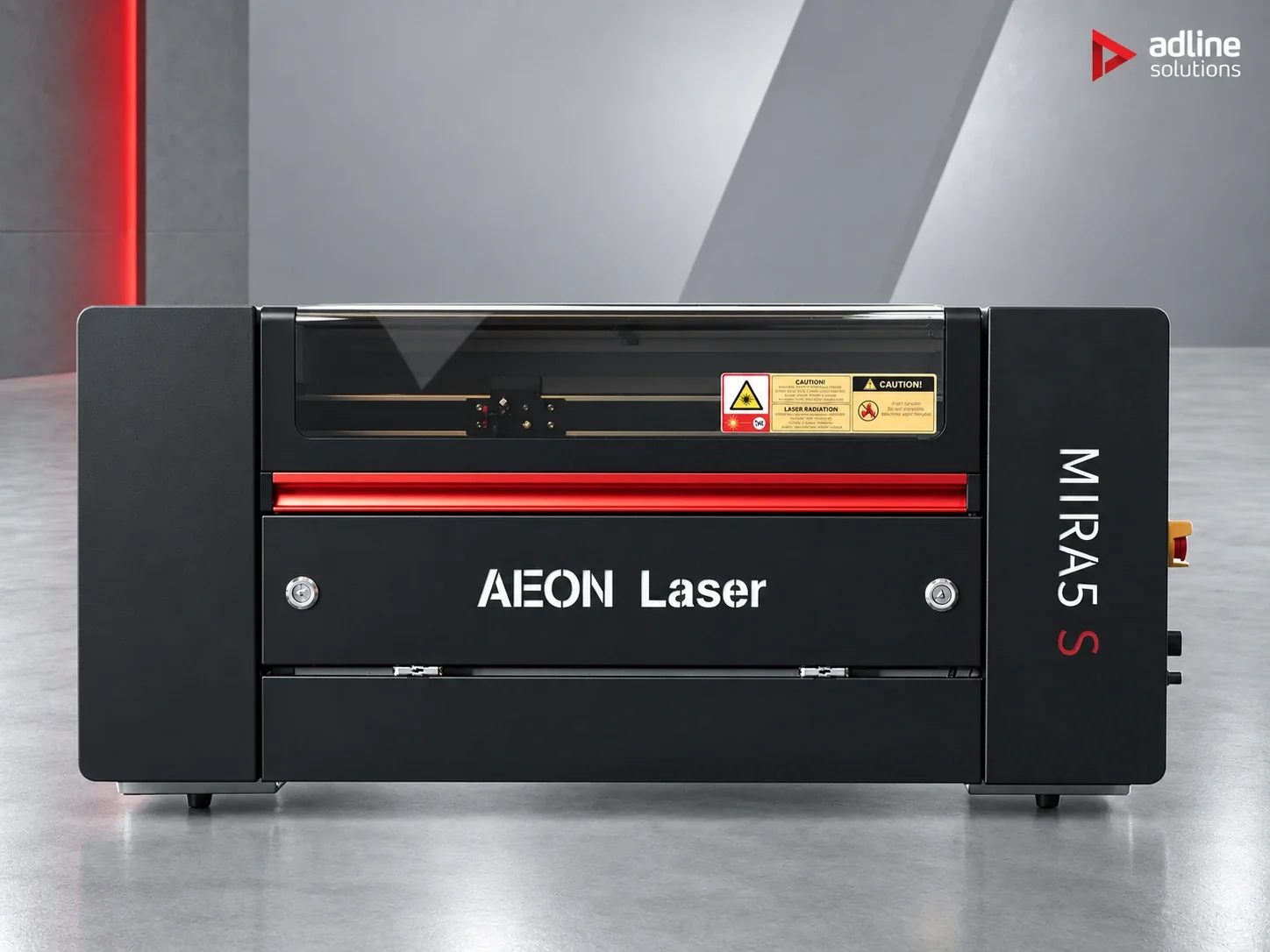

The Mira5 S is the smallest machine in AEON's Redline family — a desktop CO₂ laser with a 500 × 300 mm work area, an integrated chiller and a choice of Glass or RF source. It is built for studios that need professional engraving and cutting quality without dedicating a room to it.
Source choice
A Glass tube (45 W or 60 W) is the economical choice for cutting acrylic, wood and leather. An RF tube (30 W or 60 W) engraves at up to 3,400 mm/s with a far finer spot, which is what you want for photographic detail and small lettering. Both are current options — the RF is not simply a newer version of the Glass source, it is a different tool.
Built in, not bolted on
Chiller, air assist and camera are integrated. The 160° 5 MP camera places the job on the material on screen, AutoFocus sets the Z height, and the honeycomb and slat tables swap over for engraving or cutting.
Extraction
CO₂ cutting produces fume. Extraction is required for acrylic, ABS, rubber, leather and wood — see our fume extraction units for laser and CNC. Do not cut PVC or other chlorinated plastics on a CO₂ laser: the fume is harmful and corrodes the optics and the mechanics.
AEON Mira5 S
The Mira5 S is the most compact machine in AEON’s Redline family: a desktop CO₂ laser with a 500 × 300 mm work area and a choice of Glass or RF source. Professional engraving and cutting performance in a true desktop footprint.
MIRA5 S / ENGINEERED FOR YOUR WORKSPACE
Built around the work.
A closer look at the design, components and details that make everyday production simpler.
- 500 × 300 mm
- work area
- 140 mm
- Z-axis travel · 15 kg lift
- 160° 5 MP
- camera positioning
PERFORMANCE / YOUR CHOICE
Glass or RF: two current technologies.
Choose Glass for cost-effective cutting, or RF for a finer spot and faster detailed engraving. RF is not simply a newer Glass source: each technology is suited to different work.

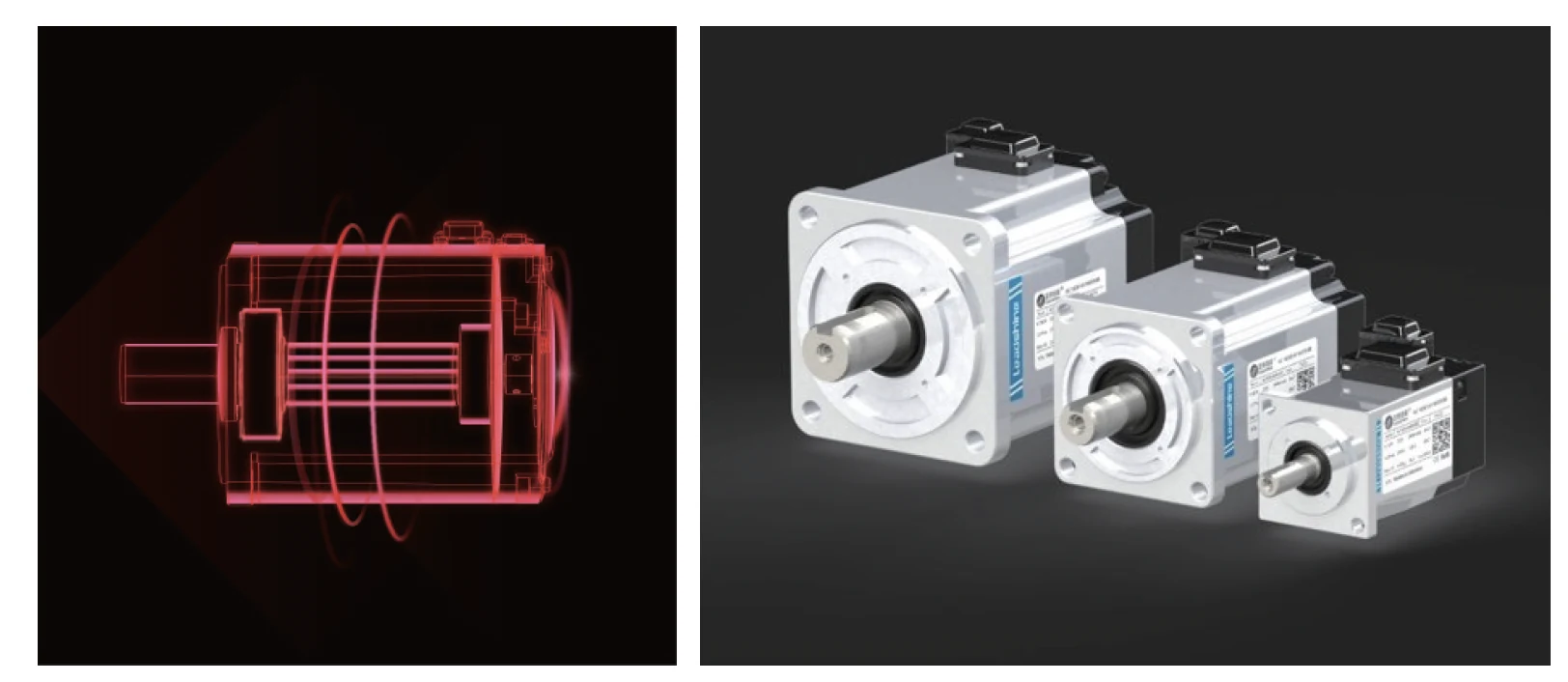

30 W / 60 W · 8G acceleration
AC servo motors
ALL-IN-ONE DESIGN
Built in, not bolted on.

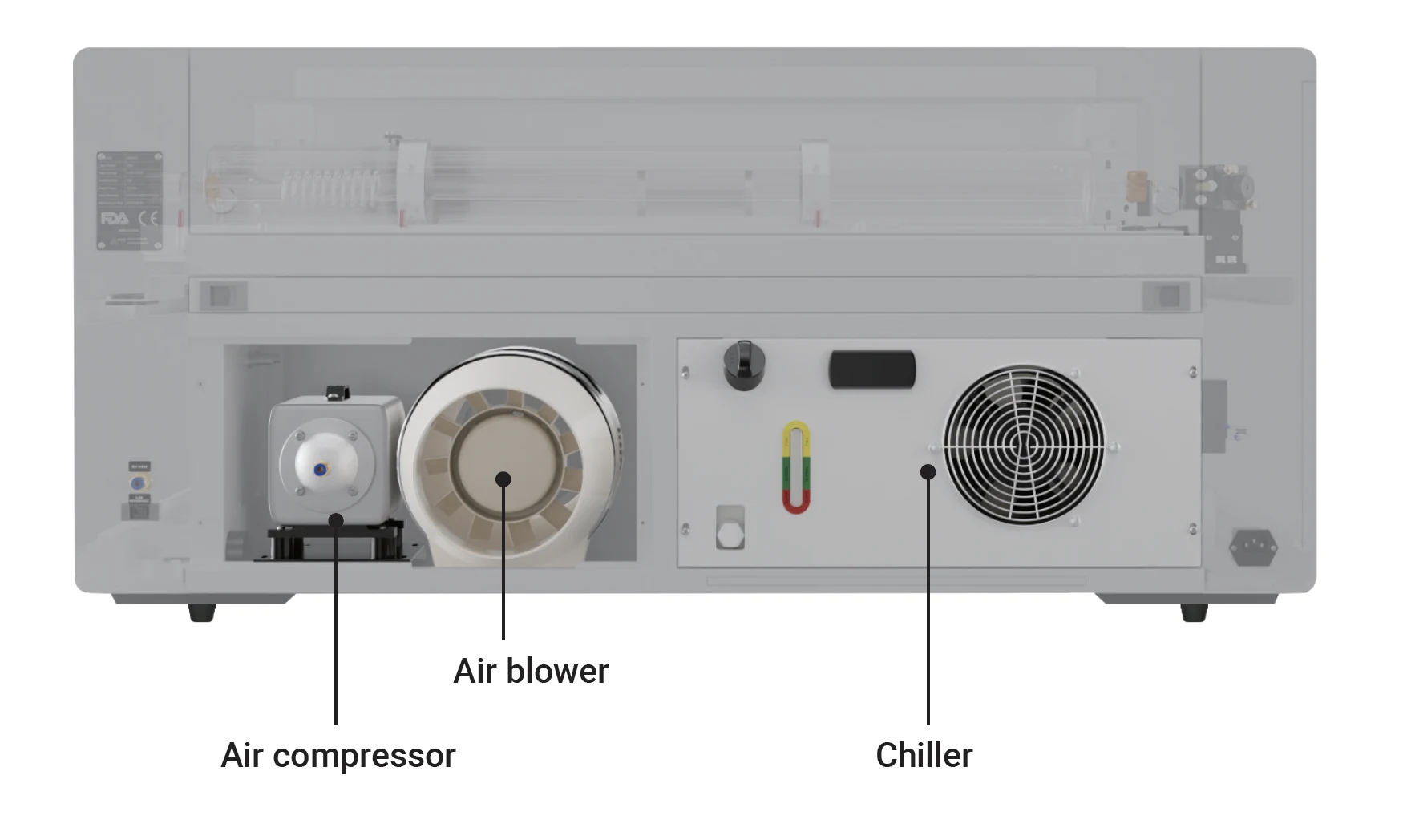

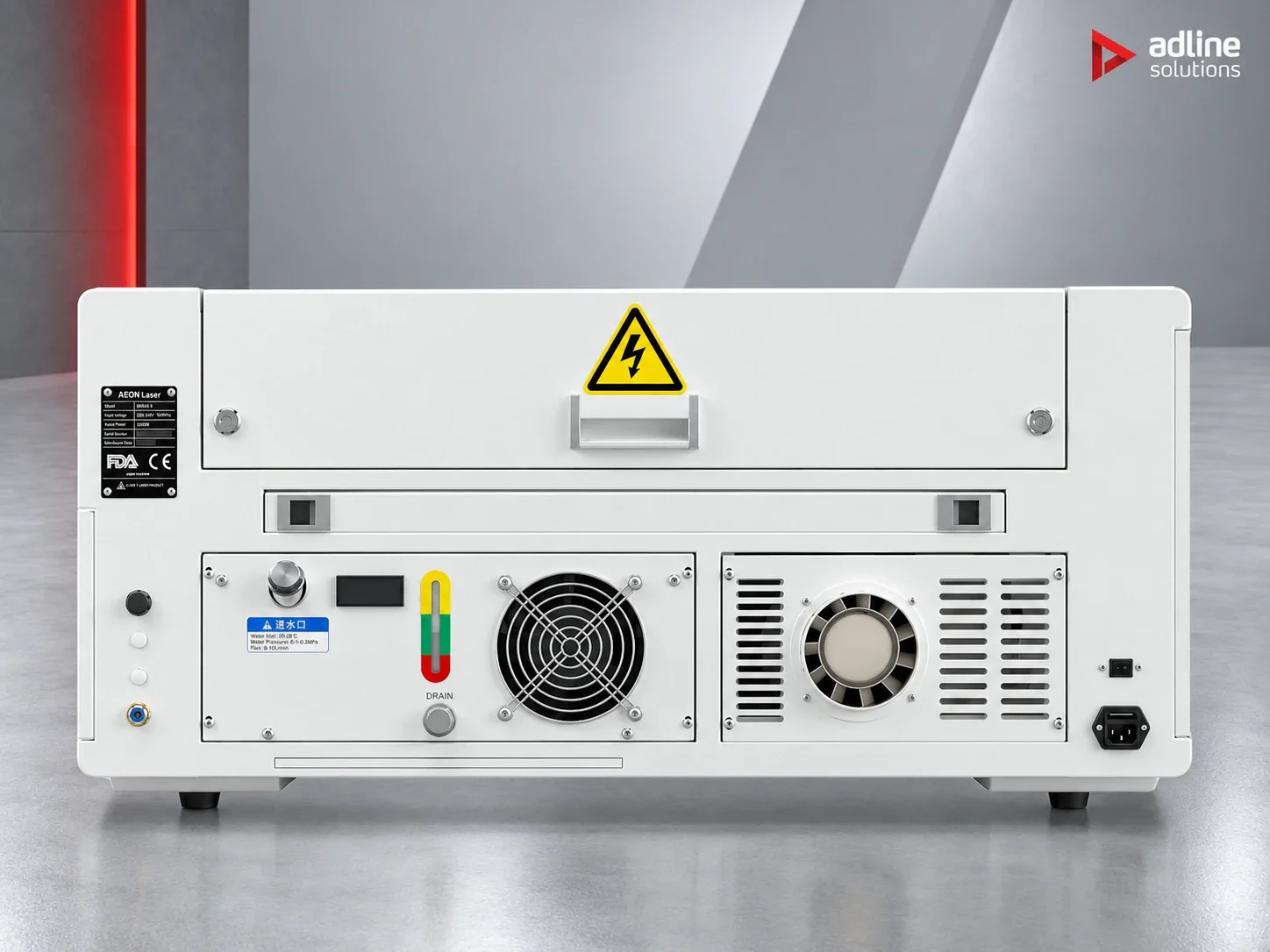

Air assist and inline exhaust are integrated. The 160° 5 MP camera supports artwork positioning, while AutoFocus sets the working height. Cooling depends on the selected source.
- 01 · Air assist
- Integrated · 45 W
- 02 · Inline exhaust
- Integrated · 60 W
- 03 · Cooling
- Chiller 3000 for Glass · air-cooled RF source
Mira S family illustration. Component layout may vary by model and source configuration.
PRECISION / EASY ACCESS
Less realignment. More time creating.

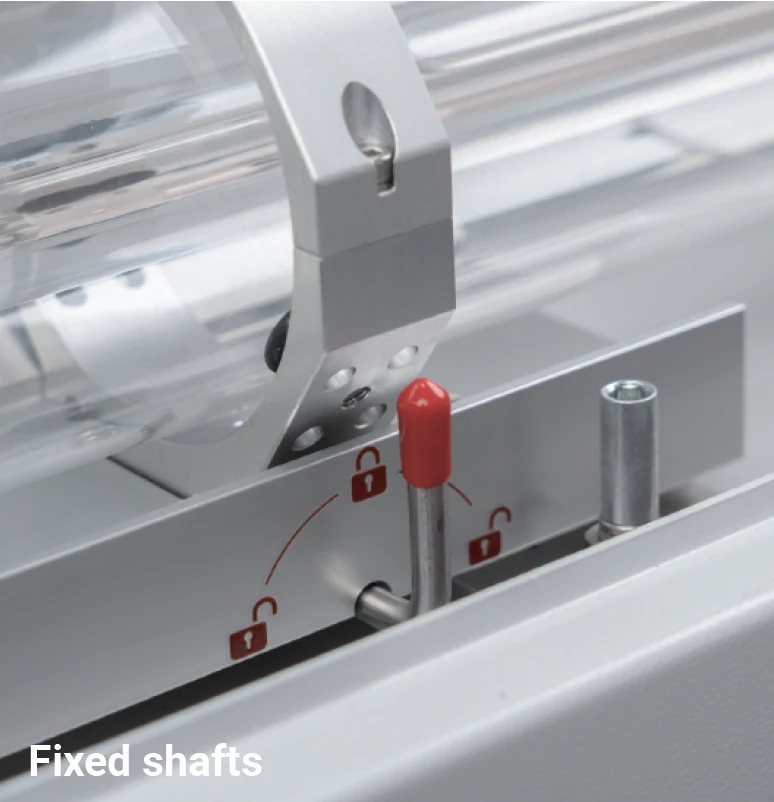

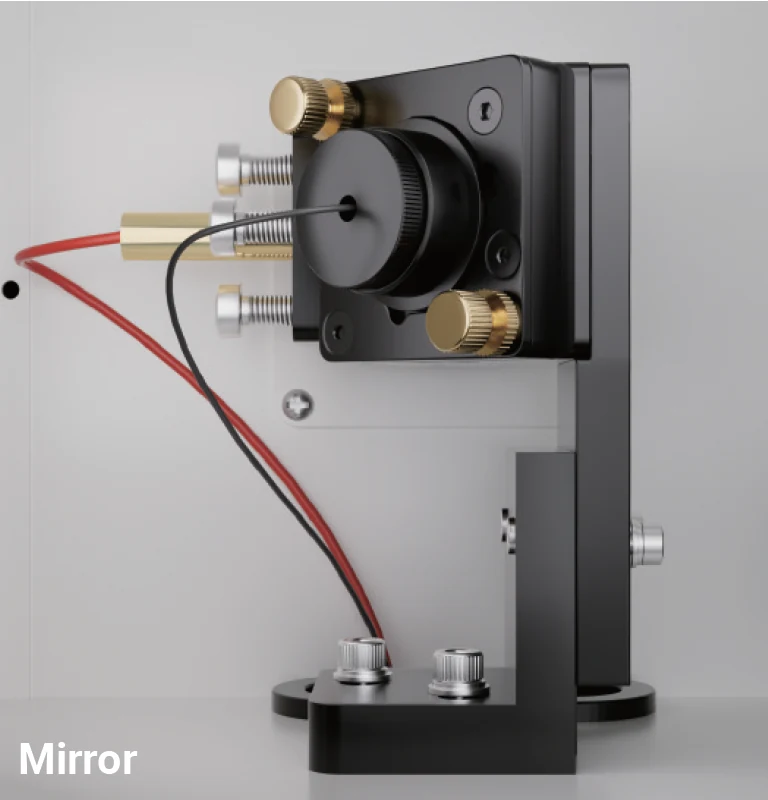

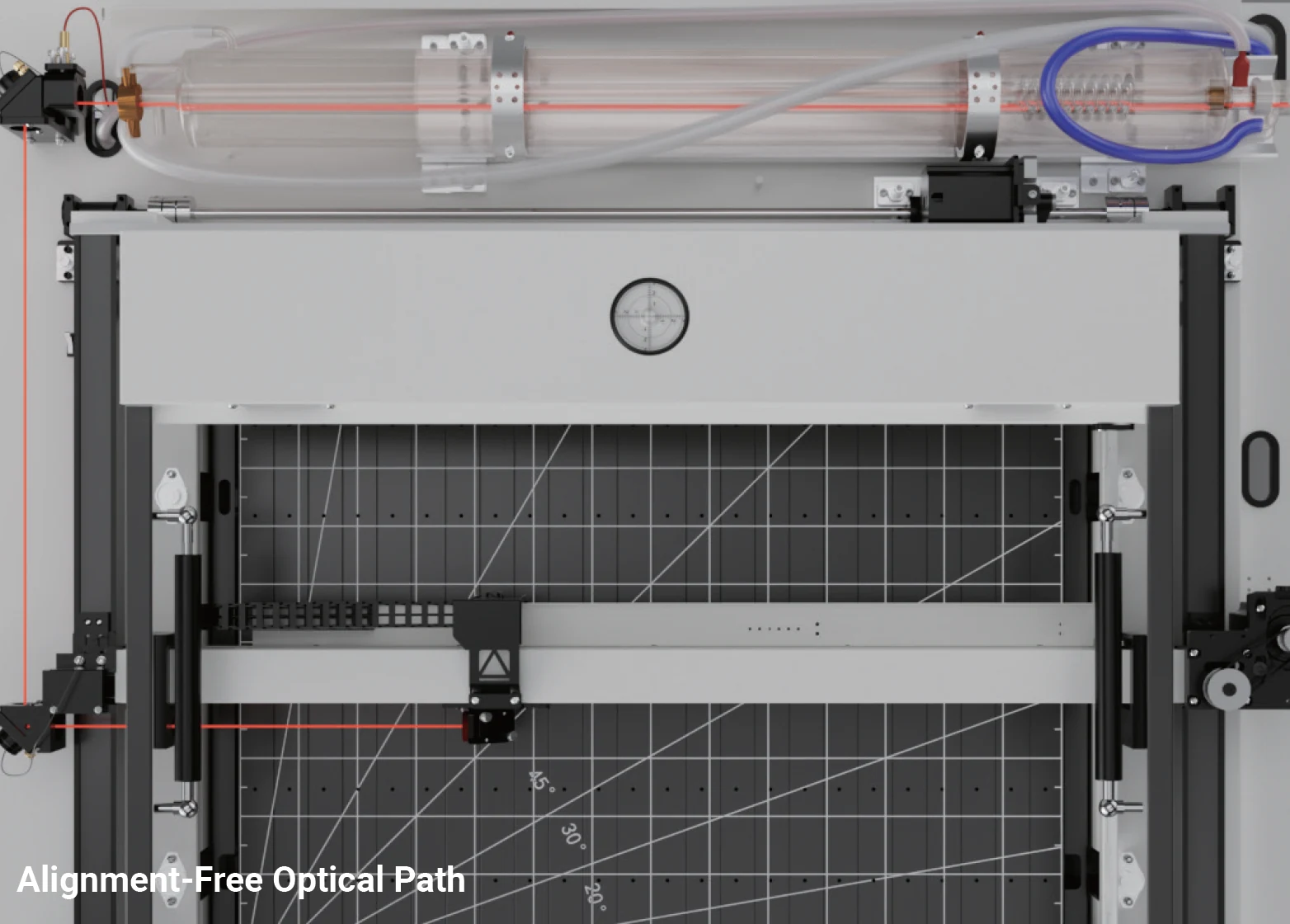

The optical system simplifies replacement of the laser tube, mirror and lens while reducing optical-path realignment work.
−90%fewer optical path alignment operations, according to the AEON brochure.

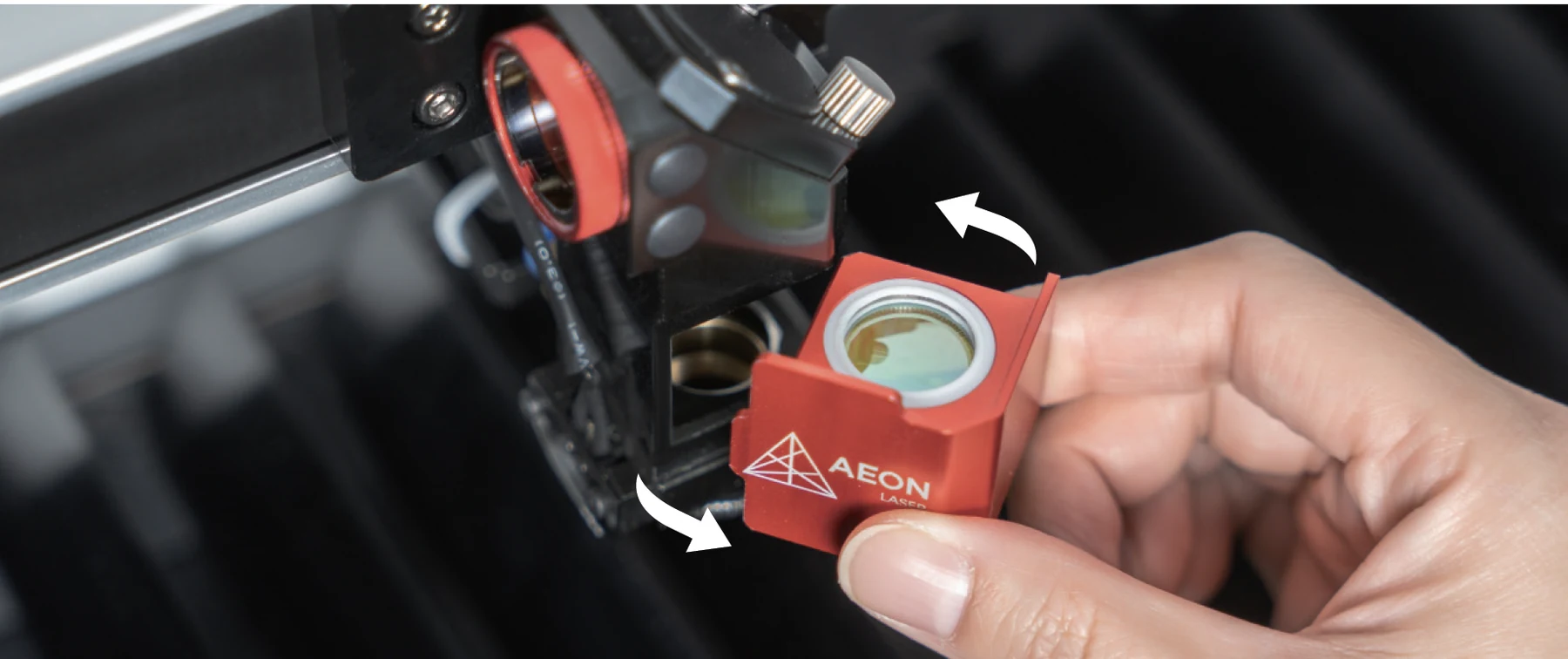

MAGNETIC LENS HOLDER
Snap off. Clean. Snap on.
The magnetic holder makes the lens easy to remove and refit—a small detail that makes routine maintenance more convenient.

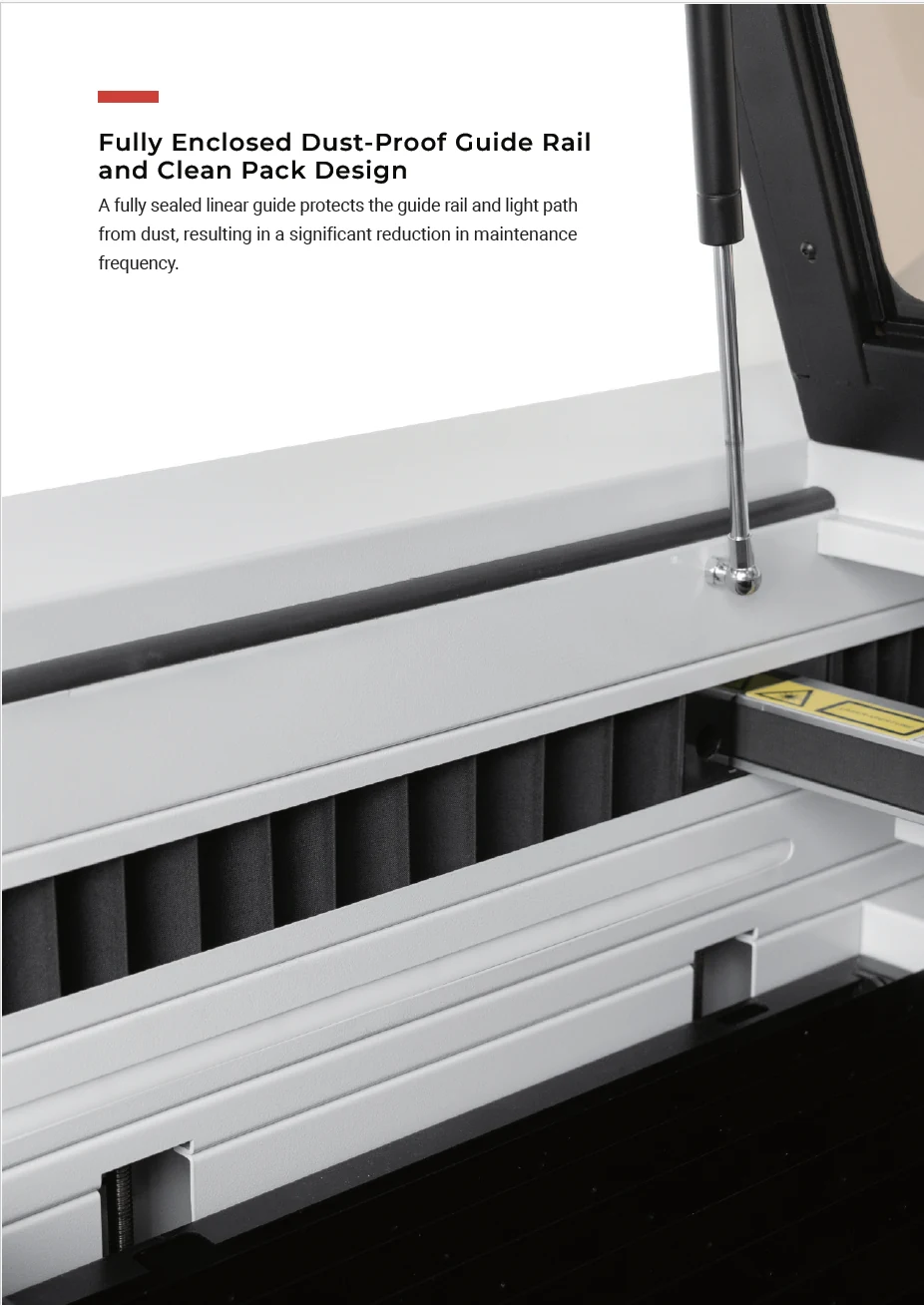

CLEAN PACK DESIGN
Protection built into the details.
Fully enclosed guides help protect the motion system and optical path from dust, reducing maintenance frequency.
FLEXIBILITY / EVERYDAY WORK
Different projects. The same workspace.

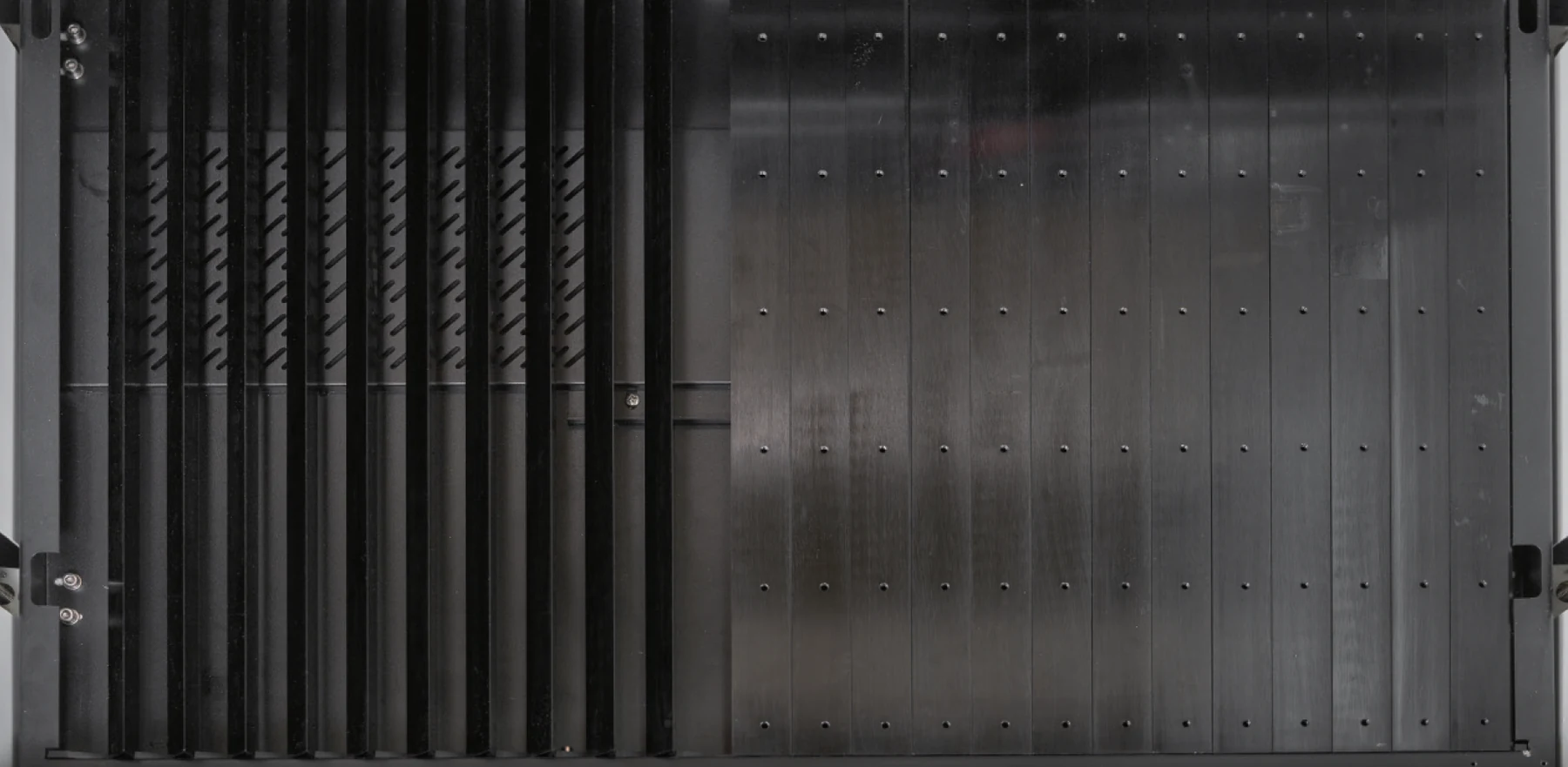

A table that adapts.
Use the honeycomb or slat table to suit the job, with a flat surface for mounting jigs.

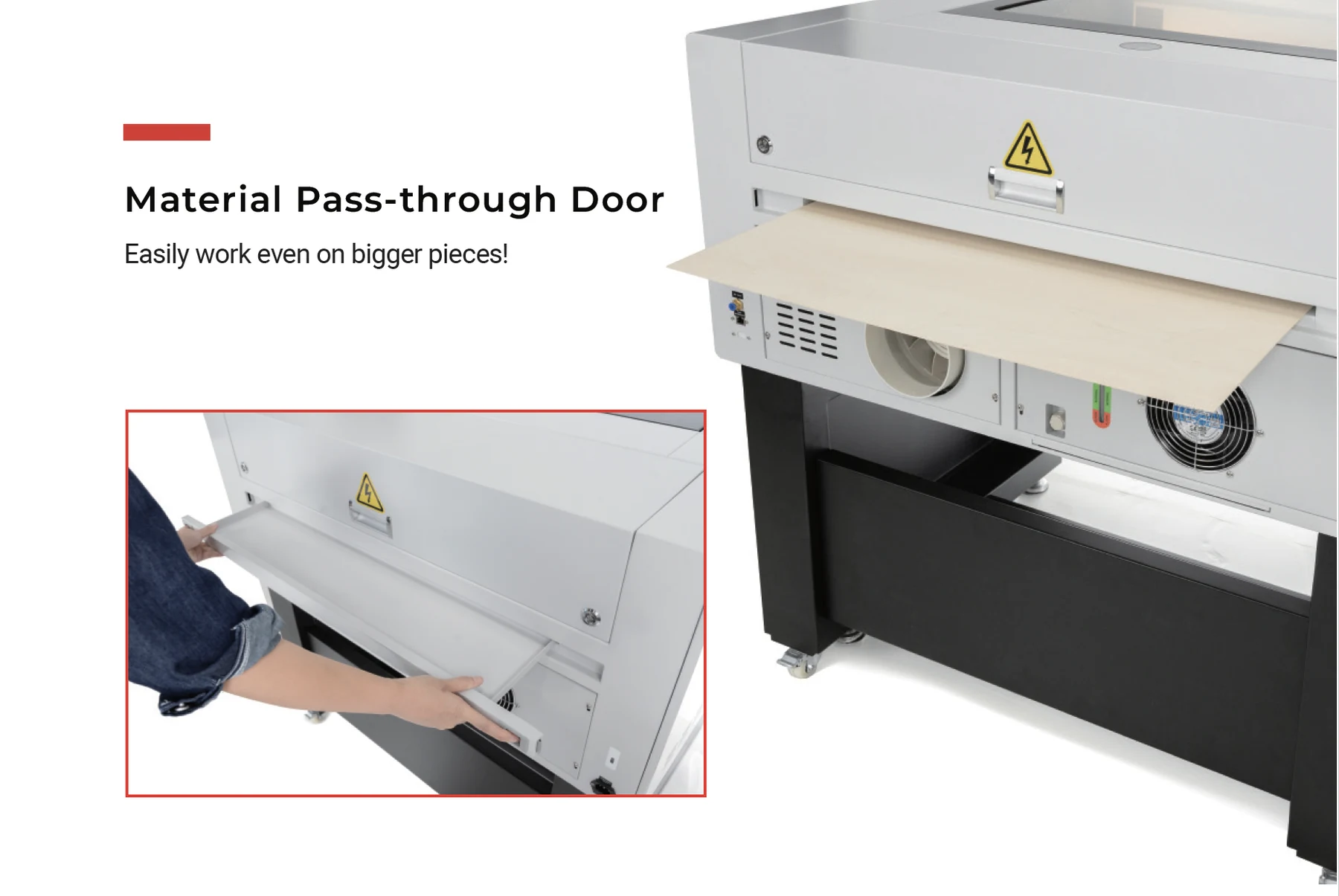

Space for longer pieces.
The pass-through opening accommodates longer stock; the processing area remains 500 × 300 mm.
Detail photographs illustrate the Mira S family and may show a different family model.
PLAN YOUR WORKSPACE
Extraction and material safety.
CO₂ cutting and engraving produce fumes. Use suitable extraction and process only materials explicitly approved for laser use. PVC must not be laser processed; extraction does not make an unsuitable material safe.
Plastics, rubber and composites must be verified by exact grade and safety documentation before processing.
Explore fume extraction units for laser and CNC →Technical specifications
Work area
- Work area
- 500 × 300 mm
- Z travel
- 140 mm
- Max. Z load
- 15 kg
Laser source
- Glass laser tube
- 45 W / 60 W
- RF laser tube
- 30 W / 60 W
Speed & motion
- Engraving speed (Glass)
- 1,200 mm/s
- Engraving speed (RF)
- 3,400 mm/s
- Acceleration (Glass)
- 5G
- Acceleration (RF)
- 8G
- Motors (Glass)
- DC stepper
- Motors (RF)
- AC servo
- Minimum font (RF)
- 1.0 × 1.0 mm
- Positioning accuracy
- ≤ 0.1 mm
Cooling & air
- Chiller
- Integrated Chiller 3000 (Glass source)
- RF source cooling
- Air-cooled
- Air assist
- Integrated, 45 W
- Exhaust
- 60 W inline
Table & optics
- Table
- Honeycomb + slat
- AutoFocus
- Yes
- Camera
- 160° · 5 MP (2592 × 1944)
Control & connectivity
- WiFi
- Yes
Dimensions & weight
- Packed dimensions
- 900 × 700 × 410 mm
- Net weight
- 110 kg
- Gross weight
- 125 kg
Software
- Operating software
- RDWorks / LightBurn (optional)
- Design software
- CorelDraw / Illustrator / AutoCAD
Specifications, images and descriptions are provided for general guidance and may change without notice. Configurations, performance figures and supplied items can vary by production batch and market. The binding specification, scope of supply and terms are those set out in the written quotation we issue for your order.
Application details
Recommended for
Creative studios, personalised gifts, engraving wood, acrylic, leather and paper, space-limited workshops.
Series
Mira S
Frequently asked questions
What is the Mira5 S for?
Engraving and cutting in a studio, on a desktop machine with a 500 × 300 mm work area. With the Glass source it cuts acrylic, wood and leather; with the RF source it engraves photographic detail and small lettering. Chiller, air assist and an overview camera for placing jobs are built in, so the machine does not need a dedicated room.
Glass or RF: which should we choose?
Choose by the work you do; RF is a different tool, not a newer version of Glass. Glass (45 W or 60 W) is the cutting source for acrylic, wood and leather and engraves at 1,200 mm/s. RF (30 W or 60 W) engraves at up to 3,400 mm/s with a far finer spot and a 1.0 × 1.0 mm minimum font. Within each source the variants differ only in tube power, so send us your materials and thicknesses and we will recommend the power.
Does the source change anything else on the machine?
Yes. The Glass versions run DC stepper motors at 5G acceleration and are cooled by the integrated Chiller 3000. The RF versions run AC servo motors at 8G acceleration, and the RF tube is air-cooled. The work area, 140 mm Z travel, overview camera, AutoFocus, honeycomb and slat tables, air assist and exhaust are the same on all four variants.
How large and heavy a piece can it take?
The work area is 500 × 300 mm, with 140 mm of Z travel and a maximum Z load of 15 kg. AutoFocus sets the Z height for each thickness, and the honeycomb and slat tables swap over depending on whether you are engraving or cutting.
How do we place a job on the material?
On screen. The integrated 160° overview camera (5 MP, 2592 × 1944) shows the material in the machine, so you drop the design where the piece actually lies and AutoFocus sets the height. It is a camera for placing jobs, not a CCD camera for contour-cutting printed work. Positioning accuracy is ≤ 0.1 mm, and the machine has WiFi.
Which software does it run with?
The operating software is RDWorks, with LightBurn available as an option. Designs are prepared in CorelDraw, Illustrator or AutoCAD. If your artwork comes from another program, send us a sample file and we will check how it transfers before you order.
What do we need on site?
A solid desk or bench for a 110 kg machine; it arrives packed at 900 × 700 × 410 mm and 125 kg gross. Cooling, a 45 W air assist and a 60 W inline exhaust are integrated, but if you process PVC, ABS, polycarbonate, rubber or composites you also need fume extraction. We confirm the electrical supply requirements with your quote.
