Printing — inkjet, UV & sublimation
Ink aerosol, solvent vapour and odour
Applications
- Inkjet
- Sublimation
- UV printing
- VOC & odour
About this range

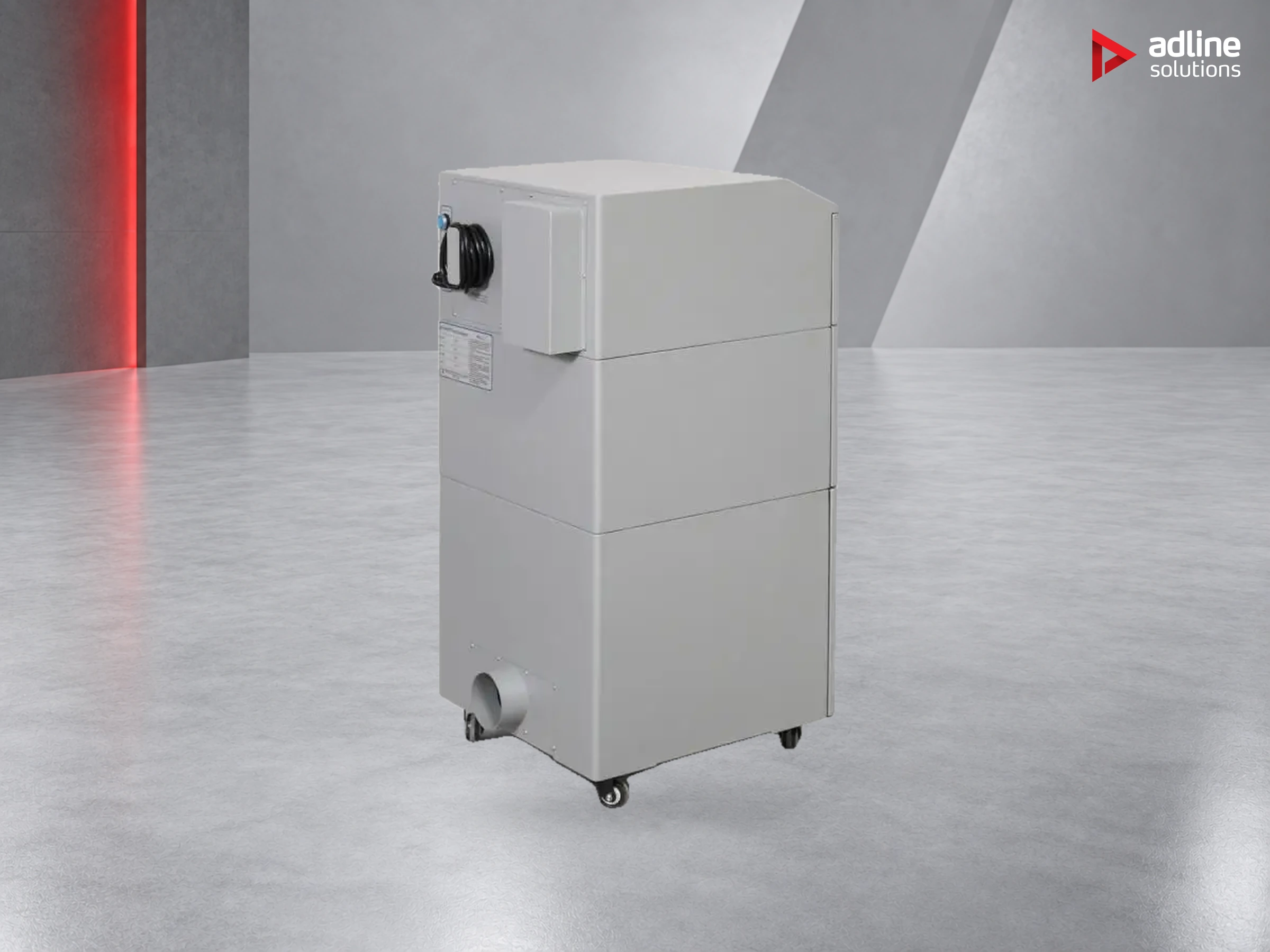

Printing produces ink aerosol, solvent vapour and odour rather than dust — and wet aerosol ruins the pleated media of a standard dust extractor. The FVS series puts a washable open-cell foam stage in front of the F9, HEPA H14 and carbon stages, so the aerosol is caught before it reaches anything it can damage.
PPS — standard control
models without the “i” suffix
- Start / stop, speed steps
- Filter replacement warning
- Colour LCD screen (from 15.09.2026)
PIPS — intelligent control
the “i” models · everything on the left, plus:
1 240 m³/h
−8 600 Pa at the inlet
filter life 65%
- Airflow held steady as the filter loads
- Air-quality sensors with alarm thresholds
- I/O and RS-485 — starts with the machine
Both are current models. PIPS earns its place where the unit runs unattended, feeds a line, or has to prove it is working.
| What you process | Series | Why that one |
|---|---|---|
| Acrylic, paper, leather, textiles, resin 3D | FS | F9 pleated pre-filter |
| Wood, plywood, MDF | FGS | PTFE cartridge — sticky dust releases |
| Carbon fibre, composites, laser cleaning | DFS | Flame retardant cartridge, antistatic duct |
| Laser marking and coding | F · DS | Sub-micron fume, carbon for odour |
| Metal — one station (weld, drill, AM) | D compact | Up to 10 000 Pa at the nozzle |
| Metal — a full cutting bed | D industrial | Volume plus self-cleaning cartridges |
| Aluminium, magnesium, titanium | DE — explosion-proof | Combustible dust — required, not an upgrade |
| UV, inkjet, sublimation printing | FVS | Foam stage catches wet ink aerosol |
Then size it: the machine bed decides the airflow — 30×40 cm needs 300 m³/h, 130×250 cm needs 2400 m³/h.
Frequently asked questions
Can filters be washed and reused?
The foam aerosol stage is washable and should be checked weekly on a high-volume machine. HEPA and PTFE-coated elements cannot: washing destroys the filter structure. Only sintered metal elements can be cleaned, and only a limited number of times.
Where does the filtered air go?
Back into the room. The mobile units are recirculating, so there is no duct to the outside and no heated air thrown away in winter. The central industrial units are ducted to the machine enclosure and need a compressed-air line for their self-cleaning cartridges.
What maintenance does it need day to day?
Check the element is seated and sealed before running. When the blockage alarm shows, replace it then — running on past it pushes fume into the fan and the control board, which turns a filter change into a repair.
