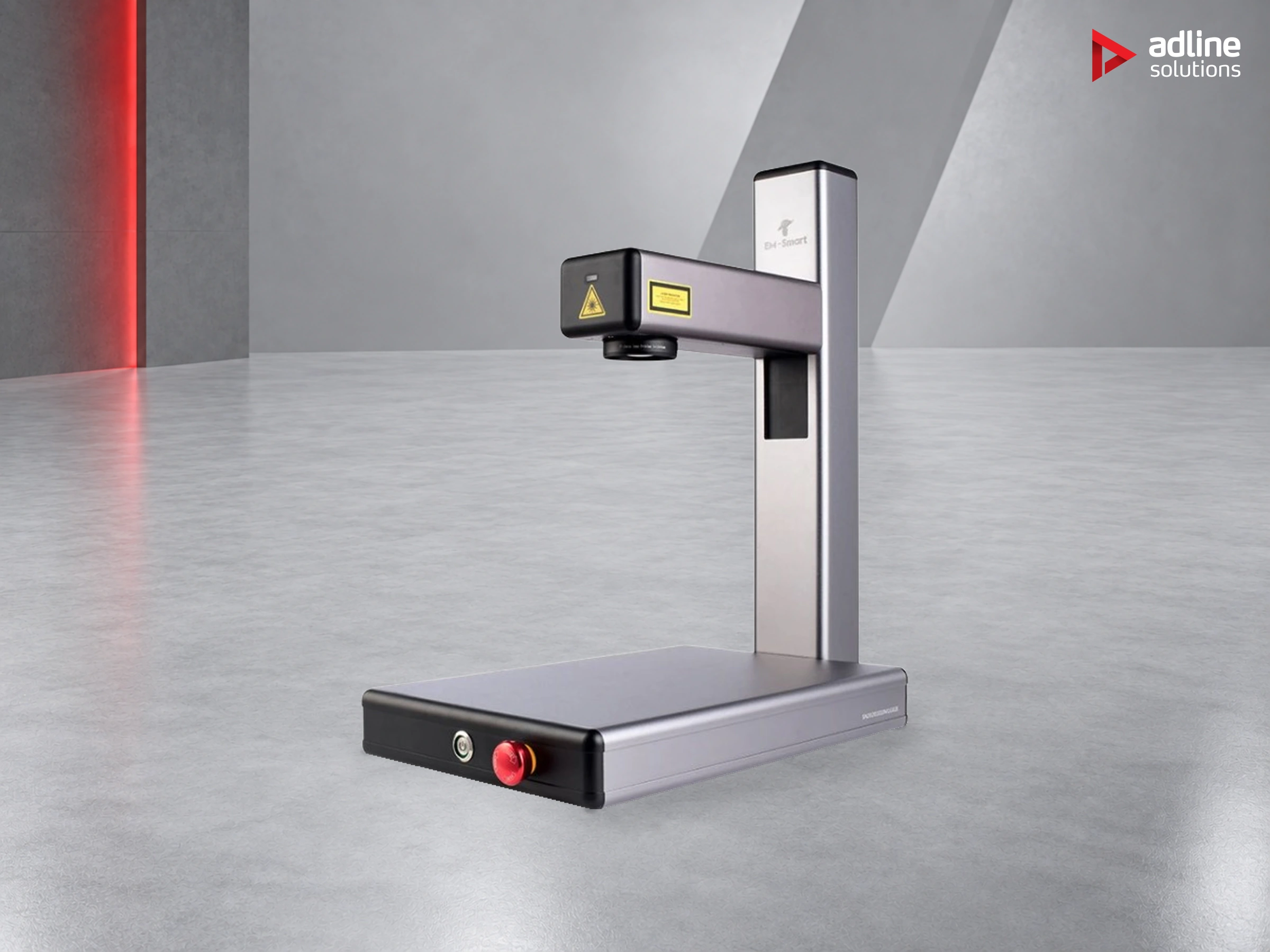

EM-Smart 20W Fibre Laser Marking Machine
SKU EM-SMART-20W · On request
- 20 W Raycus source
- 110 × 110 mm marking field
- Air cooling and USB control
Compact 20 W Raycus fibre laser marker for metals and selected hard plastics, with a 110 × 110 mm marking field and USB control.
Request a quoteAbout this machine
Compact fibre laser marking
EM-Smart combines a 20 W Raycus source with a compact, air-cooled design for marking metals and selected hard plastics. Dedicated software controls the machine from a PC or laptop via USB. Its 10 kg body fits on a workbench.
An online UPS is optional.
Technical specifications
Laser
- Source
- Raycus
- Power
- 20 W
- Wavelength
- 1064 nm
- Frequency
- 30–60 kHz
Performance
- Marking speed
- <7000 mm/s
- Accuracy
- ±0.01 mm
- Minimum character size
- 0.1 mm
Working area
- Marking field
- 110 × 110 mm
Power & environment
- Cooling
- Air
- Operating temperature
- 15–35 °C
- Supply
- 110–240 V, 50–60 Hz
- Consumption
- <120 W
Dimensions & weight
- Net weight
- 10 kg
- Dimensions
- 260 × 440 × 505 mm
Application details
Type
Machine
